IPS Full Viewing Angle TFT Color LCD Display Module Bar Type,A

IPS Full Viewing Angle TFT Color LCD Display Module Bar Type,A Description

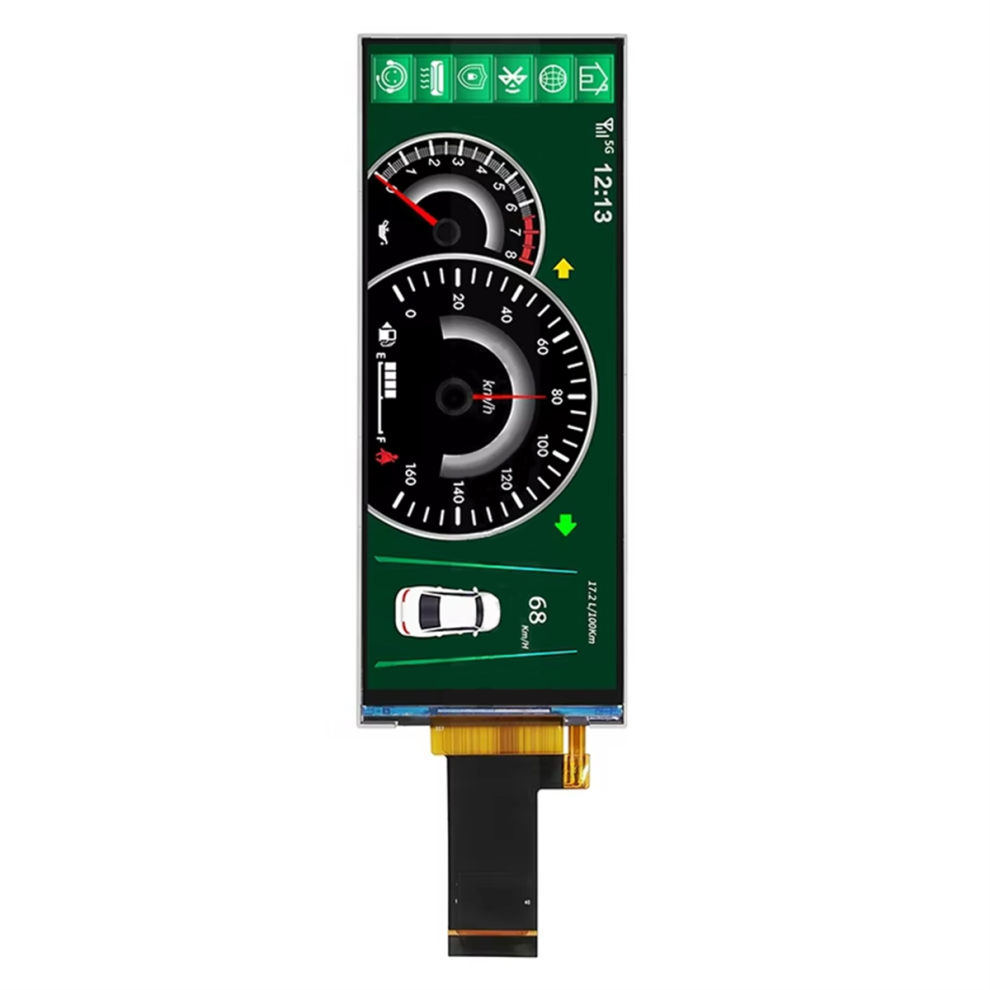

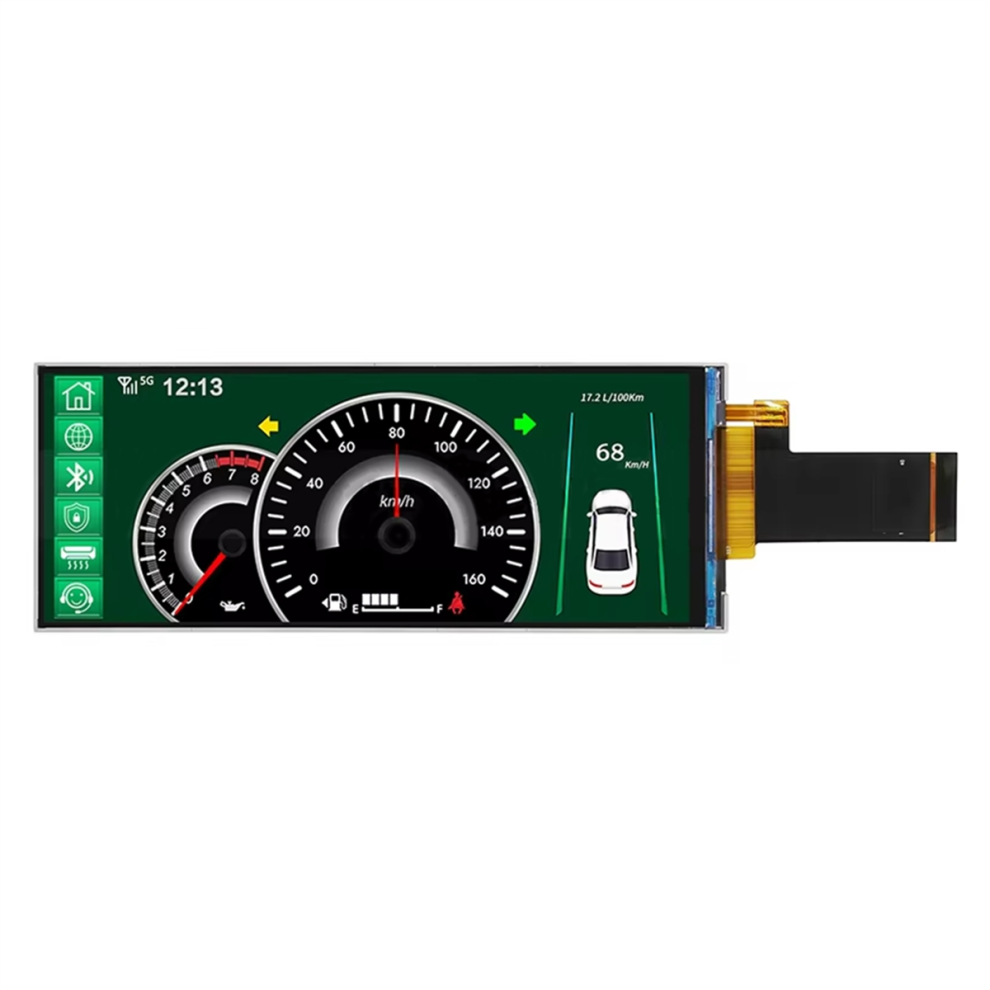

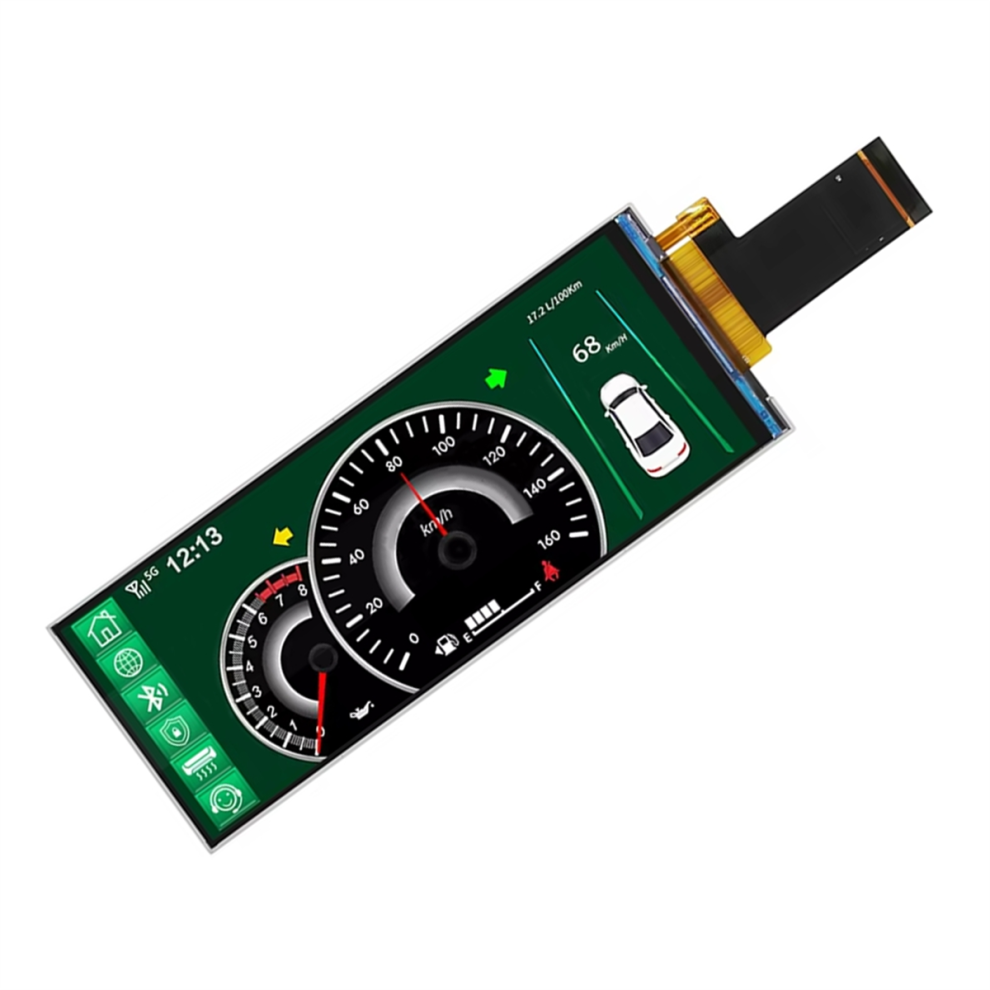

-TFT062-1 is stretched bar-type 6.2 inch IPS TFT display, featuring a resolution of 360x960 pixels. With an impressive contrast ratio of 800:1, it excels in rendering deep blacks and vibrant colors, ensuring a visually striking experience. Its exceptional brightness of 550cd/m2 makes it versatile for applications in various lighting conditions, both indoors and outdoors. The IPS technology allows full viewing angle.
-TFT062-1 is built-in GC9503V controller,3-wire SPI and the 18-bit RGB parallel interface are used in a sequence to communicate data to the display. The SPI interface is first used to initialize the display parameters through registers. Once initialized, the display can receive data over the RGB parallel interface at a higher speed.
Bar-type display are characterized by their long and slender shape making them suitable for digital signage,automotive displays,industrial displays,medical displays,gaming machine,control panels.

Part Number:-TFT062-1
Display Format:360x960 Pixels
Interface:3-wire SPI+18-bit RGB
IC or Equivalent:GC9503V
Appearance:RGB
Diagonal Size:6.2inch
Connection:Plug-in FPC
Outline Dimension:59.90(W)x156.00(H)x2.3(T)mm
Visual Area:56.30x148.46mm
Active Area:55.30(W)x147.46(H)mm
Dot (Pixel) Pitch:0.153x0.153mm
IC Package:COG
Touch Panel Optional:No
Sunlight Readable:No
Contrast Ratio(Typ):800:01
Colors:262K
Viewing Direction:IPS
Viewing Angle Range:Left:80.0, Right:80.0, Up:80.0, Down:80.0 degree
Brightness(Typ):550cd/m2
Backlight Color:White Color
Power Supply(Typ):2.8V
Operating Temperature:-20-70
Storage Temperature:-30-80
Specifications:A:Only Display
Colour:As Shown
Material:PCB

Package Contents:
1 * LCD Display Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
