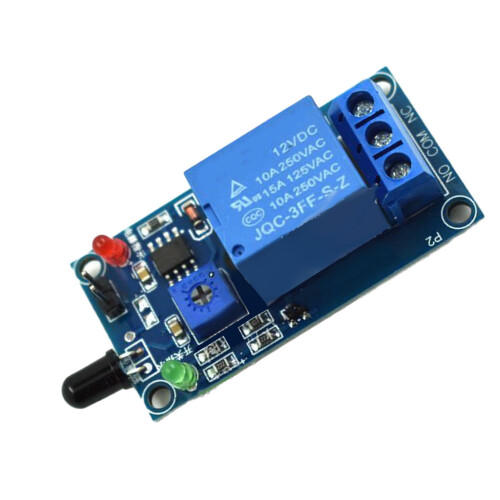

IR Flame Sensor with Adjustable Sensitivity, 7601100nm Infrared Flame Detector for Fire Alarm Systems

IR Flame Sensor with Adjustable Sensitivity, 7601100nm Infrared Flame Detector for Fire Alarm Systems Description

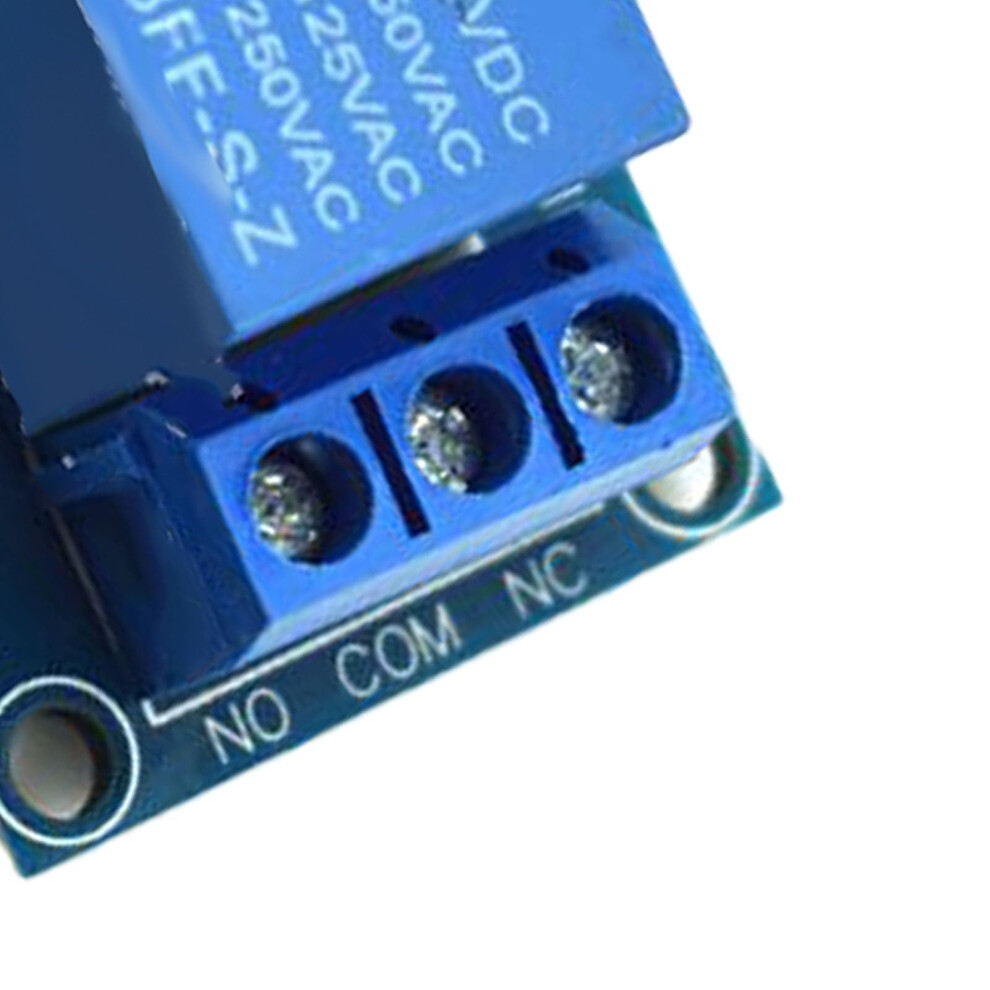

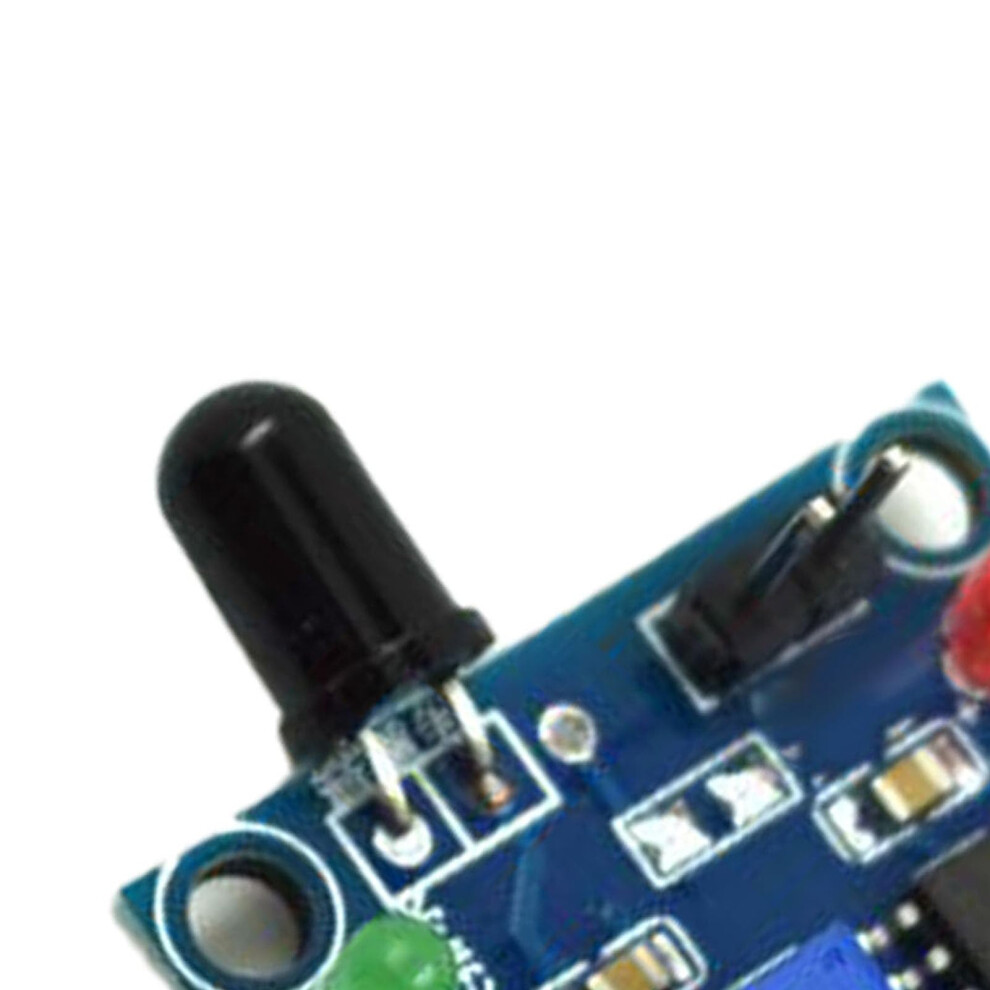

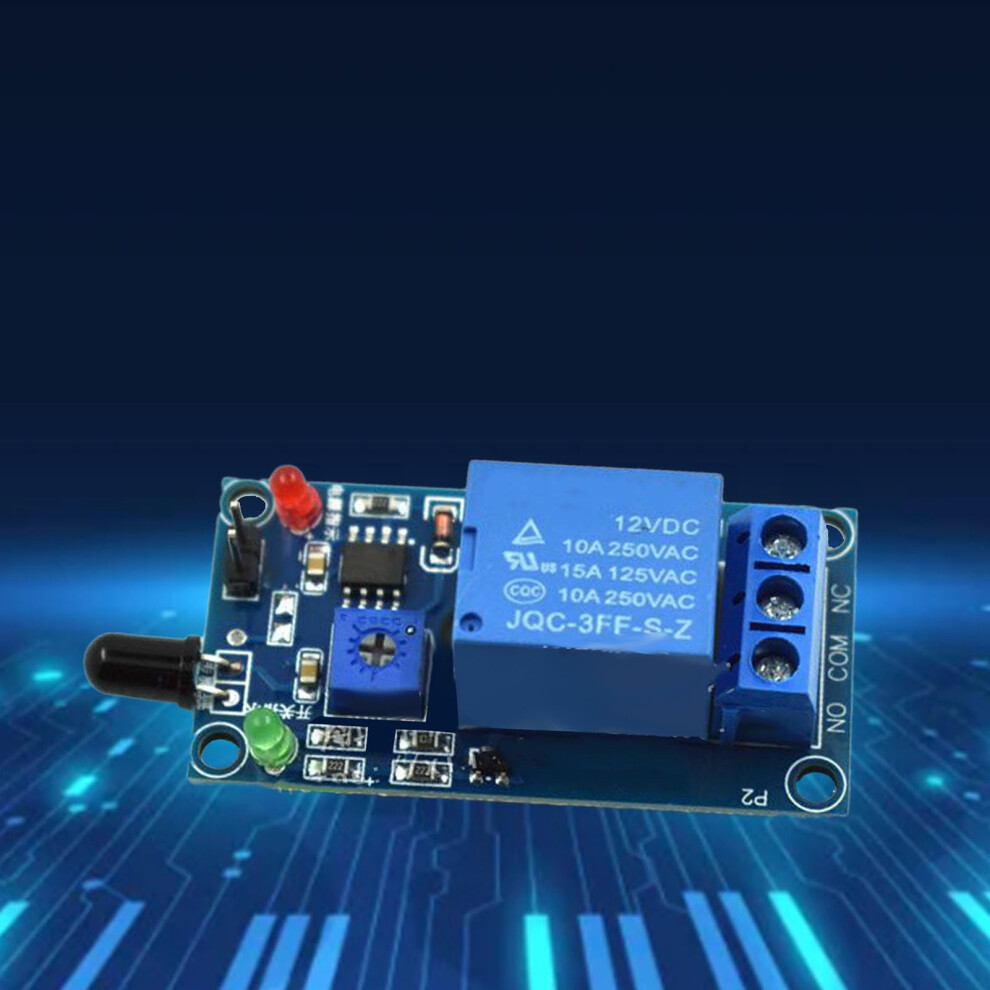

IR Flame Sensor Module for reliable fire source detection in homes, workshops, and industrial systems. Compact PVC construction and adjustable sensitivity make this module easy to install and tune for a range of fire detection tasks. Key benefits Fast flame detection: Senses infrared light in the 760 to 1100 nm range for accurate response to flames and many light sources. Adjustable sensitivity: Digital potentiometer lets you set the detection threshold to match different flame sizes and environments. Relay output for direct control: Built in relay switches a common terminal between normally open and normally closed contacts, allowing direct control of alarms, relays, or other devices up to rated loads. Easy to mount and integrate: Small footprint and fixed mounting holes simplify installation in DIY projects or professional systems. Features and performance Item type: IR Flame Sensor Module Sensing range: Detects flames and light sources that emit between 760 and 1100 nm. Small flames such as a lighter are detectable at about 80 cm; larger flames can be detected from farther away. Power supply: 12 V DC Operating current: greater than 150 mA Relay load rating: 250 V 10 A AC or 30 V 10 A DC Material: PVC Size: approximately 50 x 26 mm (1.97 x 1.02 in) Thickness: approximately 19 mm (0.75 in) Package contents: 1 x IR Flame Sensor Module How the relay contacts work The module provides common, normally open, and normally closed terminals that act as a double control switch. When the relay coil is energized because the flame exceeds the set threshold, the common terminal connects to the normally open terminal. When the flame is below the threshold and the relay is not energized, the common terminal connects to the normally closed terminal. Installation and usage tips The sensor is sensitive to flames and also responds to sunlight and other strong light sources. Avoid direct sunlight on the sensor or install a shield to reduce false triggers. Adjust sensitivity with the digital potentiometer to set the detection threshold for your application. Maintain a safe distance between the sensor and flame to prevent heat damage. For lightersized flames, test at about 80 cm and increase distance for larger flames. Wire the relay outputs according to your control circuit requirements and respect the relay load limits. Typical applications Home or workshop flame detection integrated into alarm or shutdown systems Industrial monitoring of burners, furnaces, and pilot lights DIY safety or automation projects where flame presence must trigger an alert or control action This module provides a compact, adjustable solution for detecting flame sources with relay outputs ready for direct integration into control and alarm circuits.
