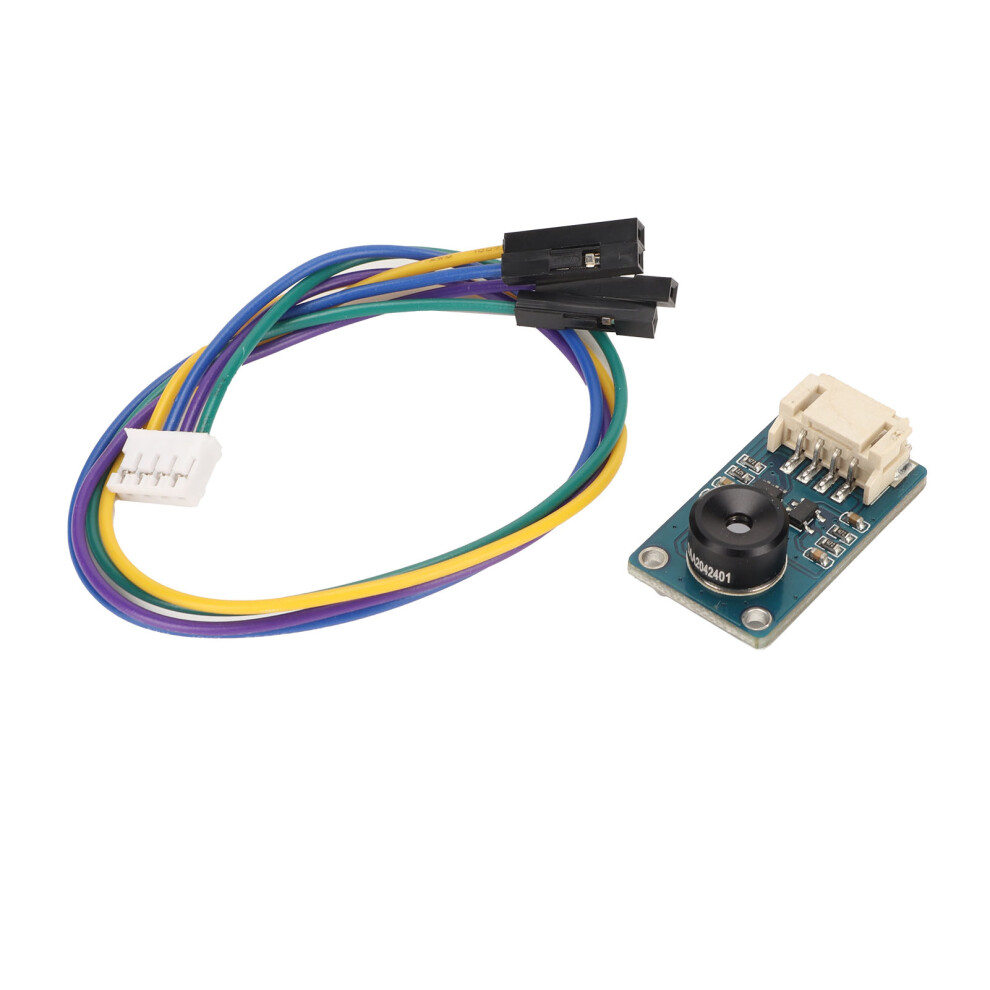

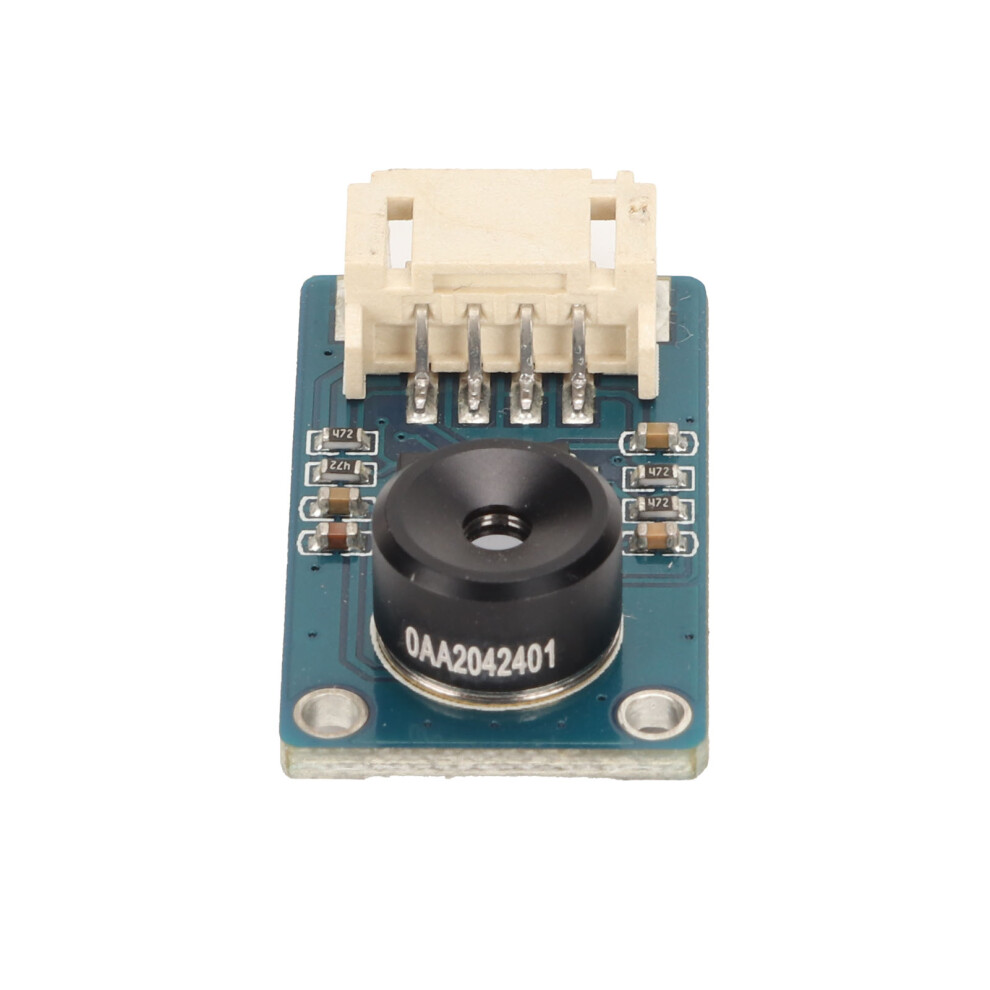

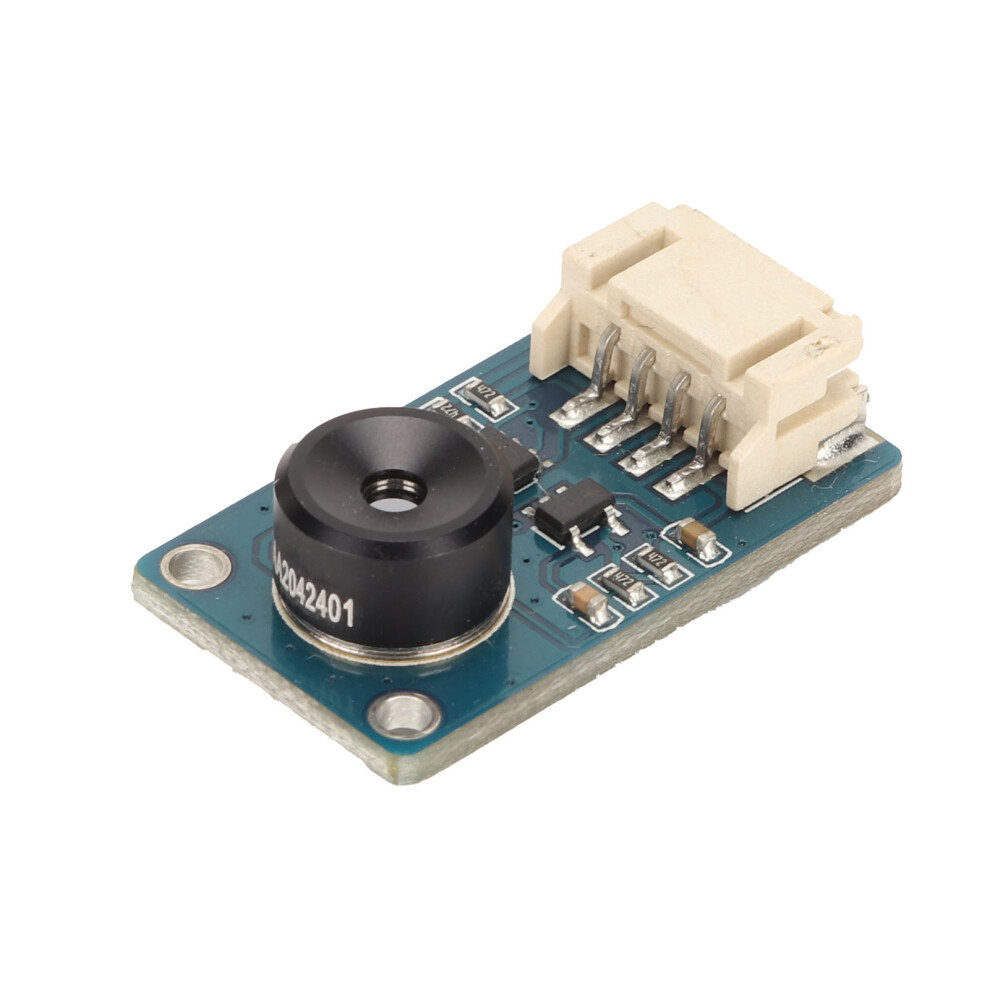

IR Thermal Camera Module 32x24 PX 110 I2C for RaspberryPi

IR Thermal Camera Module 32x24 PX 110 I2C for RaspberryPi Description

1、Infrared Thermal Sensor: For MLX90640 far infrared thermal sensor array, can detect the infrared radiation energy distribution of objects in the field of view of the lens, after quantification and processing can obtain the surfaces temperature distribution of objects in the field of view, and generate thermal imaging map. 2、Support Main Control Board: Infrared thermal camera module, 32x24 PX, 110 degree field of view, support for RaspberryPi, for ESP32, for STM32 and other main control boards. 3、Support I2C Interface: Temperature sensor IR module supports I2C interface communication, can be set to fast mode (rate up to 1MHz); noise equivalent temperature difference (NETD) is only 0.1K RMS 1Hz refreshing rate, good noise performance. 4、Compatible Working Level: On board level conversion circuit, compatible with 3.3V/5V working level, programmable frame rate 0.5 to 64Hz (0.25 to 32FPS). 5、Scope of Application: Thermal imaging camera module is mainly used for high accuracy non contact object temperature detection, infrared thermal imaging camera, infrared thermometer smart home, intelligent buildings, intelligent lighting, industrial temperature control, security, intrusion motion detection infrared thermal sensor. Item Type: IR Array Thermal Imaging Camera Module Material: PCB Model: For MLX90640 D110 Operating Voltage: 3.3V/5V Field of View (FOV): 110x75 Communication Interface: I2C (default 0x33) Refreshing Rate: 0.5-64Hz (0.25-32FPS) Fixing Hole Size: Approx. 2.0mm / 0.08in Main Uses: High Accuracy Non Contact Object Temperature Detection, Infrared Thermal Imaging Camera, Infrared Thermometer Smart Home, Intelligent Buildings, Intelligent Lighting, Industrial Temperature Control, Security, Intrusion Motion Detection 1 x Thermal Imaging Camera Module 1 x Cable
