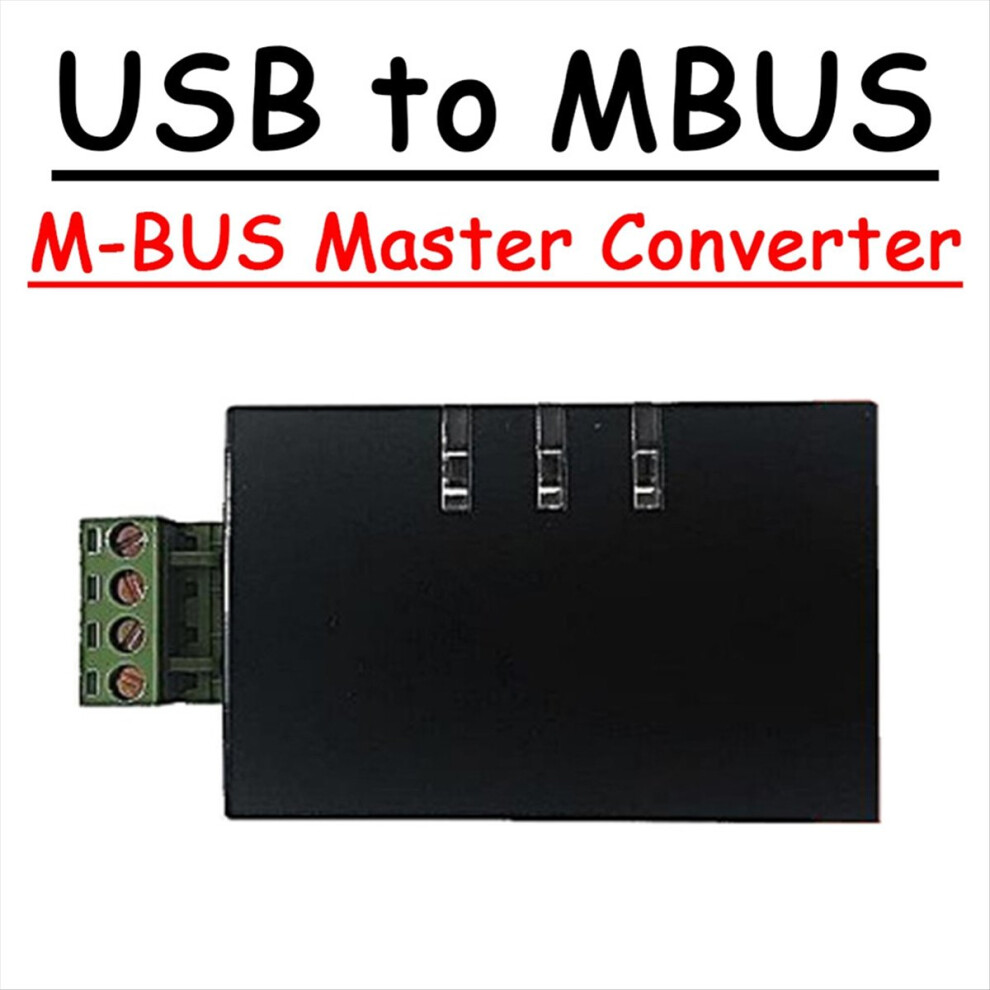

Isolated for to USB Master Converter M-BUS Data Field Debugging Test Communication Electricity Meter

Isolated for to USB Master Converter M-BUS Data Field Debugging Test Communication Electricity Meter Description

Fully comply with international standard EN1434-3 and Chinese national standard CJ/T188-2018; Ultra low static power consumption

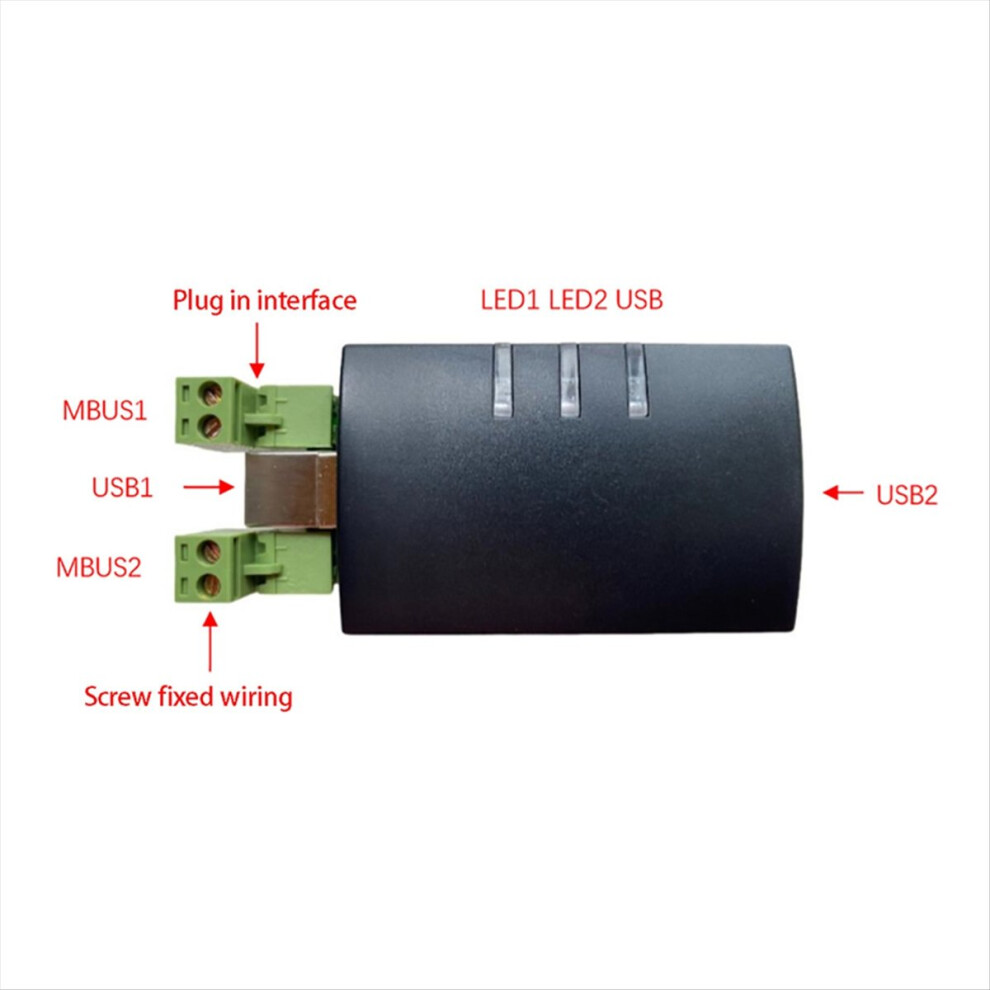

Short circuit protection low power consumption; USB hot plug, safe and stable; USB-B interface is robust and plug resistant
Support systems including win11; Support MacOS system, Linux system and Android system; USB power supply, without any external power supply; Small shell size, convenient for on-site commissioning and carrying
Carry 15 standard slave devices on average according to the load size, and the maximum load quantity can reach 20

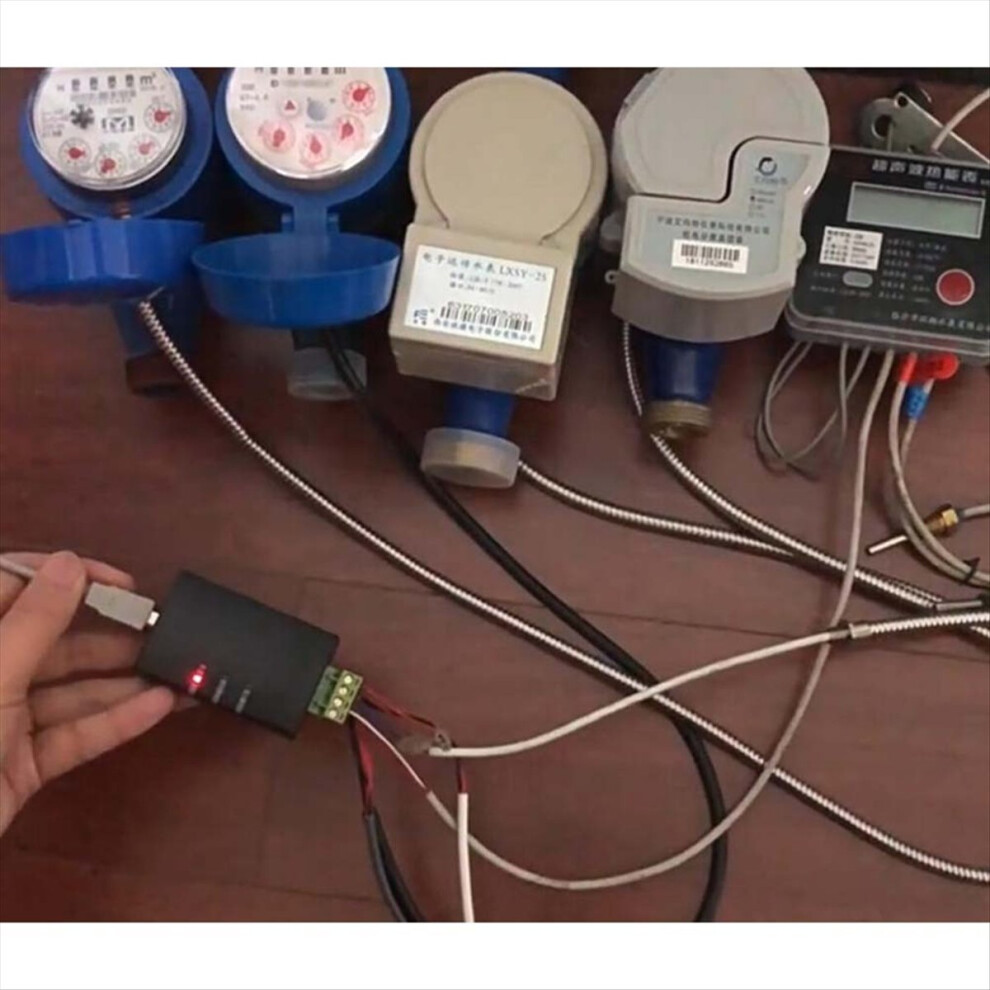

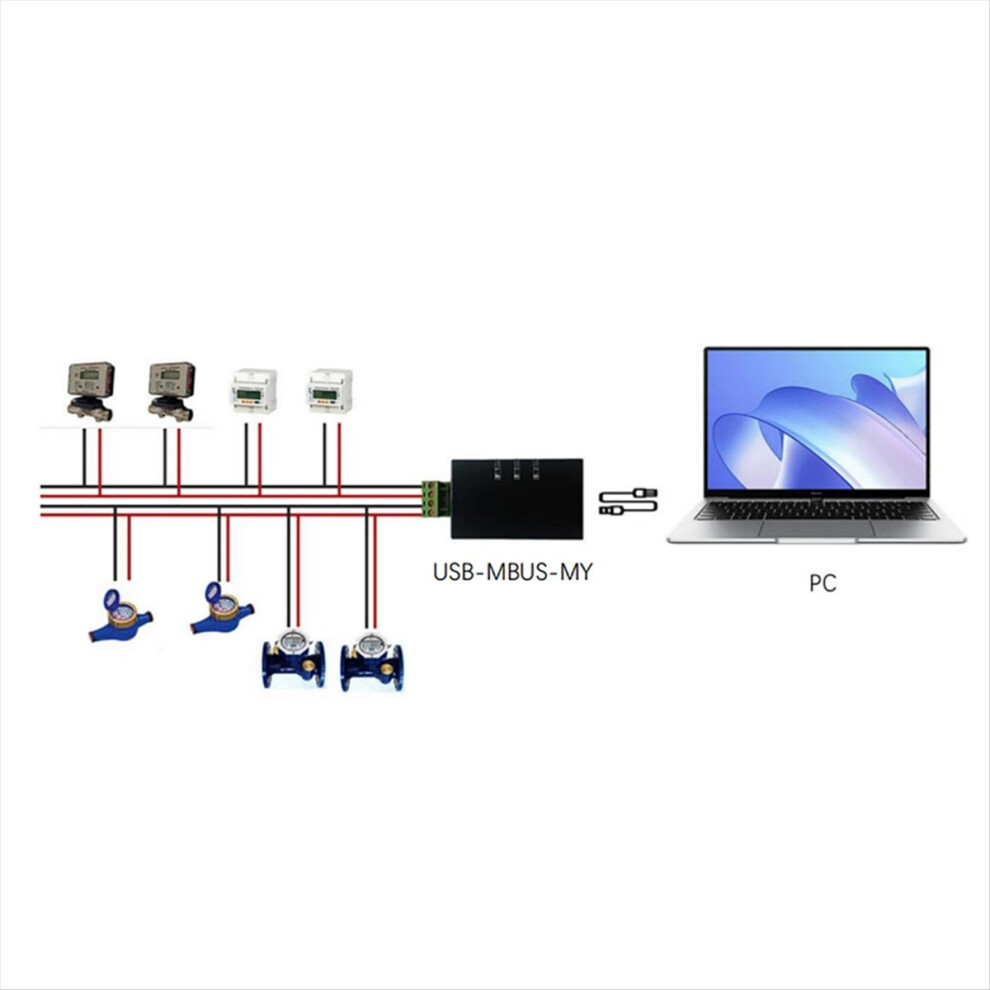

The module has no spontaneous self reception and bit error within the normal load range; The communication baud rate 300-9600 can adapt to 19200bps at most,Ultra long communication distance, distance 1KM, communication bit error rate lower than 1/10000 Connect the slave stations (user water meter, user heat meter, user gas meter, etc.) in parallel in turn to the interface; Connect the USB module to the USB port of the computer, and the USB status indicator lights up

Load capacity:
The maximum load current Ic of bus is 80mA, the static current of slave station is represented by IS, the dynamic current of slave station is represented by It, and the load quantity is represented by N. The load carrying quantity is calculated according to the maximum static current IS 5mA and the maximum dynamic current It20mA of the slave station
Loaded quantity N=(Ic It)/IS=(80-20)/5=12
The maximum load current Ic of bus is 80mA, the static current of slave station is represented by IS, the dynamic current of slave station is represented by It, and the load quantity is represented by N. The load carrying quantity is calculated according to the standard static current IS 3mA and the maximum dynamic current lt20mA of the slave station
Loadedquantity N=(Ic )/IS=(80-20)/3=20
Calculated according to the standard static current 3mA of the slave station, the maximum number of modules with load is 20; If the slave static current is 1.5mA, the maximum number of modules loaded is 60. The load carrying quantity of modules is affected by the static current, dynamic current, wire material and other factors of the slave station. The actual load carrying quantity is subject to the test quantity.
Colour:Black
Material:plastic

Package Contents:
1 x Converter

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
