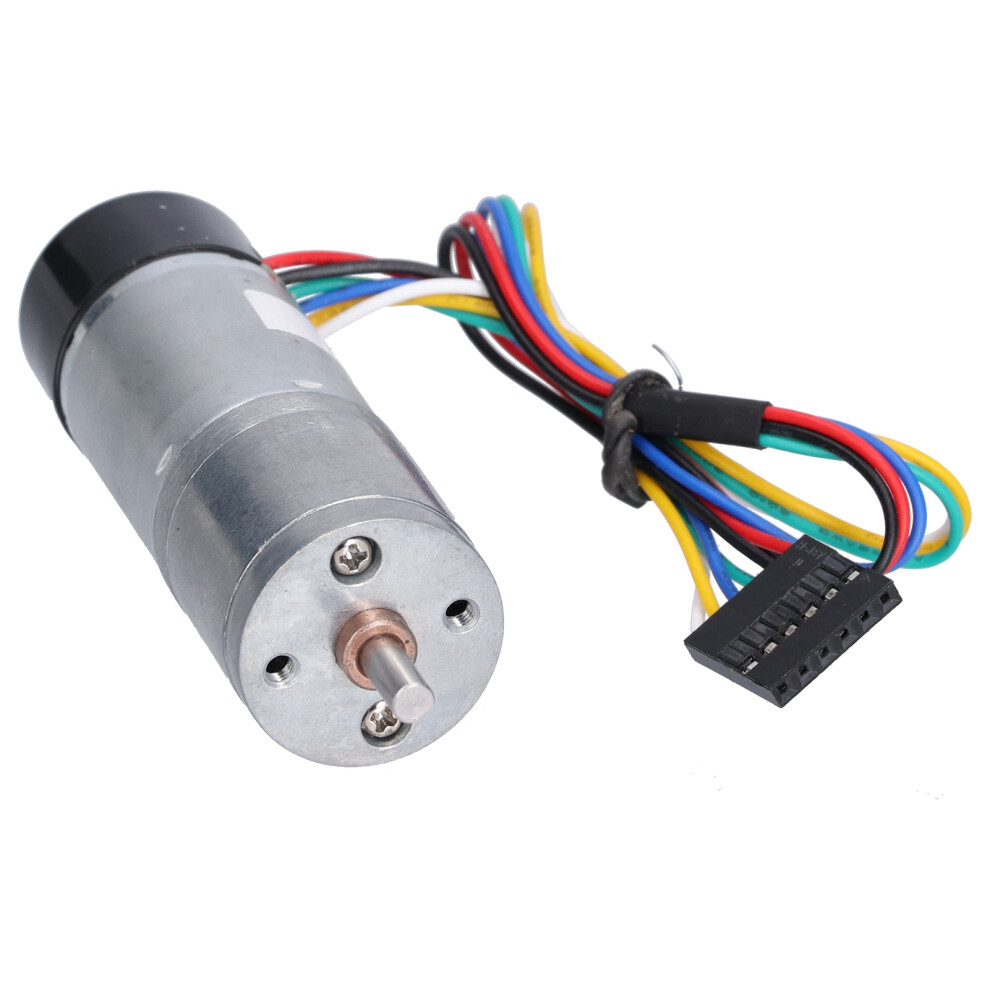

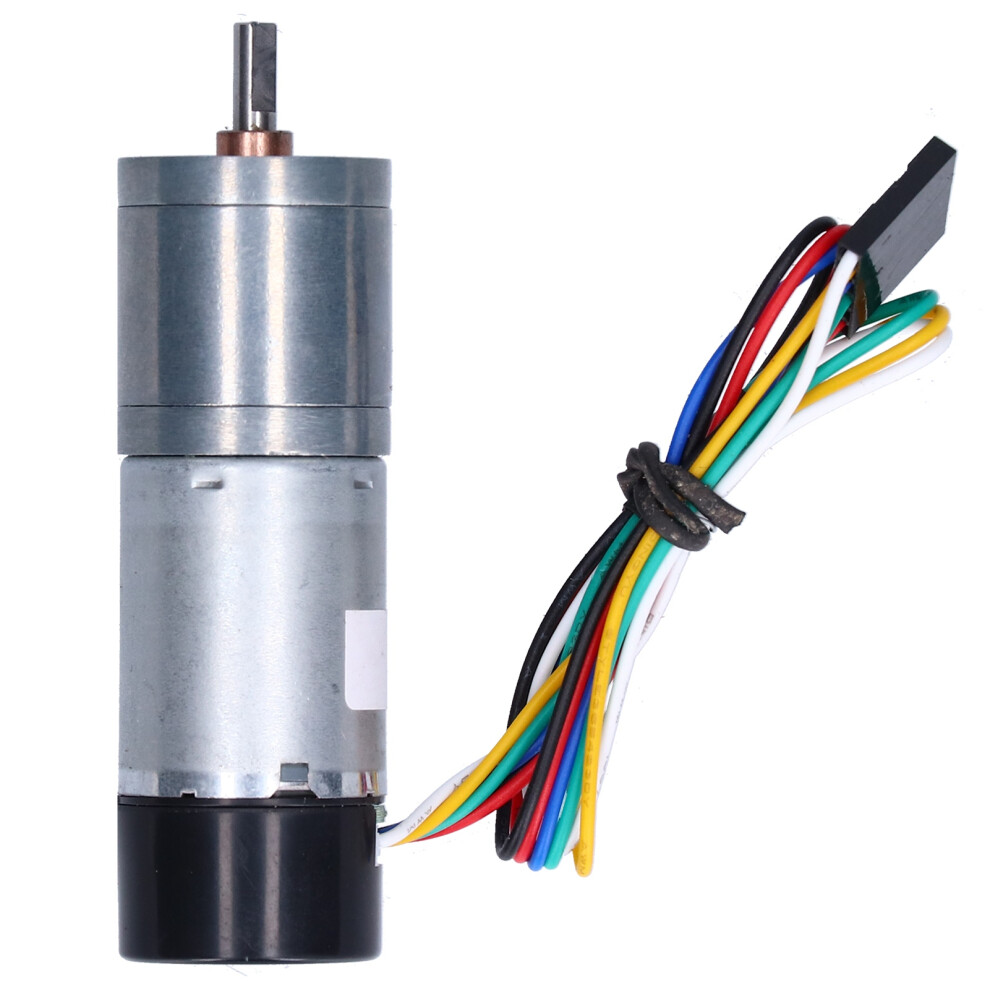

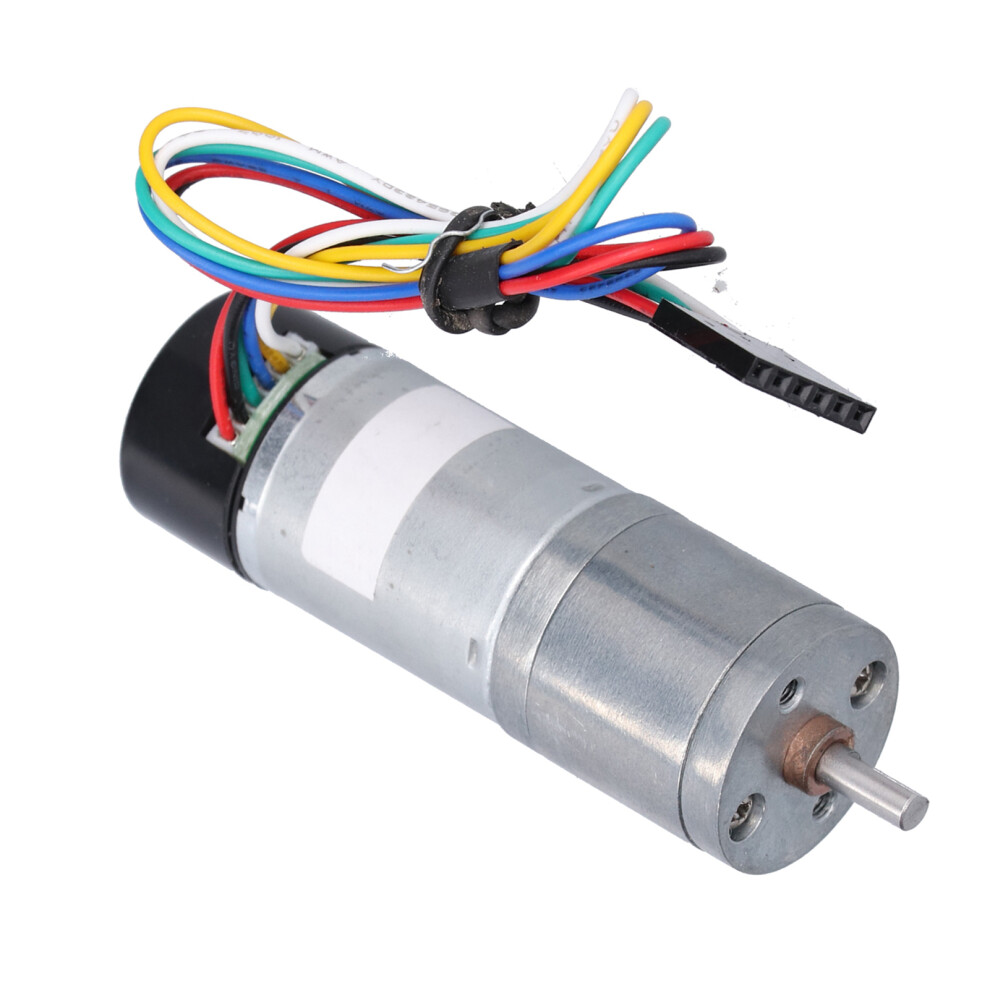

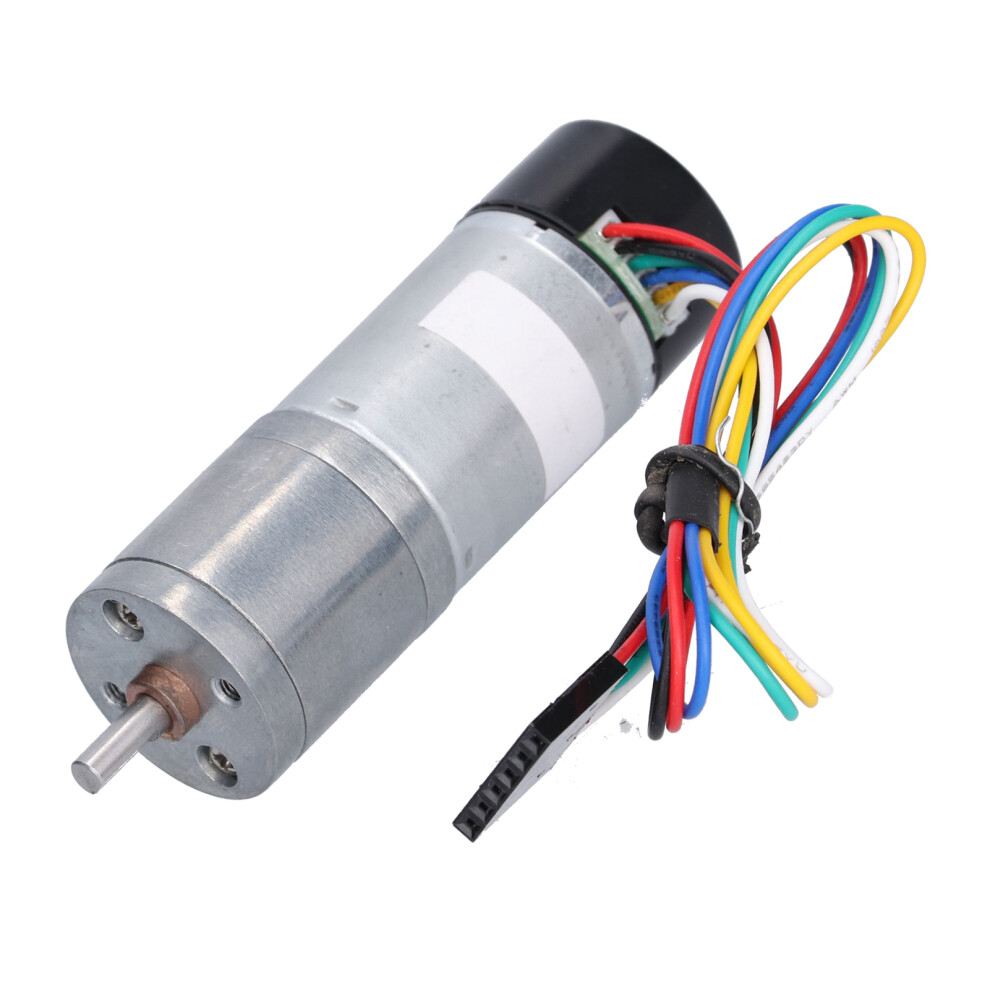

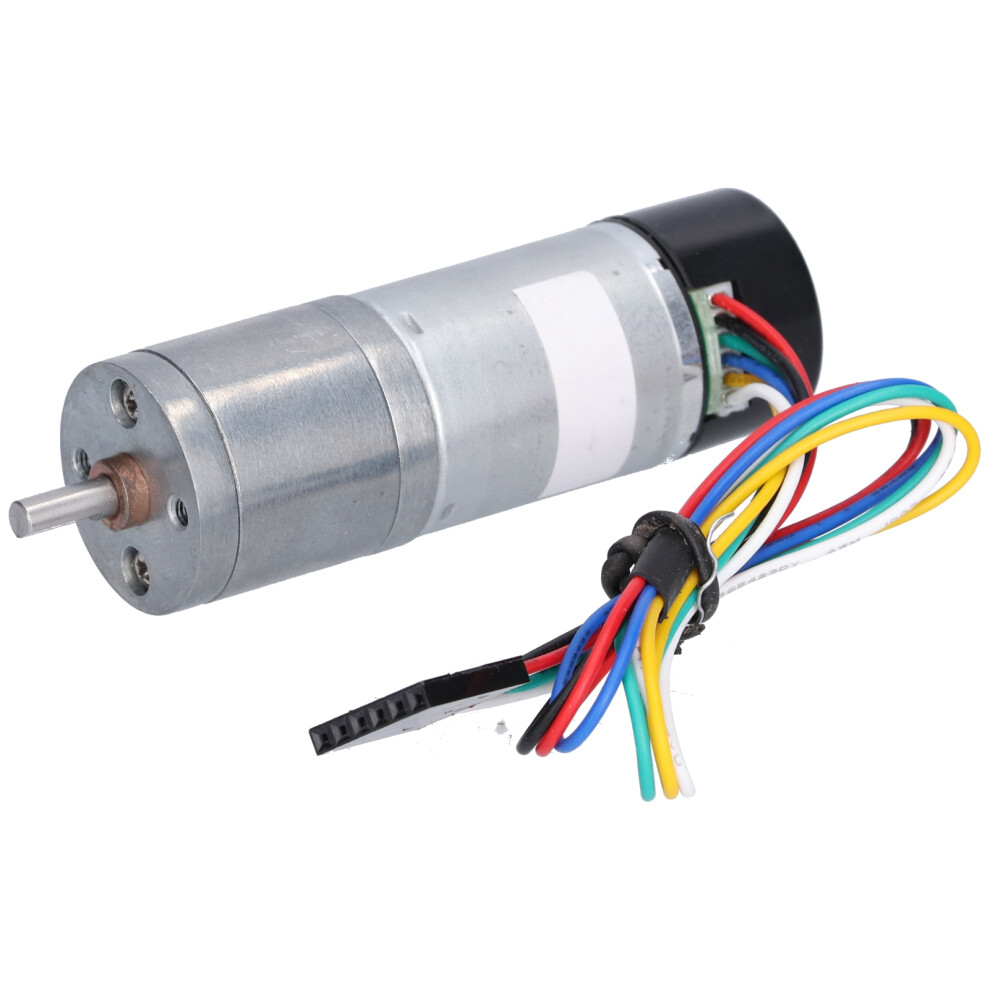

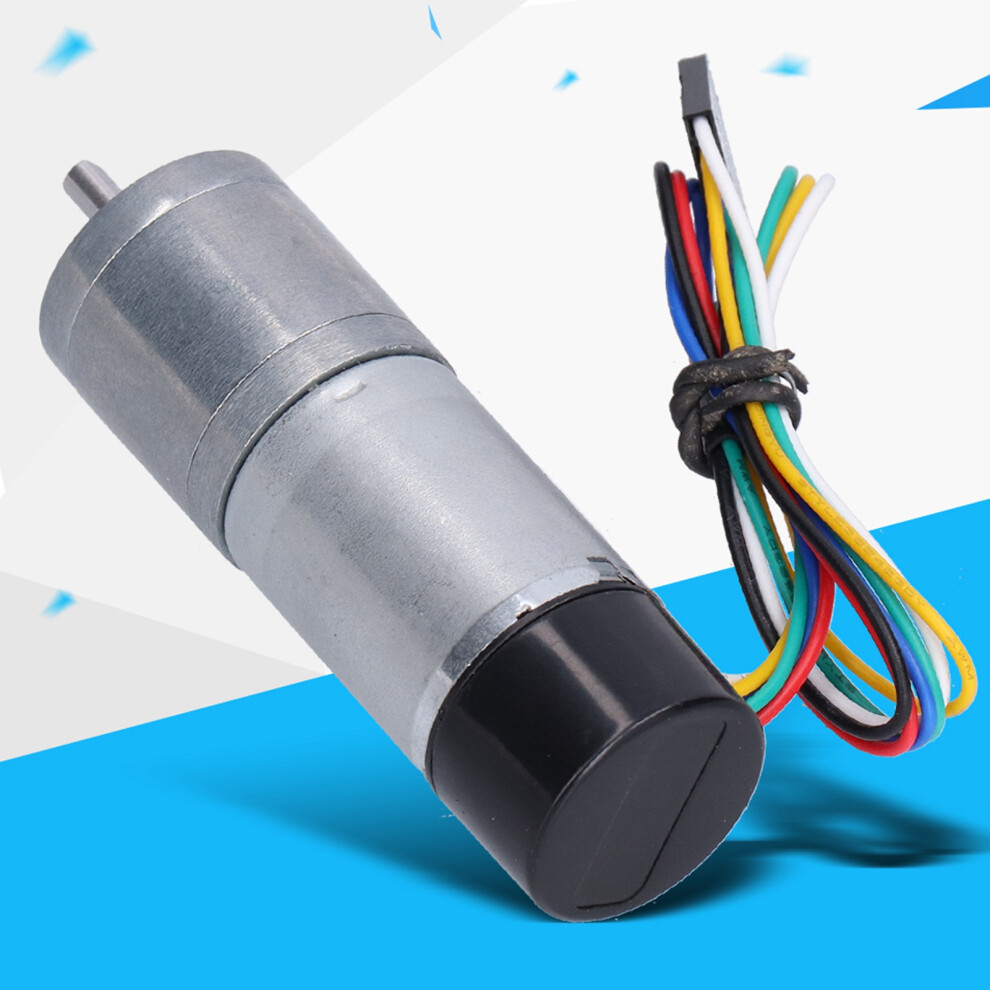

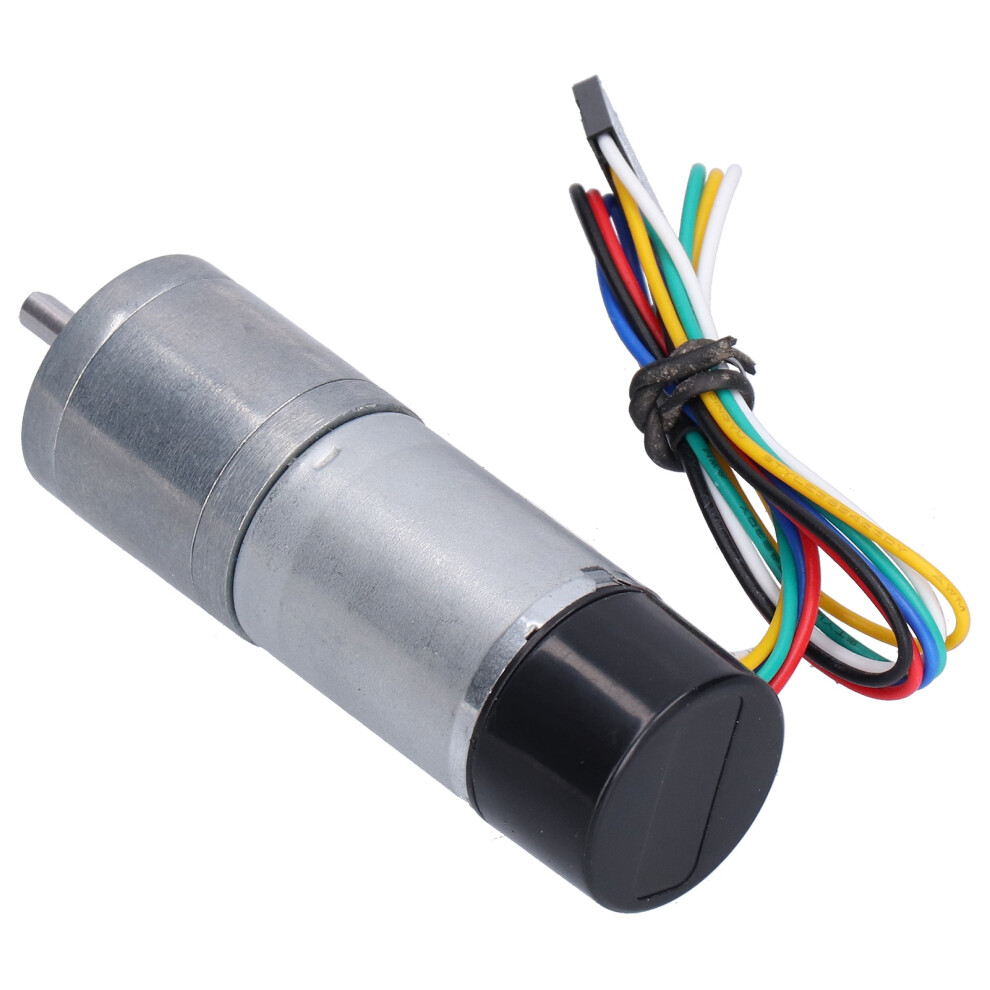

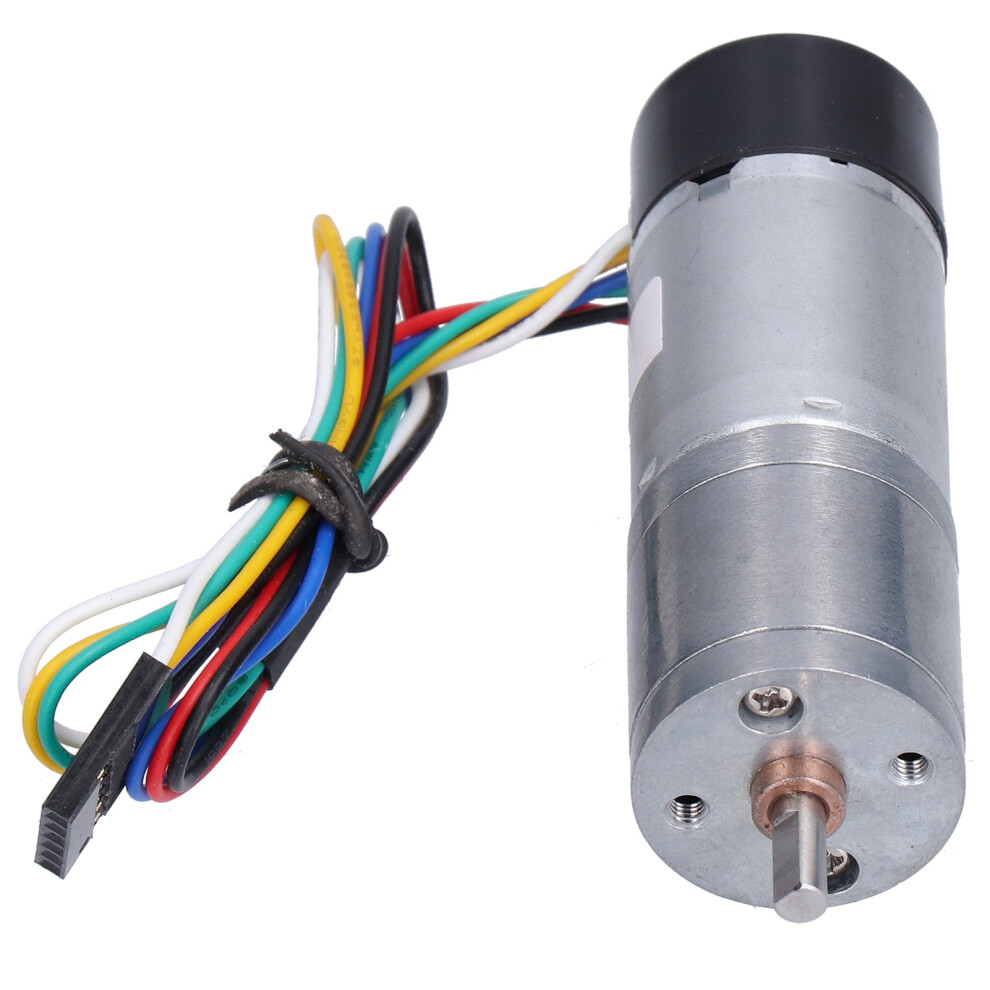

JGA25‑371DC24V 1360RPM DC Gear Motor with Encoder for Robots

JGA25‑371DC24V 1360RPM DC Gear Motor with Encoder for Robots Description

DC Geared Motor with Encoder Speed Measuring Signal Feedback Smart Car Dedicated JGA25‑371DC24V 1360RPM
Item Type: DC Geared Motor
Material: Zinc alloy, copper, magnet

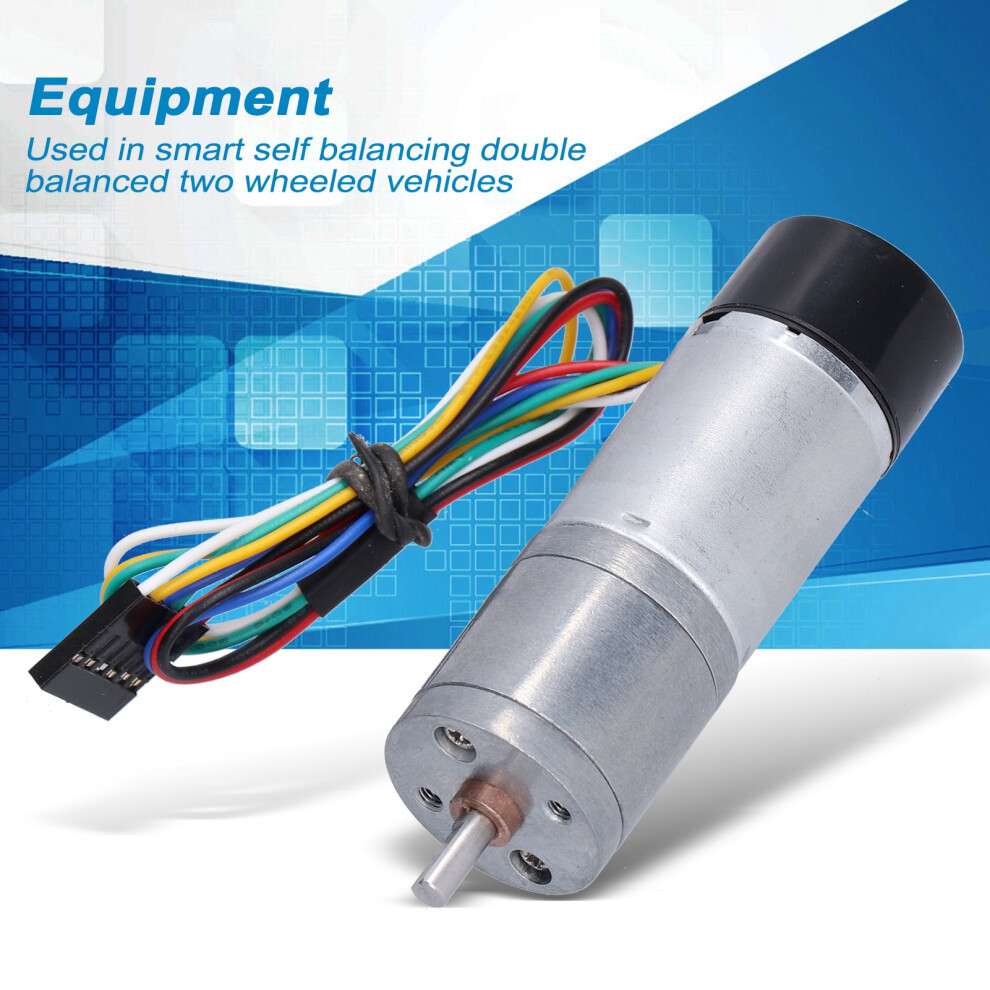

Uses: Used in intelligent self balancing double balanced two wheeled vehicles, smart home appliances, robots, camera rocker electric tape cutting machines, etc.
Shaft Type: D type
Output Shaft Size(diameter x length): Approx. 4 x 9.5mm / 0.2 x 0.4in
Motor Diameter: Approx. 25mm / 1in
Whether to Adjust Speed: Yes
Whether CW and CCW: Yes
Cable Length: Approx. 230mm / 9.1in
DC 12V Parameter Table:
Rated voltage
No load
Rated load
Locked rotor
L size（approx.）
Rotating speed
Current
Rotating speed
Current
Torsion
Current
Torsion
V
r/min
A
r/min
A
Kg.cm
A
Kg.cm
12
1360
0.07
1046
0.3
0.1
1.8
0.4
18mm / 0.71in
620
0.07
477
0.3
0.2
1.8
0.9
17.5mm / 0.69in
280
0.07
215
0.3
0.4
1.8
2
19mm / 0.75in
170
0.07
131
0.3
0.69
1.8
3.3
21mm / 0.8in
130
0.07
100
0.3
0.9
1.8
4.4
21mm / 0.8in
77
0.07
59
0.3
1.5
1.8
5.5
23mm / 0.9in
60
0.07
46
0.3
2
1.8
7.3
23mm / 0.9in
35
0.07
27
0.3
3.3
prohibit
prohibit
25mm / 1in
26
0.07
20
0.3
4.4
prohibit
prohibit
25mm / 1in
12
0.07
9
0.3
9.7
prohibit
prohibit
27mm / 1.1in
 DC 24V Parameter Table:
Rated voltage
No load
Rated load
Locked rotor
L size（approx.）
Rotating speed
Current
Rotating speed
Current
Torsion
Current
Torsion
V
r/min
A
r/min
A
Kg.cm
A
Kg.cm
24
1360
0.04
1046
0.16
0.1
0.6
0.4
18mm / 0.71in
620
0.04
477
0.16
0.2
0.6
0.9
17.5mm / 0.69in
280
0.04
215
0.16
0.4
0.6
2
19mm / 0.75in
170
0.04
131
0.16
0.69
0.6
3.3
21mm / 0.8in
130
0.04
100
0.16
0.9
0.6
4.4
21mm / 0.8in
77
0.04
59
0.16
1.5
0.6
5.5
23mm / 0.9in
60
0.04
46
0.16
2
0.6
7.3
23mm / 0.9in
35
0.04
27
0.16
3.3
prohibit
prohibit
25mm / 1in
26
0.04
20
0.16
4.4
prohibit
prohibit
25mm / 1in
12
0.04
9
0.16
9.7
prohibit
prohibit
27mm / 1.1in
