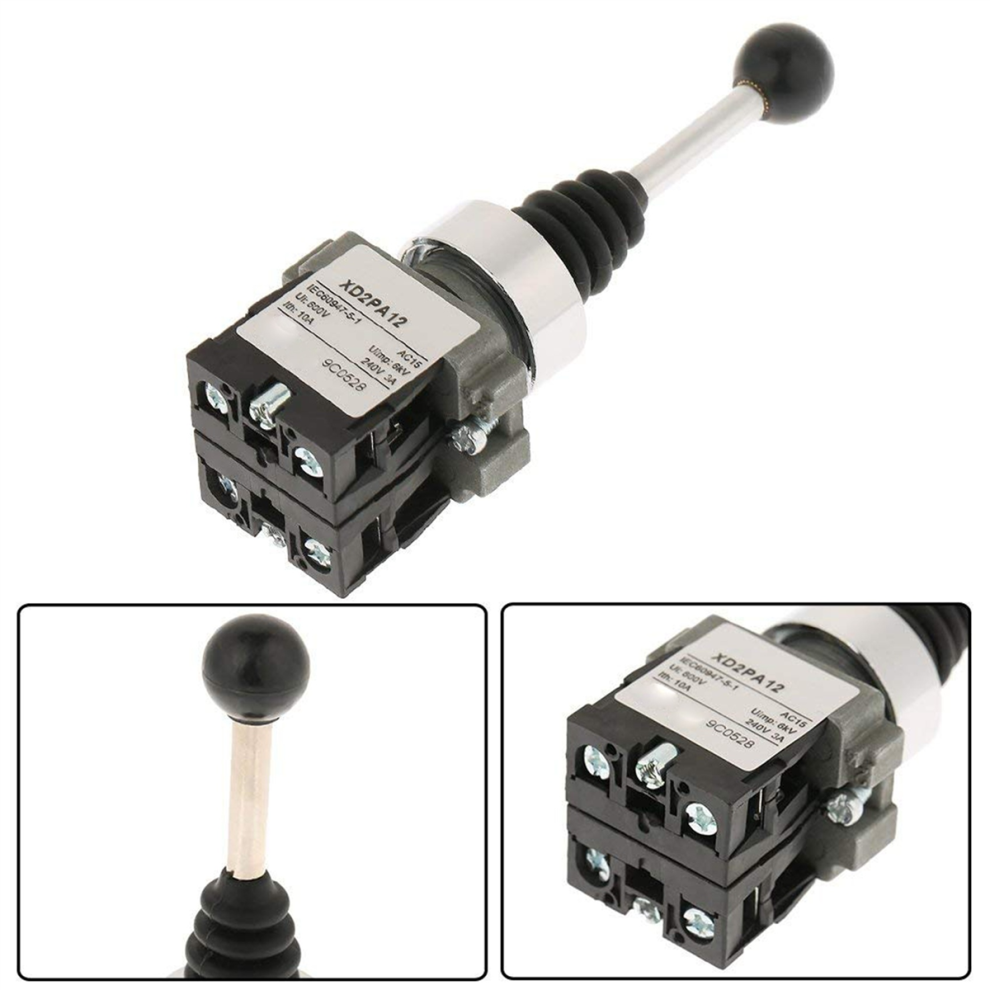

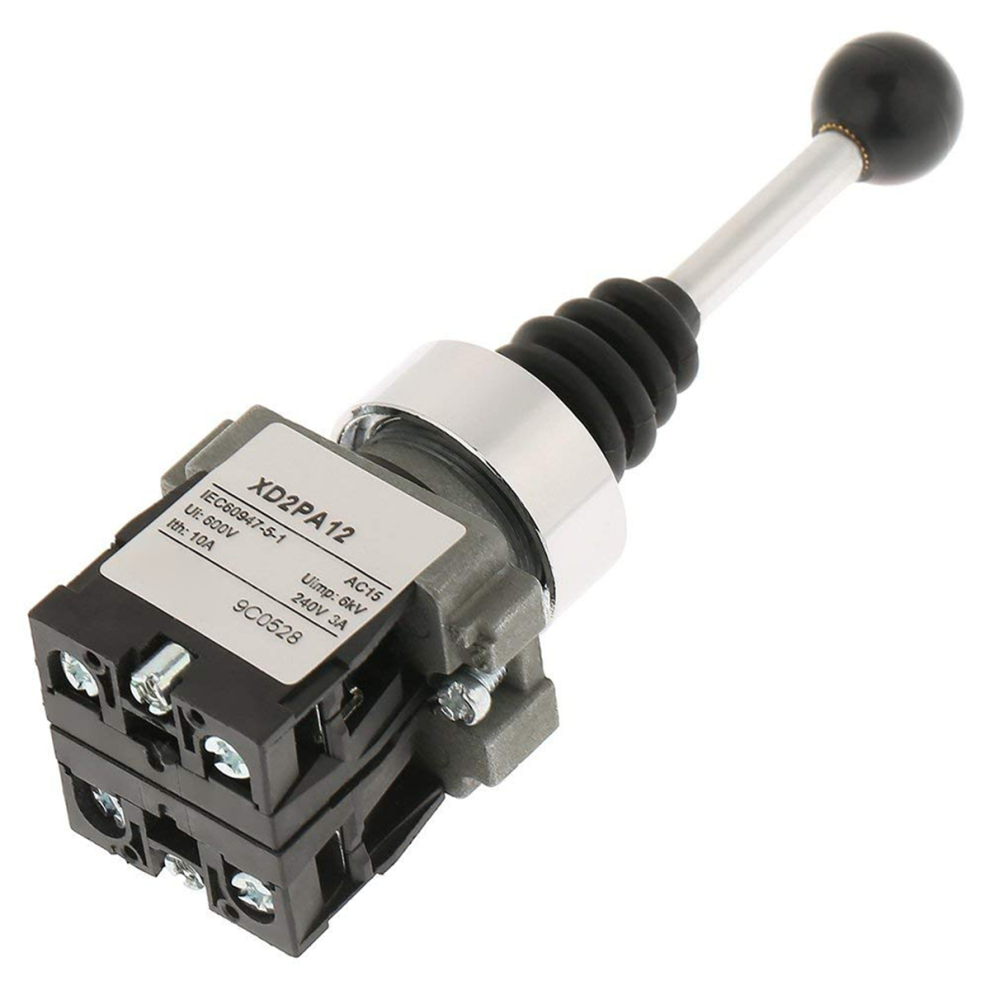

Joystick Switch XD2PA12 AC3000V 2 Single Lever Switches

Joystick Switch XD2PA12 AC3000V 2 Single Lever Switches Description

This instant joystick switch is widely used in industrial control AC 50Hz and DC circuits. It can control magnetic , contactors, relays and other circuits. The rubber sleeve is waterproof, oil-proof and dust-proof. The joystick switch is a momentary switch, 2NO type, so there are 2 normally open contacts. The switch is easy to assemble and operate, and has a long service life.
Model: XD2PA12
Rated voltage: 220V/380V
Nominal current: 5 A / 10 A
Installation opening: 22mm in diameter

Electrical life: more than 500,000 times
Mechanical life: more than 500,000 times
Standard operating environment:
Ambient temperature: -25~+55 degrees Celsius (no ice)
Working humidity: 45~85%RH (non-condensing)
Contact resistance: less than or equal to 50 m ohm
Insulation resistance: greater or equal to 100 ohm
Maximum dielectric strength: 3000 volts, AC 50 Hz
Vibration: 50Hz, amplitude: about 1 mm
Impact resistance: more than 10 m/s2 (about 10 G)
Protection level: IP55
Overall dimensions: 12.3 x 4 cm
Weight: 620 grams
Colour: black
Material: metal
Product label words are random, Not accepting designation

Package Contents:
5 x Self-locking joystick switch

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
