Julet Waterproof Connector Set 2-6 Pin for E-bike Display

Julet Waterproof Connector Set 2-6 Pin for E-bike Display Description

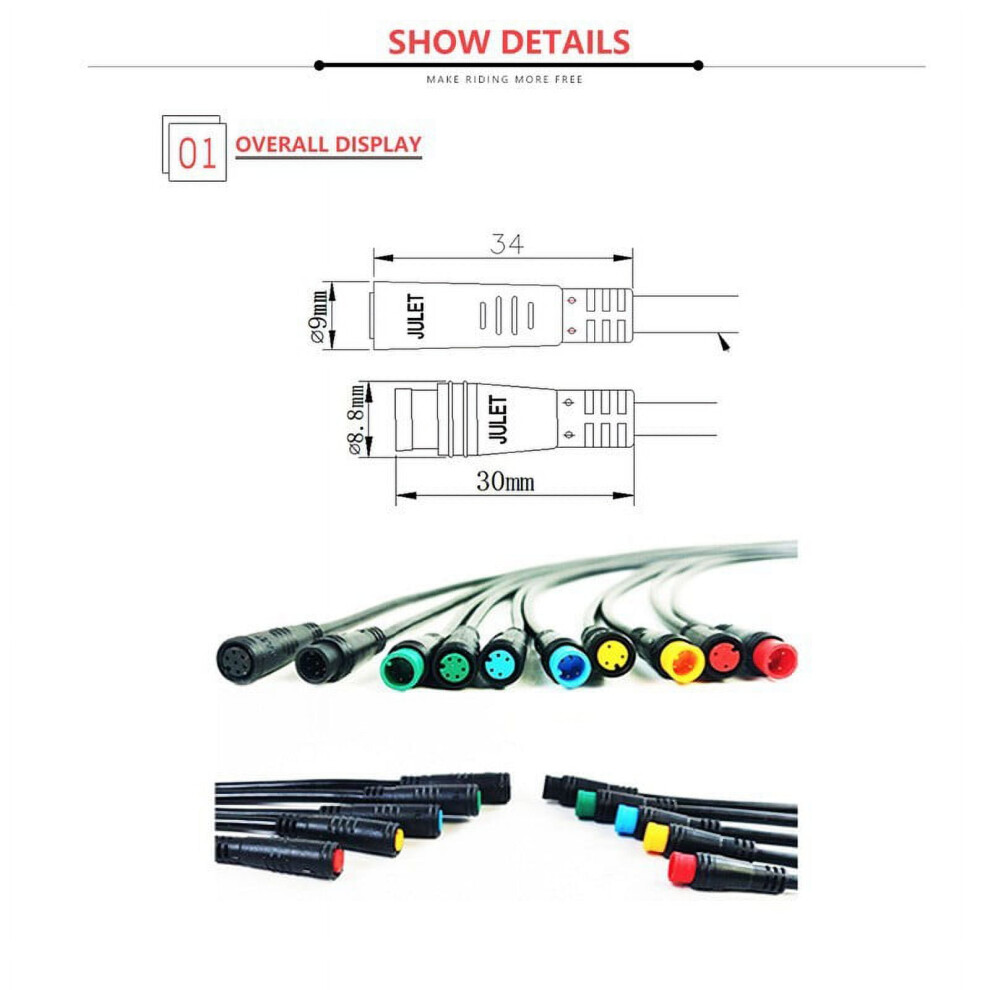

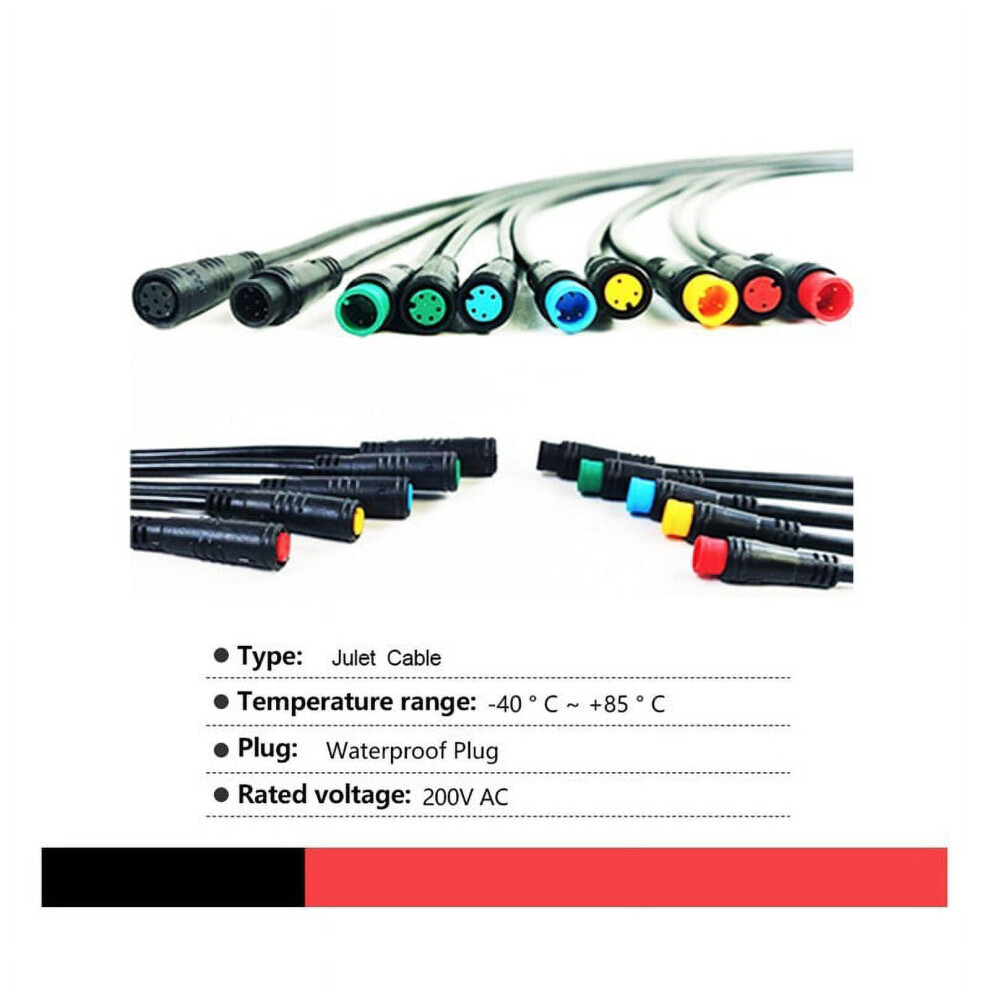

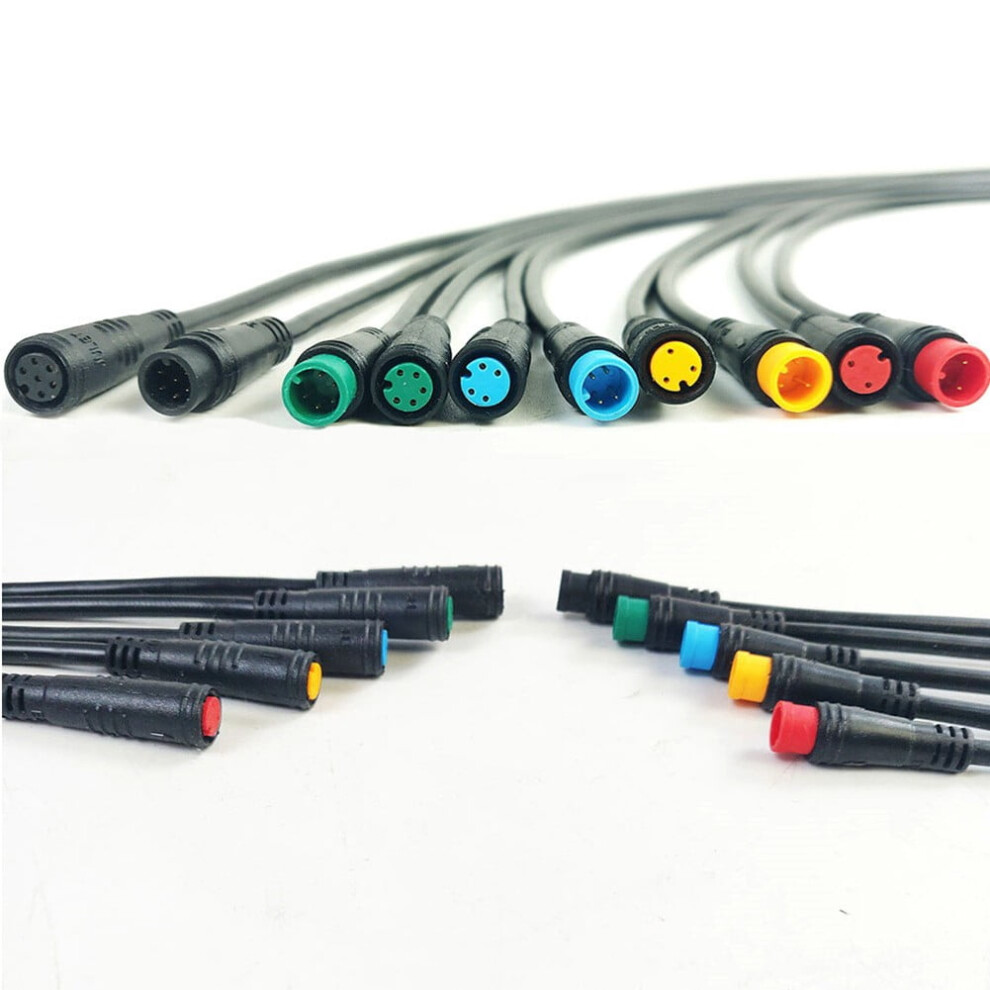

Features: * brand new and high quality *Made of high quality material, and practical to use *This is THE best option for having water tight connections on your e-bike. Mostly found on the for Bafang range of electric bike equipment, these connectors come in a wide range of available pins, to help you make your wiring lom *Each male or female connector comes with 1m of cable length, moulded connector on end, bare cable on the other. *Be sure to choose the male or female end that you require, or both if you need the pair. *These Higo connectors are rated at 2A for each pin/core and have colour coded ends: *Julet Connector RED = 2 PIN YELLOW = 3 PIN BLUE = 4 PIN GREEN = 5 PIN PURPLE or BLACK = 6 PIN BLACK = 8 PIN Specifications: *Material: ABS *Temperature Range:-40degree Celsius+85degree Celsius *DIMENSIONS: 2-pin to 6-pin cables: Wire diameter: 3.7Mm Wire length: 1000mm (1 metre) Plug diameter: 9mm Plug length: 35mm 8-pin cable: Wire diameter: 6mm Wire length: 1000mm (1 metre) Plug diameter: 12mm Plug length: 38mm Pin Out Looking directly at the plug with the indent at the top: Looking directly at the plug with the indent/gap at the top: *Optional types:2-Pin Female,3-Pin Female,4-Pin Female,5-Pin Female,6-Pin Female,2-Pin Male,3-Pin Male,4-Pin Male,5-Pin Male,6-Pin Male Package Contents: 1*Modified accessories Note: 1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness. 2. Please allow slight manual measurement deviation for the data.
