Description

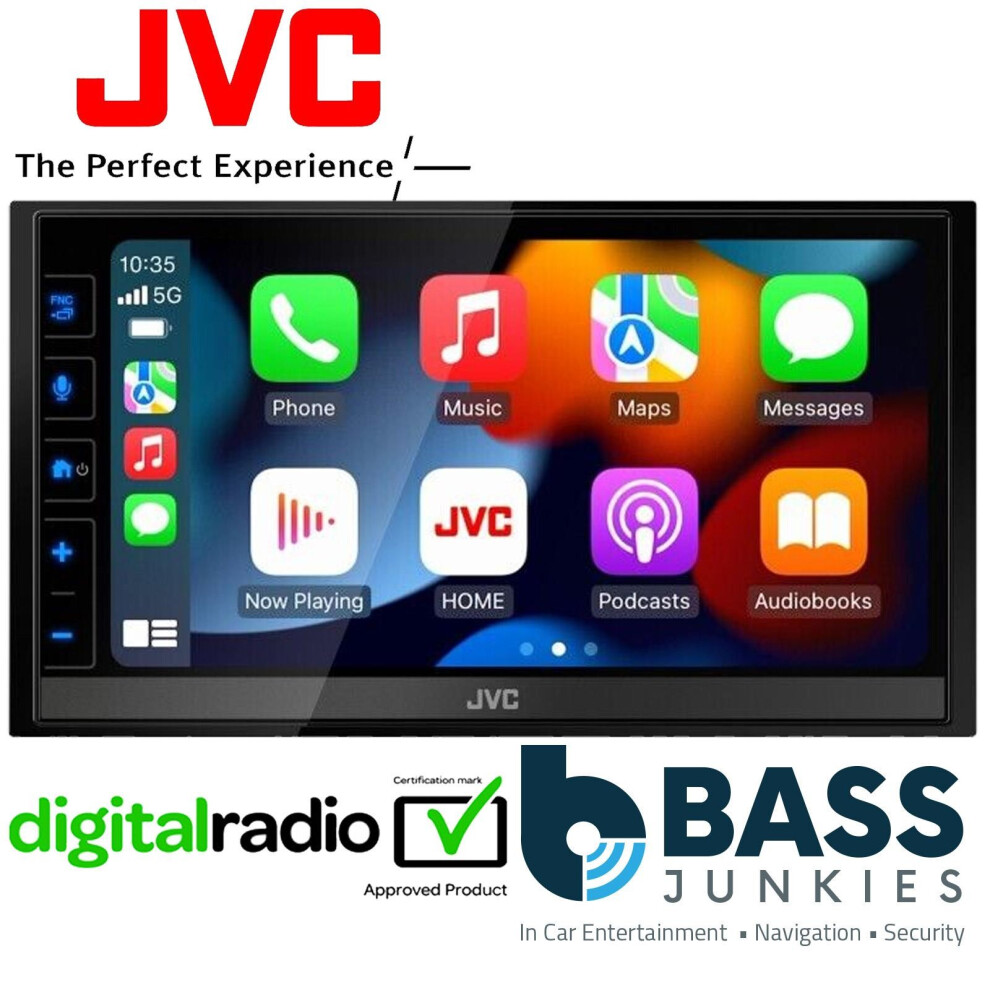

JVC KW-M785DBW - 6.8" Wireless Android Auto & Apple CarPlay DAB+ USB Bluetooth Car Screen

Digital Media Receiver featuring 6.8" Capacitive Touch Monitor / Wireless Apple CarPlay, Android Auto & Android Mirroring / DAB+ tuner / Hi-Res Audio / Bluetooth® / 13-band EQ / Rear Cam Input / Short Chassis.

DAB aerial is not included.

Features

• 6.8" WVGA capacitive touch panel with sharp, high-contrast images, vivid colors and wide viewing angles.
• Wi-Fi built-in for convenient wireless connection with a compatible smartphone.
• Supports Android Auto & Apple Car Play wirelessly and with a USB cable.
• Bluetooth(R) Wireless Technology (*Available functions depend on cell phone).
• Rear High Speed USB port. Up to 1.5A Max Charge.
• MP3 / WMA / AAC / WAV / FLAC - music file playback.
• MPEG1 / MPEG2 / MPEG4 / H.264 / MKV / WMV - video file playback.
• Digital Sound Processor, Time Alignment & 13-Band EQ for optimal sound tuning enhancements.
• 3 RCA line outs (2.5V) to upgrade your system with power amplifiers to create a more immersive audio experience.
• 1x AV input / 1x Video output / 1x Rear View Camera input.
• DAB+ radio tuner for noise & interference free reception and crystal-clear digital stereo sound.
• Supports USB Mirroring for Android with Mirroring OA for JVC App.
• Short chassis (75mm) for easy installation.
• Steering wheel remote control adapter input (Optional, car specific interface required).
• Wireless IR remote controller ready

Monitor

• Screen Size 6.8 inches (diagonal) wide
• Touch Control
• Panel Type WVGA Capacitive
• Display System TN LCD panel
• Drive System TFT active matrix system
• Number of Pixels 1,152,000 (800 x 480 x RGB)
• Effective Pixels 99.99 %
• Pixel Arrangement RGB striped arrangment
• Multilingual Display 14 languages: English(UK/US) / Spanish / French / German / Italian / Dutch / Russian / Portuguese / Hebrew / Greek / Polish / Czech / Hungarian.
• Viewing Angle Adjustment (0 - 20 degree, default: 0 degree) 4steps

Radio Tuner

• DAB+ Tuner
• DAB+ Frequency Band III 174.928MHz to 239.2MHz
• DAB-DAB / DAB-FM Auto Switch
• Seamless DAB-FM Blending
• FM Tuner
  • Radio Data System (RDS) (with Radio Text Plus)
  • FM Stereo/Mono Switch
  • FM Frequency Range 87.5 ~ 108.0MHz (50kHz step)
  • FM Usable Sensitivity 6.2dBf (0.56μV/75 ohms)
  • FM Quieting Sensitivity (46dB) 15.2dBf (1.58μV /75 ohms)
  • FM Stereo Separation 40 dB (1kHz)
• AM Tuner
  • AM Frequency Range 531kHz ~ 1,611kHz (9kHz Frequency Step)
  • AM Sensitivity 28.5 μV
  • Preset Stations 20 (FM:15ch, AM:5ch)
  • Tuner Preset Memory
  • Automatic Preset / SSM

Media Playback

• Audio Decoder
  • MP3 Compatible with Tag
  • WMA Compatible with Tag
  • WAV Compatible with Tag
  • AAC Compatible with Tag
  • FLAC Compatible with Tag
• Video Decoder
  • MPEG-1 / MPEG-2 Compatible
  • MPEG-4 Compatible
  • WMV Compatible
  • H.264 Compatible
  • MKV Compatible
• JPEG File Playback For user background only
• BMP File Playback For user background only
• PNG File Playback For user background only

USB

• USB Port(s) x 1
• Location Rear
• USB Standard x1 (High Speed)
• File System FAT16 / FAT32 / exFAT
• USB Mass Storage Class
• Drive Change Mode for Mass Storage Class
• Last Position Memory / Resume
• Digital / Analog Converter (DAC) 24 bit
• Frequency Response 20 Hz ~ 20kHz
• Total Harmonic Distortion (THD) 0.01 % (1 kHz)
• Signal-to-Noise Ratio (S/N) 98.5 dB
• Dynamic Range 89 dB
• 1.5A Max. Power Supply Current

Built-In Bluetooth (Version 5.0)

Wi-Fi Control

• IEEE Standard 802.11 a/b/g/n/ac
• Frequency Range Dual Band (2.4GHz/5GHz)

Android Control

• Android Auto
• Android Auto wired (via USB)
• Android Auto wireless (WiFi)
• Wired mirroring (via USB / mirroring app needed)

iPod/iPhone Control

App(s)

Audio

• Maximum Power Output (Front & Rear) 50W x 4
• Full Bandwidth Power (at less than 1%THD) 22W x 4 (Front & Rear)
• Speaker Load Impedance 4 Ω ~ 8 Ω
• Output Frequency Band 20 Hz ~ 88.000Hz
• Equalizer
• 13-Band Graphic EQ
• Preset EQ Preset x8 + User x4 / Source
• Volume Link EQ
• 3-Way X'over
• Bass Boost (Hyper Bass System)

Inputs and Outputs

• Audio Inputs and Outputs
  • Pre-Out Terminals 3 Pairs (Front + Rear + Subwoofer)
  • Pre-Out Impedance Less than 600 ohms
  • Pre-Out Level/Impedance 2.5V/10k ohms
  • Audio Output level (mini jacks) 2V / 25k ohms
  • Subwoofer Output with Level/Frequency Control
• Video Inputs and Outputs
  • Video Input Level/Impedance 1.0Vp-p / 75 ohms
  • AV Input mini jack (AV-IN or Camera switchable)
  • Video Out RCA
  • Colour System NTSC/PAL
  • Video Output Level/Impedance 1.0Vp-p / 75 ohms
• Camera inputs
  • Rear view camera Input
  • Convert AV-input to camera input

General

• Back Up Memory
• Installer Memory
• GPS Antenna Input
• DAB Antenna Input
• Wireless Remote Control Ready (RM-RK258 required)
• Wired Steering Remote Control Ready
• Learning Direct OEM Remote
• ISO Connector 16pin Mitsumi to ISO Wiring harness
• Short Chassis
• Operation Voltage 12 VDC
• Dimensions (W x H x D) 180mm x 100mm x 75mm
• Installation Size (W x H x D) 182mm x 111mm x 75mm
• Weight, inlcuding sleeve and escutcheon 1.2kg
