KA2284 Audio Level Meter Indicating Suit LED Indicator DIY Kit for

KA2284 Audio Level Meter Indicating Suit LED Indicator DIY Kit for Description

Melody audible, visual music!
Five-point LED audio level indicator kit
This package LED indication logarithmic 5:00 KA2284 integrated circuits as the core,
which is characterized as follows:
Constant current output
a wide operating voltage (3.5V--12V)
The ALC circuit without telescoped diode or transistor
Brightness level in amplitude can be adjusted
Chips : KA2284

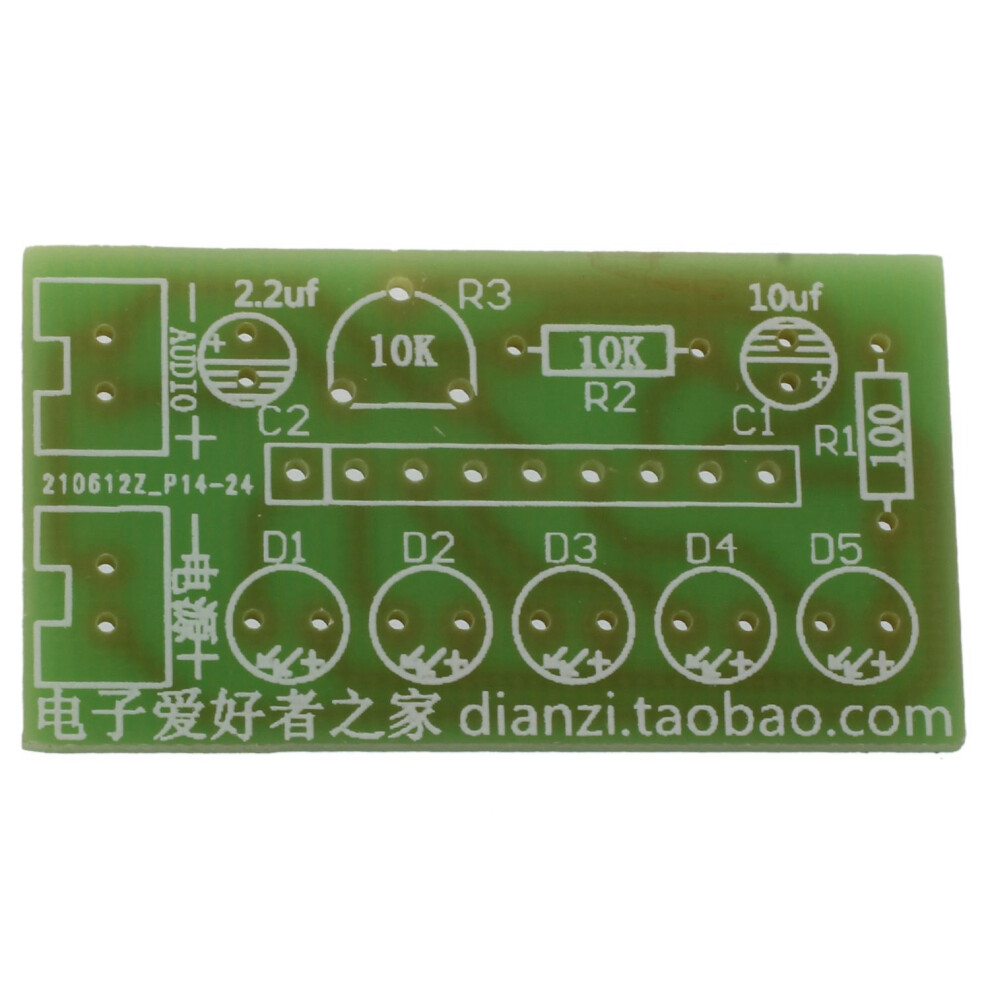

PCB Board Size : 40X19mm
This is an Electronic DIY KIT that utilizes the KA2284, some soldering experience is required. The PCB (Printed Circuit Board) is provided with the DIY KIT and it needs to be soldered, hence the name DIY KIT. All required electronic parts are provided, please refer to the images for more details. All resistors are 0.25w metal film ,The image is for illustration .

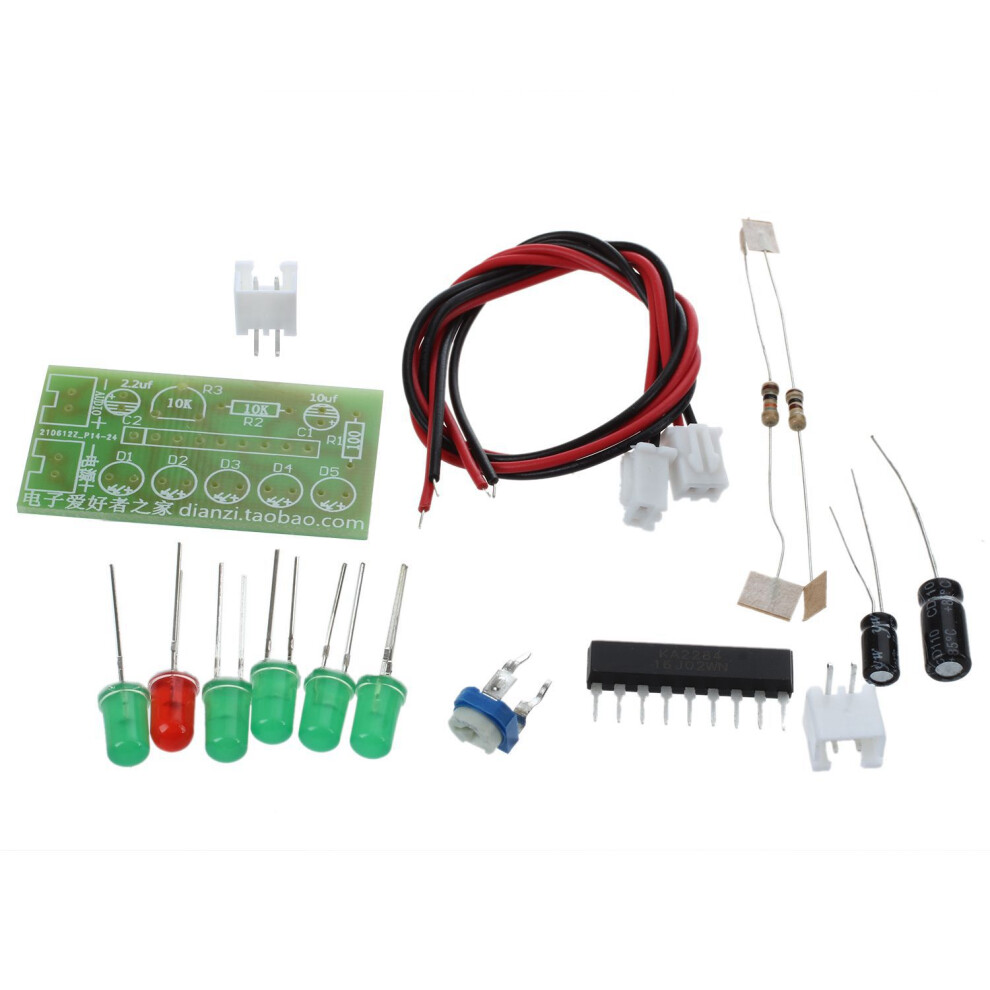

Package including : All components to build this kit

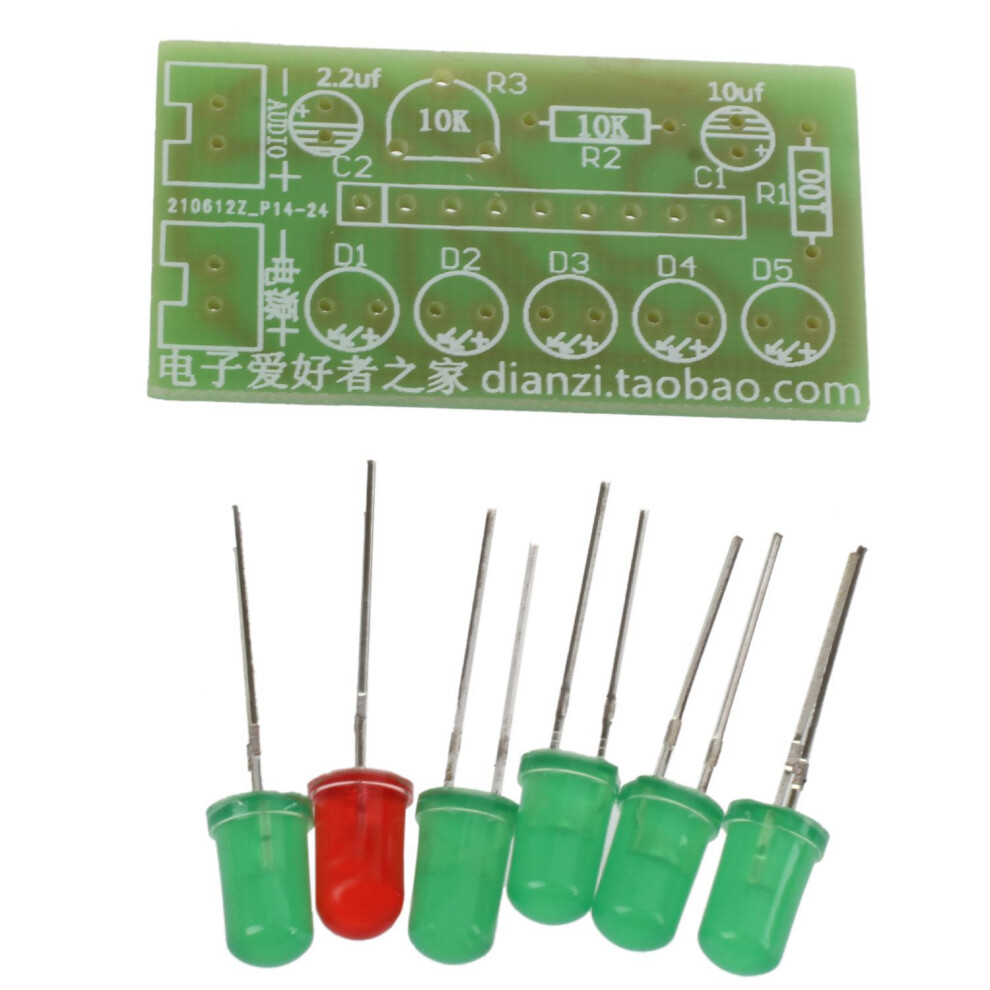

1 X PCB Board (color be shipped out by randomly )

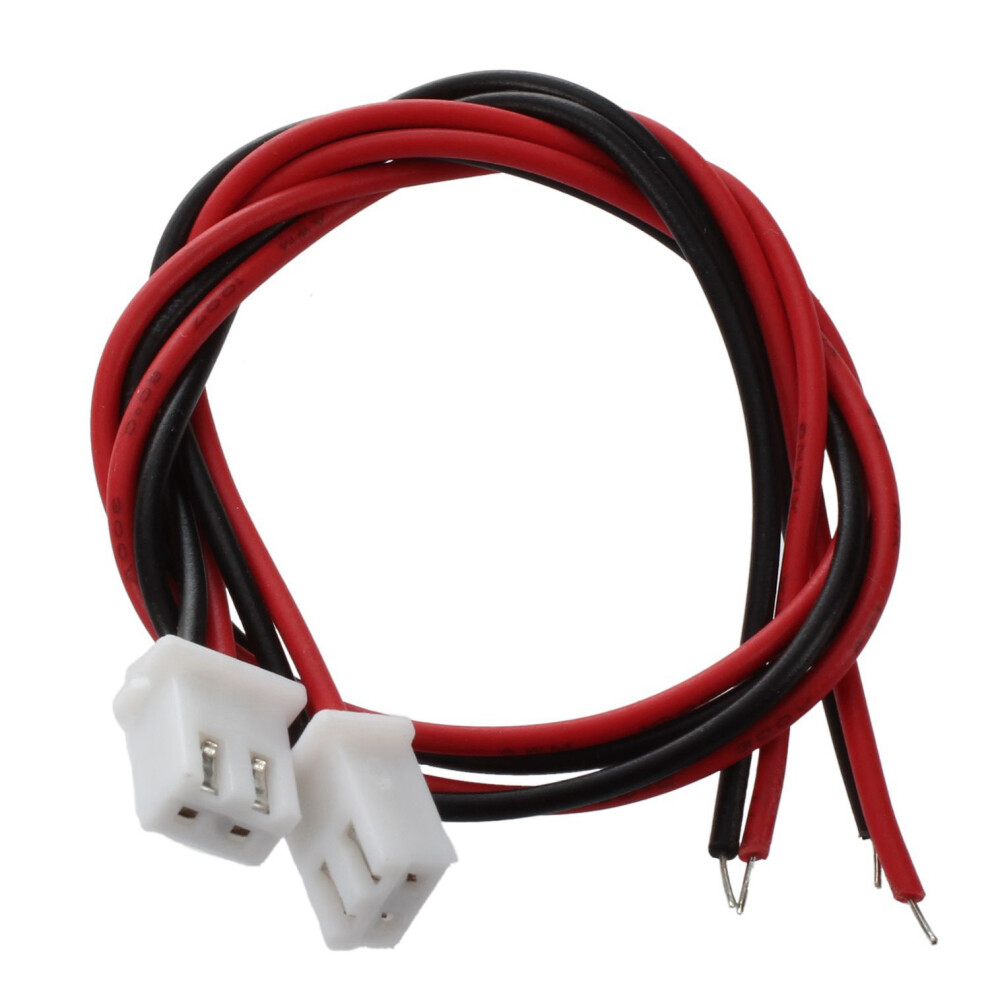

2 X XH2.54-2P Curve connectors
2 X XH2.54-2P Line
1 X 100R Metal Film Resistor
1 X 10KR Metal Film resistor
1 X 2.2UF
1 X 10UF
1 X Blue&white Potentiometer
1 X KA2284

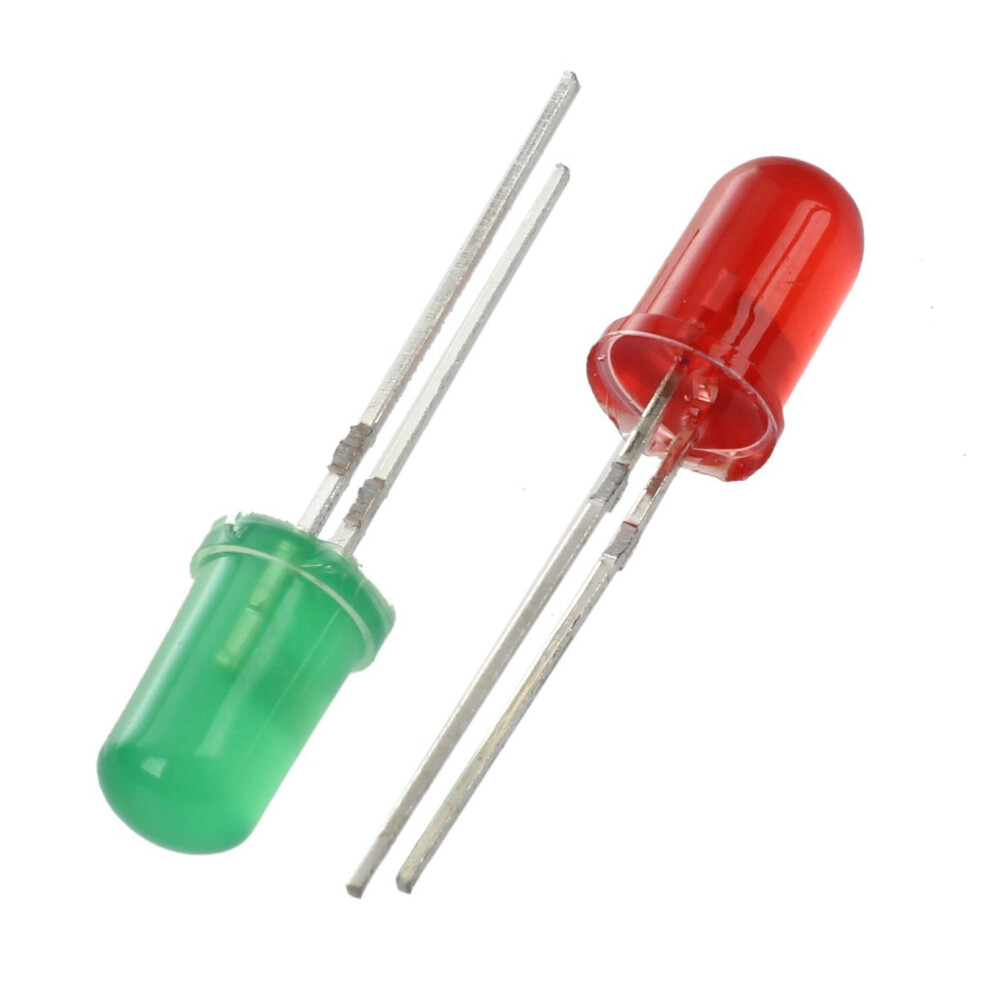

5 X 5mm diffused green
1 X 5mm diffused RED
Note: Random color, don't accept the specified color.
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
