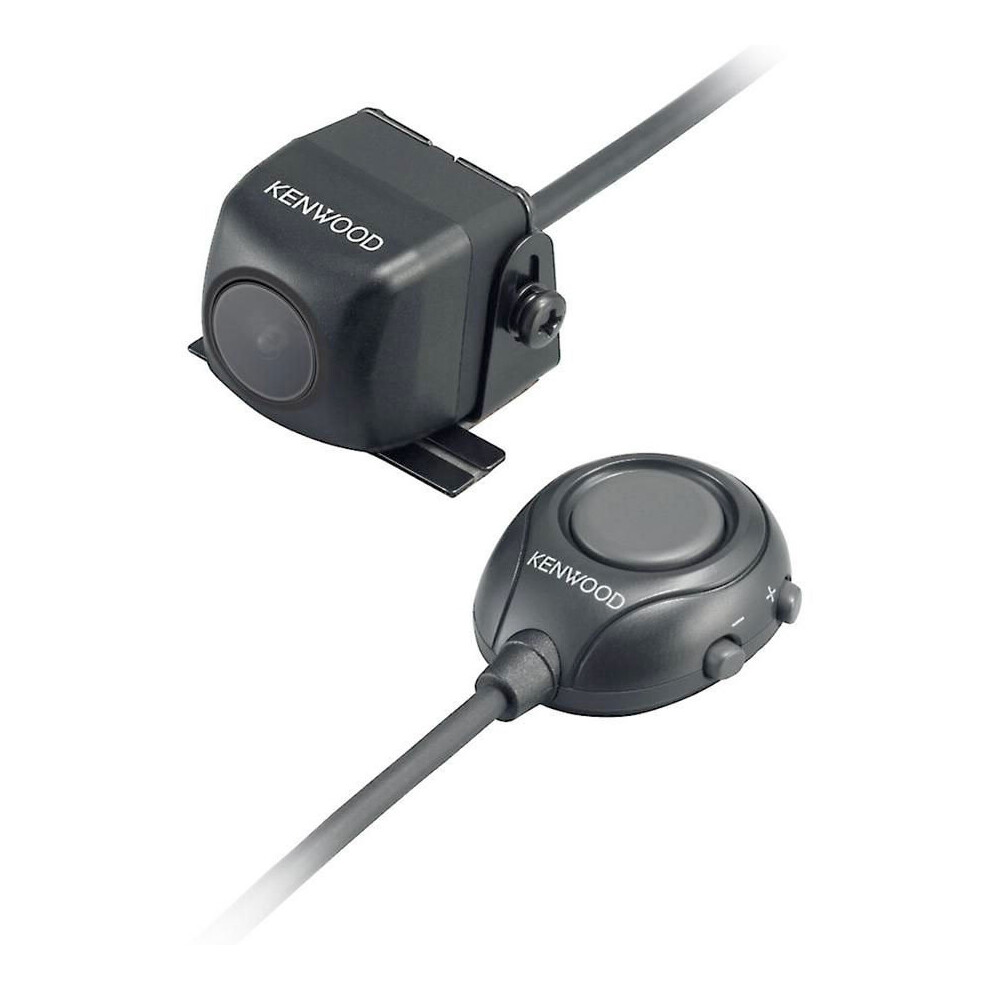

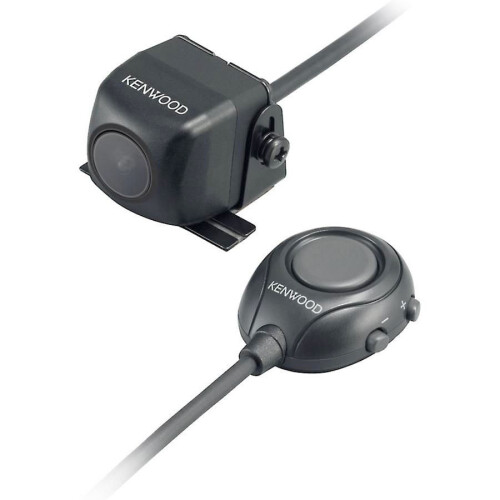

Kenwood CMOS 320 Universal Multi View Camera
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 136,000 Trustpilot reviews and an 'Excellent' rating
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Sat 10th - Tue 13th Oct
Sold by: LittleBigEssentialsLimited
Returns: 30 days
180-day payment protection
You might also like
Summary
- Kenwood's CMOS-320 universal camera helps keep you aware of your surroundings so you can drive more safely
- Mount it as a backup camera, shift into reverse, and you can check out the view behind your vehicle
- 330,000 pixels
- Compatible with any radio with an RCA video input (most aftermarket models, only a few factory)
- Waterproof unit with flexible mount base
Kenwood CMOS 320 Universal Multi View Camera Description
CMOS-320
Universal Multi View Camera
The CMOS-320 multi-view camera is equipped with an advanced image processor that is capable of altering viewing angles and increasing the number of viewing options including corner views and adding graphic guidelines to the camera image. Easily switch between the many viewing options using the touch screen from a compatible DNN, DNX or DDX receiver.
Universal Multi View Camera
Night, Normal, Wide, Corner & Overhead View
Switch Unit Included
1/3.6" Colour CMOS sensor
Waterproof unit with flexible mount base
NTSC Video Signal Out (RCA)
Can be installed on the front or rear side of the car
Camera Unit
Camera Type 1/3.6" colour CMOS sensor
Colour type Yes
Effective number of pixels roughly 330000
High sensitivity Pixels Yes
Output video Wide-angle Mirror Image (for rearview)/Wide-Angle normal Image (for Front View
Waterproof chassis Yes
Mounting system Fexible mount base
Installation positions Rear
Camera ID setting Yes
Rear view switching Reverse line
Front view switching by remote or Kenwood unit
Guideline view Yes
Guideline Adjustments Size, Horizontal Direction, Red Line Position
Image Adjustments Centering, Right-and-Left, Up-And-Down Angle
High voltage protection Yes
Wide angle lens Yes
Focal length f: 1.05mm, F value 2
Horizontal Angle view +/- 195°
Vertical Angle View +/- 145°
Illumination range approx. 0.9 to 100000 lux
Iris System Electronic
White balance Automatically
Scanning System Interlace
Synchronizing System Internal
Video output level 1Vpp, 75Ω
Video signal format NTSC (Mirror view)
Connection cable (DC+video) 9 m
General Specifications
Operating voltage 14.5V (9 ~ 16V Allowable)
Maximum Current Consumption 0.1A
Dimensions (WxHxD) 23.4 x 23.4 x 26.1mm
Weight 23 gr.
Dimensions Switch Unit (WxHxD) 27.5 x 32.8 x 12 mm
Weight Switch Unit 10 gr.
Operation Temperature Range -30°C ~ 70°C
Storage Temperature Range -40°C ~ 80°C
Features
- Camera Facing: Front
- Features: Mount Included
- Screen Size: 3.6"
Details
| OPC | P5PRFBG |
|---|---|
| Brand | |
| Codes | 0019048208217 (EAN) |
| 019048208217 (UPC) | |
| MPN | CMOS 320 |
Detailed Product Information
| Weight | 0.47kg |
|---|---|
| Weight | 0.47kg |
| Weight | 0.47kg |
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
The CMOS-320 multi-view camera is equipped with an advanced image processor that is capable of altering viewing angles and increasing the number of viewing options including corner views and adding graphic guidelines to the camera image. Easily switch between the many viewing options using the touch screen from a compatible DNN, DNX or DDX receiver.
- Night, Normal, Wide, Corner & Overhead View
- Switch Unit Included
- 1/3.6" Colour CMOS sensor
- Waterproof unit with flexible mount base
- NTSC Video Signal Out (RCA)
- Connection cable (DC+video)5 m
- Can be installed on the front or rear side of the carDDX receiver.
The CMOS-320 multi-view camera is equipped with an advanced image processor that is capable of altering viewing angles and increasing the number of viewing options including corner views and adding graphic guidelines to the camera image. Easily switch between the many viewing options using the touch screen from a compatible DNN, DNX or DDX receiver.
- Night, Normal, Wide, Corner & Overhead View
- Switch Unit Included
- 1/3.6" Colour CMOS sensor
- Waterproof unit with flexible mount base
- NTSC Video Signal Out (RCA)
- Connection cable (DC+video)5 m
- Can be installed on the front or rear side of the carDDX receiver.
Alternative names:
- Kenwood Electronics CMOS-320 car backup camera Wired
- Kenwood Electronics CMOS-320 car backup camera Wired
Detailed Product Information
Weight & dimensions
| Weight | 23 g |
|---|---|
| Height | 23.4 mm |
| Width | 23.4 mm |
| Depth | 26.1 mm |
Operational conditions
| Operating temperature (T-T) | -30 - 70 °C |
|---|
Camera
| Sensor type | CMOS |
|---|---|
| Minimum illumination | 0.9 lx |
| Connectivity technology | Wired |
| Horizontal field of view | 195° |
| Vertical field of view | 145° |
| Image sensor size | 1/3.6" |
Features
| Product colour | Black |
|---|---|
| Waterproof | Yes |
Display
| Display included | No |
|---|
