KG316T-II 30A Digital Programmable Timer Switch AC-DC 24V

KG316T-II 30A Digital Programmable Timer Switch AC-DC 24V Description

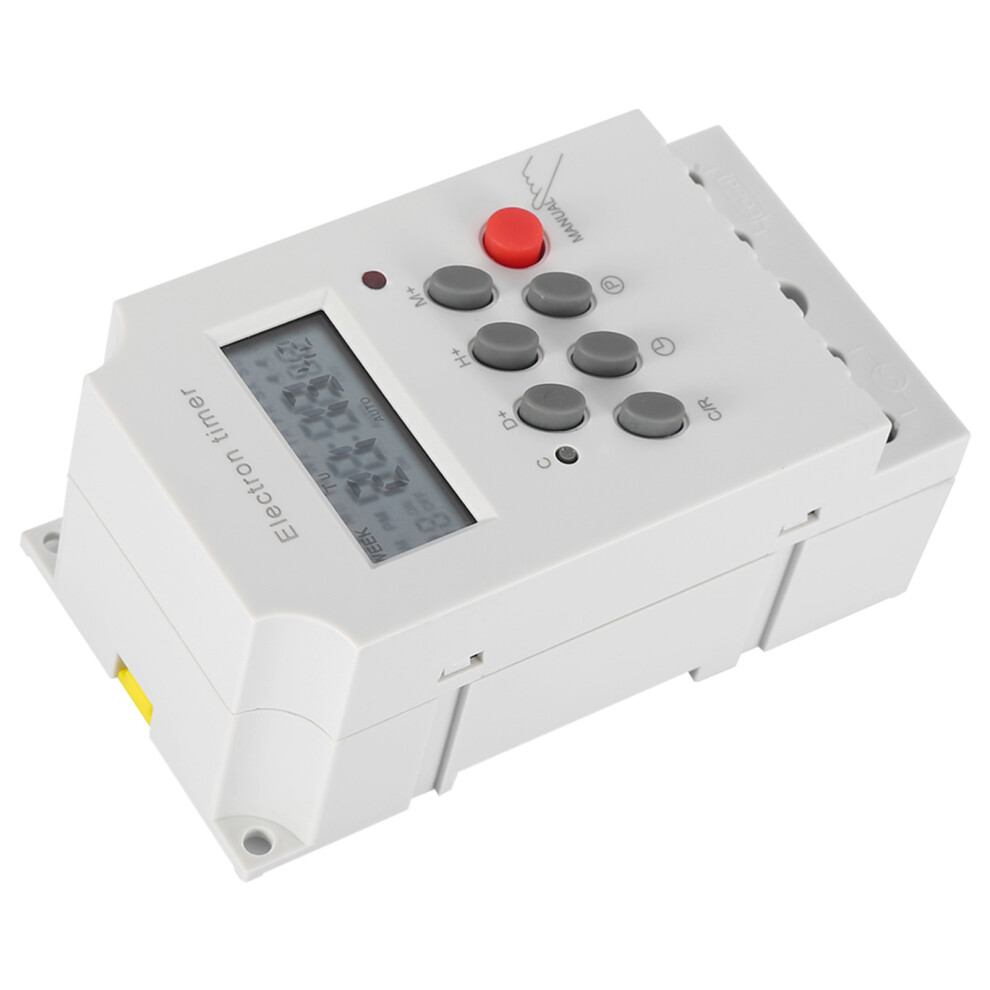

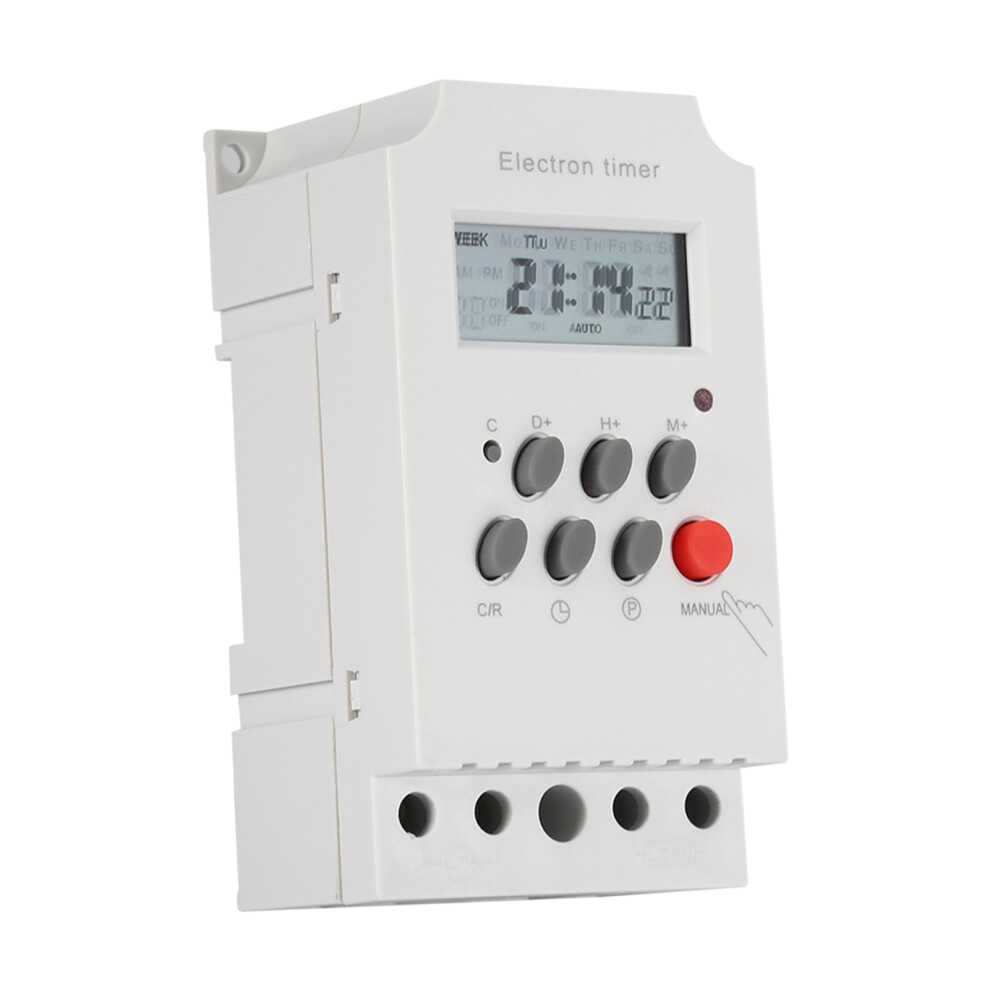

KG316T-II 30A Digital Timer Switch Programmable Electronic Time Control Switch (AC-DC 24V)

Features:
1. This product can automatically switch on and off the power of various powered devices according to the time set by the user.
2. Suitable for the automatic control of street lamp, neon lamp, advertising sign lamp, production device, broadcast television device and other power devices.
3. Adopt high precision industrial grade chip for accurate timing control.

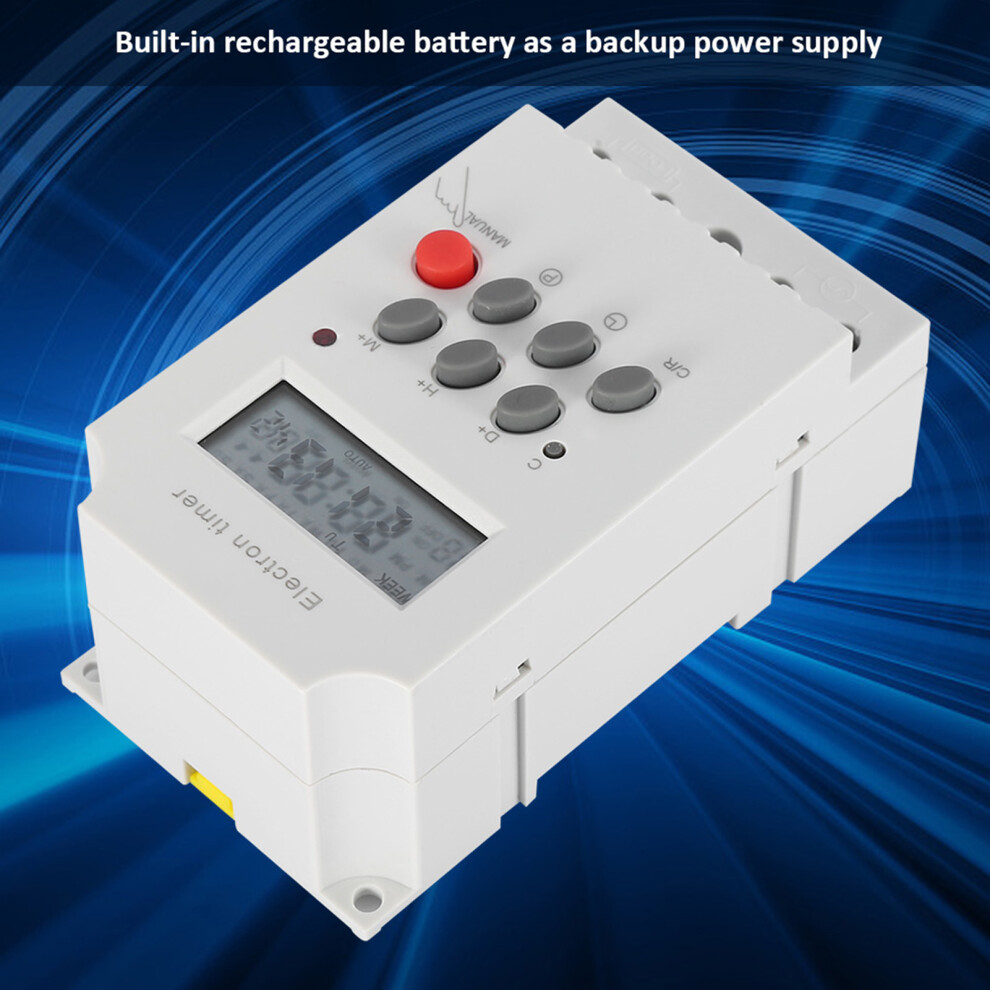

4. Built-in rechargeable battery is used as a backup power supply to maintain the timing, display and data storage in case of no external power supply.
5. ON-OFF time can be cycled by day or week, maximum 16 times ON-OFF.

Specification:

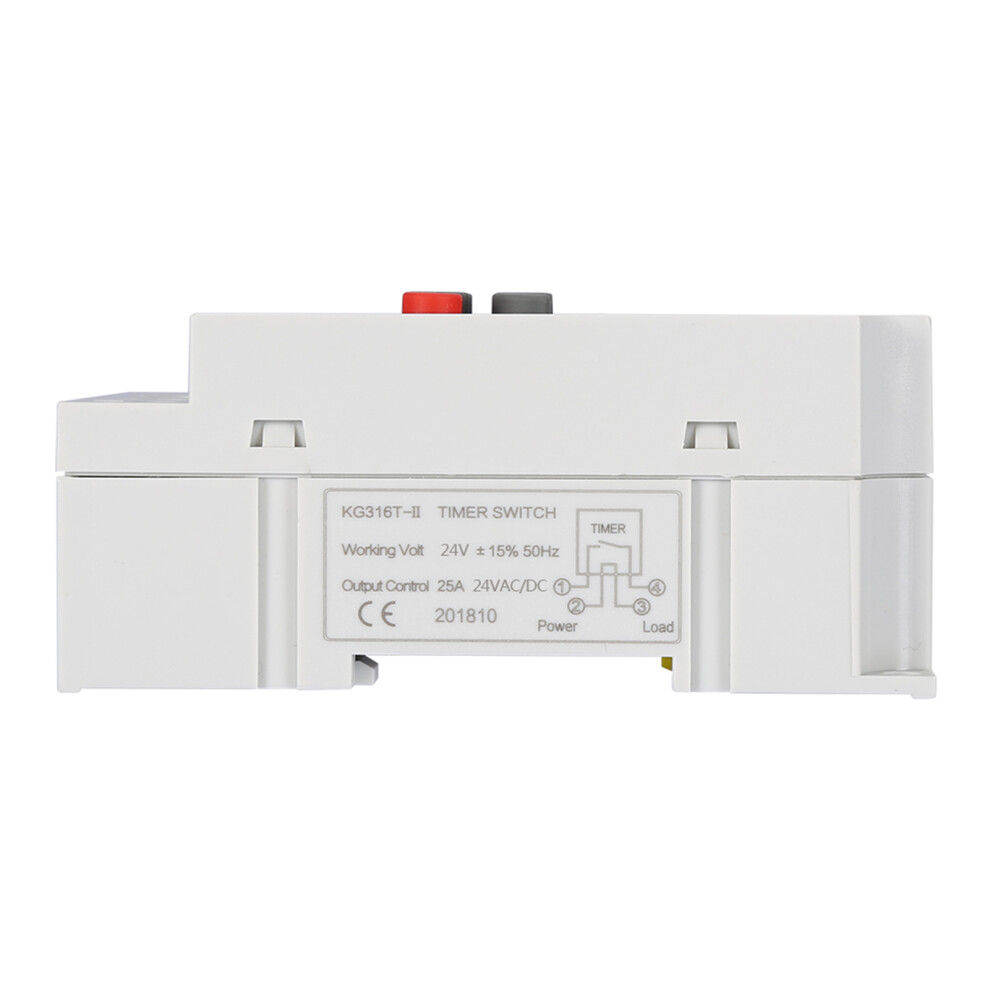

Working voltage: AC220V, AC 110V, AC-DC 12V, AC-DC 24V (Optional)
Voltage tolerance: 15%
Switching capacity: Resistive 25A, inductive 20A
Power Consumption: 2W
Number of settings: 16 times ON and OFF(day/week)
Setting time: 1 minute - 168 hours
Time-keeping error: <0.5s/24h
Power-off memory: 180 days or more
Operating environment: -10~40, <95%RH

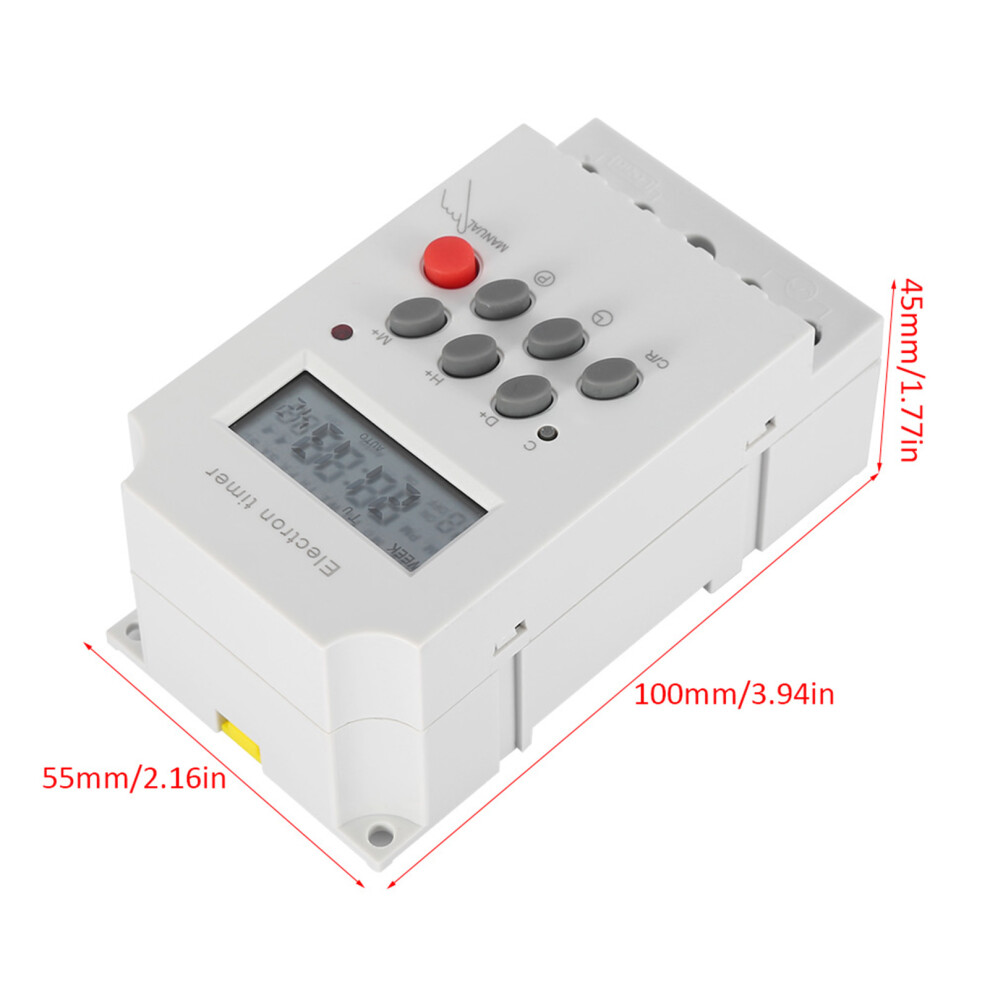

Dimensions: Approx. 100 x 55 x 45mm / 3.94 x 2.16 x 1.77in
Weight: Approx. 150g/5.3oz

Package List:
1 x Digital Timer Switch

Note:
1. Due to the difference between monitors and light effects, the pictures may not reflect the actual color of the item.
2. Please allow slight error due to manual measurement. Thanks for your understanding.
