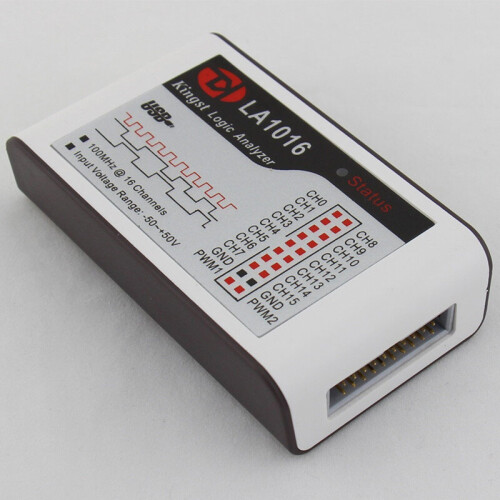

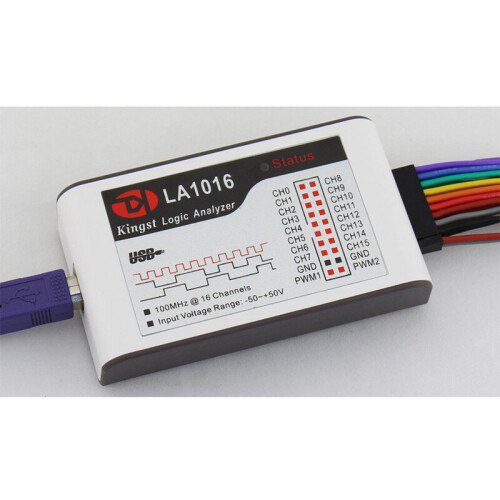

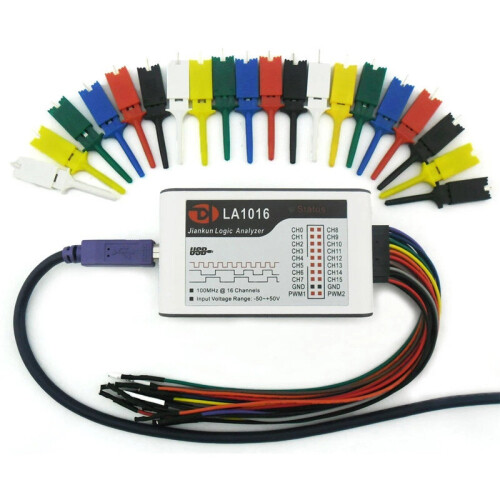

Kingst LA1016 USB Logic Analyzer 100M Max Sample Rate 16 Channels 10B Samples MCU ARM FPGA Debug Tool English Software

Kingst LA1016 USB Logic Analyzer 100M Max Sample Rate 16 Channels 10B Samples MCU ARM FPGA Debug Tool English Software Description

Software KingstVIS official website download address: http://www.qdkingst.com/download/vis Description: Kingst LA1016 USB Logic Analyzer 100M max sample rate,16Channels,10B samples, 2 PWM out LA1016 is a high-performance logic analyzer with 16 channels and 100M sampling rate. It is composed of two parts: software on personal computer and hardware equipment. It has the advantages of high sampling rate, large sampling depth, easy to use, etc. LA1016 can sample 16 digital signal at same time. Then the sampled data can be displayed, analyzed, exported and saved on the computer. Software can also decode the data if it conform to the standard protocol of the software supported. Then the decoded data can be displayed, exported and saved. Features: Portable and lightweight 100M sampling rate @ full channels Large sampling depth and support compression The built-in PWM generator Compatible USB2.0/3.0 interface Powerful software and easy to use Support online upgrade automatically Specification: ·Input channels number: 16 ·Max sampling rate: 100M ·Measurement bandwidth: 20M ·Min pulse width can be captured: 20ns ·Hardware memory size: 1Gbits ·Hardware sampling depth: 50M/channel ·Max compressed depth: 10G/channel ·Input voltage range: -50V ~ +50V ·Input impedance: 220KÎ, 12pF ·Threshold voltage: low level 0.8V, high level 1.6V ·PWM channels number: 2 ·PWM frequency range: 0.1 ~ 20MHz ·PWM frequency adjust step: 10ns ·PWM pulse width adjust step: 5ns ·PWM output voltage: +3.3V ·PWM output impedance: 50Π·Standby current: 130mA ·Max operating current: 260mA ·Dimensions: 95mm * 55mm * 23mm ·Support OS: Windows XP, Vista, Windows 7/8(32bit/64bit) ·Support standard protocols: UART(RS-232/485/422), I2C, SPI, CAN, DMX512, HDMI CEC, I2S/PCM, JTAG, LIN, Modbus, 1-Wire, Simple Parallel, PS/2 Keyboard/Mouse, UNI/O, USB1.1 Package included: 1 x Kingst LA1016 USB Logic Analyzer 2 x 9P Test Lead Set 1 x 2P Test Lead Set 20 x Test Hook Clip 1 x USB2.0 Cable 1 x CD-ROM Details picture:
