(kit2) PICKIT3 PICKIT2 Debugger Micro In-Circuit Programmer Emulator PIC Controller

(kit2) PICKIT3 PICKIT2 Debugger Micro In-Circuit Programmer Emulator PIC Controller Description

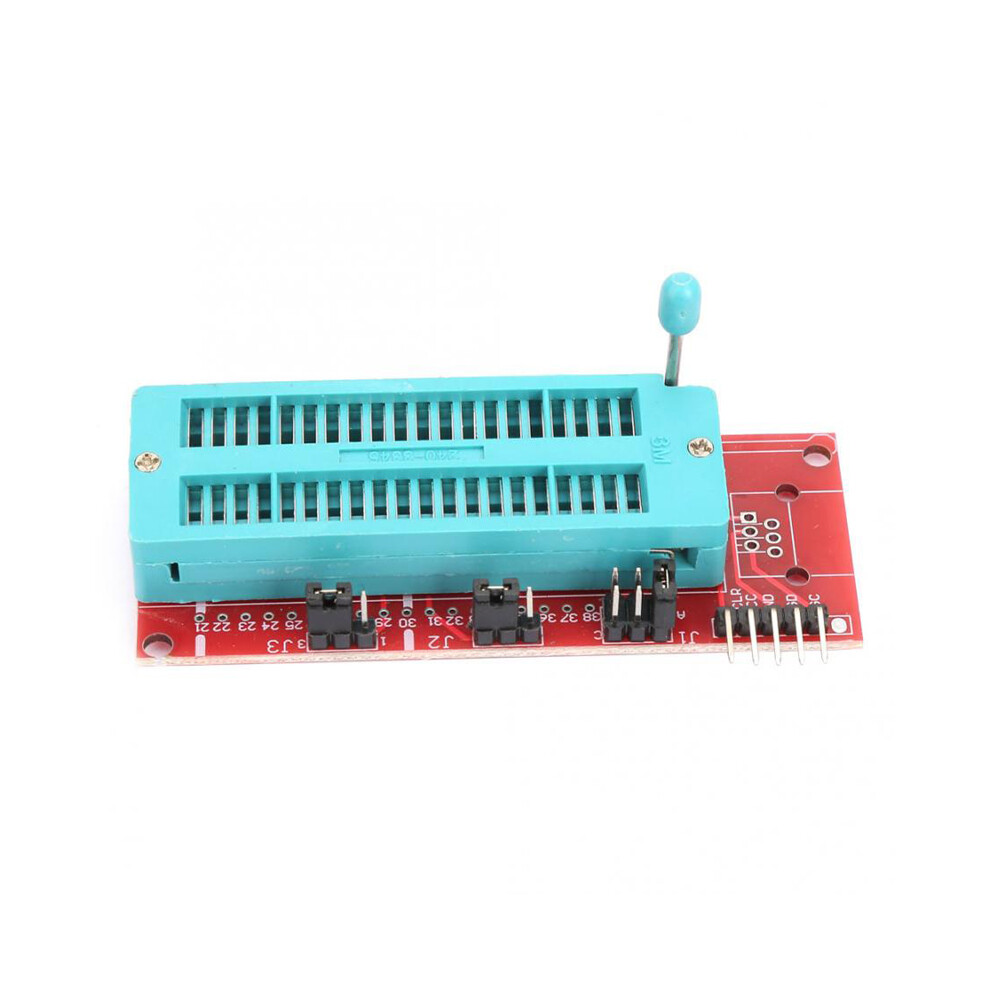

PIC Programming Adapter:
Installing the microcontroller, 28-pin, 40-pin microcontroller left aligned 28/40P (A). This flag line short-circuit cap on the A position. The 8,14,18, 20-pin microcontroller aligned on the left 8P/14P/18P/20P flag line (B), shorting cap on the B position.
The ICD2, KIT2, KIT3 crystal head or 6Pin Block programming connection for the programming operation. (Note: a separate program of the seat can not be programmed, the chip is programmed functions).

The seat supports the following programming microcontroller:
PIC16/18XX 40PIN Series devices (except 16F59)
PIC16/18XX 28PIN Series devices (except 16F57)
PIC16/18XX 18PIN Series devices
The PIC 8PIN/14PIN/20PIN family of devices (except 10FXX)

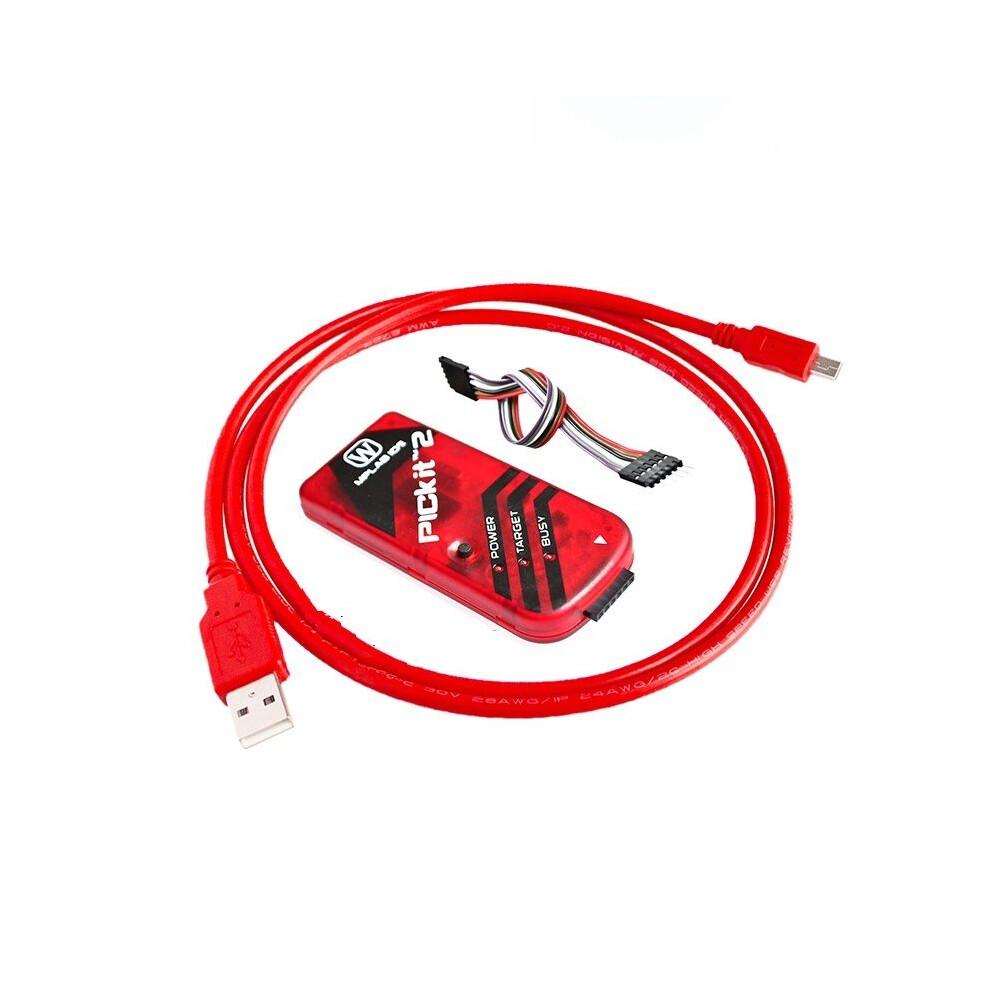

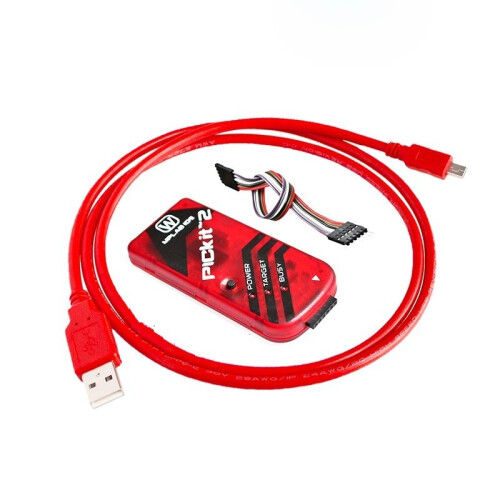

PICkit2
Features:
1. The electrical performance: 100% to the original; software features: 100% up to the original ( 2 shelves ).
2. The original firmware, can be assured by the MPLAB IDE download the algorithm, upgrade FW.
3. The original chip imports tantalum capacitor, import gold-plated connectors (amp or foxconn).
4. High-quality transparent new material injection.

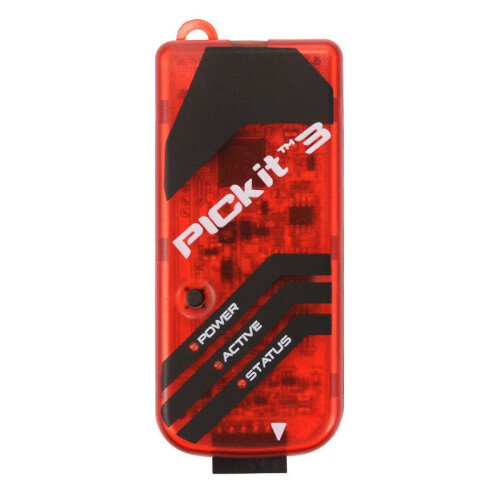

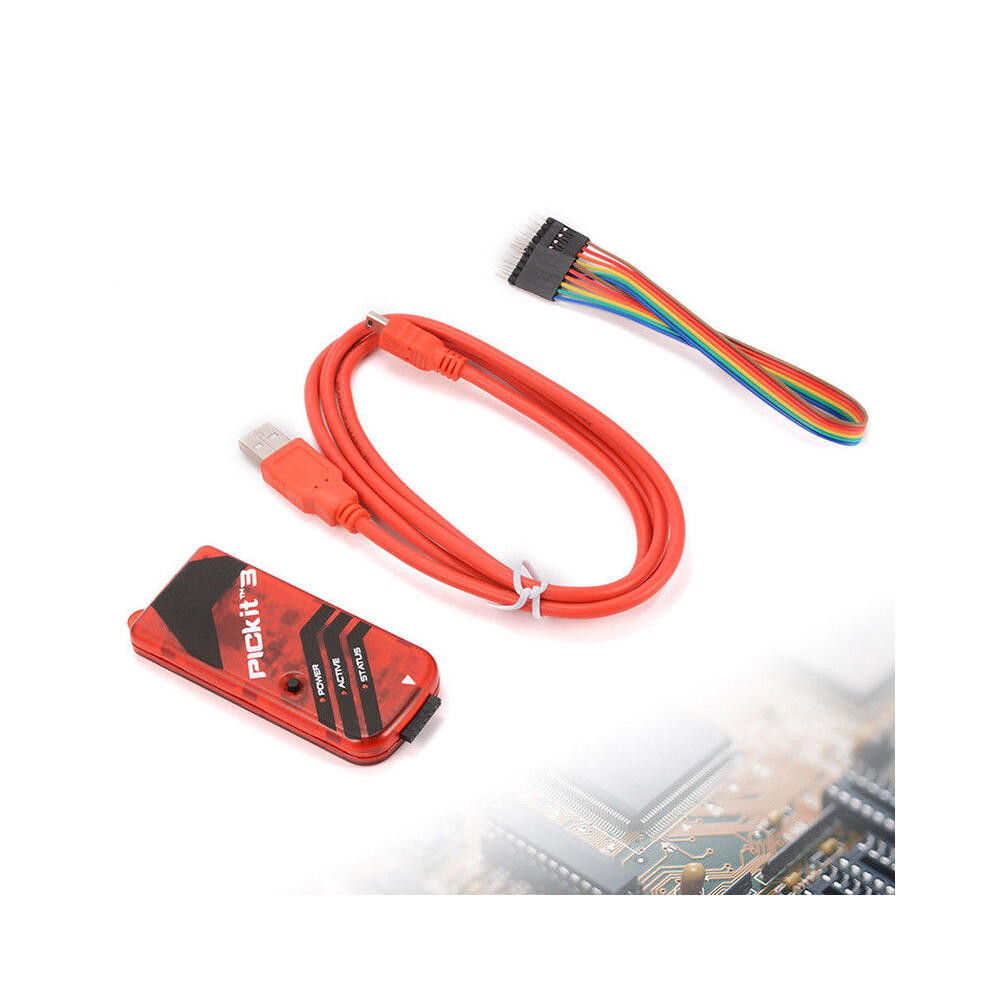

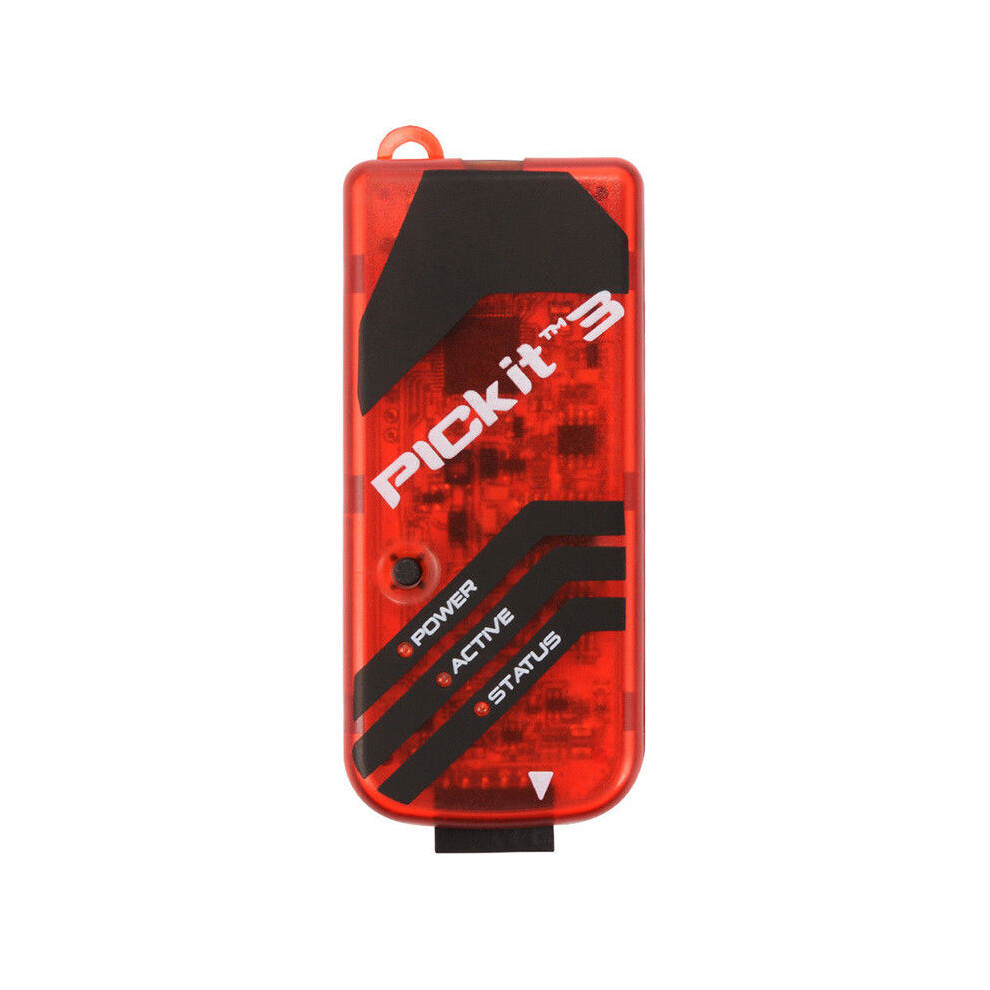

PICkit3
Full-speed USB support using Windows standard drivers.
Real-time execution.
Processors run at maximum speeds.
MPLAB IDE compatible (free copy included).
Built-in over-voltage/short circuit monitor.
Firmware upgradeable from PC/web download.
Totally enclosed.
Supports low voltage to 5 volts (1.8v to 5.0v range).
Diagnostic LEDs (power, active, status).
Read/write program and data memory of microcontroller.
Erase of all memory types (EEPROM, ID, configuration and program) with verification.
Freeze-peripherals at breakpoint.
Program up to 512K byte flash with the Programmer-to-Go.

Basic Debugger System:

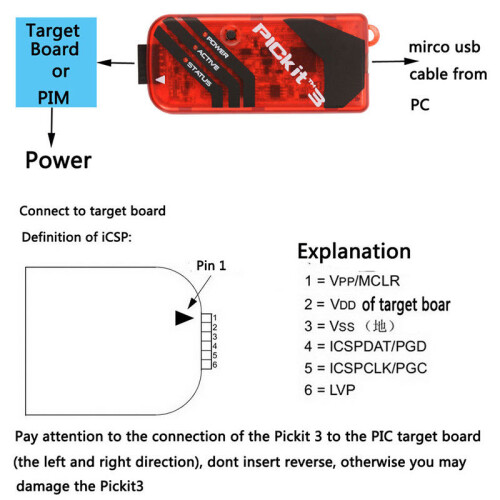

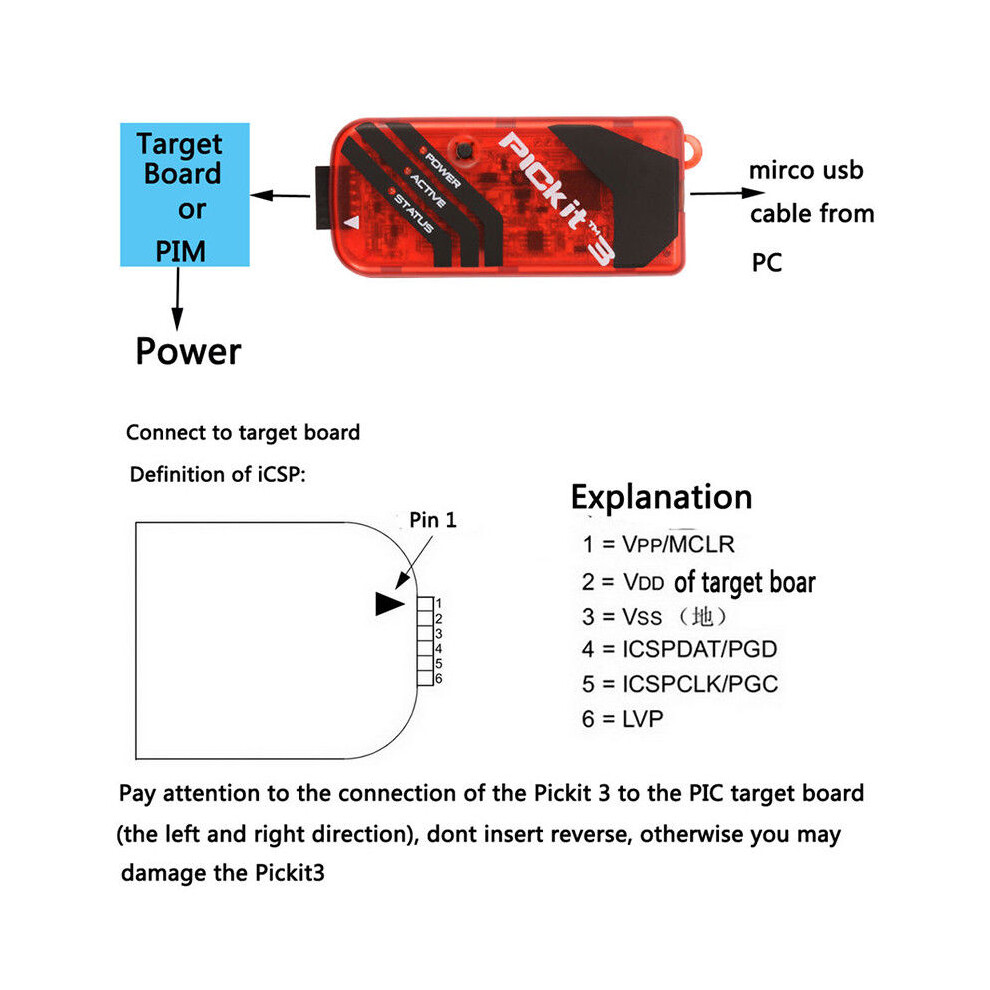

The debugger system can be configured to use standard ICSP communication for both programming and debugging functions.
CAUTION: Do not change hardware connections while the PICkit3 or target is powered.

Package Included:
1 x items as you choosed
