Knipex 12 40 200 SB Self Adjusting Insulation Stripper 0.03-10mm
Similar Products we think you'll like
Would you like us to let you know when it's back?
Knipex 12 40 200 SB Self Adjusting Insulation Stripper 0.03-10mm Description

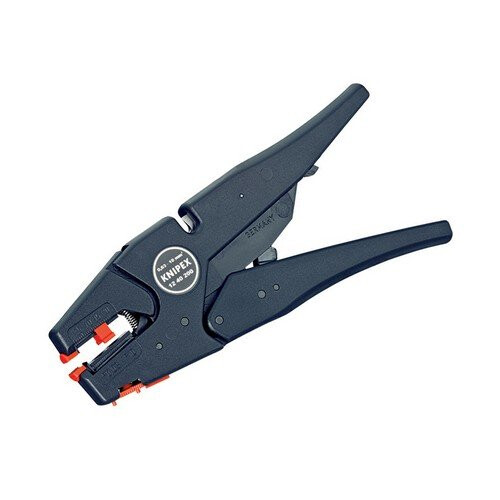

Knipex 12 40 200 SB Self Adjusting Insulation Stripper
0.03-10mm
Knipex Self Adjusting Insulation Stripper used for single, multiple and fine stranded conductors with plastic or rubber insulating. Adapts automatically to the respective cable cross-section, preventing damage to the conductor. The cutting depth can be adjusted for different insulation materials.
Use the wire cutter for copper and aluminium wires, multiple stranded up to 10.0 mm² and single stranded up to 6.0 mm². Features a smooth operating mechanism, withstripping blades and clamping jaws that are easily replaceable.
The body is made from reinforced plastic fibreglass so it is lightweight. The blade is made from special tool steel that is oil-hardened. For thin ribbon cables up to 13/32 inches width in a single pass.
Specification
Size: 200mm.
Range of application: Conductors 0.00118 - 13/32 inches².
Length stop: 3.0-18.0mm.
Stripping capacities: 0.03-10.0 mm².
Capacity AWG: 32 - 7.
Details
| OPC | PMTM5F |
|---|---|
| Brand | |
| Codes | 4003773029823 (EAN) |
| MPN | KPX1240200 |
| Links | Knipex Tools |
| Knipex Wire Strippers |
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
- For single, multiple and fine stranded conductors with plastic or rubber insulation
- Adapts automatically to the respective cable cross-section; prevents damage to the conductor
- Cutting depth can be adjusted for different insulation materials
- With wire cutter for copper and aluminium wires, multiple stranded up to 10 mm² and single stranded up to 6 mm²
- Smoothly operating mechanism
- Stripping blades and clamping jaws easily replaceable
- Low weight
- Body: plastic, fibreglass-reinforced
- Blade: special tool steel, oil-hardened
Alternative names:
- Knipex 12 40 200 SB cable stripper Black
