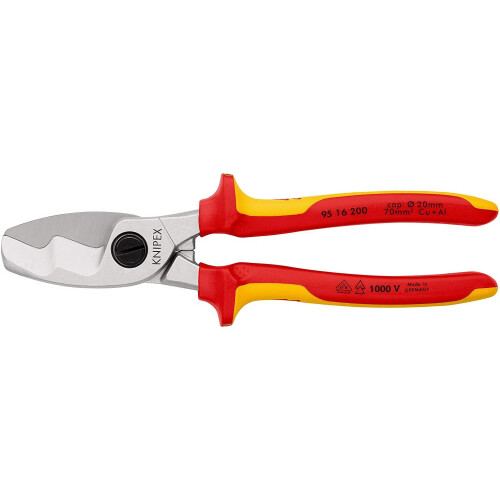

Knipex Cable Shears, Twin Cutting Edge, Insulated, Multi Component Grips, 200 mm

Knipex Cable Shears, Twin Cutting Edge, Insulated, Multi Component Grips, 200 mm Description

Knipex Cable Shears, Twin Cutting Edge, Insulated, Multi Component Grips, 200 mm

• Cable shears with twin cutting edge for cutting solid, multicore and finely stranded Cu and Al cable
• For reasons of design, unsuitable for steel wire or hard drawn copper conductors
• Cut smoothly, cleanly and without crushing thanks to very sharp, accurate cutting edges with precision cut
• Easy cutting with one-handed operation; pinch protection prevents injuries to hands
• Adjustable, self-locking bolted joint
• Forged from high-grade special tool steel, oil-hardened, chrome-plated
• Cutting capacity Cu cable, stranded (diameter) Ø 20 mm
• Handles with insulating multicomponent grips, VDE tested
• Length 200 mm
• Weight 340 g

Cut stranded Cu and Al cable up to 70 mm² in two operations

• The twin cutting edge of the Knipex 95 16 200 is literally special in two respects: with larger cable cross-sections there is an initial cut into the insulating sheath in the front cutter profile; the metal conductors are subsequently cut in the back cutter profile.
• This division of work on the cutting edge brought about by its design makes work easier for the user. The initial cut in the front profile also provides a hand-friendly grip position for large cross-sections.

Why cable should only be cut using cable shears

• Unlike diagonal cutters with blades that meet at an obtuse angle, and which crush cable insulation and deform cable ends, the Knipex 95 16 200 cable shears cut with the twin cutting edge using a scissors action.
• This principle produces a substantially better result, because the cable is not crushed, but is cut very smoothly and cleanly.
• They are therefore excellent for shortening stranded and finely stranded Cu and Al cables, also with large cross-sections.
• For reasons of design, the cable shears must not be used to cut steel wire or hard drawn copper conductors.

Ideal for electrical instalation

• These cable shears conserve the manual force of the fitter and protect the cable insulation by preventing crushing.
• The precision ground, hardened twin cutting edge delivers lasting clean, even cuts.
• Due to the favourable transmission ratio, comparatively little effort is required.
• The precisely running bolted joint also contributes to comfortable work using these cable shears.
• The bolted joint is self-locking and can be adjusted where necessary.
• The insulating multi-component grips offer users additional protection from an electric shock when working on live parts.

 VDE tested cable shears with twin cutting edge

• The Knipex cable shears with twin cutting edge are a tool for electrical instalation.
• Those who use tools a lot and professionally every day expect a quality that permits simple and safe work as well as a tool that lasts for many years of hard use.
• We forge our tools from quality materials, machine them with high precision on modern machinery and harden them with careful multiple stage heat treatment
• Every pair of Knipex pliers represents more than 130 years of specialist know-how.
