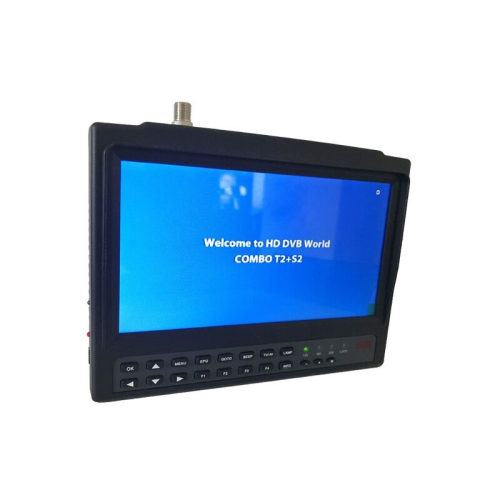

KPT-716TS DVB-S2 DVB-T2 Satellite Finder Meter HD Satellite TV Receiver MPEG-4 Modulator

KPT-716TS DVB-S2 DVB-T2 Satellite Finder Meter HD Satellite TV Receiver MPEG-4 Modulator Description

Features 7inch Portable widescreen Satellite finder & DVB-T2 Test & Monitor *7”Inch High definition TFT LCD Screen which Can Play Channels(DVB-S/S2 & DVB-T2). *T2+S2 Combo Receiver;Live FTA Digital Picture and Sound, *AV Output and AV Input function. With HDMI Output *Shows strength and quality readings, *Sound and Light Alarm When Lock Signal(DVB-S/S2). *Fully compliant with DVB-T2/DVB-T standard Specifications: CD Display 7”TFT LCD Display size:155*89mm Dots pixels:800*480(1152000Pixes) Menu language English; Russian; Thai. Vietnamese; Burmese; Persian. Georgian; French; Arabic Receiver standard Satellite Signal DVB-S/S2 DVB-T/T2 AVS/AVS+/MPEG-2 Input&Output ports: connector DVB-S2 LAN in (75Ω) F type male puly: 75Î (F) Frequency range:950MHz-2150MHz Demodulation:QPSK, 8PSK,16APSK,32APSK Signal level: -65dBm~-25dBm DiSEqC:DISEqC 1.0/1.1/1.2/1.3 compatible DVB-T2 ANT in (75Ω) DVB-T and DVB-T2 standard Frequency range: VHF-H 174-230MHz, UHF 470-860MHz Demodulation:QPSK, 16QAM, 64QAM,256QAM Bandwidth:6 , 7 , 8MHz HD input 1.3 interface; 1080p/1080i/720p/480p/480i output supported CVBS video, L/R audio TV model: AV output; AV model: AV input Ø3.5 Head RCA channel Video format:PAL/NTSC USB 2.0 Support PVR and software upgrade Supports external HDD via USB, power wanted if necessary Power Supply Lithium Battery 11.1V/2200mAh Charger Input AC100-220V Charge 13.5V / 1A Output DC12V / 1.A Physical Specification Size 180*143*50mm Net Weight 580g (including battery pack) Main specification and features: T2+S2 combo receiver 1-DVB-T/T2, compliant with EN 300 744 DVB-T and EN 302 755 DVB-T2 2-DVB-S/S2, compliant with EN 300 421 DVB-S and EN 302 307 DVB-S2 3-QPSK,8PSK,16APSK and 32 APSK 4-QPSK/8PSK 1-45Msps, 16APSK:1-39Msps and 32APSK 1-32Msps 5-Channel bw 1.7/5/6/7/8MHz 6-T2-Base profile o T2-Lite profile o single and multiple PLPs 7-Low IF (4.57-10MHz) 8-Carrier acquisition range: +/-650kHz at 8MHz BW 9-Video decoder: MPEG-4/H.264 MP and HP MPEG-2MP at ML and MP at HL 10-Audio decoder: MPEG-1/2/4, AAC/HE-AAC/AC3.DD+ (optional)/PCM 12-PAL and NTSC auto switch 13-USB 2.0 for PVR, time shift and media playback 14-Up to 5000 channels 15-Supports subtitle and VBI/OSD Teletext 16-Auto scan/TP scan/NIT scan and blind scan 17-DISEqC 1.0/1.1/1.2/1.3 compatible 18-Supports favorites group 19-Supports logic channel number 20-OTA update Package Includes: 1 x Satellite Finder 1 x Set of Accessories Details Pictures:
