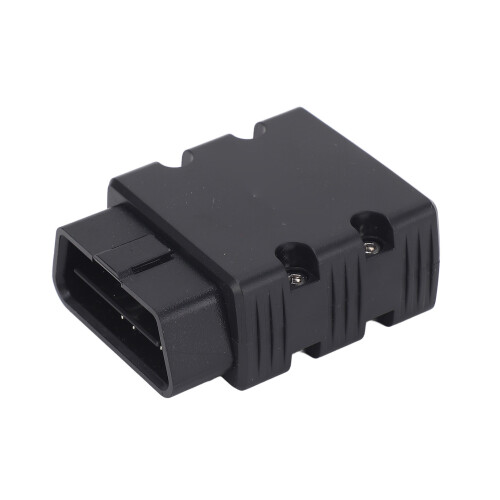

KW902 Bluetooth OBDII Car Scanner Diagnostic Tool for Android, Black

KW902 Bluetooth OBDII Car Scanner Diagnostic Tool for Android, Black Description

KW902 OBDII Car Scanner Diagnostic Tool Fault Detection Bluetooth 5.0 for Android Black
Description:
With KW902 car scanner diagnostic tool, you will be able to perform a complete computer diagnostics car and even to correct minor faults without resorting to service stations.
Features:

KW902 scan tool is a high-quality automotive scanning tool, supports all OBD-II.


Small size, compact structure. Plug and never unplug.


Stable wireless connection. No wires or batteries (adapter is powered by the diagnosis size sockets).


Stop communication, wait half an hour, auto sleep.


Supports all OBDII protocols. Support Bluetooth 5.0. Support for Android.


The adapter uses the fastest and most reliable chips.

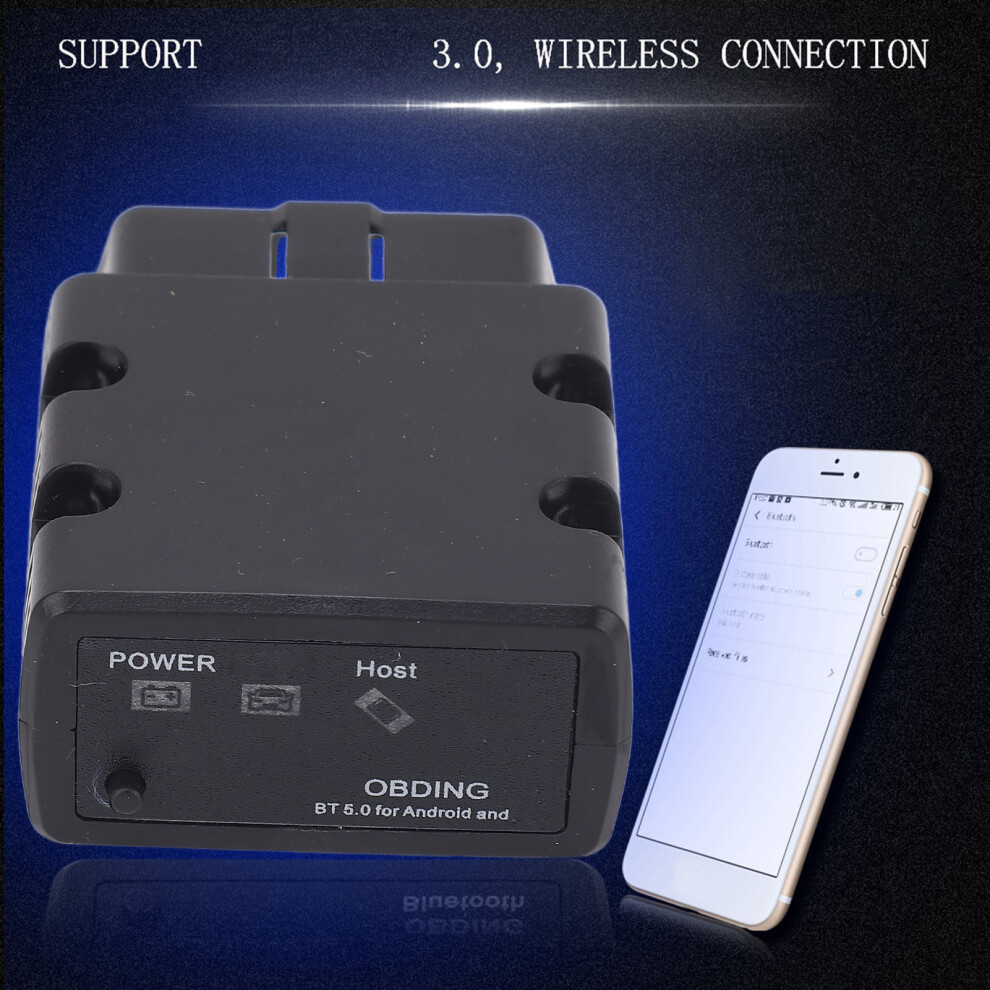

The device is a small adapter that plugged into the vehicle OBD connector. On Bluetooth, it connects to any computer, tablet or smartphone, With associated diagnostic procedures . Doing these simple operations, you will be able:

Measure the fuel consumption.


Display real-time operating performance of the car, such as momentum,vehicle speed, oil pressure, coolant temperature, engine load, intake manifold pressure, throttle position, the values of oxygen sensors, air intake temperature, and more.


Turn off the MIL (signal Check Engine).


Download data to external media in a variety of formats for later printing.


Record various parameters, display graphics in real time, and more.

Specifications:
Condition:
Material: ABS, metal
Color: Black, Green(optional)
Model: KW902
Supply voltage(VDD):12V
Work temperature range: -20 ~ +70
Storage temperature range:-40 ~ +125
RF sensitivity(Basic Rate): -85db
Modulation Mode:GFSK
Frequency Range:2402~2480MHZ
Transmission Range:10M
Bluetooth Profile:SPP
UART Params:38400,8,n,1
Protocols:
Automatic
1.for SAE J1850 PWM(41.6Kbaud)
2.for SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.for SAE J1939 CAN(29bit ID,250Kbaud)
B.USER1 CAN(11bit ID,125Kbaud)
C.USER2 CAN(11bit ID,50kbaud)
default settings(user adjustable)
Package included:
1 * Car Scanner Diagnostic Tool with Accessory
Note:
Please allow 0~1 inch error due to manual measurement. Thanks for your understanding.
Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
