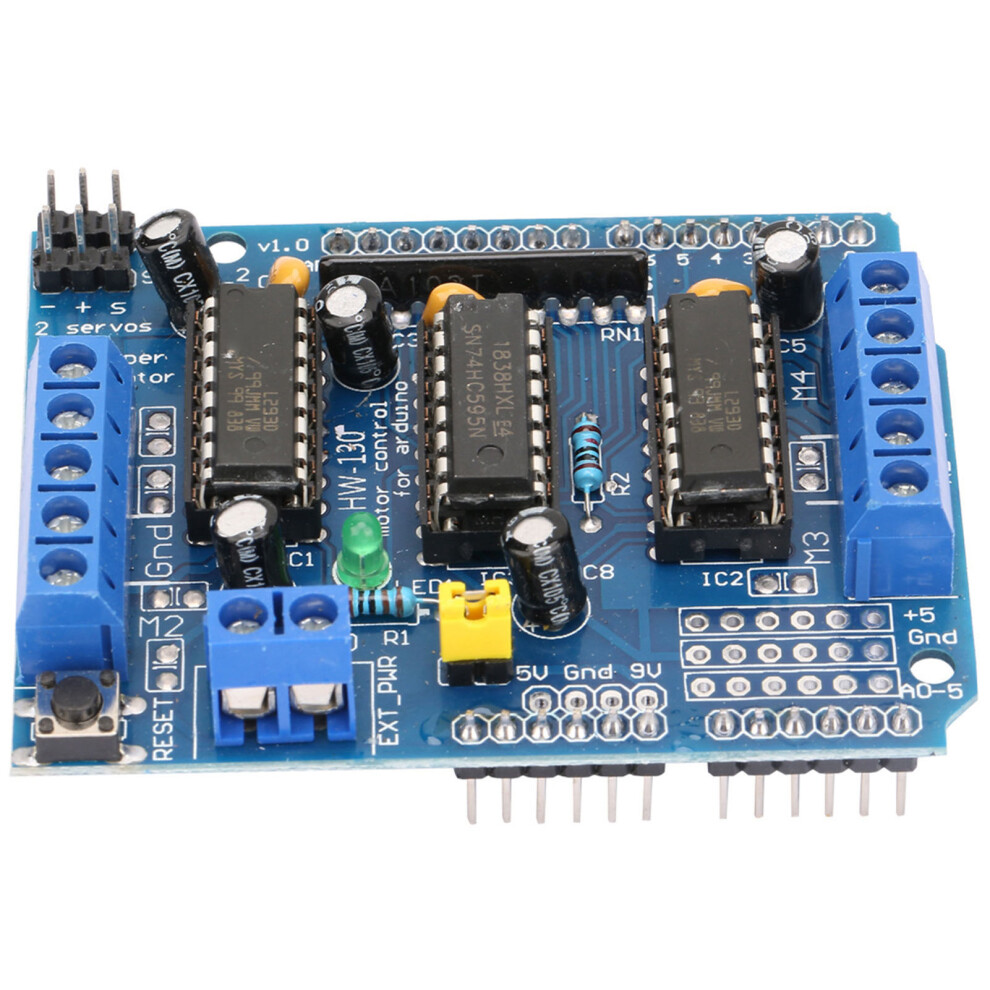

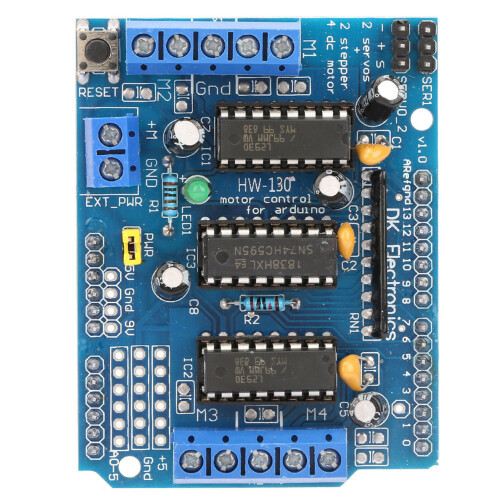

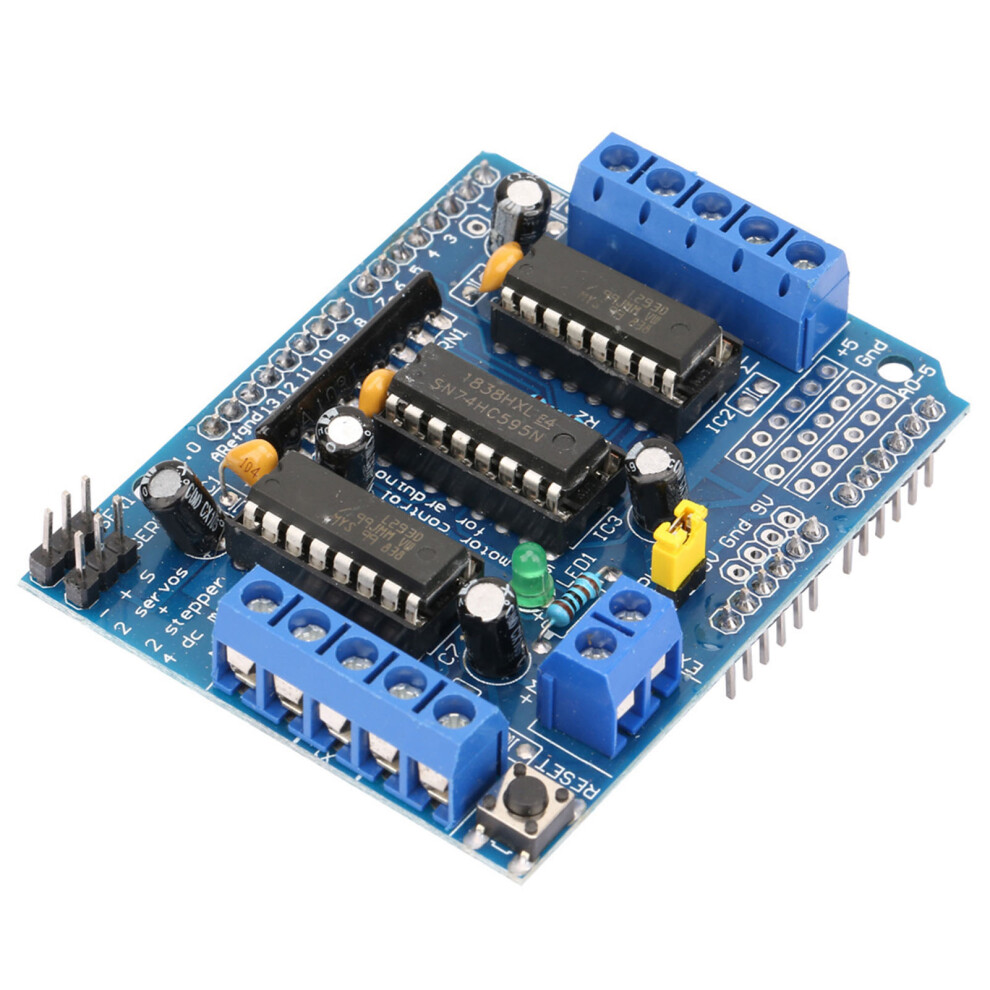

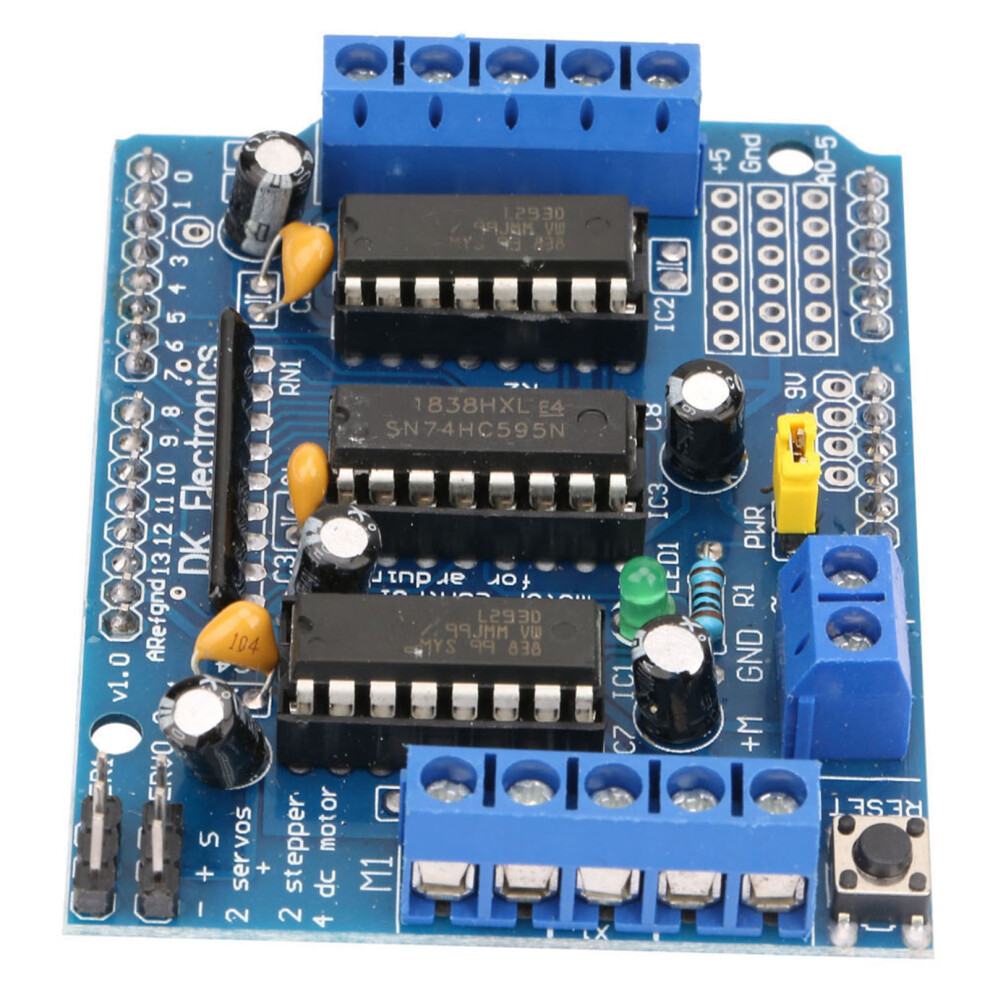

L293D Motor Drive Shield Expansion Board Module Motor Drive Tool
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
£6.75
£12.86
48% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Tue 14th - Sat 18th Jul
Returns: 30 days
180-day payment protection
Most Popular in Impact Drivers
Description & Details
Summary
- L293D Motor Drive Shield Expansion Board Module Motor Drive Tool
L293D Motor Drive Shield Expansion Board Module Motor Drive Tool Description
1、2 interface for 5V Servo connected to the high‑resolution dedicated timer ‑ no jitter. 2、Can drive 4 DC motors or 2 stepper motors or 2 Servo. 3、Up to 4 bi‑directional DC motors with individual 8‑bit speed selection. 4、Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping. 5、4 H‑Bridges: per bridge provides 0.6A (1.2A peak current) with thermal protection.
Features:
2 interface for 5V Servo connected to the high-resolution dedicated timer - no jitter.
Can drive 4 DC motors or 2 stepper motors or 2 Servo.
Up to 4 bi-directional DC motors with individual 8-bit speed selection.
Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping.
4 H-Bridges: per bridge provides 0.6A (1.2A peak current) with thermal protection.
Pull down resistors keep motors disabled during power-up.
Built In Reset Button.
2 external terminal power interface, for separate logic/motor supplies.
Specification:
Current: 1A
PCB size: 6.7*5.3cm / 2.64*2.09in
Package list:
1 * Motor Drive Shield Expansion Board
Details
| OPC | PM562WV |
|---|---|
| Codes | 323163204581 (UPC) |
