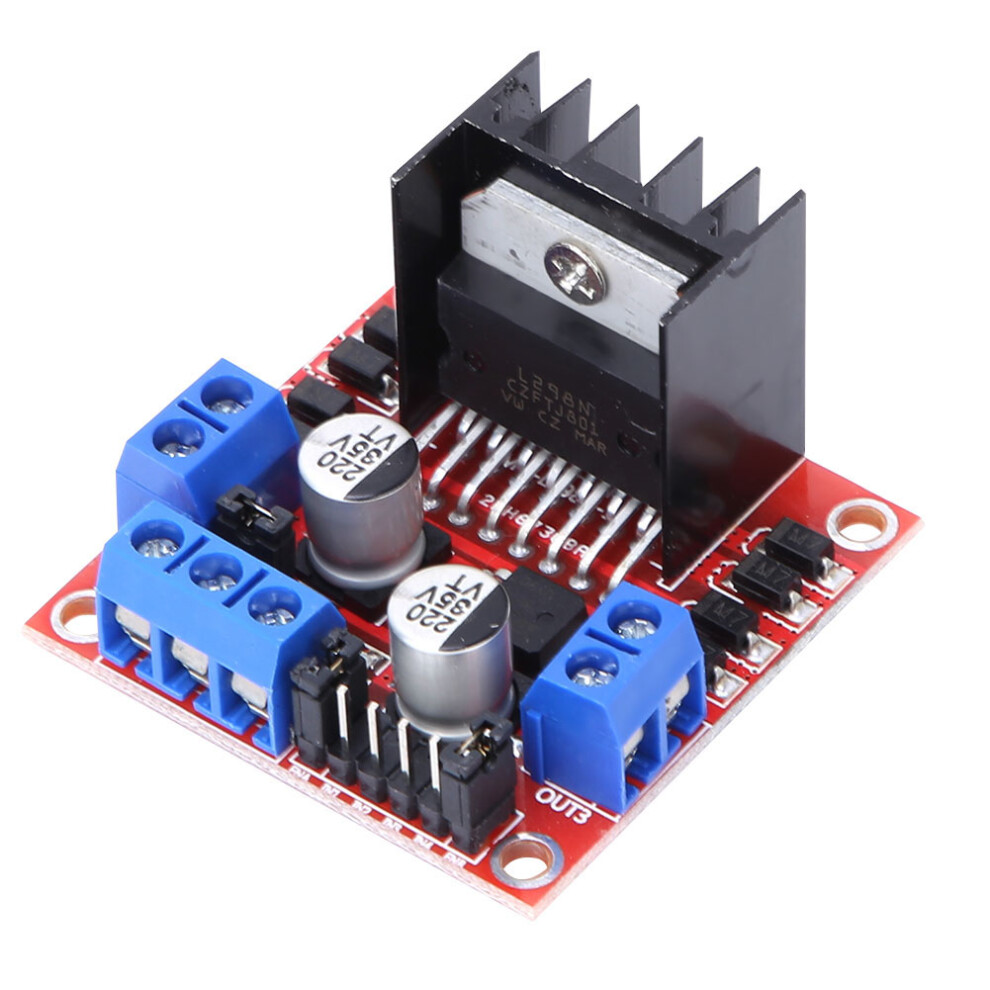

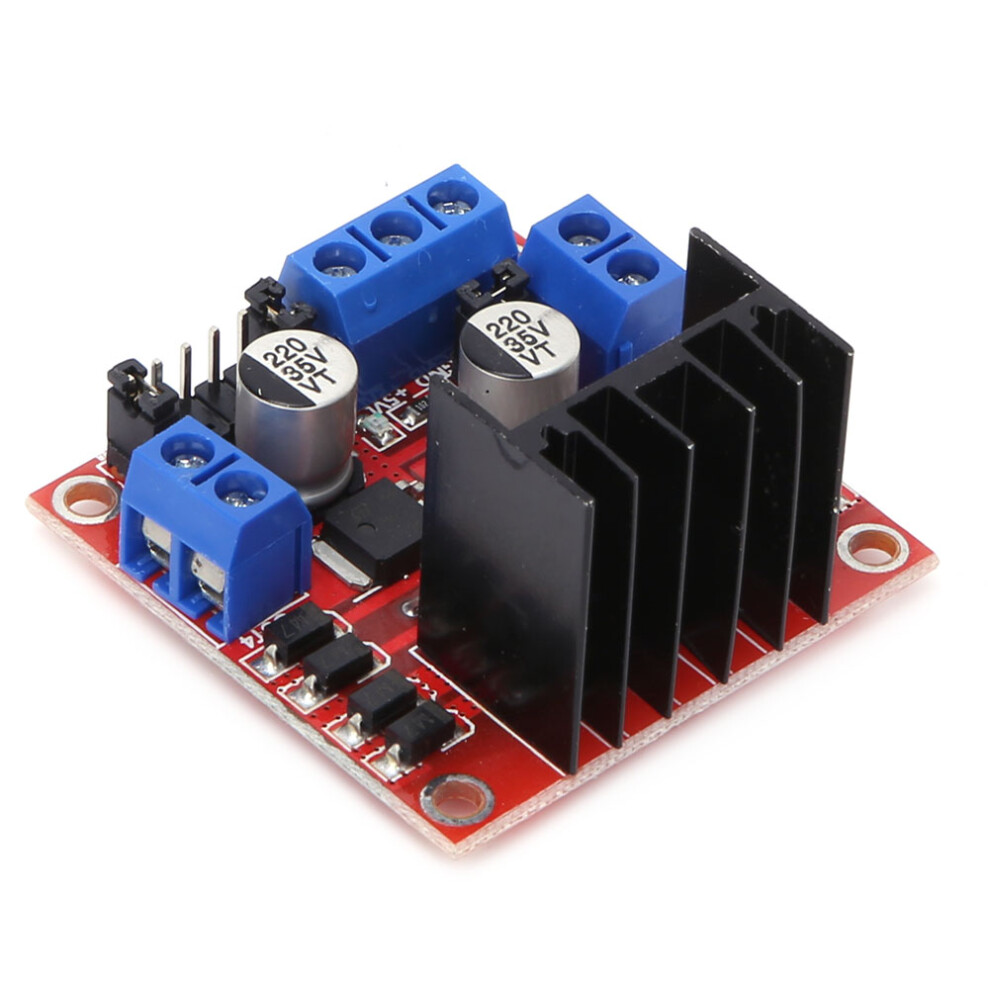

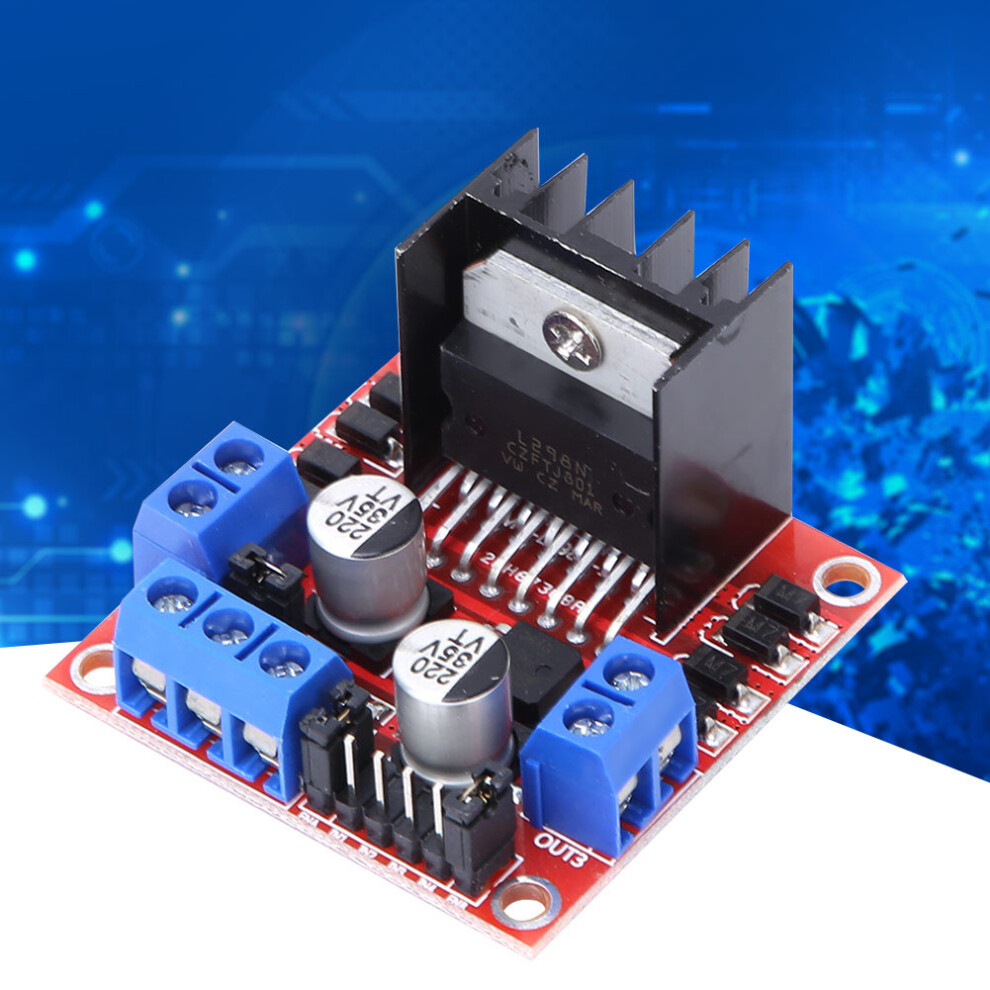

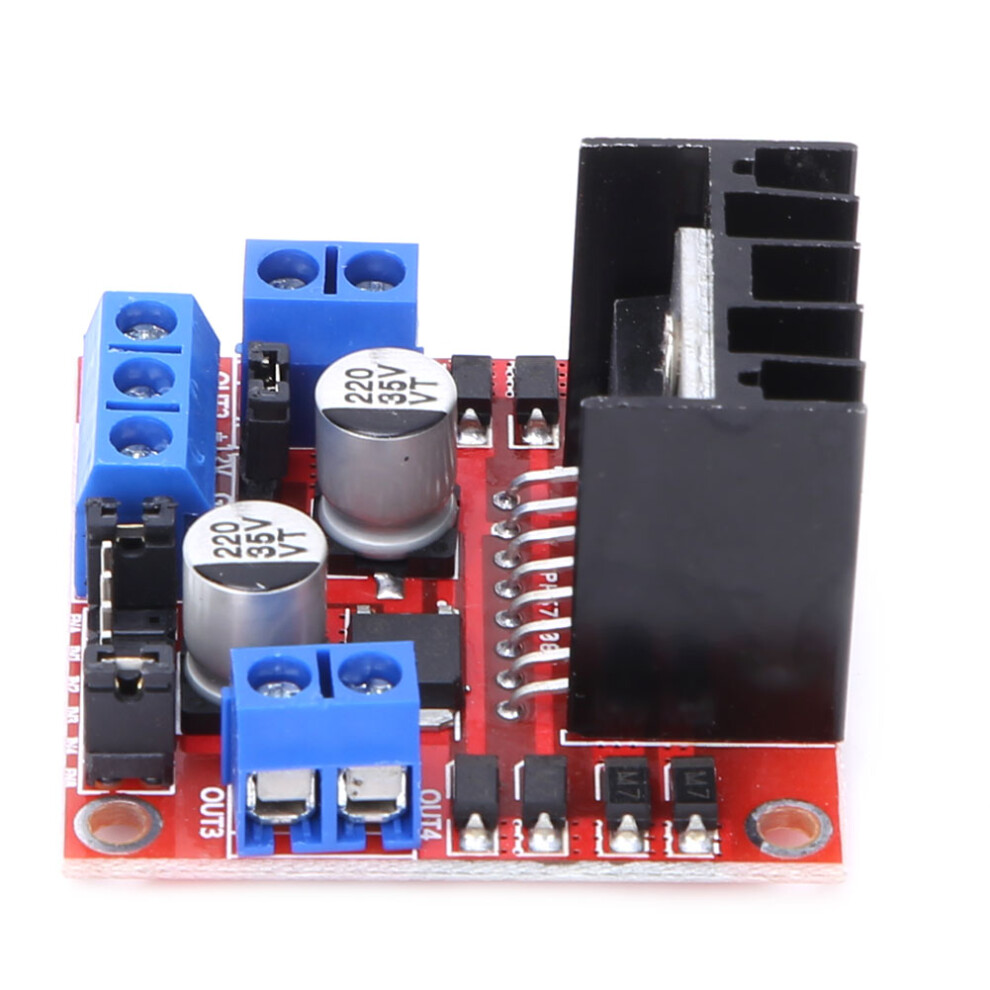

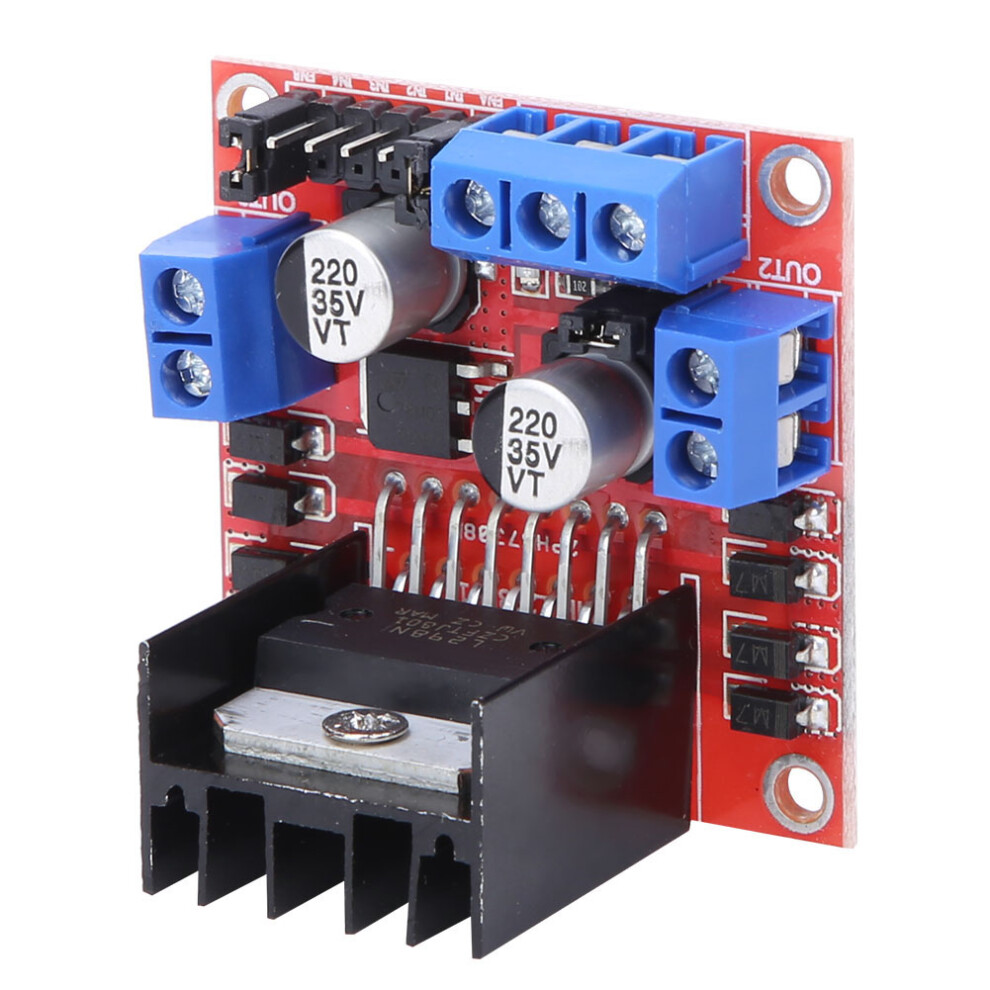

L298N Motor Drive Board Dual H Bridge Stepper Motor Module

L298N Motor Drive Board Dual H Bridge Stepper Motor Module Description

1、This module uses L298N as the main driver chip, strong driving capability, low heat generation and strong anti-interference ability. 2、This motor driver module can use the built-in 78M05 to take power through the drive power supply part, but in order to avoid the damage of the voltage regulator chip, when using the drive voltage greater than 12V, please use the external 5V logic power supply. 3、Use high-capacity filter capacitors and freewheeling protection diodes for improved reliability. 4、High working power to 25W, large current can reach 2A MAX single bridge. 5、Made of high quality electronic components, stable and reliable performance.
Item Type: Double H Bridge Motor Drive Module
Main Control Chip: L298N
Working Mode: H-Bridge Drive (Two-Way)
Drive Current: 2A (MAX Single Bridge)
Maximum Power: 25W
Logic Current: 0mA-36mA
Storage Temperature: -20 C to +135 C
Peripheral Size: Approx. 43 x 43 x 27mm / 1.7 x 1.7 x 1.1in
Weight: 30 g / 1.1 oz(approx.)
1 x Module
