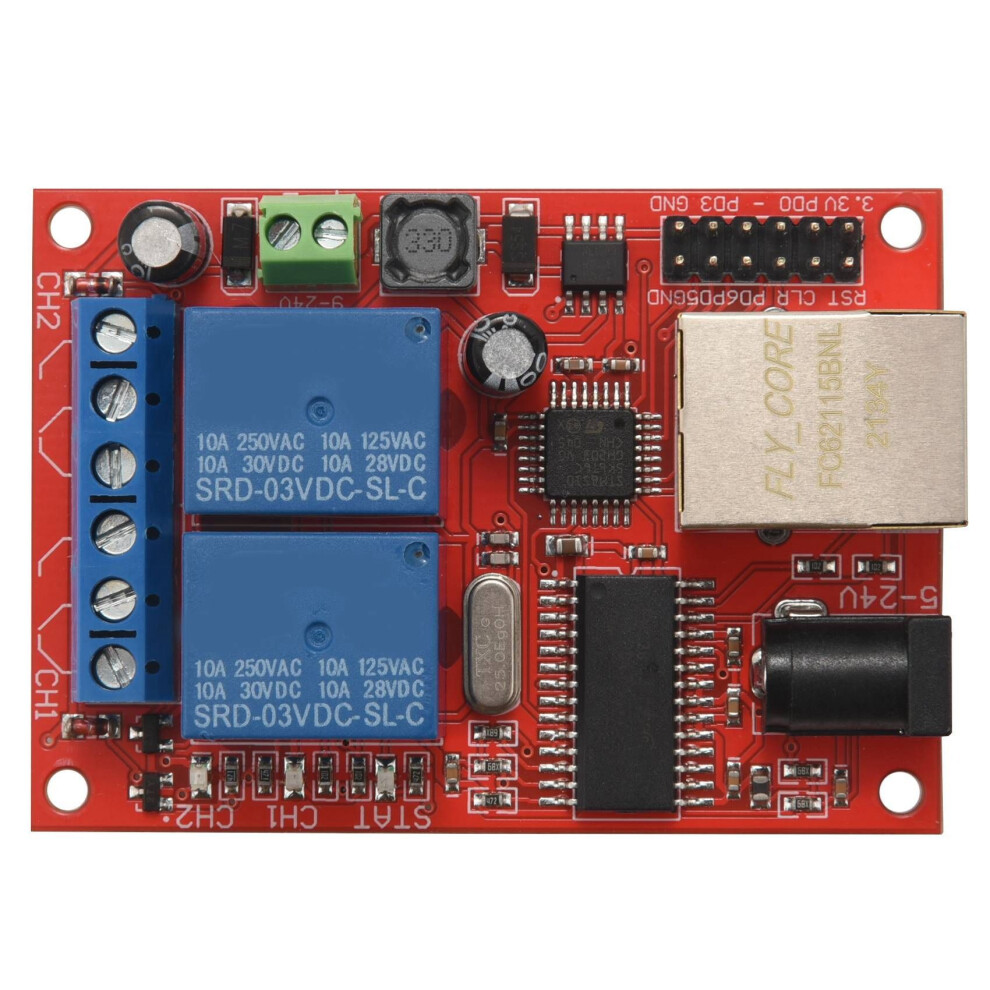

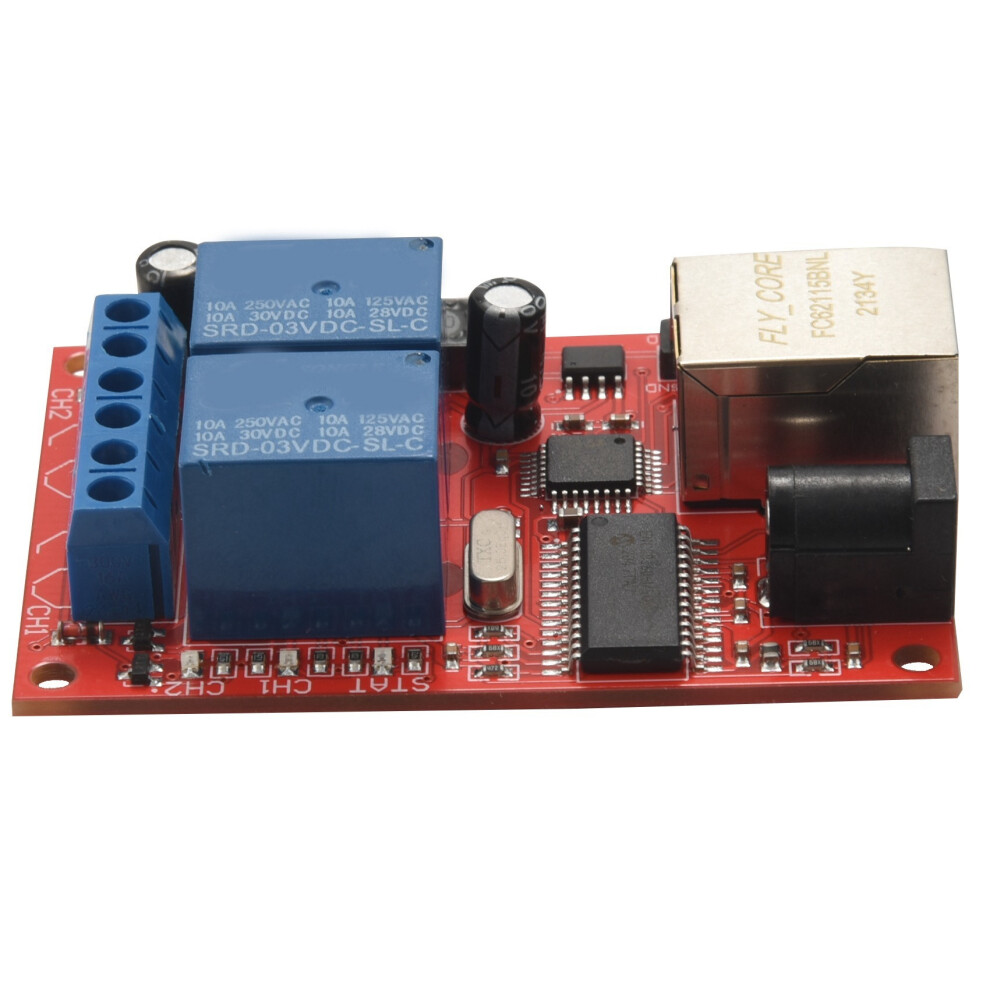

LAN Ethernet 2-way Switch UDP Controller Module WEB server

LAN Ethernet 2-way Switch UDP Controller Module WEB server Description

Positive 5V: + 5V positive power supply, input or output
GND: power ground, input or output
P30 - P35: CH3 - CH8 control lines, high level effective.
: short and to the module power settings to restore the factory settings
Blue Terminals: Connect user load, you can use 220V AC, or less than 30V DC equipment, which can not exceed the current standard load relay. Each relay has a normally open contact, a normally closed contact and a common contact, relay timely, public contact and normally open contact conduction; relay released, public contact and normally closed contact guide pass.AH893
Material: plastic, metal
color: red
Size: 70X 50mm
Package Included:
1x LAN Ethernet 2-way Delay Time Switch Relay Board /UDP Controller Module
Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
