Lanview Bendable LC-LC Multimode fibre cable duplex 1m OM4 LSZH Description

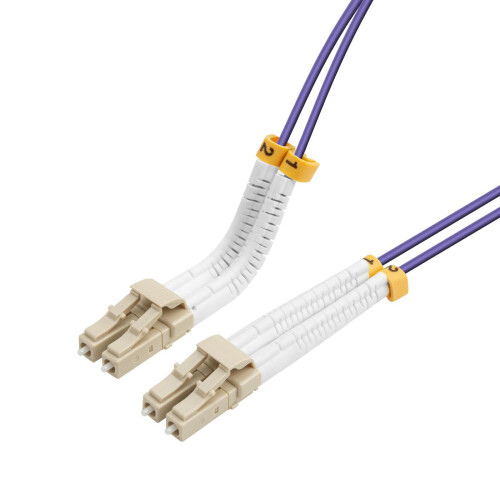

The Lanview Bendable series is engineered for flexible cable management, able to bend and sustain any angle from a straight line to 90 degrees. The boot, shaped around a single stainless-steel wire, is easily adjustable by hand, while the internal wire maintains the set angle or direction. The boot's design permits repositioning at any moment or straightening for the disconnection of connectors. Its versatility guarantees ideal connector positioning in demanding situations, like confined areas or environments with high density. Features:- Cable length: 1- Cable type: Duplex- Cladding diameter: 125- Compressive strength: 10- Connector 1: LC/UPC- Connector 1 gender: Male- Connector 2: LC/UPC- Connector 2 gender: Male- Connector gender: Male/Male- Connector polish type: UPC- Core diameter: 50- Fiber mode structure: Multi-mode- Fibre optic type: OM4- Full duplex: Yes- Halogen-free: Yes- Insertion loss: 0.3- Jacket material: Low smoke zero halogen (LSZH)- Plug and Play: Yes- Product colour: Purple- REACH compliance: Yes- Return loss: 50- RoHS compliance: Yes- Wavelengths supported: 1260/1280/1300/850/953Operational conditions:- Operating temperature (T-T): -40 - +75- Storage temperature (T-T): -40 - +85Other features:- Core / cladding diameter: 50/125Technical details:- Doesn't contain: HalogenVendor information:- Brand Name: Lanview- Warranty: 25Weight & dimensions:- Bending radius: 3- Cable diameter: 2- Product.Details.Specifications.Level1: Network- Product.Details.Specifications.Level2: Cables- Product.Details.Specifications.Level3: Fibre Optic Cables- Product.Details.Specifications.Level4: LC UPC Cables
Details
| OPC | PVM27ZC |
|---|---|
| Brand | Lanview |
| Codes | 5715063505977 (EAN) |
| MPN | LVO231810-FLEX |
Disclaimer: The information below is provided by various external sources and should be used as a guide only.
Detailed Product Information
Weight & dimensions
| Weight | 20 g |
|---|---|
| Cable diameter | 2 mm |
| Bending radius | 3 cm |
Features
| Full duplex | Yes |
|---|---|
| Plug and Play | Yes |
| Cable length | 1 m |
| Cable type | LC/LC |
| Product colour | Purple |
| Connector 1 | LC |
| Connector 2 | LC |
| Insertion loss | 0.3 dB |
| Fiber mode structure | Multi-mode |
| Core diameter | 50 µm |
| Cladding diameter | 125 µm |
| Jacket material | Low smoke zero halogen (LSZH) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Compressive strength | 10 |
| Return loss | 50 dB |
| Wavelengths supported | 850 nm |
| Fibre optic type | OM4 |
| Connector gender | Male/Male |
| Cable shape | Round |
| Connector polish type | UPC |
Operational conditions
| Storage temperature (T-T) | -40 - 85 °C |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
Packaging data
| Package weight | 20 g |
|---|---|
| Package depth | 50 mm |
| Package height | 200 mm |
| Package width | 180 mm |
Other features
| Core / cladding diameter | 50/125 µm |
|---|
Sustainability
| Doesn't contain | Halogen |
|---|
Logistics data
| Warranty period | 25 year(s) |
|---|
