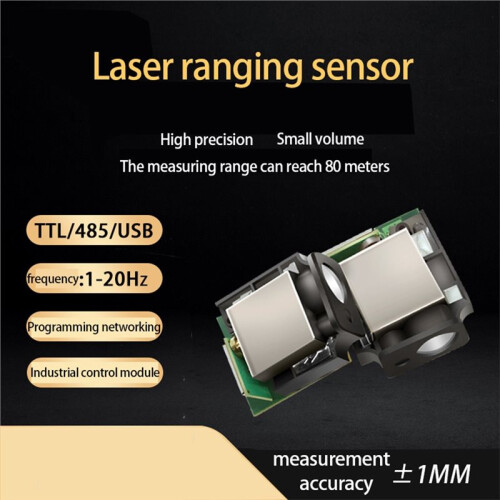

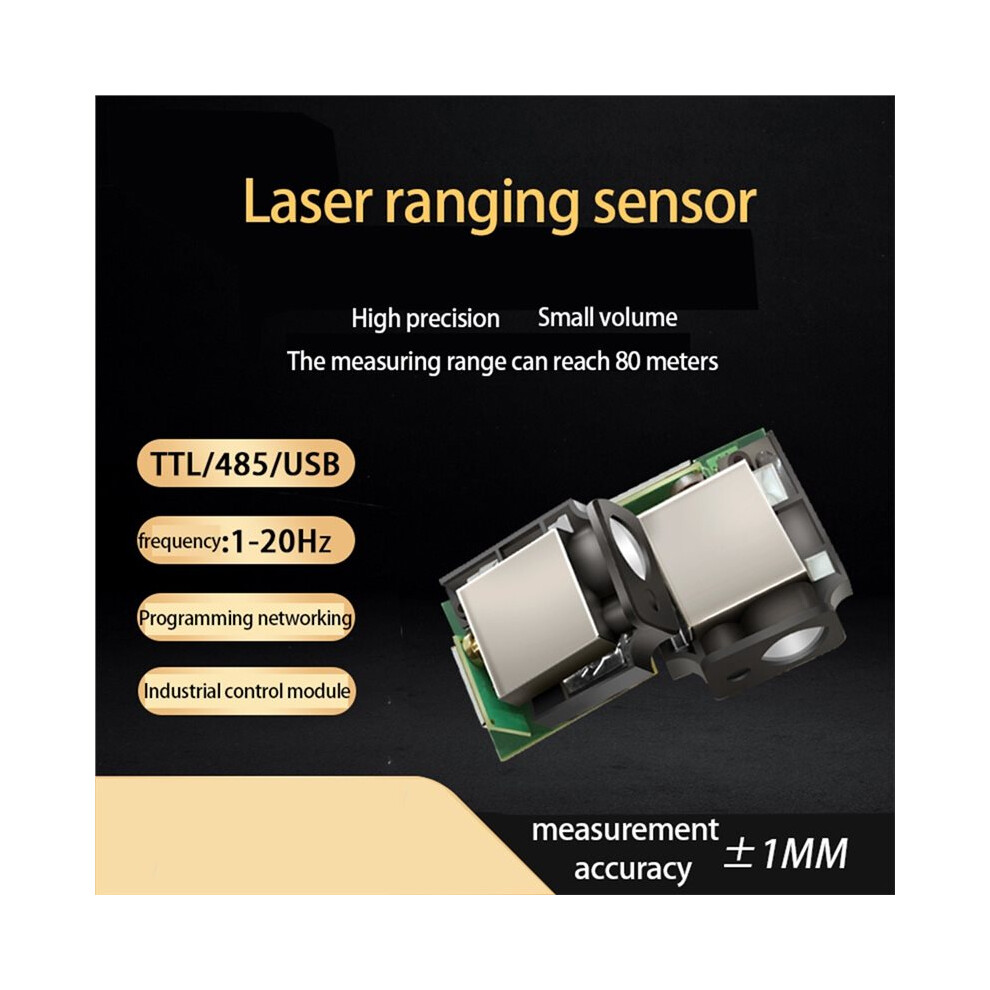

Laser Distance Sensor Infrared Lidar Displacement Module Distance Sensor Module Electronic Competition Laser Sensor

Laser Distance Sensor Infrared Lidar Displacement Module Distance Sensor Module Electronic Competition Laser Sensor Description

Parameters: Power Supply


Voltage: DC3V ~ 3.3V

Current: 100mA

Measuring Range: 0.01-80 m

Measuring Frequency:5HZ,10HZ,20HZ(Adjustable)

Measurable velocity of moving objects: less 2m/s

Measurement Accuracy (standard deviation): 1.mm

Distance Unit: m

Laser Type: 620-690nm

Laser Class: class II,

Baud rate:9600bps;

data bit:8 bit;

Start bit:1bit;

Stop Bit:1bit;

Parity:none.

Remarks: Because the environment light intensity is too large, the ambient temperature is too high or too low, the reflector is too weak or too strong, or the target of a rough surface, different measurement objectives and measurement environment may cause some error of the measurement range or measurement results.
Color: As Shown
Material: plastic

Package Contents:

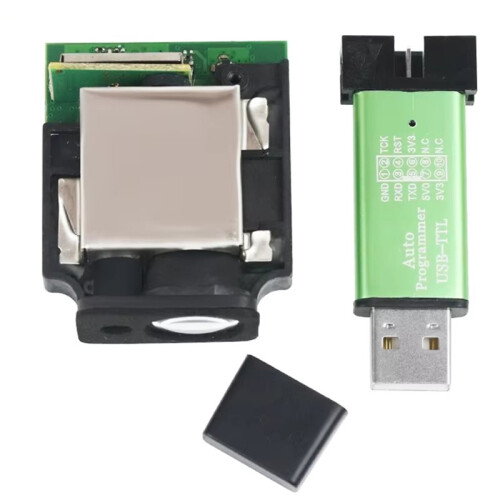

1*Laser Distance Sensor
