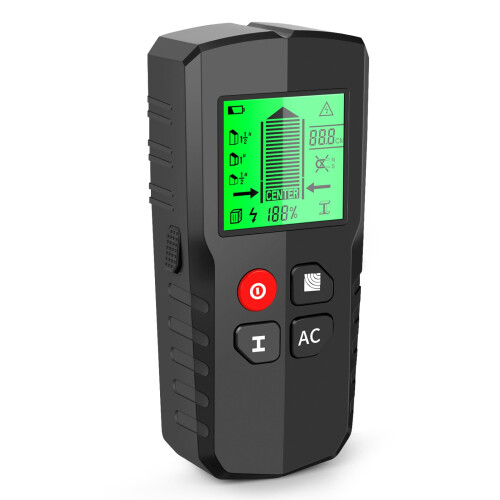

LCD Backlight Display Wall Detector Metal Sensor Wood Stud Finder AC Cable Scanner With Switchable Scanning Modes

LCD Backlight Display Wall Detector Metal Sensor Wood Stud Finder AC Cable Scanner With Switchable Scanning Modes Description

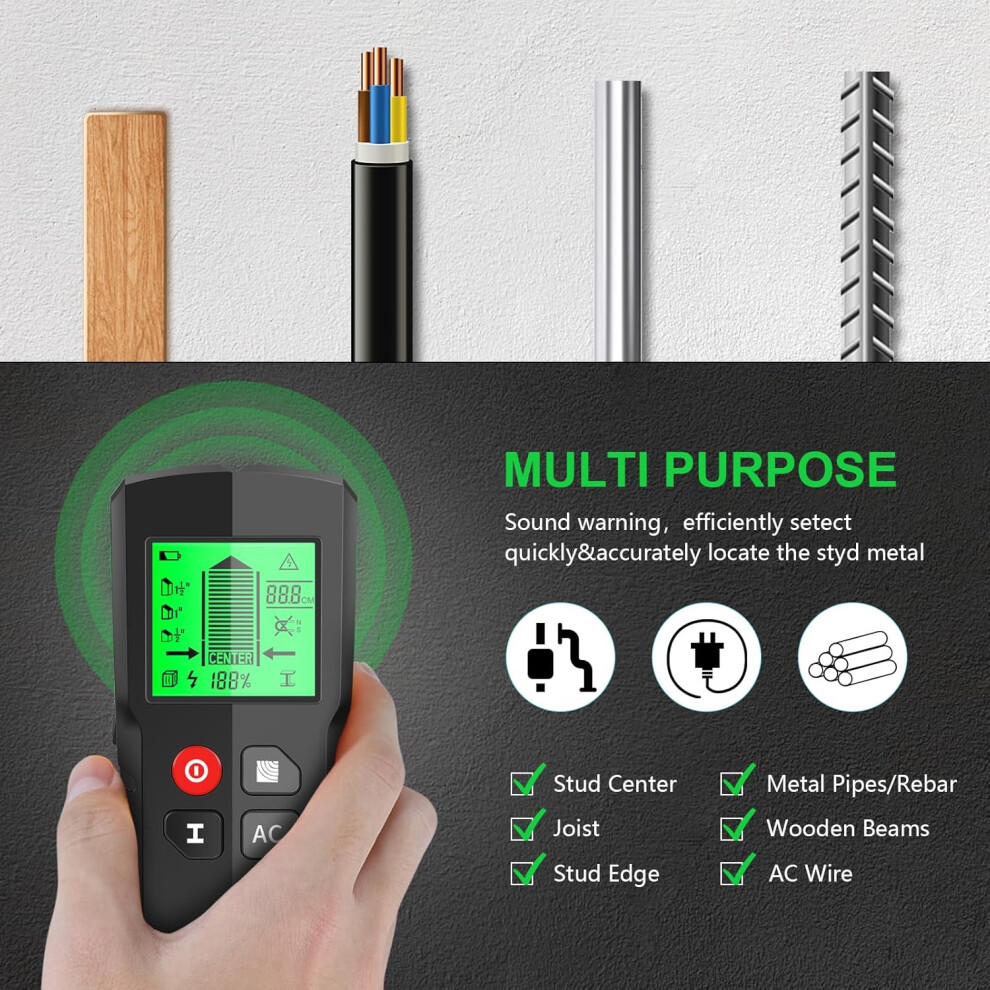

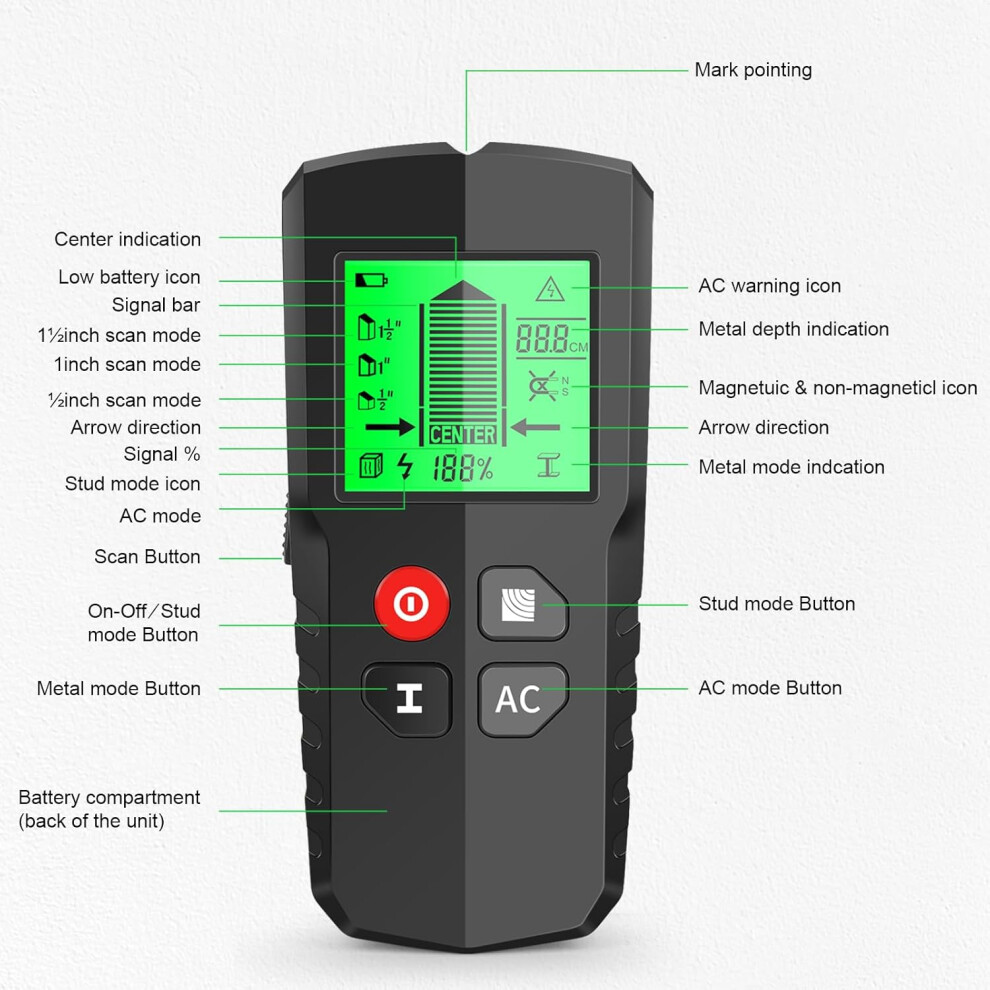

Five working modes designed for versatile detection 1/2 inch stud scan mode: detects wood or metal studs up to 13 mm deep. 1 inch stud scan mode: detects wood or metal studs up to 25 mm deep. 1 1/2 inch stud scan mode: detects wood or metal studs up to 38 mm deep. Metal mode: for locating steel bars, metal keels, metal pipes, and other metal objects in walls. AC mode: for detecting electrical wiring behind walls. Metal Scan Mode details Primarily used to detect steel bars, metal keels, metal pipes, and similar metal structures within walls. Magnetic metal detection depth: up to 3.2 inches (80 mm) for a 15 mm diameter galvanized steel tube. Nonmagnetic metal detection depth: up to 2.4 inches (60 mm) for a 13 mm diameter copper tube. Three Stud Scan Modes overview 1/2 inch stud scan mode: detects wood or metal studs up to 13 mm deep. 1 inch stud scan mode: detects wood or metal studs up to 25 mm deep. 1 1/2 inch stud scan mode: detects wood or metal studs up to 38 mm deep. LCD Display and user feedback Backlit LCD display provides clear visual feedback. As the scanner approaches a stud, the indicator bar rises and the percentage increases. When the center of a stud is located, the indicator bar is full and the buzzer sounds continuously. The display shows additional indicators including signal bar, center indication, metal depth indication, and current mode.
