LCD Display 20A PWM Solar Panel Charge Regulator for 12V/24V Systems with USB

LCD Display 20A PWM Solar Panel Charge Regulator for 12V/24V Systems with USB Description

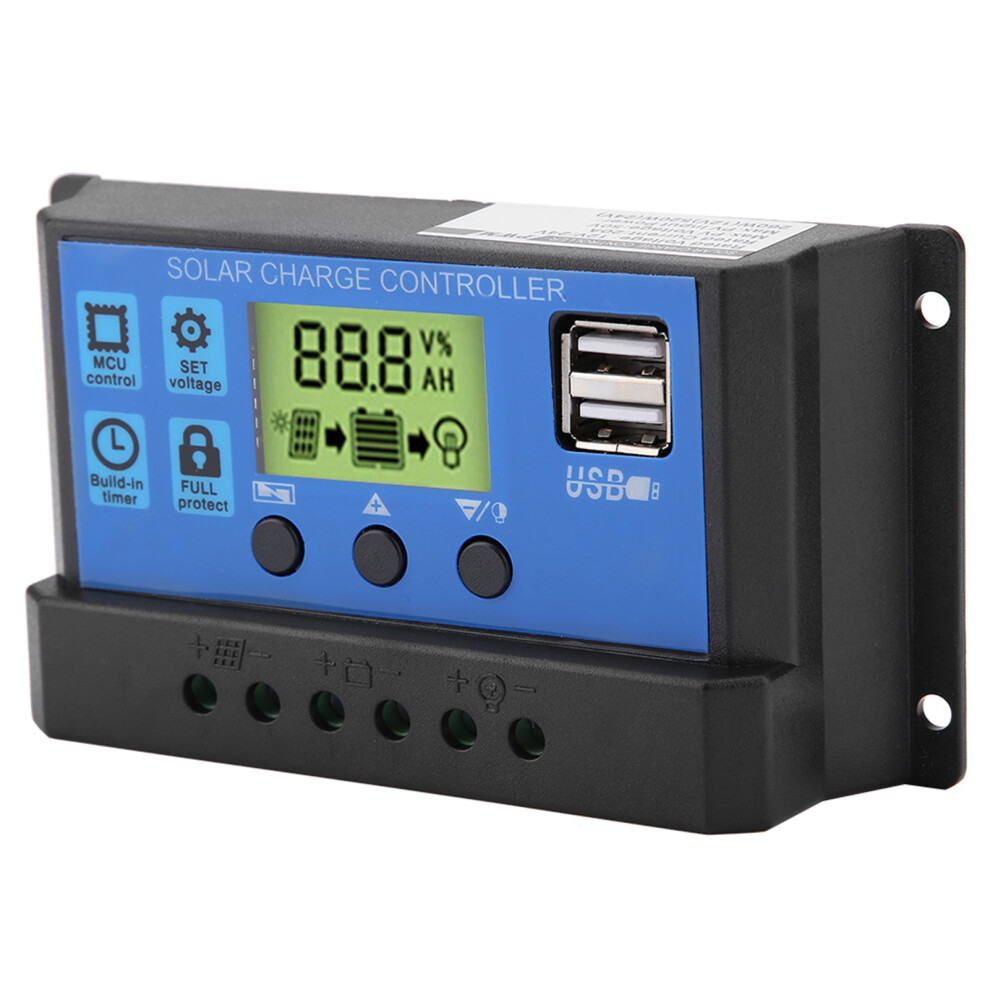

PWM 12V 24V Dual USB Solar Panel Charge Controller Regulator LCD Display 20A (YJSS-20A)

Features:


1. Adopt industrial micro controller, charge and discharge parameters can be adjusted.


2. Full 3-stage PWM charge management.


3. Built-in a variety of protection functions including overcurrent, short circuit, open circuit, reverse connection, etc.


4. Large screen LCD display with backlight.


5. Dual MOSFET reverse current protection, low heating production.





Specification:






Model (Optional)


YJSS-10A


YJSS-20A



YJSS-30A



12.6V (default, 11.5-13V adjustable)




Standby Current



<10mA





USB Output


5V/2A Max




Operating Temperature


-35~60




Size


133*70*35mm / 5.2*2.7*1.3in




Weight


Approx. 148g / 5.2oz










Package list:


1 * Solar Charge Controller


1 * Manual





Note:


1. The regulator is only suitable for lead-acid batteries: OPEN, AGM, GEL. Not suitable for NiMH, Li-ion or other batteries.



3. The battery cable should be as short as possible to minimize loss.


4. The charge controller is only suitable for regulating solar modules. Never connect another charging source to it.


5. The controller will be hot when running. Please install it in a well ventilated place.
