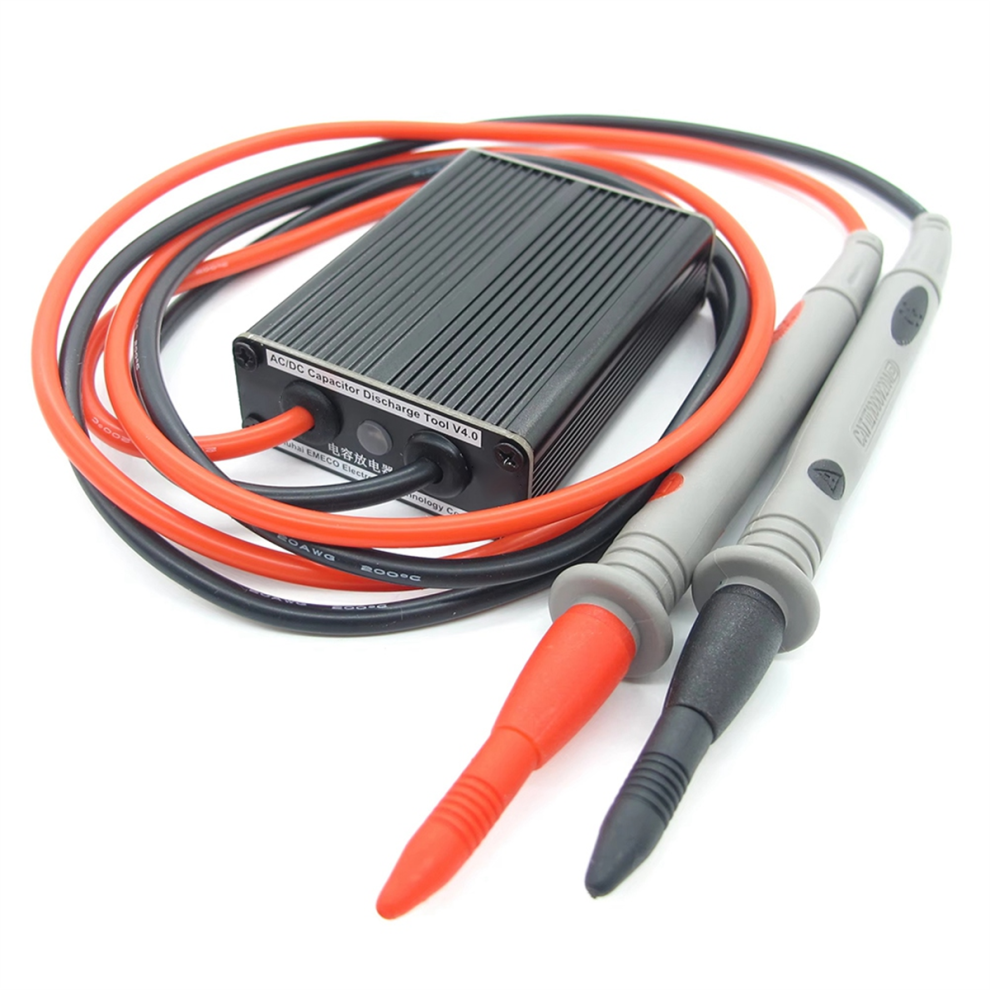

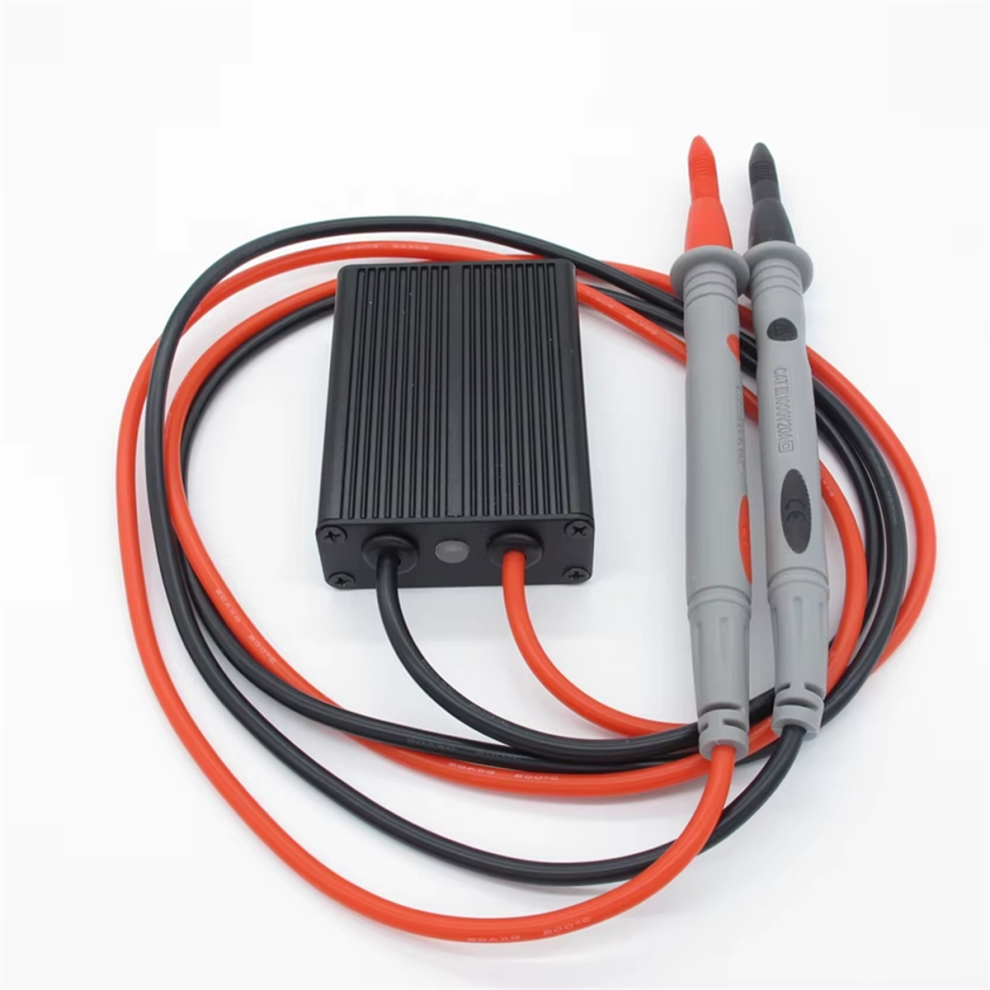

LCD TV Air-Conditioner High Voltage Discharging Protection Tool

LCD TV Air-Conditioner High Voltage Discharging Protection Tool Description

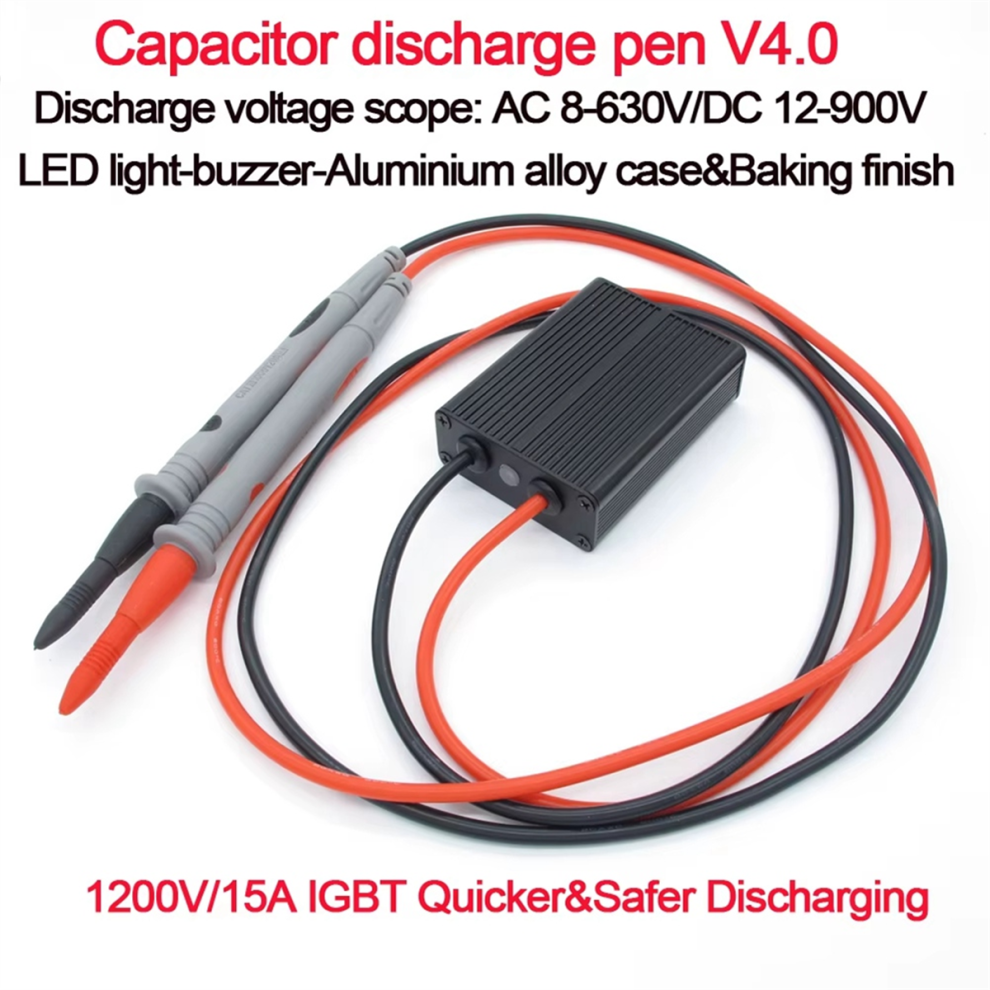

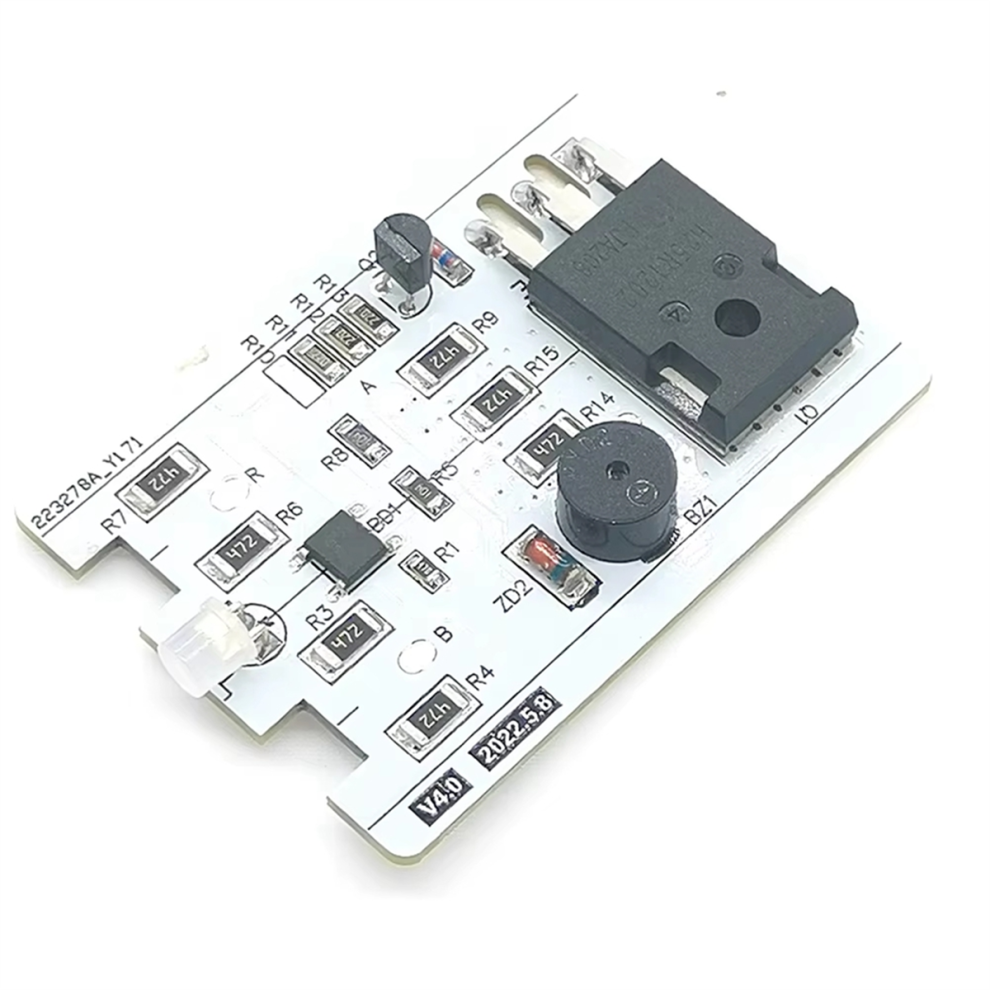

Capacitor discharge method: 1200V/15A IGBT quicker and discharging.
Capacitor's capability: V4.0 Capacitor discharge pen can be used on/below 4700uF/450V capacitor discharging, generally, the higher voltage on the capacitor, the discharging capability become smaller.
Discharge voltage scope: AC 8-630V/DC 12-900V.( The Video used 1980uF 320V capacitor doing the discharging test)
Discharge time: less than 40 seconds. After continuous 40 seconds discharging, pls. let the discharge pen to rest a while to go on with discharging.

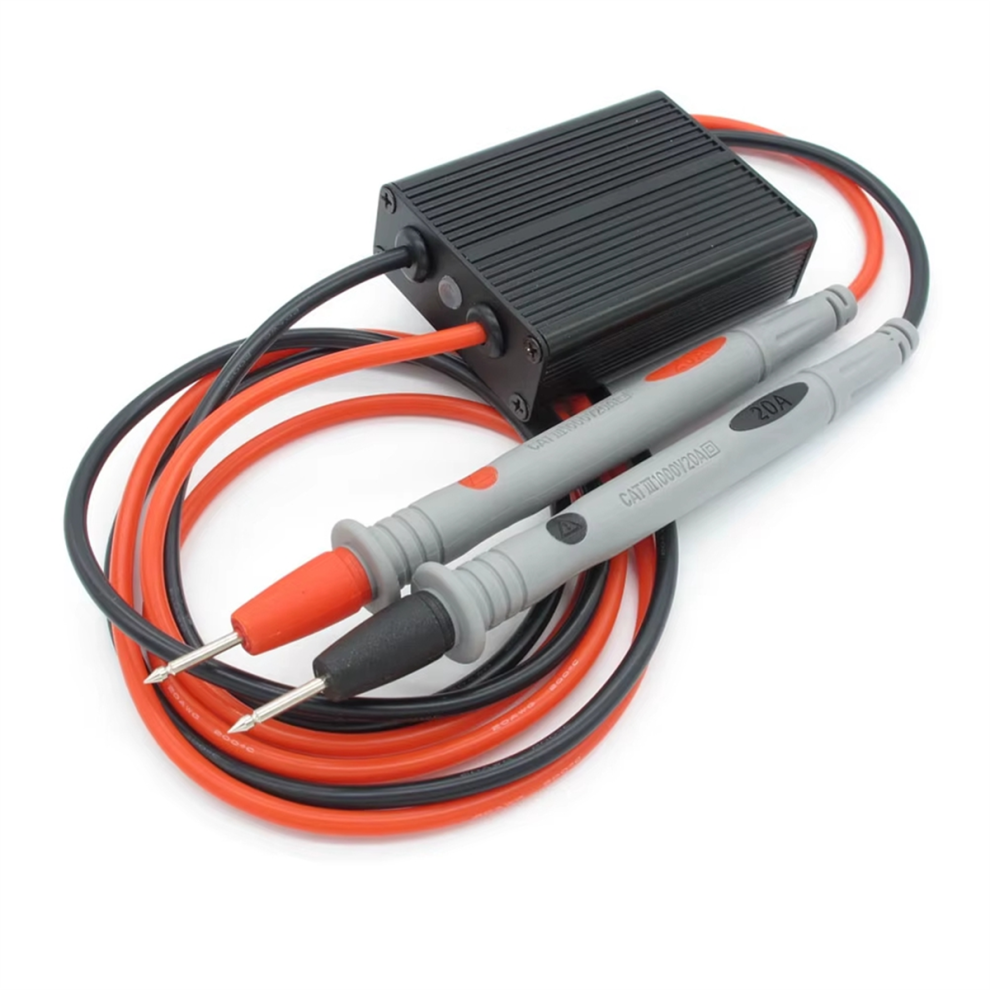

The red and black probe is silicone and super flexible even in cold winter, regardless of the positive and negative poles, the positive and negative poles can be connected freely. Just connect to the two poles of the capacitor.

Colour:black

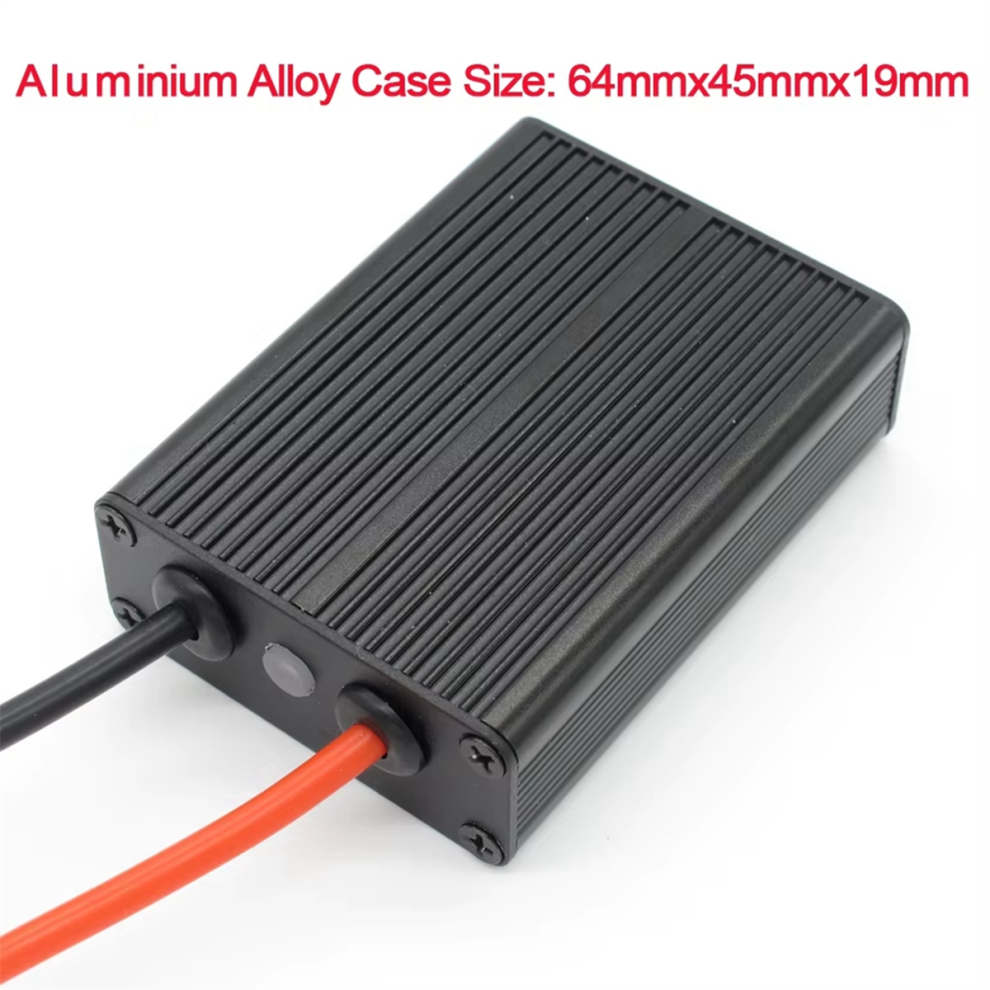

Material:ABS
The Length of probe: 110CM/43.3IN
With LED indicator and Buzzer
Applications:
For discharging high voltage UPS etc high voltage or storage capacitor.
note:
Once the LED indicator light and buzzer off, you need to continue discharging for about 10 seconds to remaining power has been discharged over.

Package Contents:
1 * Capacitor discharger

Only the above package content, other products are not included.
