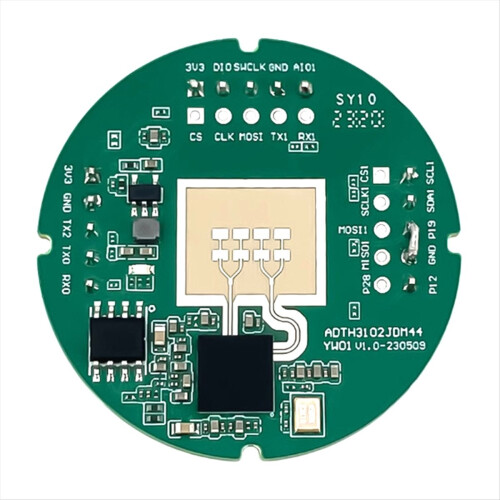

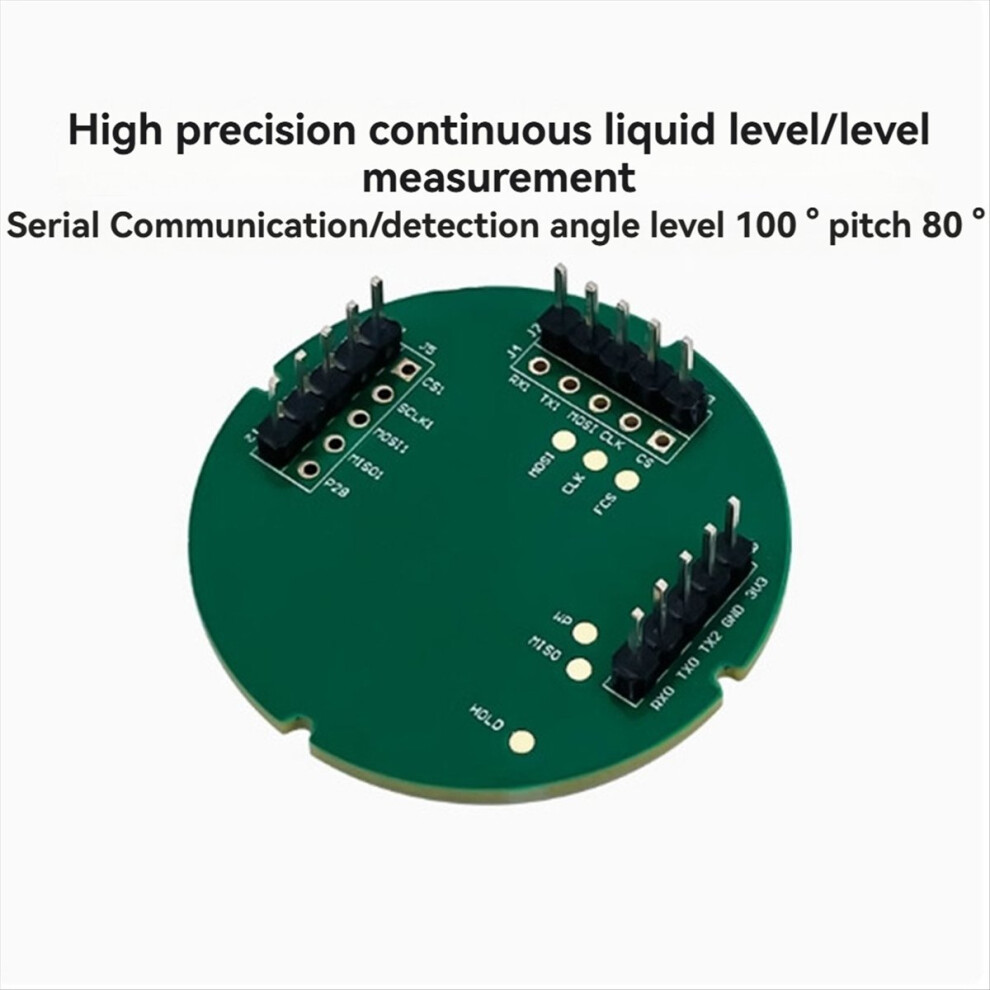

LD8001 79G Millimetre Wave Liquid Level Detection Sensor Radar Module Non-Contact High- Ranging 15M

LD8001 79G Millimetre Wave Liquid Level Detection Sensor Radar Module Non-Contact High- Ranging 15M Description

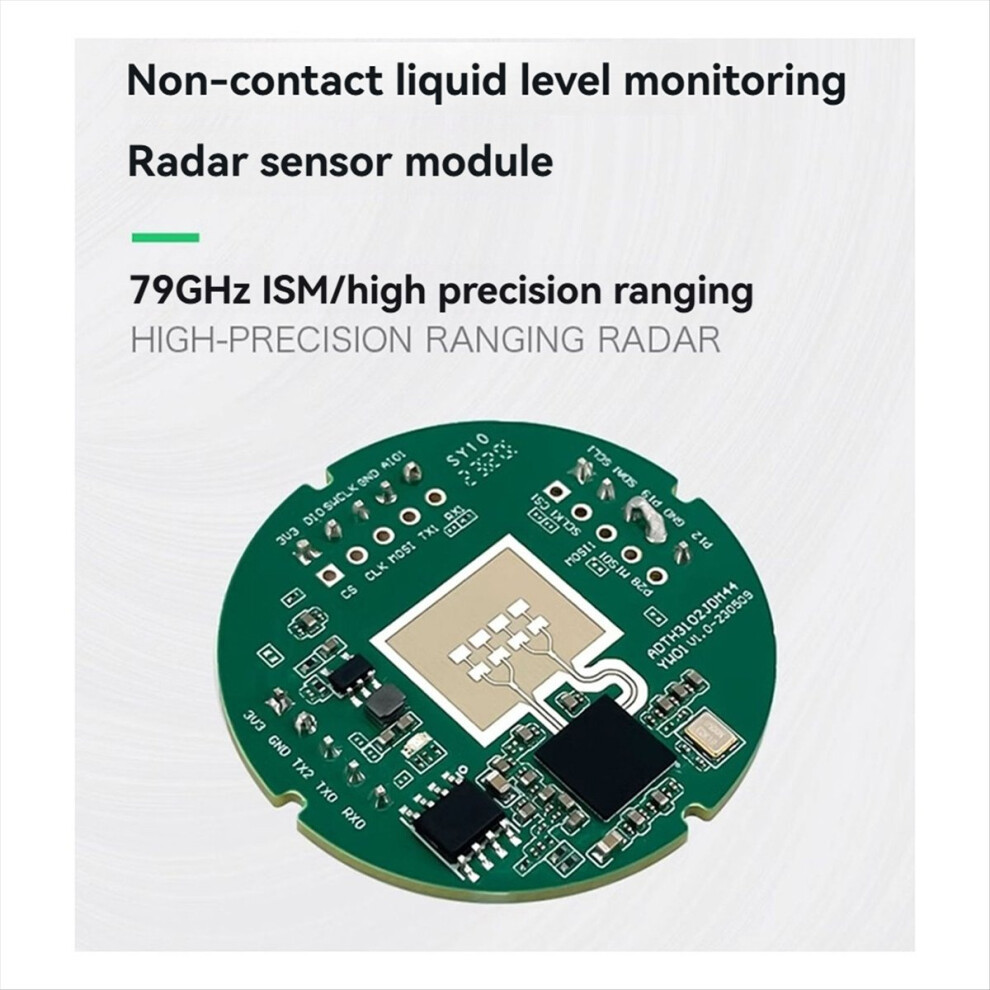

LD8001 is a radar sensing module developed based on the ADT3102 chip, with a single integrated 76-81GHz transceiver system, 1T1R PCB high-gain antenna, 1MB flash, radar signal processing unit, and ARM -M3 core. The module is based on the FMCW signal processing mechanism and combines the radar signal processing algorithm to achieve high- ranging, suitable for high- liquid level and material level measurement.

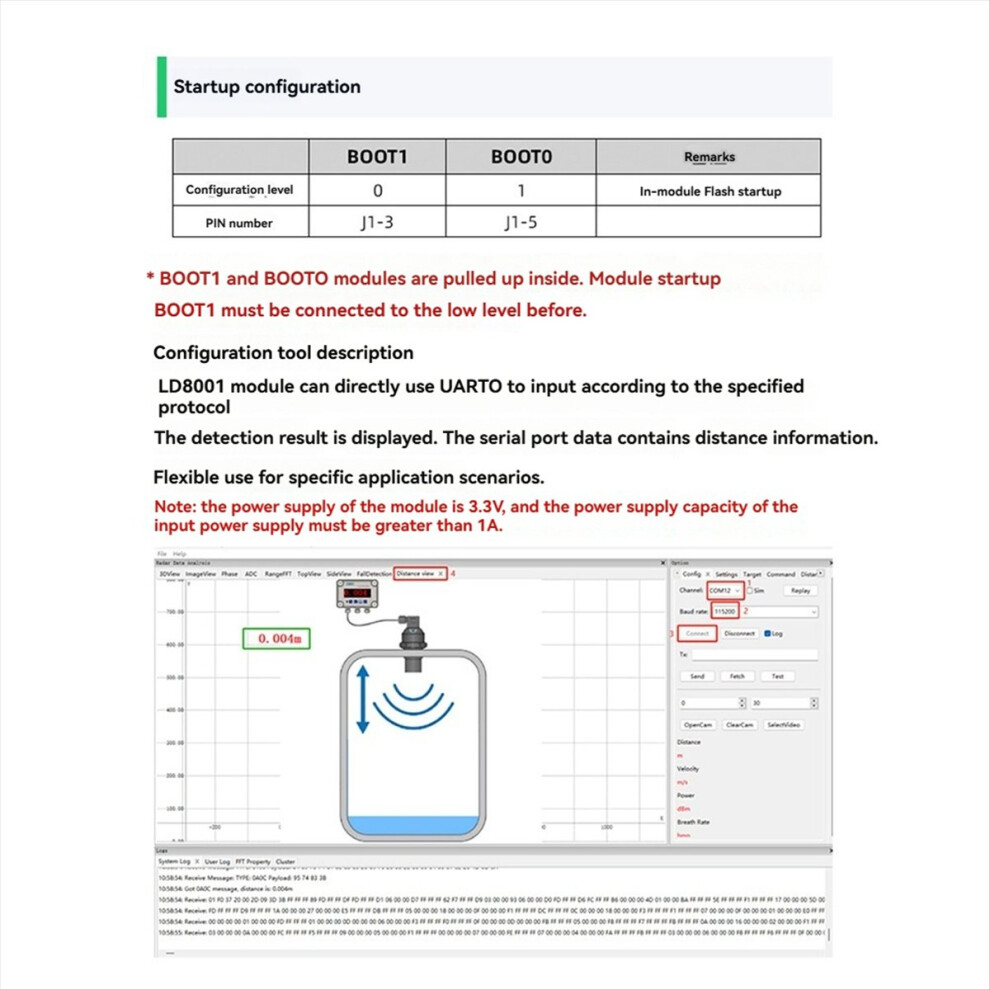

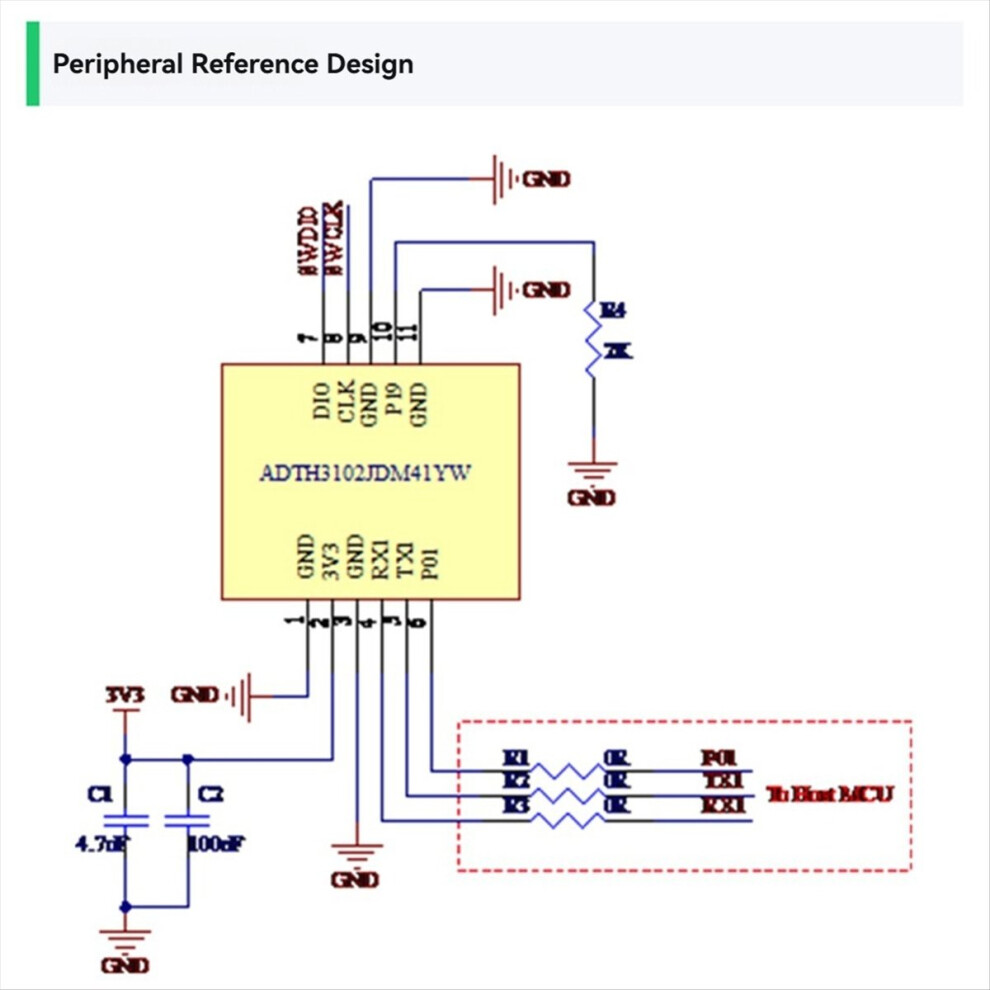

BOOT1 and BOOTO modules have pull-up pins inside. BOOT1 must be connected to a low level before starting the module.
Configuration tool description:The LD8001 module can directly use UARTO to output the detection results according to the specified protocol. The serial port data contains distance information, and users can use it flexibly according to specific application scenarios.
The detection distance of the radar module is closely related to the target RCS and environmental factors. The effective detection distance may change with changes in the environment and target. Therefore, it is normal for the effective detection distance to fluctuate within a certain range.
The radar module has extremely high requirements for power supply, requiring an input voltage of 3.1-3.5V, power ripple less than equal 50mV, current equal 1A. If using DCDC power supply, the switching frequency is required to be no less than 2MHz.

Model Number:LD8001
Operating frequency: 79G (79-81GHz)
Transmitting power: 12dBm
Modulation:FMCW
Antenna gain: 10dBi
Detection angle: azimuth 50/pitch angle 50
Maximum range: Less than 15m
Measurement blind area: 14cm
Measuring accuracy: 5mm
Response time: 200ms
Power supply requirement: 3.3V (Typ.)/ 1A

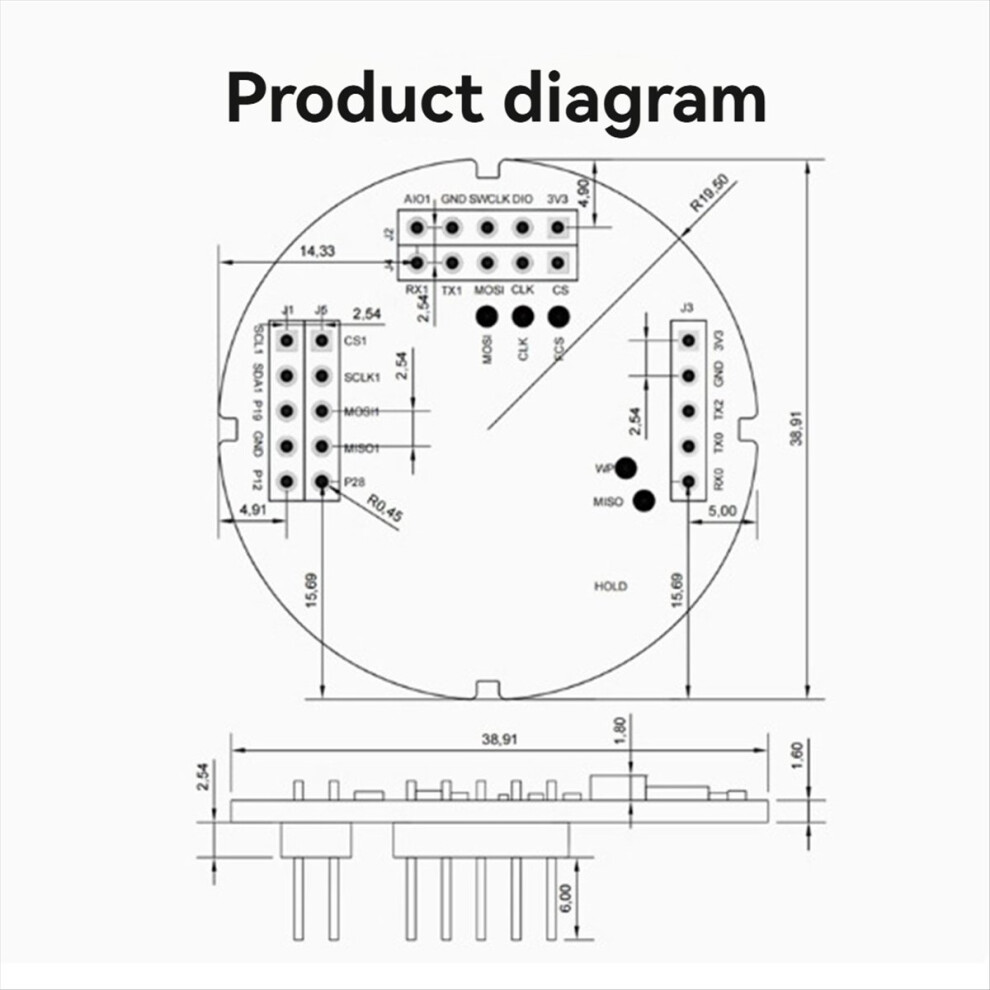

Dimensions: R = 19.5mm
Working temperature: -20-+85
Ambient temperature: -40-+85
Data format: TTL serial port output
Note: The module is powered by 3.3V and the input power supply capacity is required to be 1A.
The product appearance and printed words depending on the batch, but this does not affect use.
Colour:As Shown
Material:PCB

Package Contents:
1 * Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
