LD8001B Test Kit 79G Millimetre Wave Level Detection Sensor Non-Contact Module High Precision Level Measurement

LD8001B Test Kit 79G Millimetre Wave Level Detection Sensor Non-Contact Module High Precision Level Measurement Description

Detection Based FMCW FM Continuous Wave Signal
Measuring distance to 15m
Highly accurate continuous measurement with an error of +/-5mm
Antenna -3dB Angle 100 Horizontal, 80 Tilt

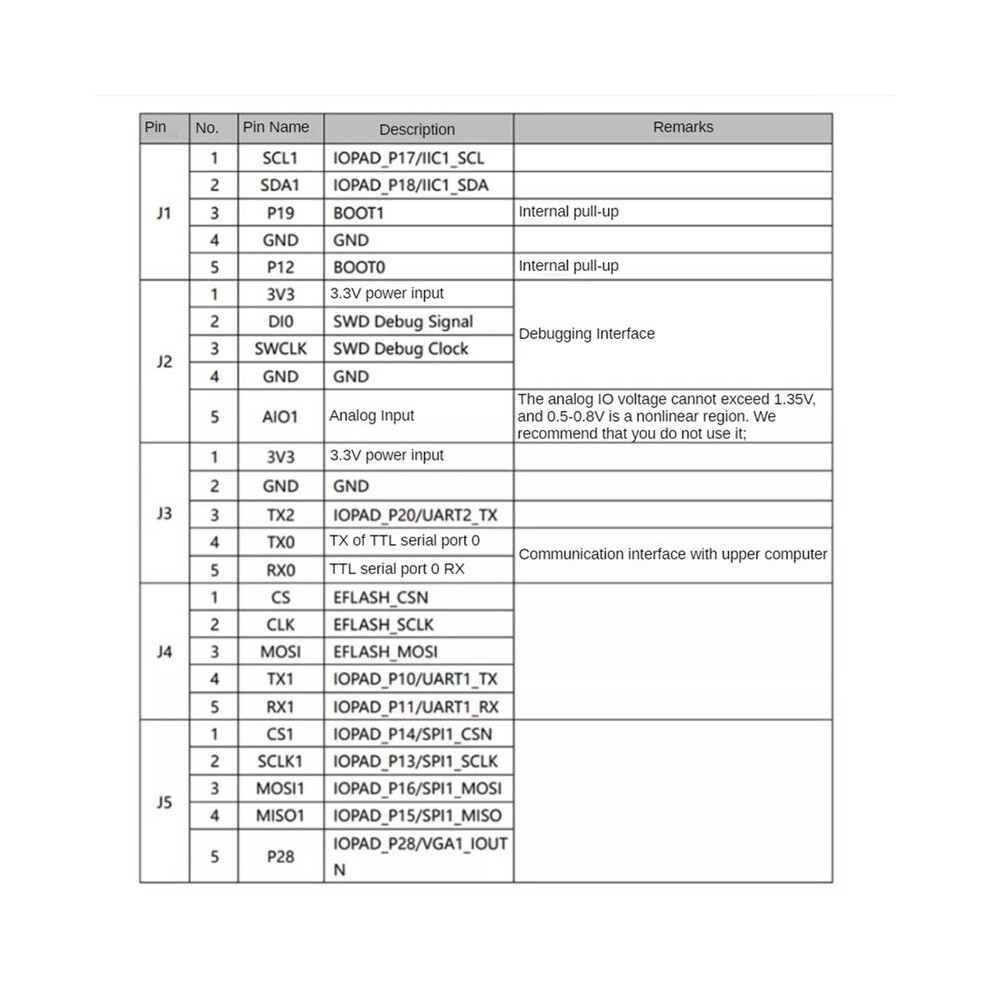

Support SPI, Uart, I2C standard communication interface

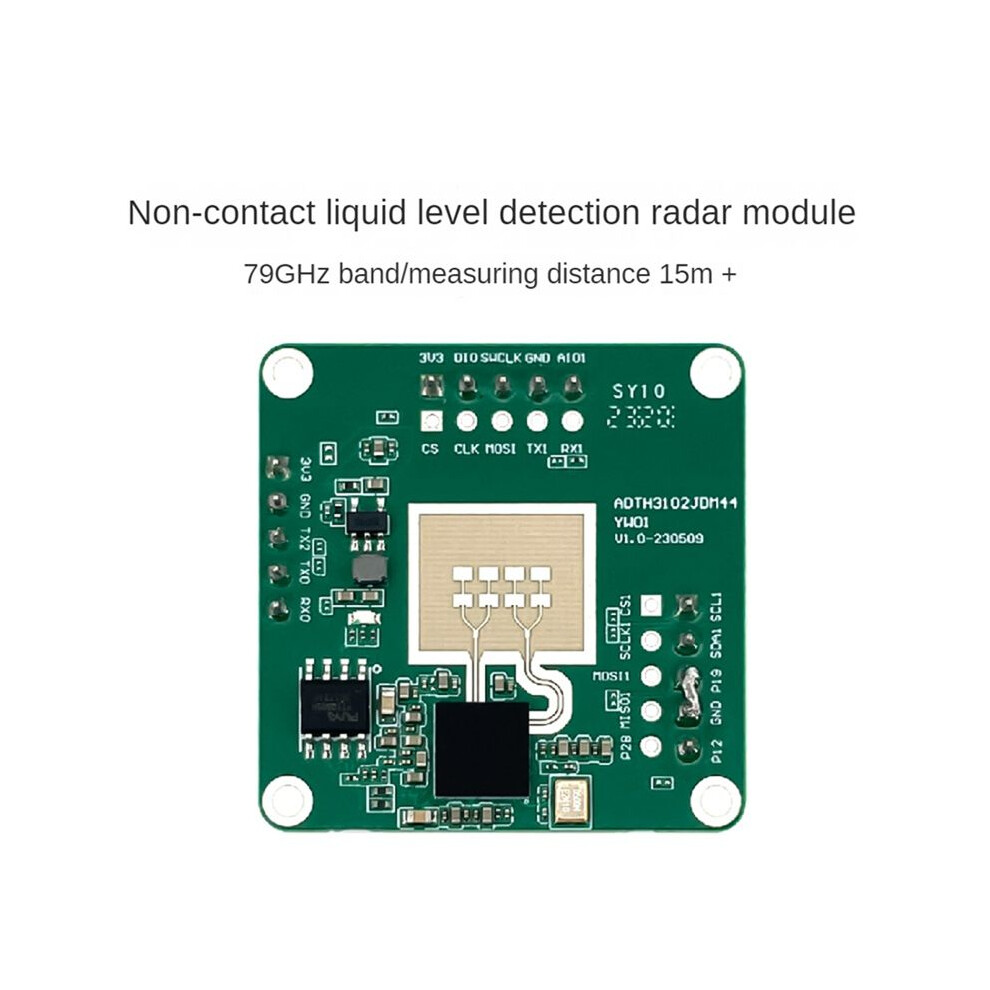

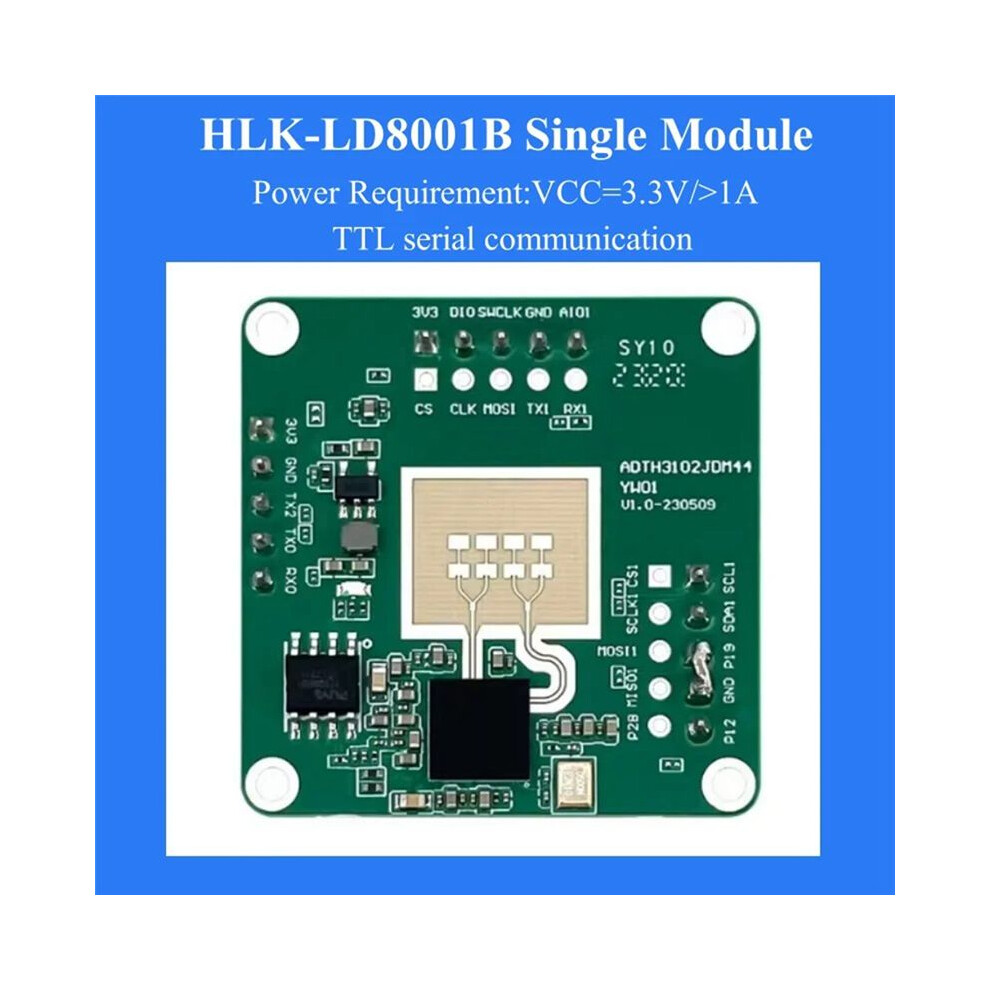

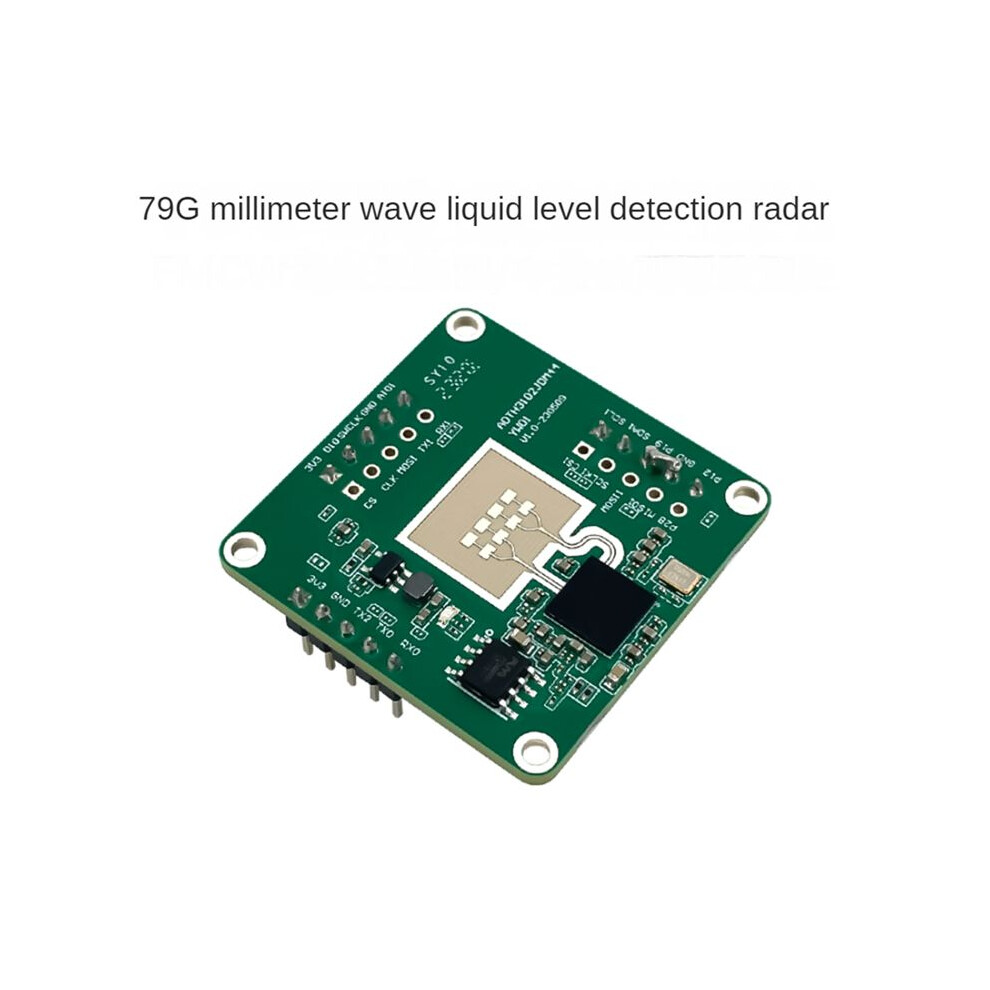

LD8001B is a sensing module developed based ADT3102 chip, with monolithic integration of 76-81GHz RF transceiver system, 1T1R PCB high gain antenna, 1MB flash, signal processing unit, ARM Cortex-M3 core. This module is based FMCW signal processing mechanism, combined with signal processing algorithms, to realize high-precision ranging, suitable for high-precision liquid level and material level measurement.
Compact size, 35.3x35.3mm, row of pins plug connection method
Flexibility to add lenses to change the antenna angle
Unaffected by temperature, humidity, noise, airflow, dust, light and other environmental influences
Application Scenarios:
Industrial level measurement, sewer level detection
Non-contact measurement of medical-acidic and alkaline liquids
Measurement of oil tanks, IBC tonne drums, viscous liquids
Note:Due to different production batches, the appearance is different, which does not affect the use.
Colour:Green
Material:PCB+electronic components

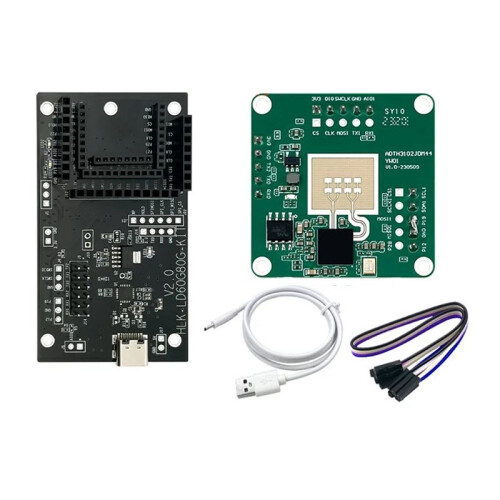

Package Contents:
1 * LD8001B module

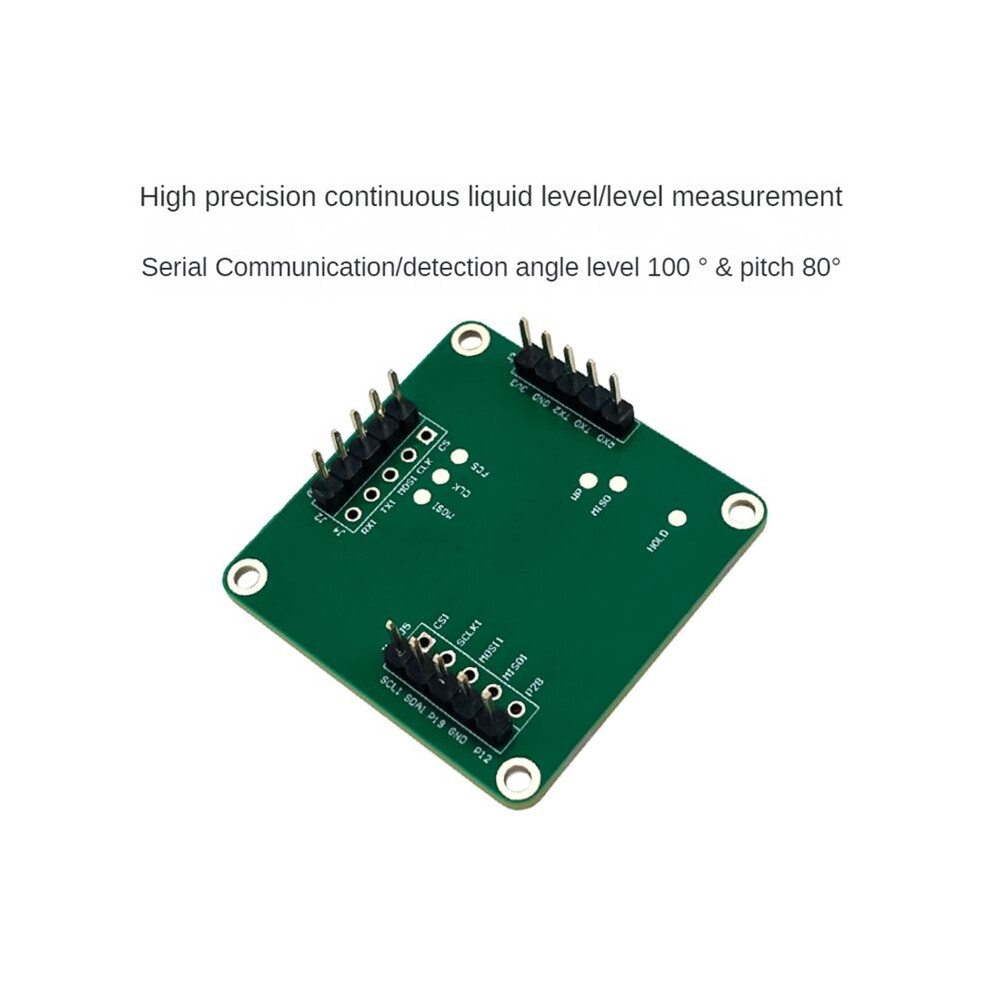

1 * Test base plate
1 * 2.54mm DuPont cable(Cable colors are random and cannot be specified)
1 * Type-C cable(Cable colors are random and cannot be specified)
