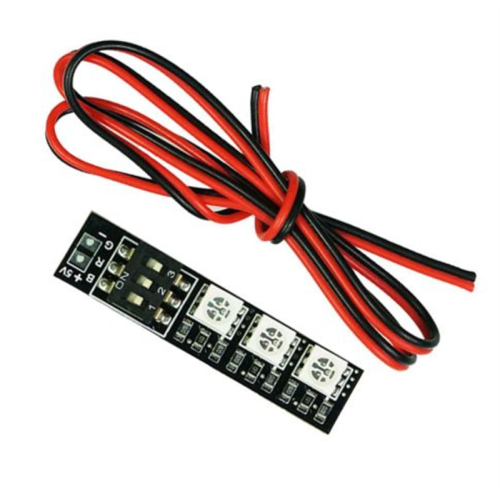

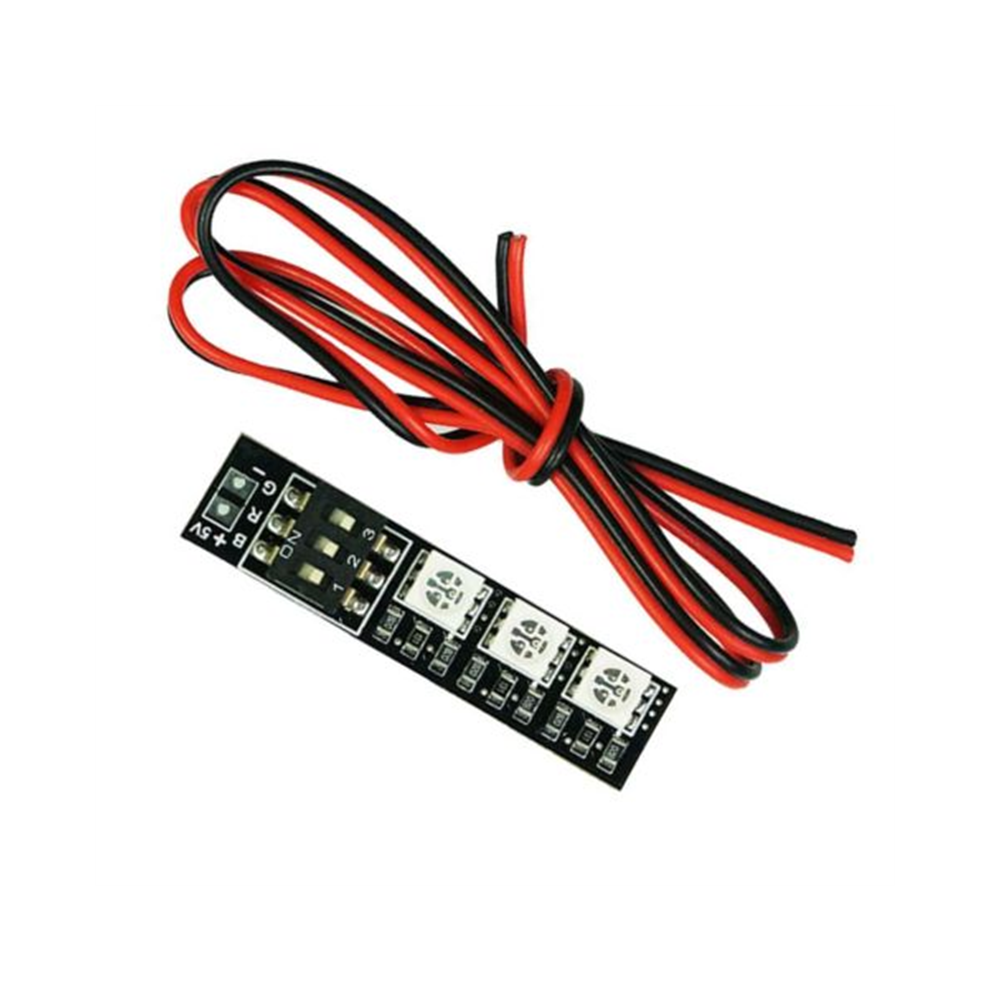

LED 16V 7-colour Switchable Light Board/strip Multi-axis Traverser Aerial Light

LED 16V 7-colour Switchable Light Board/strip Multi-axis Traverser Aerial Light Description

Features:

This 16V light bar is designed for multi-axis/traversers using 4S LiPo batteries and can draw power directly from the 4S battery. It uses four RGB5050 light beads and has an imported dip switch on board, with a total of 7 colours available by toggling the corresponding switch.

Specifications:

Input: 14~17V DC, 4S LiPo battery

Dipswitch for colour selection

Size: 47*10mm

Weight: 2g

Package: 1 piece of 16V light board, 30cm red and black power cable

TIPS: The 16V light bar is powered by 3S LiPo battery, it can also light up, but the maximum power is only 0.3W.

Usage Notes:

Input power between 14~17V is available, direct power supply from 4S LiPo is available.

A 30cm long red and black power cable is included, the user has to cut and solder it according to the length used.

attention to the positive and negative polarity and insulation of the inputs.

7 colours can be selected by flicking the corresponding switch to ON.

it is recommended that the back is glued to the body with double-sided foam adhesive.

The following are based on power and current at 16V input

BON = blue, 0.4W, 25mA

RON = red, 0.4W, 25mA

GON = green, 0.4W, 25mA

B+RON =Violet, 0.8W, 50mA

B+GON = Cyan, 0.8W, 50mA

R+GON = yellow, 0.8W, 50mA

B+R+GON = white, 1.2W, 75mA

Package Includes:

16V light board * 1

Red and black power cable 30cm * 1
