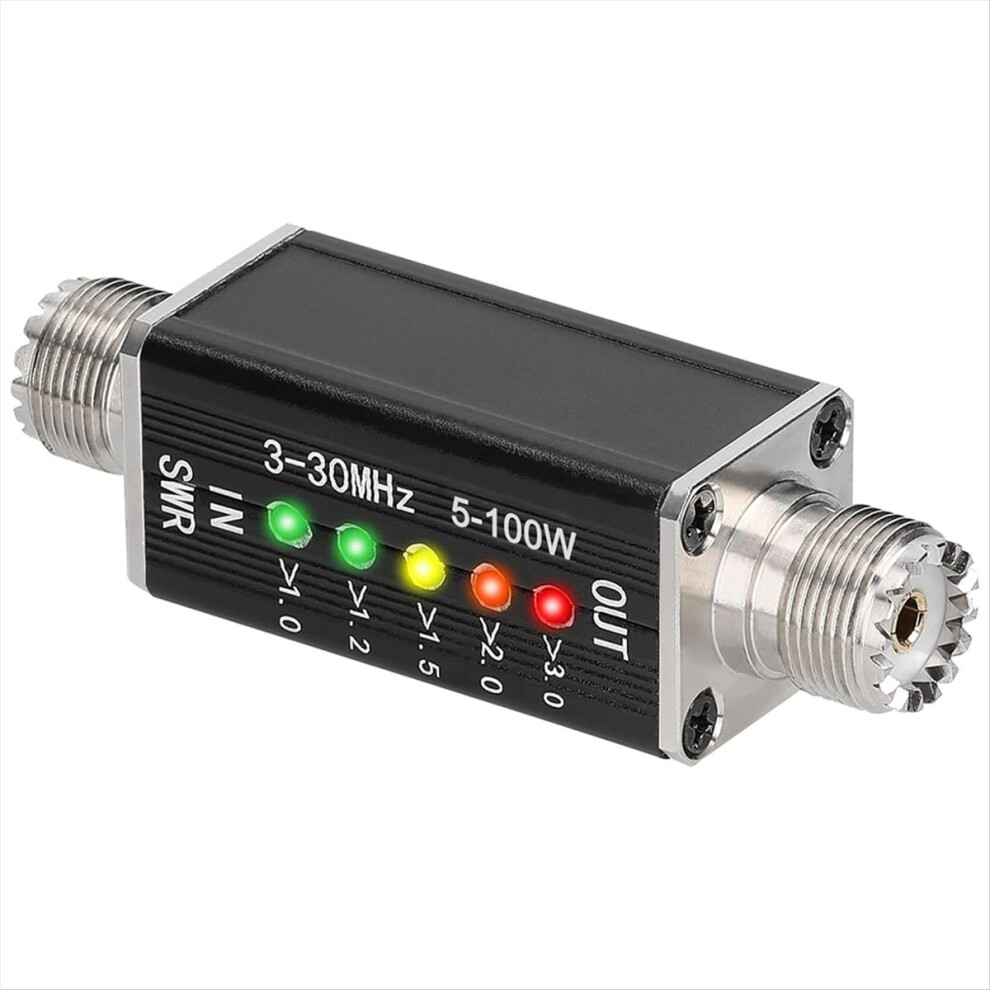

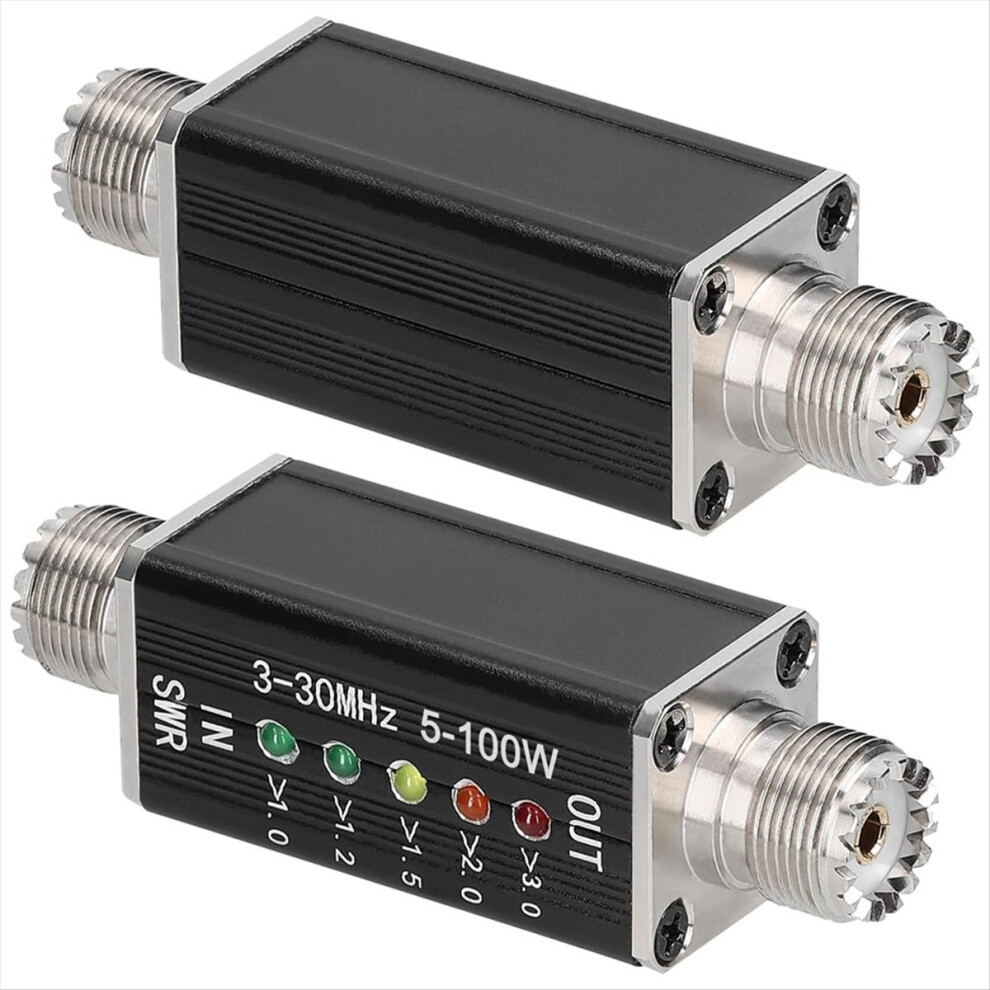

LED SWR Meter 3-30MHz Frequency Shortwave Standing Waves Indicator with 5 M Female Interface

LED SWR Meter 3-30MHz Frequency Shortwave Standing Waves Indicator with 5 M Female Interface Description

Compact and , powered by -tapped power, with , and easy to carry, very suitable for amateur radio enthusiasts to use in .

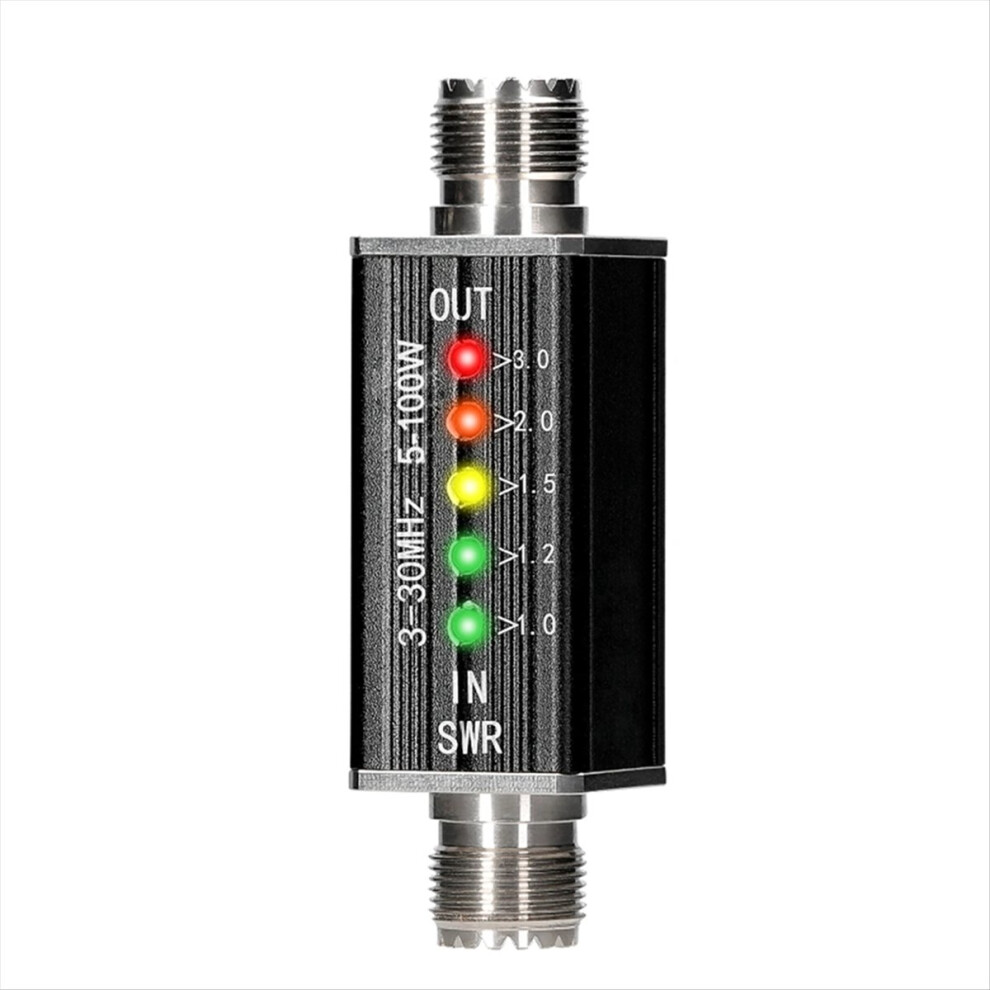

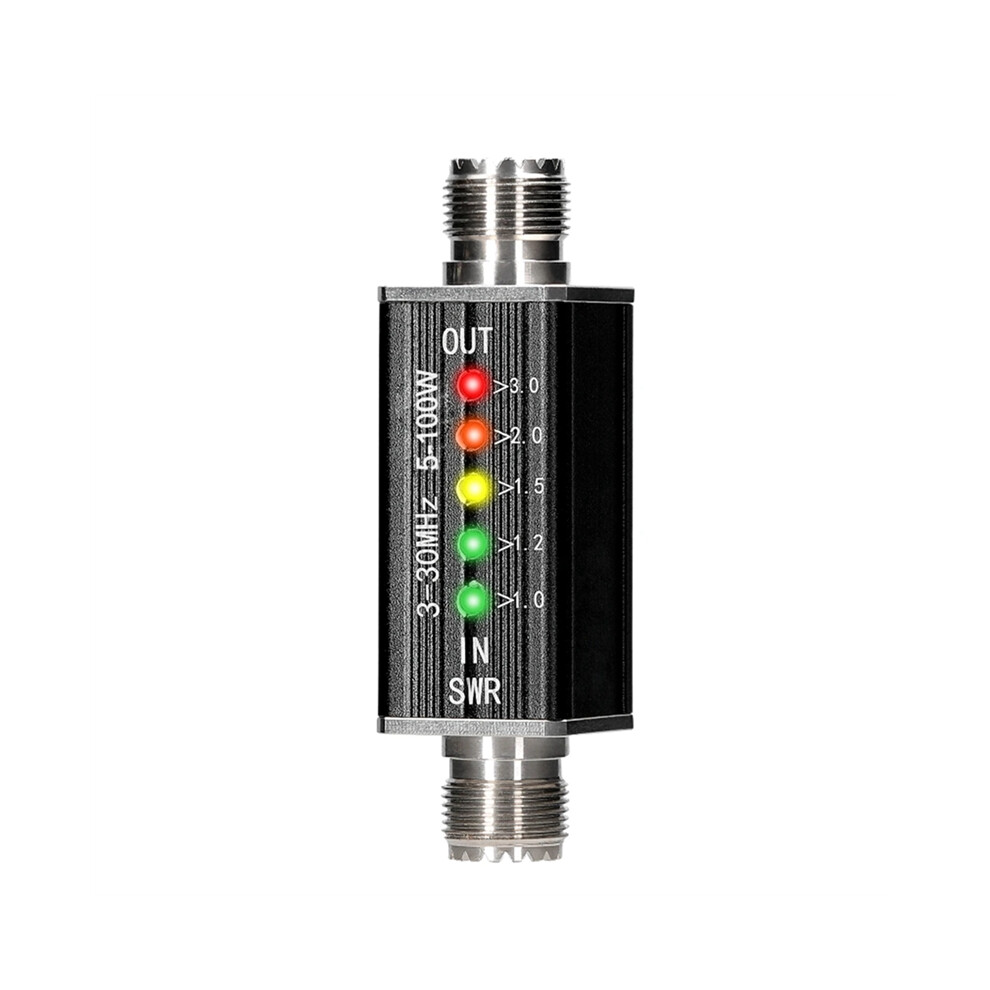

It can be used to measure radio frequency signals, it uses 5 LEDs to indicate the strength of the signal, with different colors of LEDs to indicate different SWR ranges.

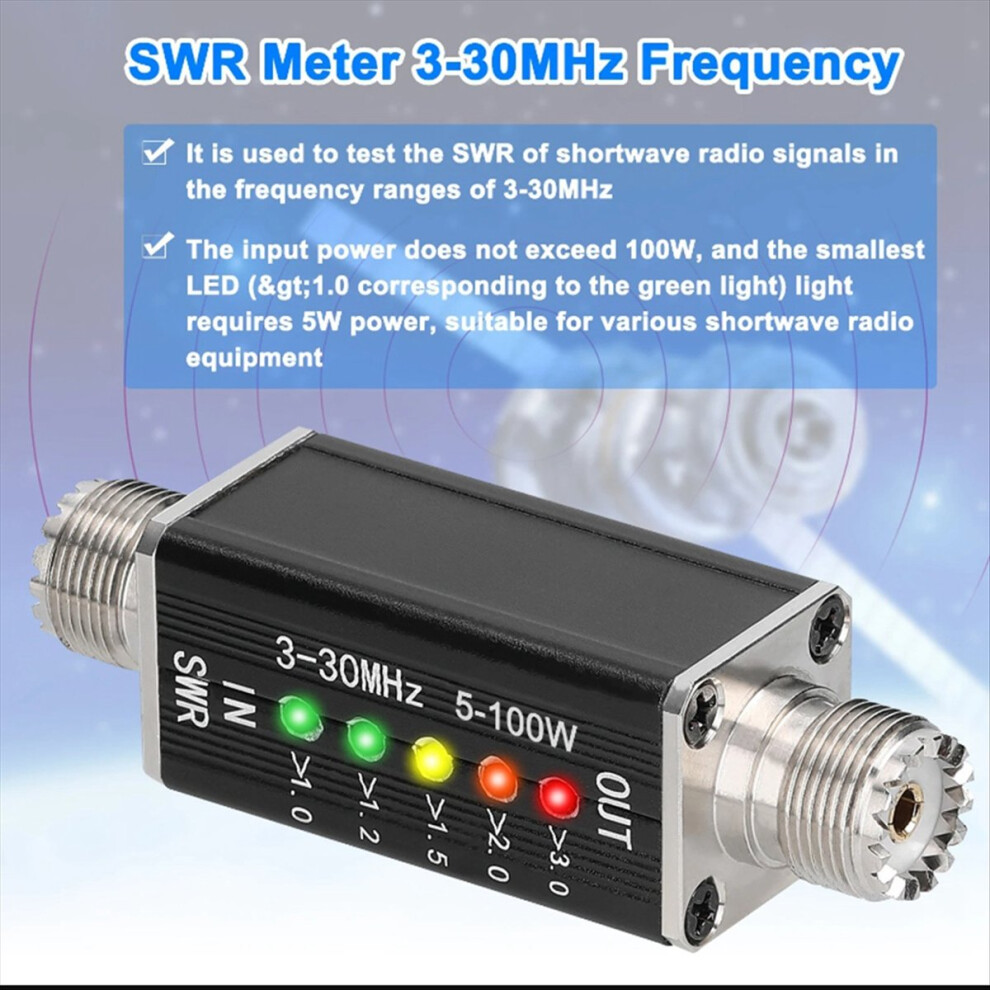

It is used to test the SWR of shortwave radio signals in the frequency ranges of 3-30MHz. The input power does not exceed 100W, and the smallest LED ( 1.0 corresponding to the green light) light requires 5W power, suitable for shortwave radio equipment.
This equipment is commonly used in radio communication systems such as radio broadcasting, television broadcasting, and radio communication.
It helps the operator to determine the strength of the signal and thus adjust the settings of the radio equipment, to improve the quality and reliability of the signal.

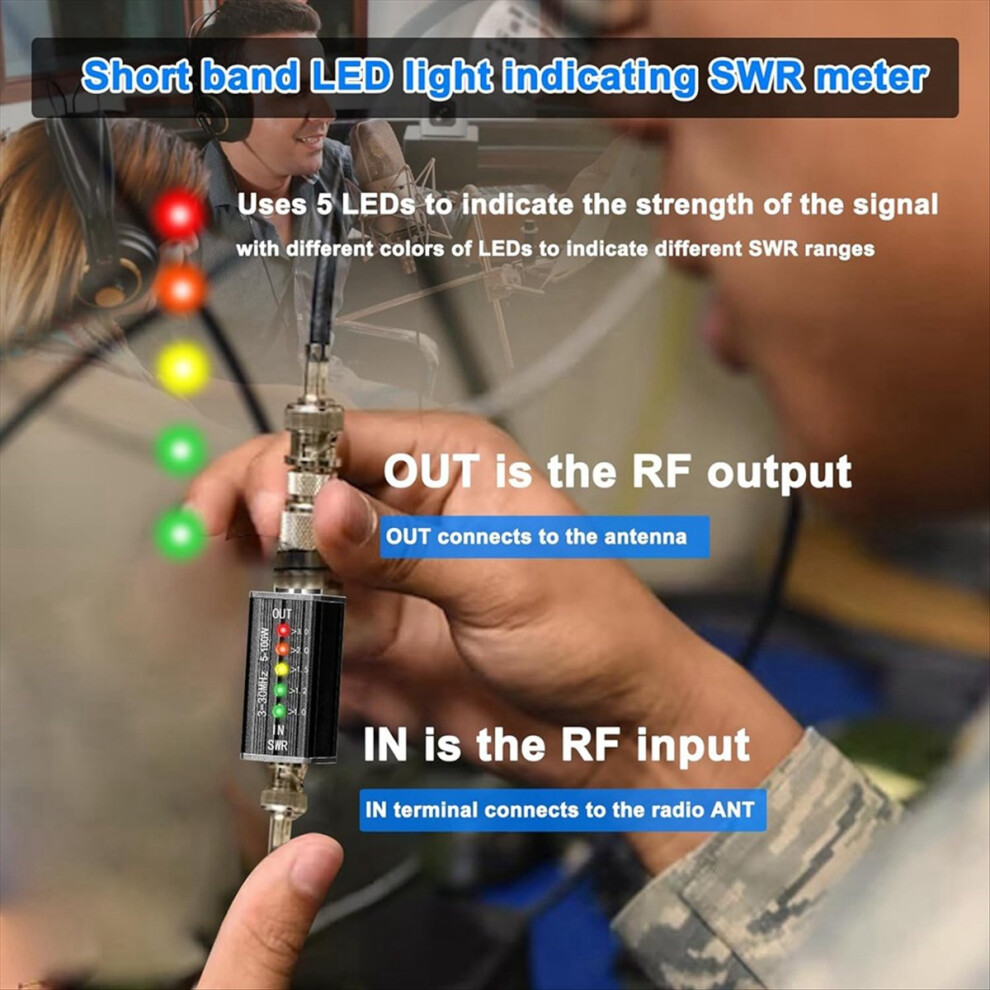

The entire circuit has no component that need to be adjusted and work properly as long as the connections are correctly. IN is the input and OUT is the output. The IN terminal connects to the radio ANT and the OUT connects to the antenna.
It can be used without any calibration and adjustment in the shortwave ranges, which is very simple and convenient for the DIY hobbyist.

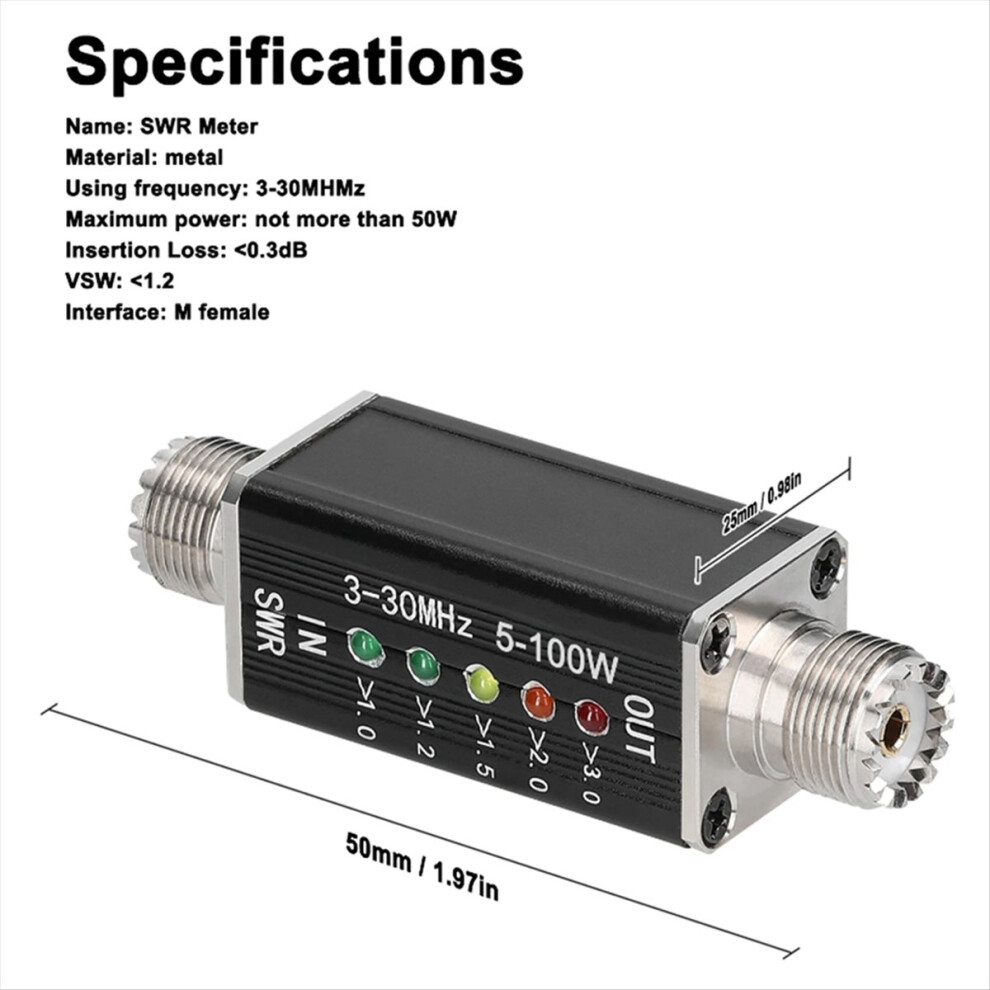

Name: SWR Meter
Using frequency: 3-30MHMz
Maximum power: no more than 100W
Insertion Loss: Less than 0.3dB
VSW: Less than 1.2
Interface: M female
Colour:black
Material:Metal
Size:8.00 x 5.00 x 3.00 cm

Package Contents:
1 x SWR Meter

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
