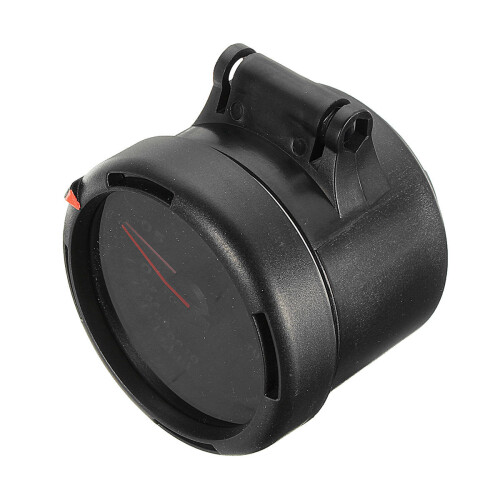

LED Turbo Boost Vacuum Press Pressure Gauge Meter

LED Turbo Boost Vacuum Press Pressure Gauge Meter Description

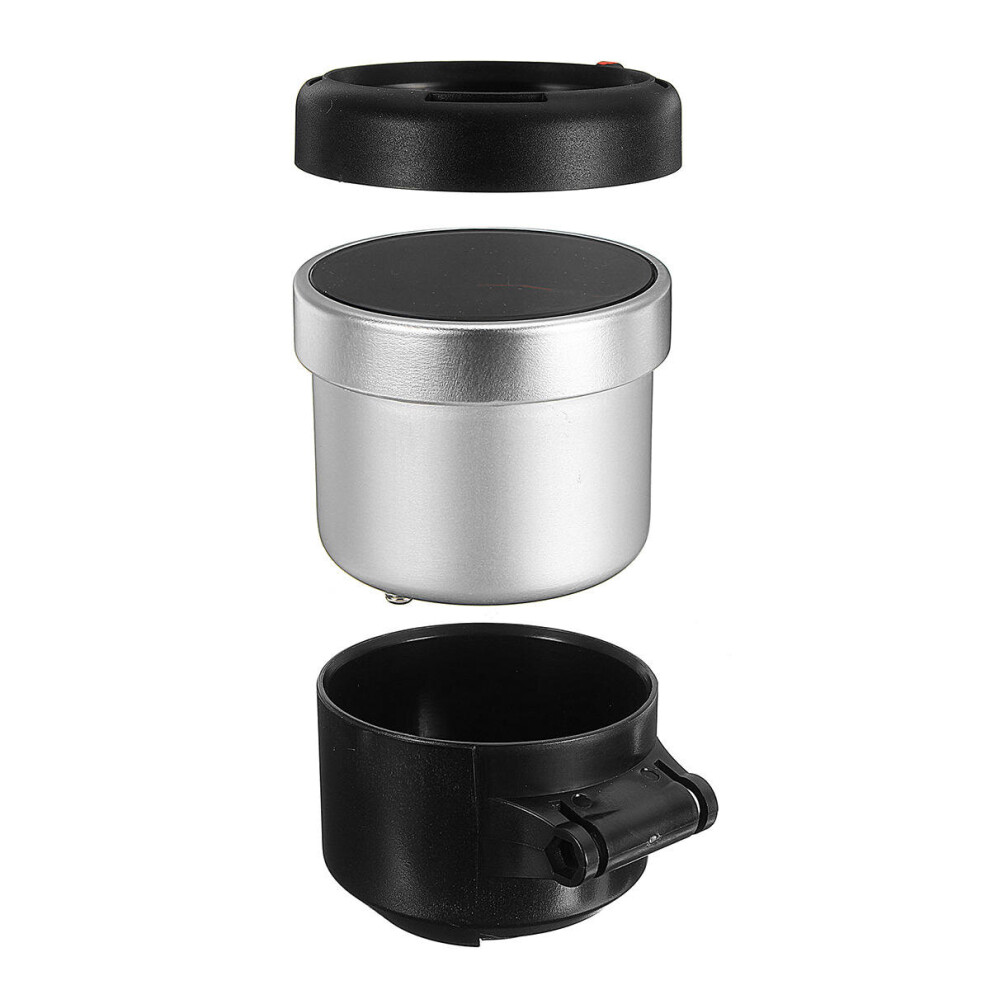

Specifications:Color: BlackMaterial: Plastic cover + aluminum + IronPressure: 300KPaDiameter: 60mmPower-supply voltage : 10V to 16V DC (12V vehicles only )Current consumption : the maximum value obtained when connecting one gauge+B wire : 200mA (IGN ON )ILM wire : 0.5mATemperature range : Temperature range for storage Temperature range for operationGaugeBoost sensorPressure sensorTemperature sensorExhaust temperature sensor-30(-22) ~+ 80(176)-30(-22) ~+100(212)-30(-22) ~+140(284)-30(-22) ~+150(302)-30(-22) ~+130(266)-30(-22) ~+60(140)-30(-22) ~+ 80(176)-30(-22) ~+120(248)unit °C (°F)-30(-22) ~+150(302)-30(-22) ~+130(266)â»The sensing part of exhaust temp . sensor is not included in the temperature range above .  How to attach Mounting bracket set1) Open the package and take out the double-sided tape as Figure 2 to attach the bottom ofthe bracket(as Figure 1).2) Insert the protruding part of the bracket into the meter cup, using the bolts, nuts and washersto fix the bracket(as Figure 3)3. Attach 1~2 pieces of double-sided tape to the aluminum caseas buffer (as Figure 4).4) Pass the meter wires through the hole of the meter cup and connect them to the gauge.5) Place the gauge in the meter cup making sure that wires are not sandwiched .6) Attach double sided tape on the back of the mounting bracket as shown in figure 5 . Bend themounting bracket to conform to the structure of the location where you intend to attach it.    Package Included:1 x Turbo charging meter with pressure sensor kit
