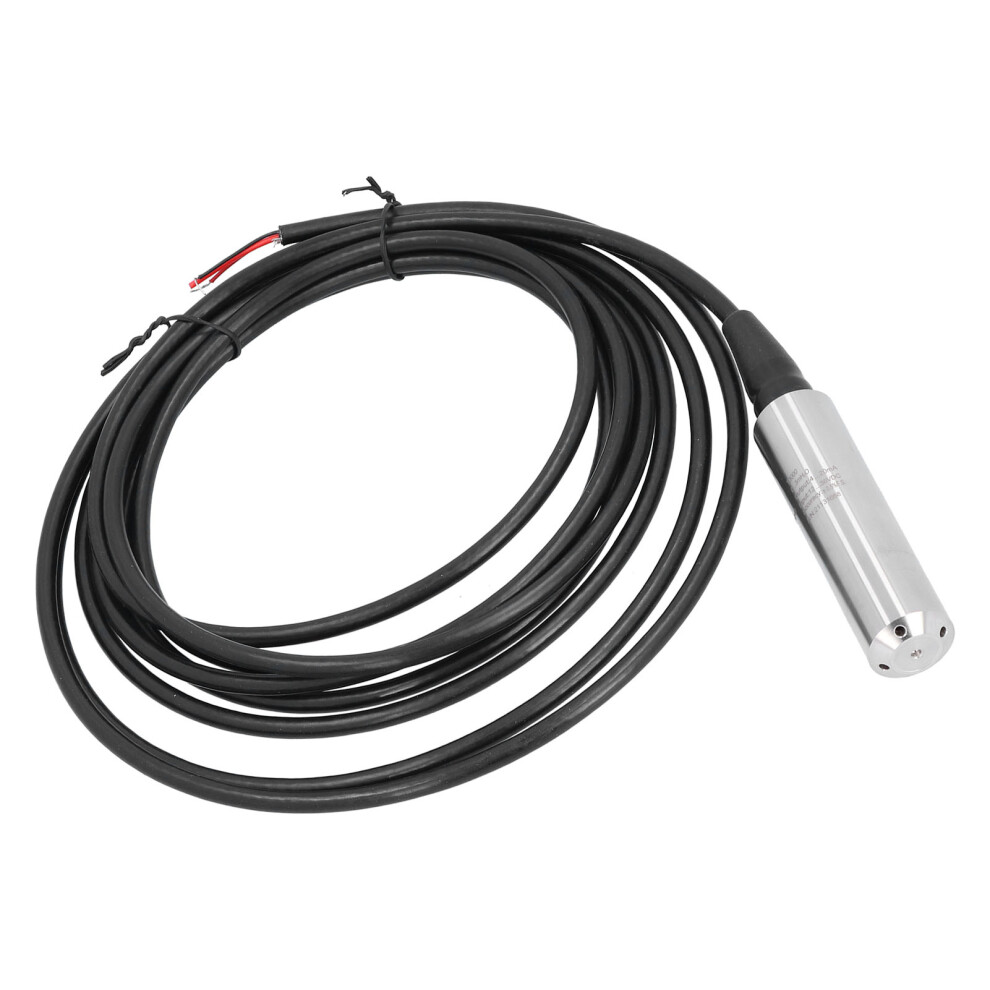

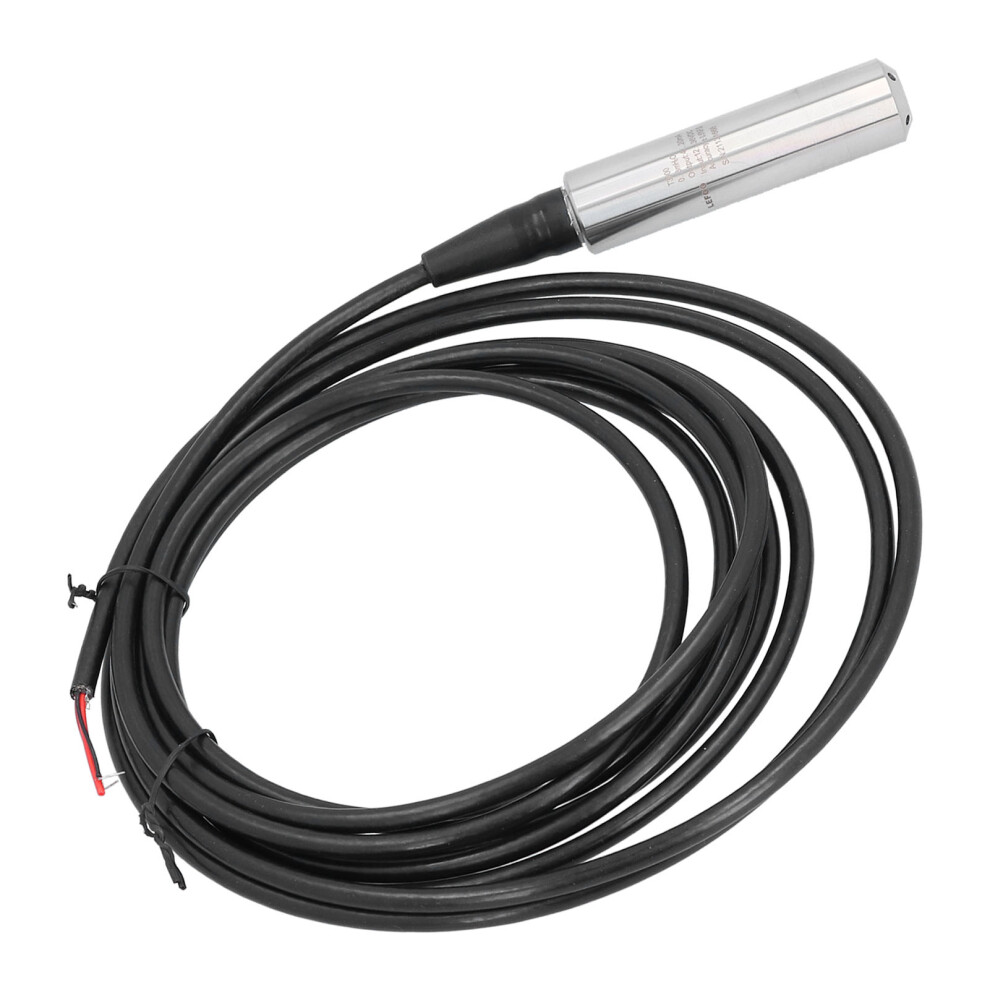

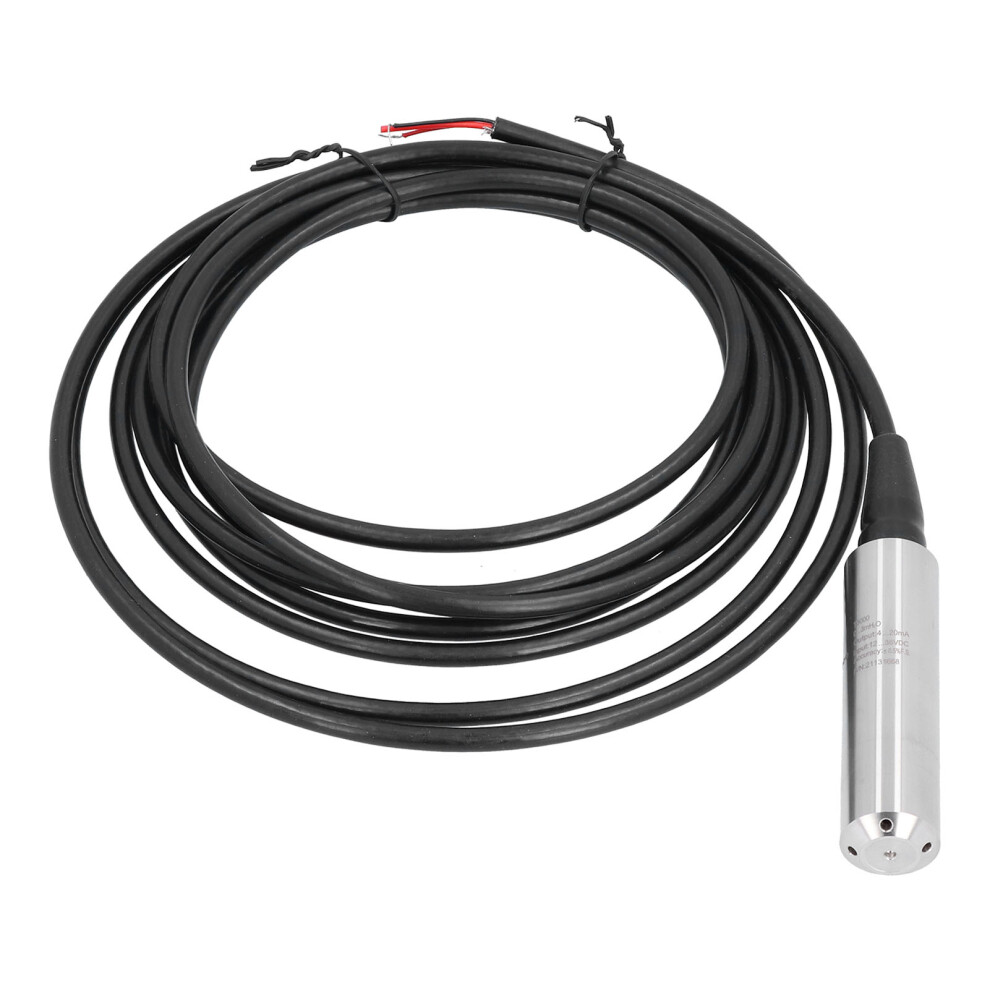

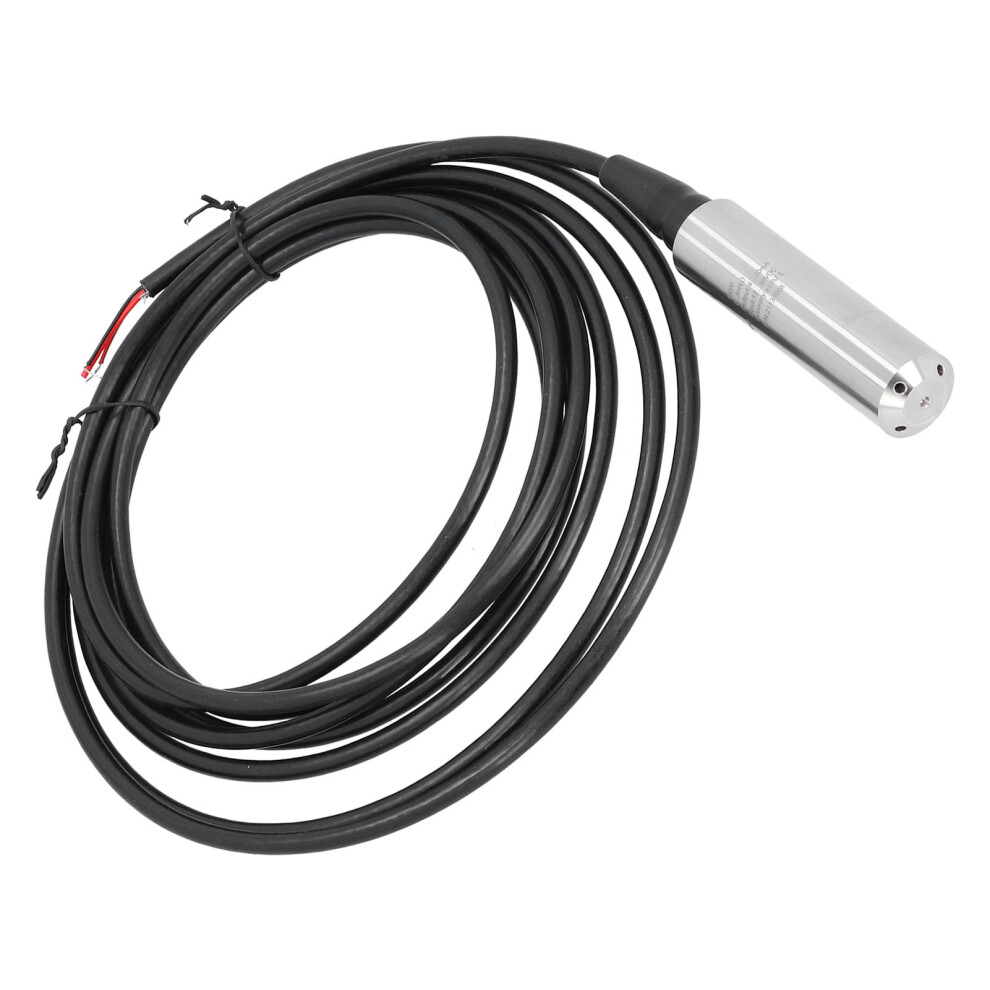

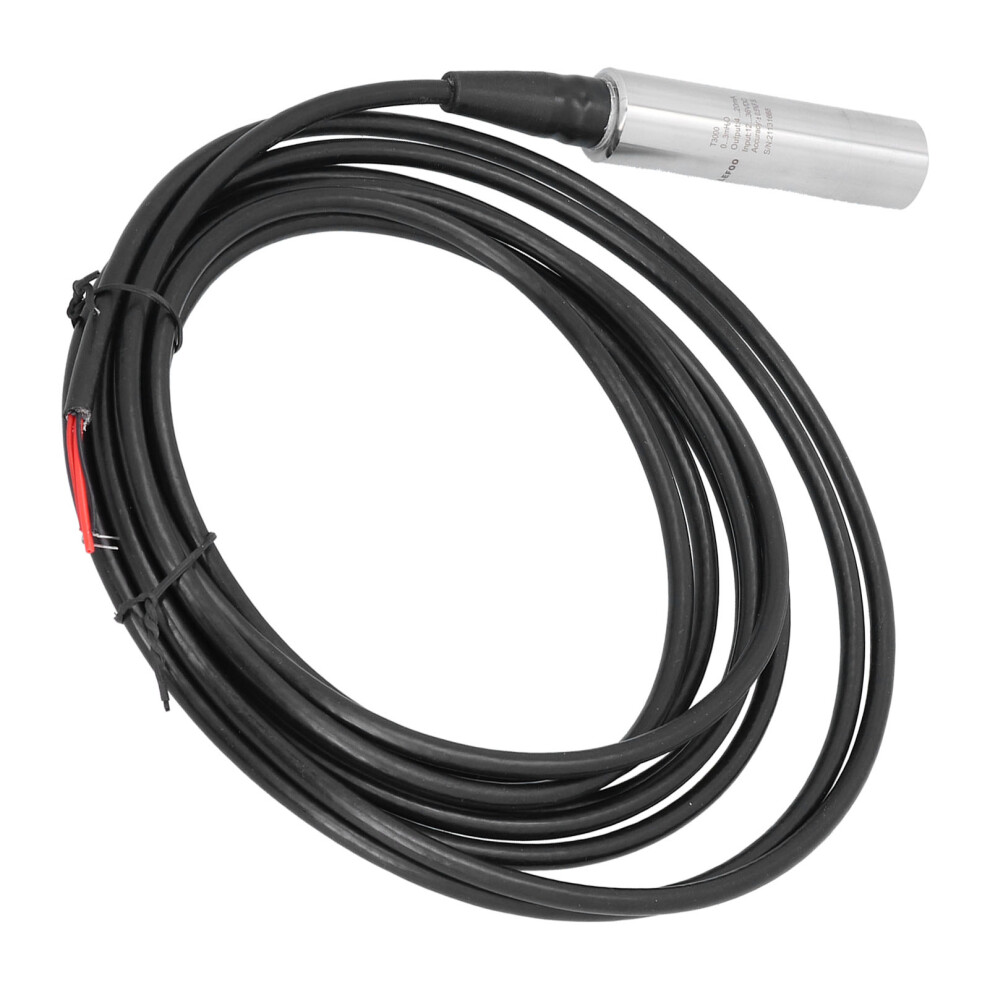

LEFOO Liquid Level Transmitter 4-20mA 12-36V DC 0-3m

LEFOO Liquid Level Transmitter 4-20mA 12-36V DC 0-3m Description

1、Through pressure sensor, this liquid level transmitter can accurately measure the static pressure proportional to the depth of the liquid level, and convert it into a standard signal output by a special signal regulating circuit. 2、By establishing a linear corresponding relationship between the output signal and the liquid depth, this sensor can achieve accurate measurement. 3、Can be directly put into the liquid to measure the liquid level from the end of the transmitter to the surface of the liquid, and the measurement range is from 0 to 3 metres. 4、Widely used in liquid level measurement and control in the fields of petroleum, chemical industry, power plant, city water supply and hydrological exploration. 5、Equipped with diffused oil filled diffused silicon core and built in temperature compensation, has high accuracy and high overload capacity. 6、The top stainless steel cover is removable to prevent accidental access to the contact diaphragm, easy to clean, and has excellent corrosion resistance and wear resistance.
Item Type: Liquid Level Transmitter
Measurement Range: Approx. 0 ~ 3metre / 0 ~ 9.8ft in water.
Overload Pressure: 2.0 times the rated pressure.
Breaking Pressure: 3.0 times the rated pressure.
Accuracy: 0.5%F.S
Stability:
