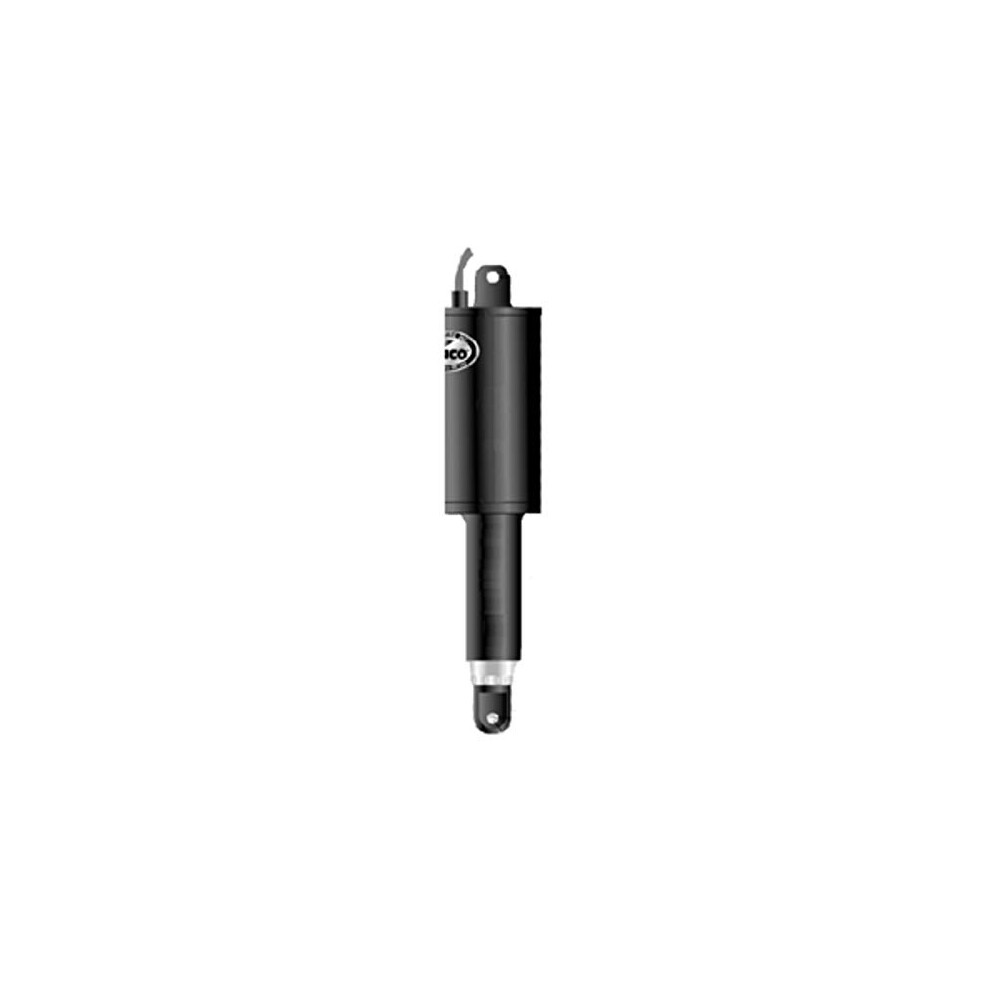

LENCO MARINE Lenco 101 Standard Actuator - 24V - 2-1/4"" Stroke

LENCO MARINE Lenco 101 Standard Actuator - 24V - 2-1/4"" Stroke Description

101 Standard Actuator. 5/16"" (.79 cm) mounting hardware Stroke: 2-1/4"" (5.72 cm) Length overall: 12-1/8"" (30.80 cm) Length pin to pin: 11-1/2"" (29.21 cm) Diameter (upper housing): 2-1/2"" (6.35 cm) Mounting hardware: 5/16"" ( .79 cm) or Delrin Pin (Part #121) Part # (Superseded #) 15061-001(101-3) 24 Volt w/6 (1.83 cm) cable with Deutsch connector & mounting hardware(replacement length) Top cap gland seal sheaths the actuator cable outer jacket as well as both internal conductors for maximum waterproofing Corrosion proof Vandar mounts Stainless steel ram wont flex even under extreme loads Double O-ring for maximum protection Ballscrew rotates freely on 12 ball bearings at both ends of its stroke so theres no need for complicated limit switches and clutches Self-locking ballscrew locks into position and will not drift Precision molded powdered metal high alloy gears provide high accuracy high wear resistance and high strength for long life Tough high-torque motor easily transfers 750 lbs High-impact ultraviolet resistant nylon 66 50% glass fiber reinforced thermoplastic housing Corrosion proof Vandar cap and mount stands up to severe loads .
