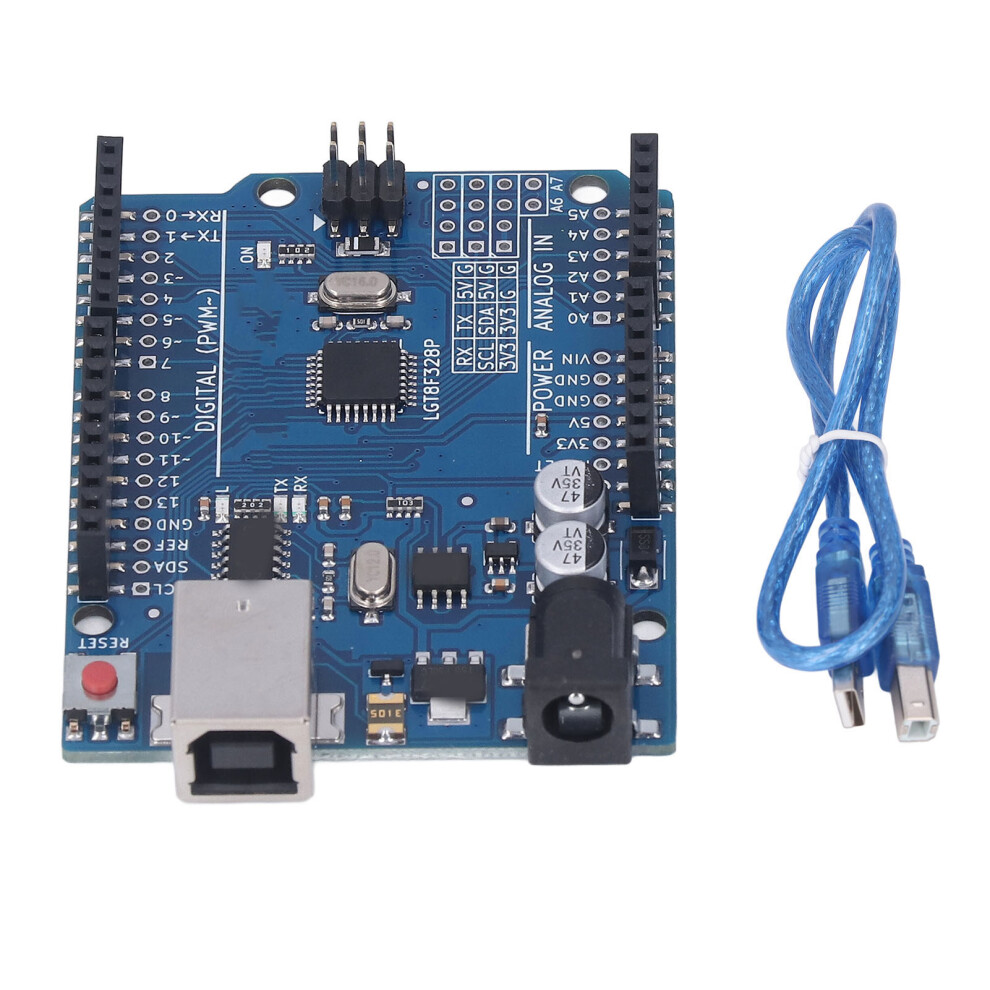

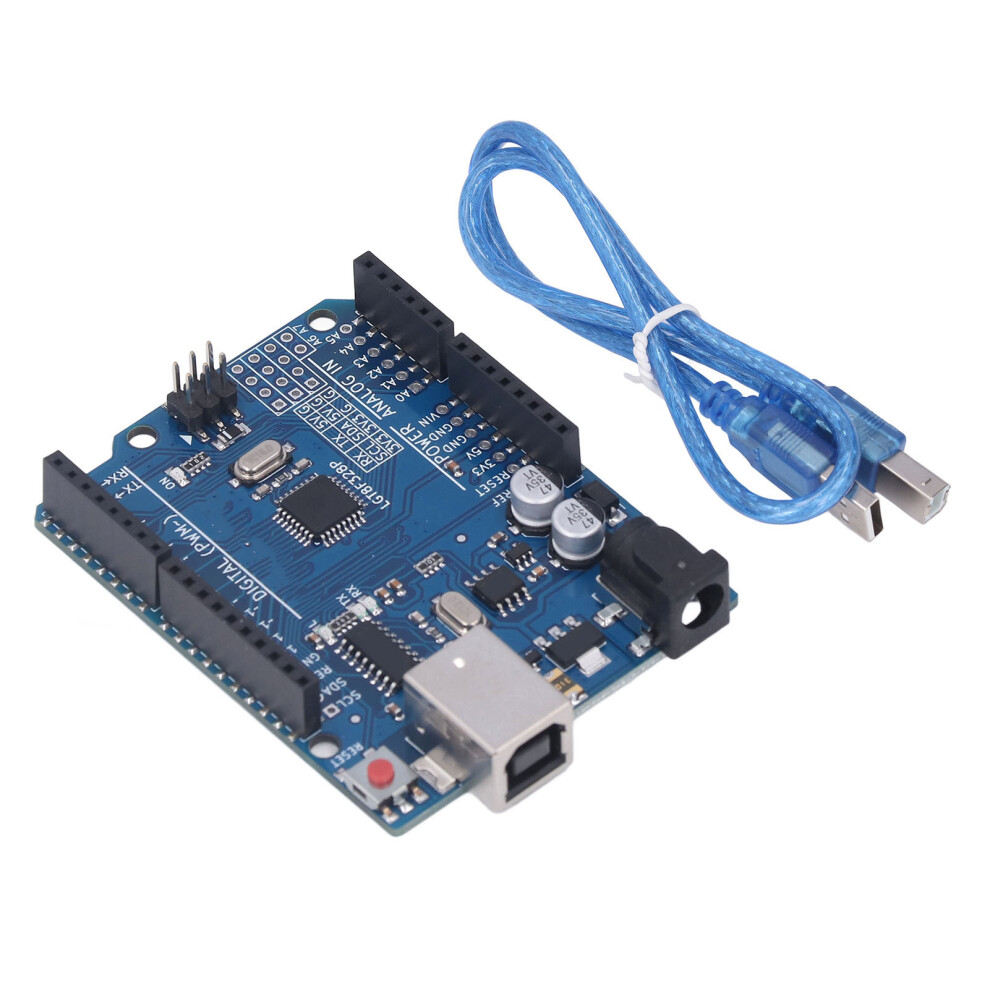

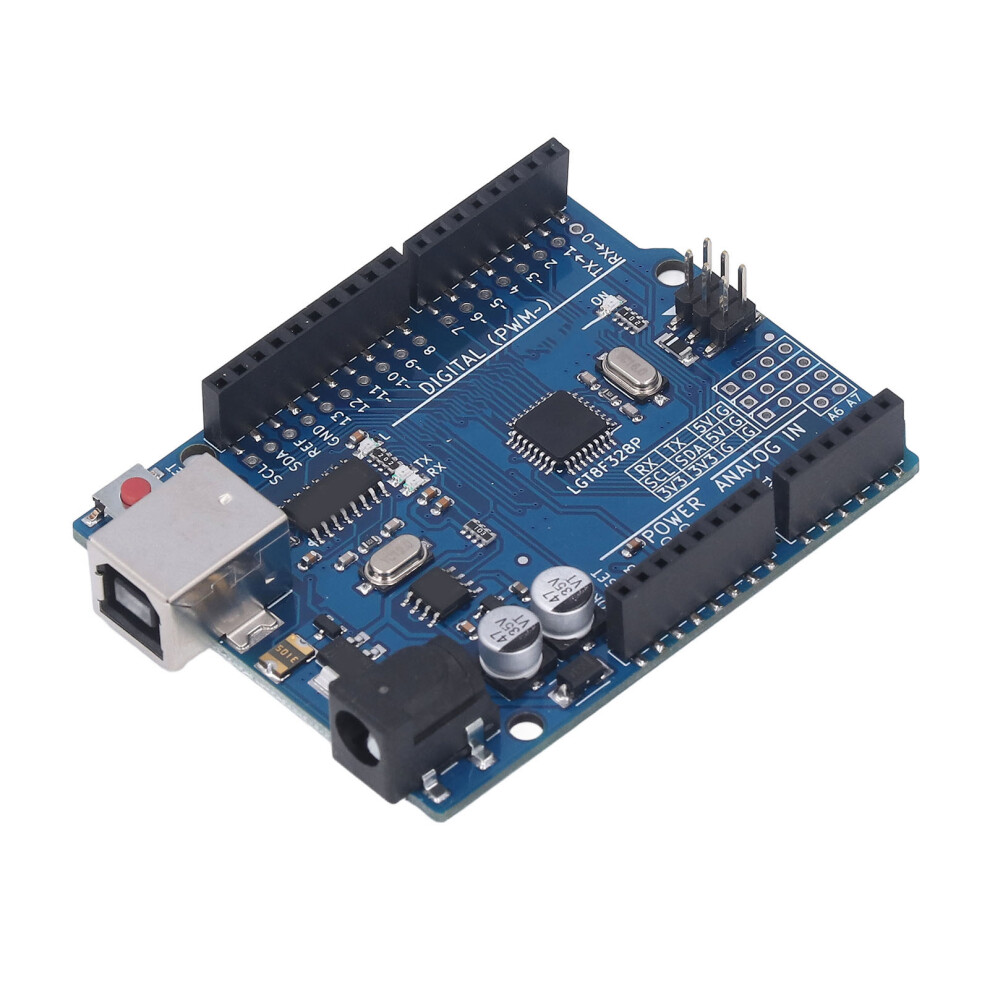

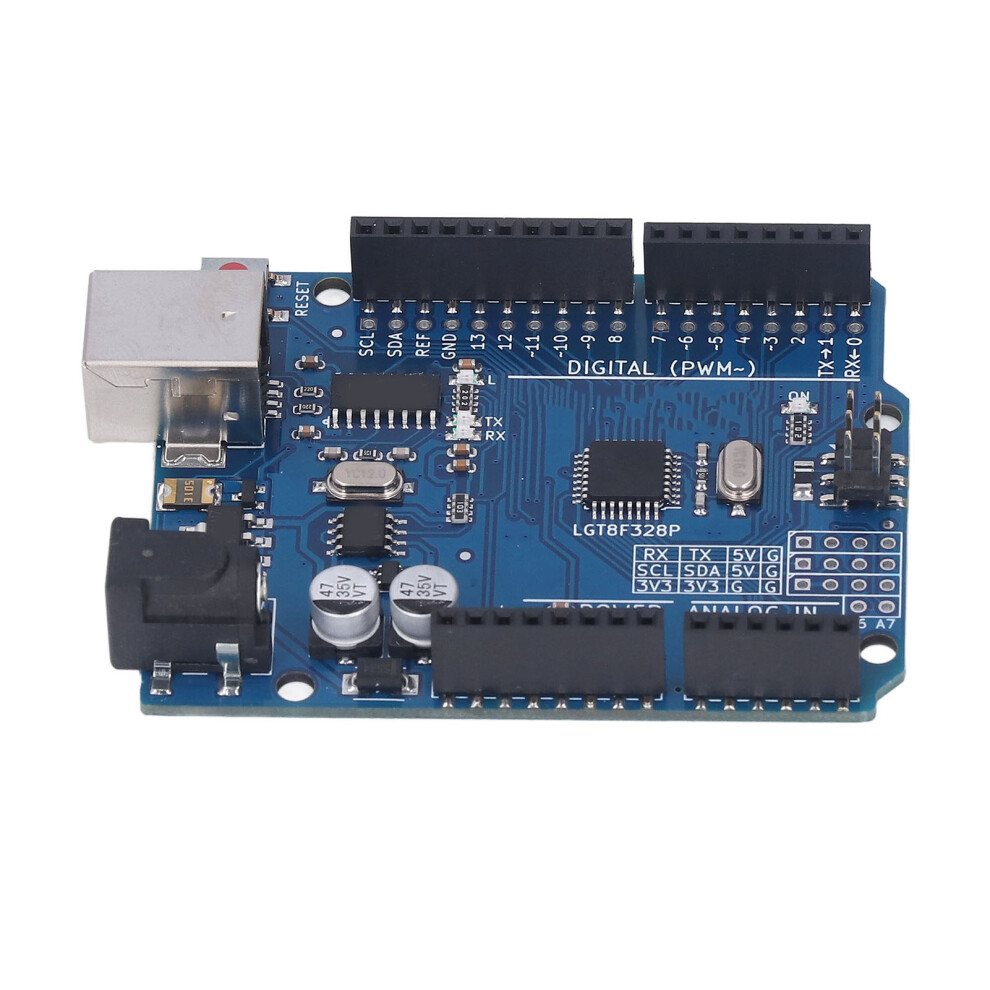

LGT8F3289 Control Development Board, 16MHz, 32K Flash, 14 IOs
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 129,000 Trustpilot reviews and an 'Excellent' rating
£15.88
£26.03
39% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Thu 23rd - Sat 25th Jul
Returns: 30 days
180-day payment protection
Most Popular in Circuit Board Hardware
Description & Details
Summary

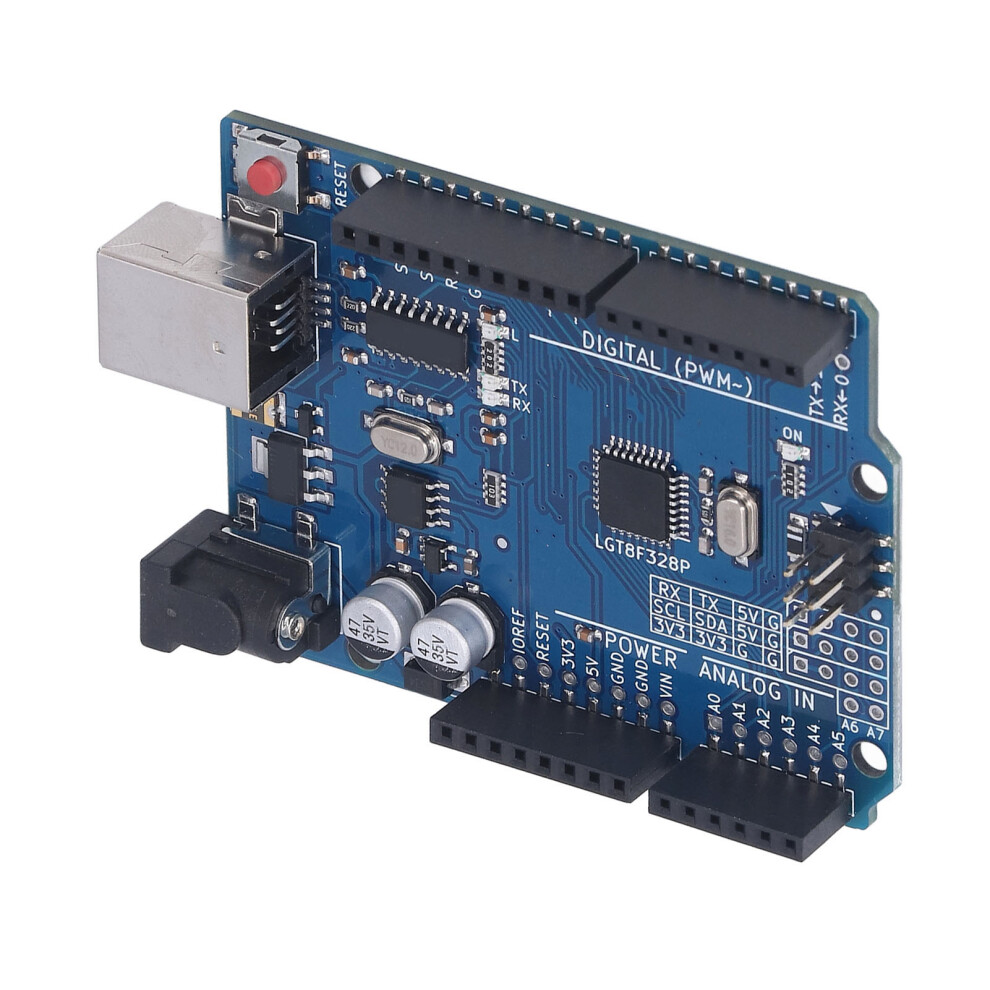

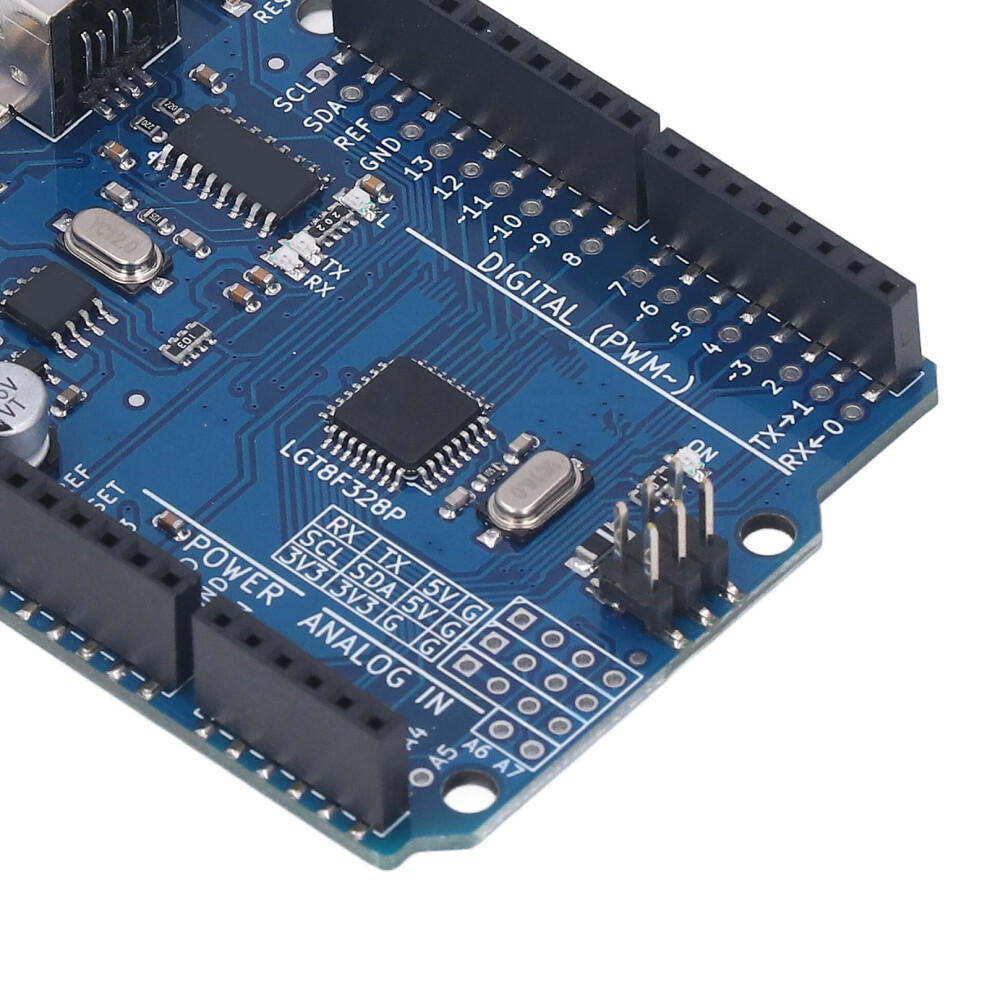

- Stable Work: Two I2C pins, SDA and SCL, are added beside the AREF pin, which are just a copy of Analogue 4 and 5, not an additional I2C interface. In addition, two pins are also added beside RESET, one is IOREF, which allows the expansion board adapt to the on board voltage, the other is a placeholder pin for later use.

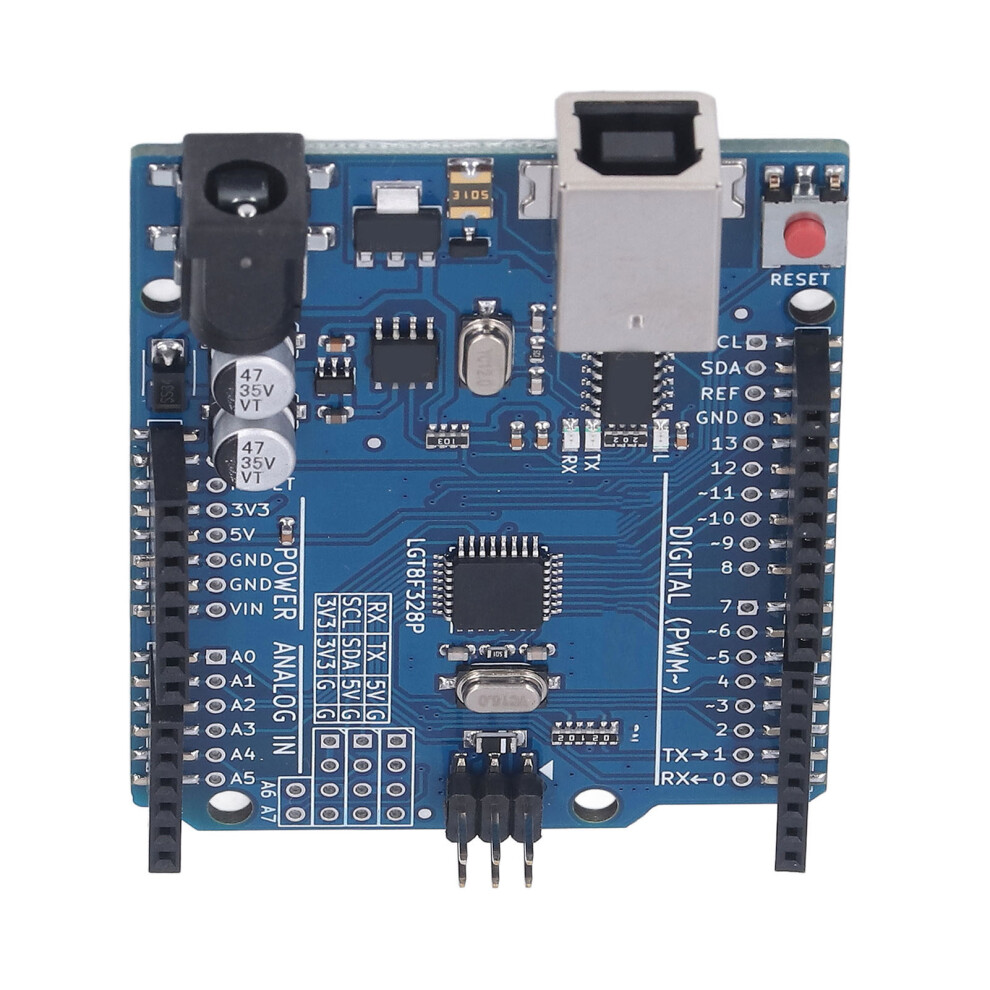

- Better Design: The position of the RESET button has also changed, and it has been moved to the corner of the board near the USB interface, making it easier to press.
- Control Board: Replaces the 8U2 for USB interface chip, theoretically it allows it to simulate USB, such as for MIDI, for Joystick, for Keyboard.
- Good Material: Adopting resin material, not likely to malfunction and very sturdy for long term using.
- Easy to Install: Comes with a light weight and a compact size, the convenient installation can be quickly finished.
LGT8F3289 Control Development Board, 16MHz, 32K Flash, 14 IOs Description
Development Board LGT8F3289 Control Module with Chip Electronic Component
Item Type: Development Board
Material: Resin
Main Control: For ATMEGA328P-PU
Input Voltage: 6-12V
Working Voltage and Output Current: 5V, 500mA.
Maximum Output Current under 3.3V: 150mA

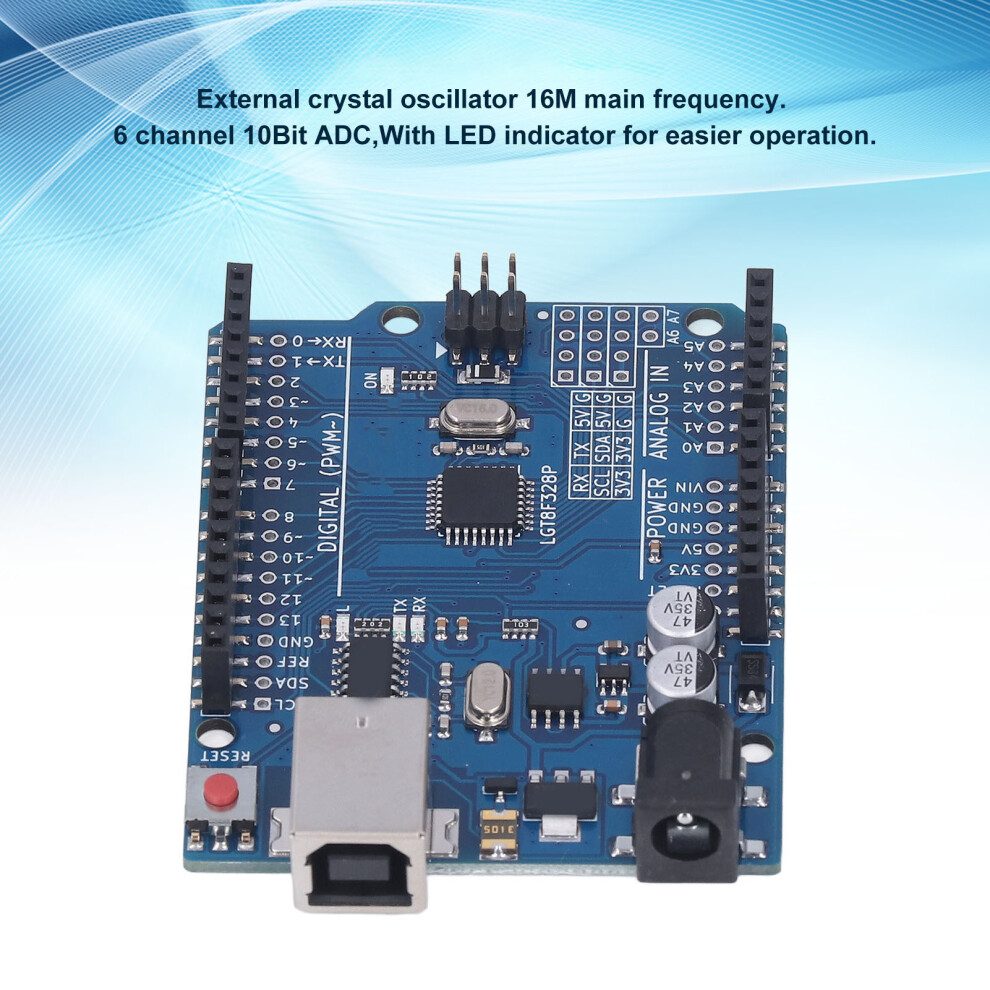

Main Frequency: External crystal oscillator 16M.
Flash: 32K, 0.5k for boot.
SRAM: 2K
ERROM: 1K
Number of Digital IOs: 14
PWM: 6
ADC: 6 channels 10Bit.
Reference Voltage and Accuracy: 1.1V0.2%
DAC: None
I/O DC Output Capability: 20mA
Bootloader Burning Method: SPI
Details
| OPC | PSFWTBB |
|---|---|
| Codes | 3501388216177 (EAN) |
