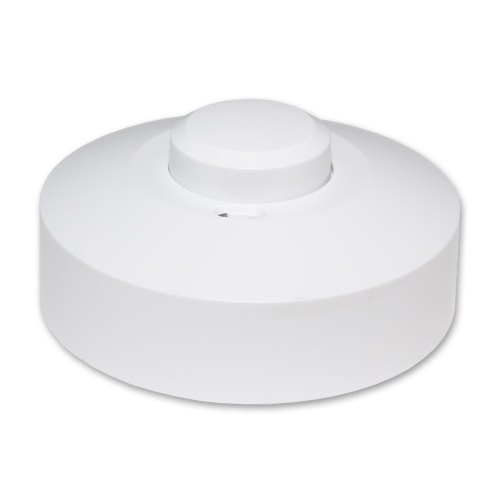

Lighting Microwave Sensor Switch Occupancy Detection Time Delay 1200w Adjustable

Lighting Microwave Sensor Switch Occupancy Detection Time Delay 1200w Adjustable Description

Occupancy Sensing switches are commonly used to control lighting and extract ventilation.  They will save energy by ensuring lights and fans are not left on.  The energy savings will be high with a short energy saving investment payback time if connected to average energy level lighting such as fluorescent tubes, or compact fluorescent lamps.  Higher savings if controlling tungsten or halogen lighting.  In a domestic application these products are well suited to rooms such as integral garages, store rooms, toilets, or any other room where lighting may accidentally be left turned on.

Microwave switches have some benefits over PIR switches in that they are not affect by temperature variations.  For example, in a cold environment, a PIR switch will have low sensitivity may not detect a person until relatively close to the sensor.

Potential energy savings in commercial property will be far greater with shorter payback times, generally less than one year.  This product is ideally suited to circulation areas, store rooms, toilets, kitchens, common stairs wells or corridors where there are frequently people passing in an out of an area and the lighting often gets left on all day.

Payback is the time it takes for an investment in energy conservation to repay its cost in energy savings.

All our PIR and microwave switches have UKCA & CE marking and have a 1 year warranty.

Technical

Power – 220-240V AC, 50-60Hz

Max Rated Load – 1200w Tungsten/ halogen, 300w LED/ fluorescent

Detection Angle – 360 degree Radius, Downwards, 160 degree

Detection distance/ sensitivity – 2 to 16m adjustable

Time Delay – 8 seconds to 12 minutes adjustable

Light Control – 2-2000lux adjustable

Installation height – 1.5 to 3.5m

Dimensions – 94mm diameter, 45mm high
