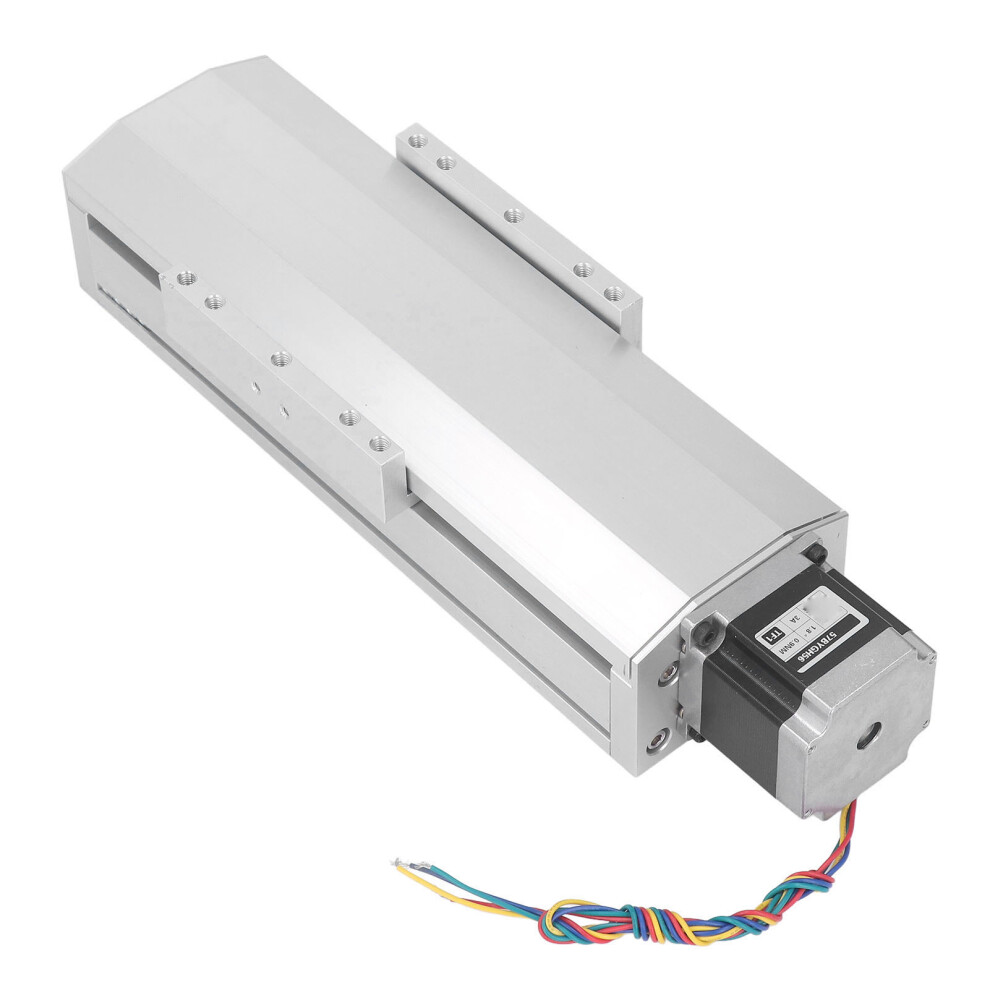

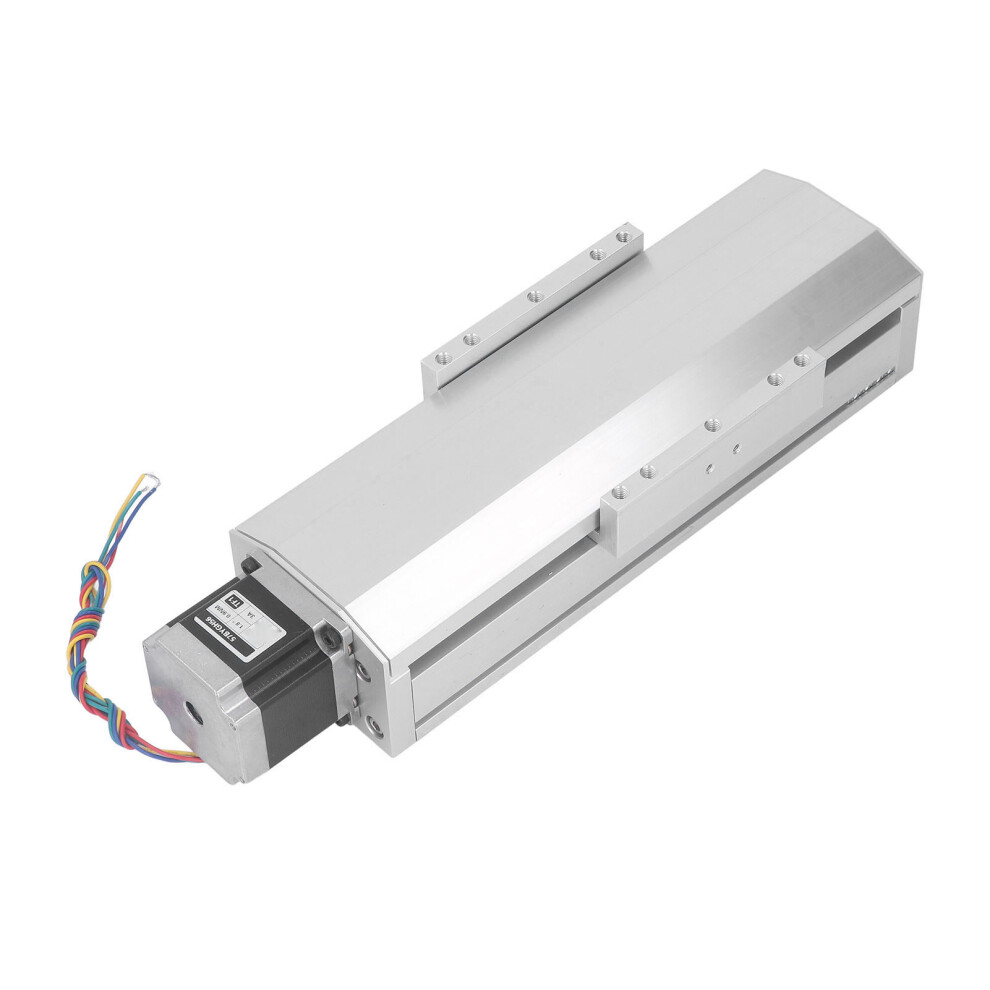

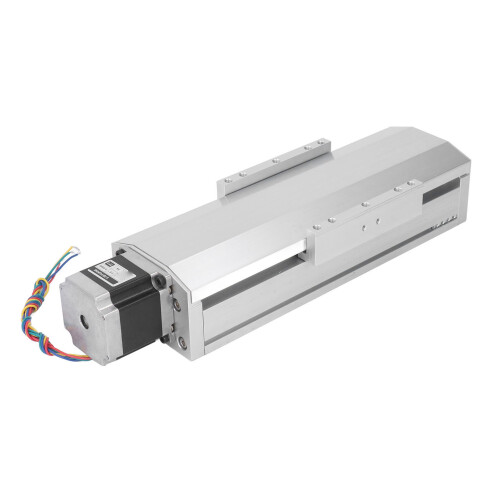

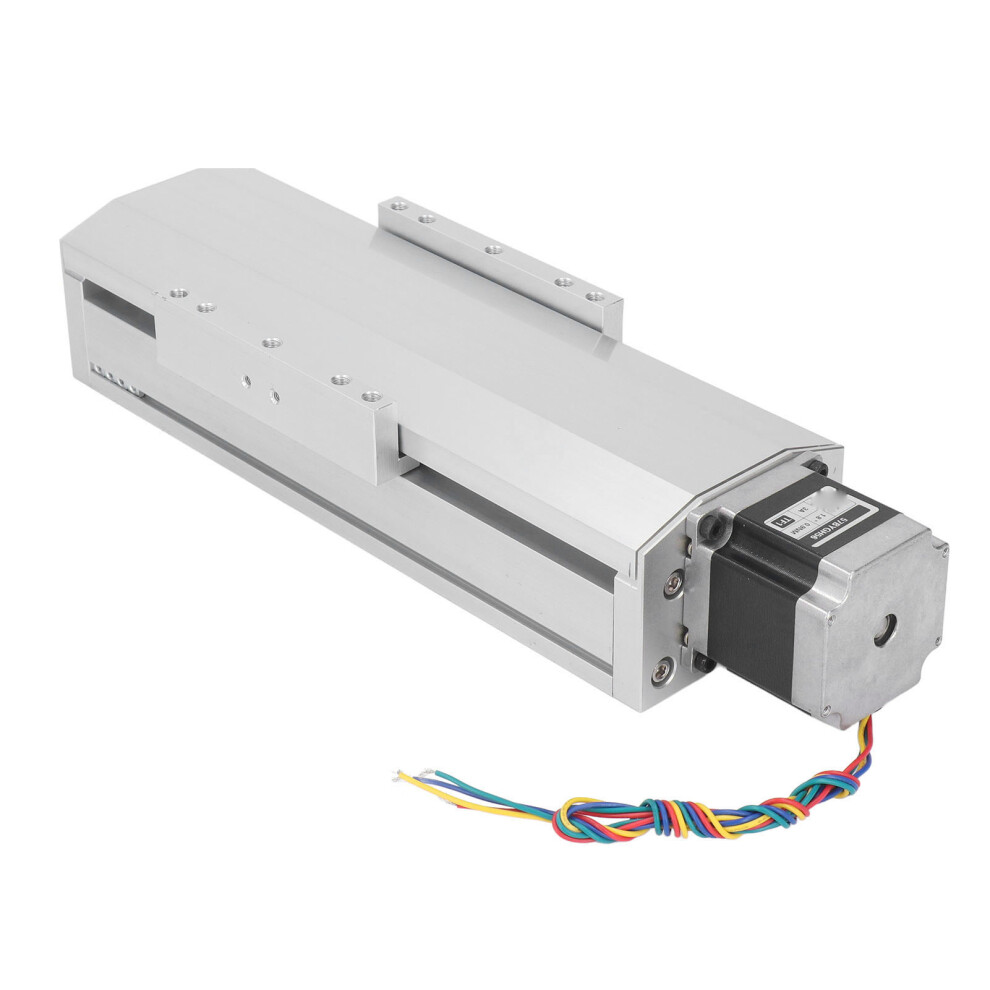

Linear Motion Guide Actuator 100mm Stroke Ball Screw with Dust Cover

Linear Motion Guide Actuator 100mm Stroke Ball Screw with Dust Cover Description

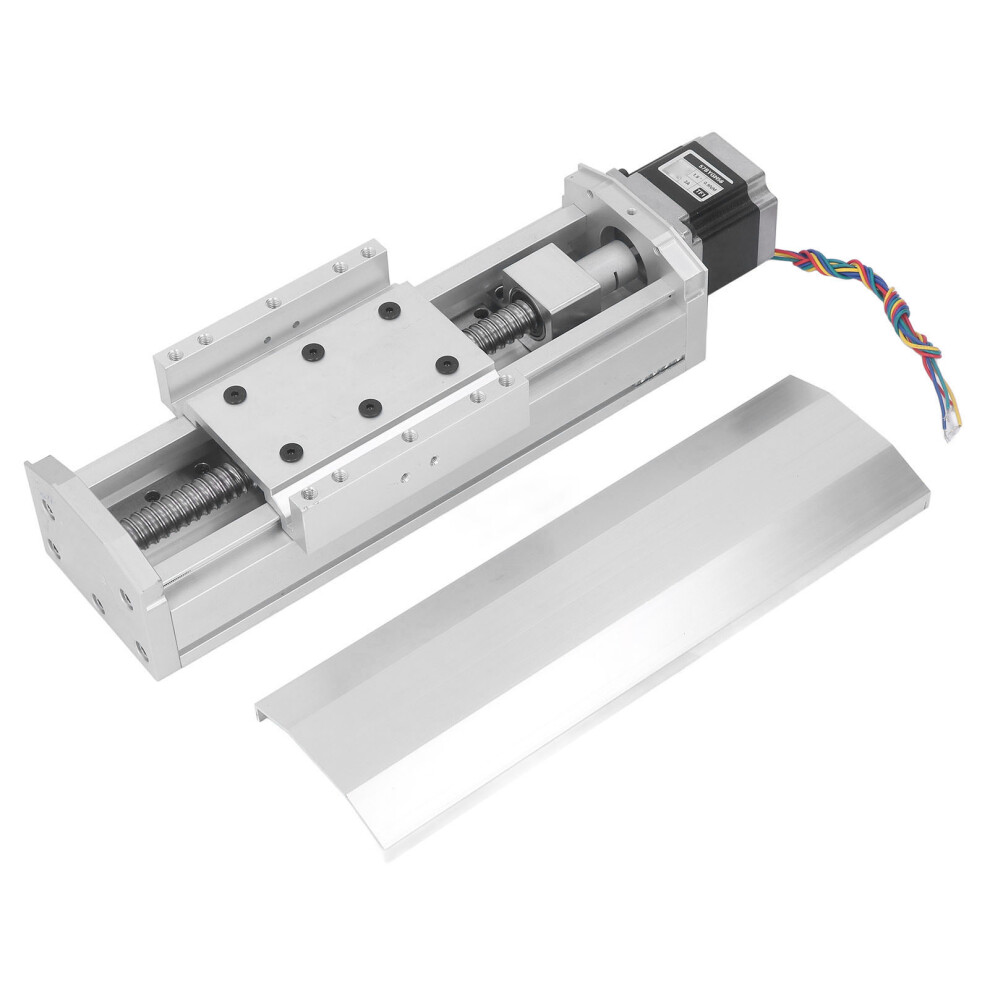

1、Standard M5 Mounting Holes: The linear motion guide actuator uses M5 movable nuts on the side and bottom to make the installation more flexible and versatile. 2、Aluminum Alloy Material: Our linear motion guide actuator is made of aluminum alloy with a stroke of 100mm. The maximum horizontal load capacity is 30kg and maximum vertical load capacity is 20kg. 3、Convenient and Easy to Use: The linear motion guide actuator is convenient and easy to use with smooth operation, fast speed and low noise. 4、With Dust Cover: Our linear motion guide actuator with dust cover can reduce the contamination of the processing rod to the ball screw and improve the overall service life. 5、Surface Sandblasting: The motion guide actuator surface is sandblasted, beautiful and rustproof, CNC machining of accuracy holes, widely used in industrial machine tools, such as milling machines, lathes, grinding machines, etc.
Item Type: Linear Motion Guide Actuator With Dust Cover
Material: Aluminum Alloy
Maximum Load:
Horizontal 30KG
Vertical 20KG
Maximum Accuracy: Positioning Accuracy 0.03mm
Width: Approx. Approx. 90mm / 3.54in
Maximum Stroke: Approx. 100mm / 3.94in
Screw Diameter: 16mm(1605), Approx. 16mm / 0.63in
Main Function: Convert Rotational Motion Into Linear Motion, Or Convert Torsional Force Into Axial Repetitive Force
Available With: Cross Type, T Type, I Type, Gantry Type, Dual Axes, 3 Axes And Quad Axes Combination
1 x Linear Motion Guide Actuator
