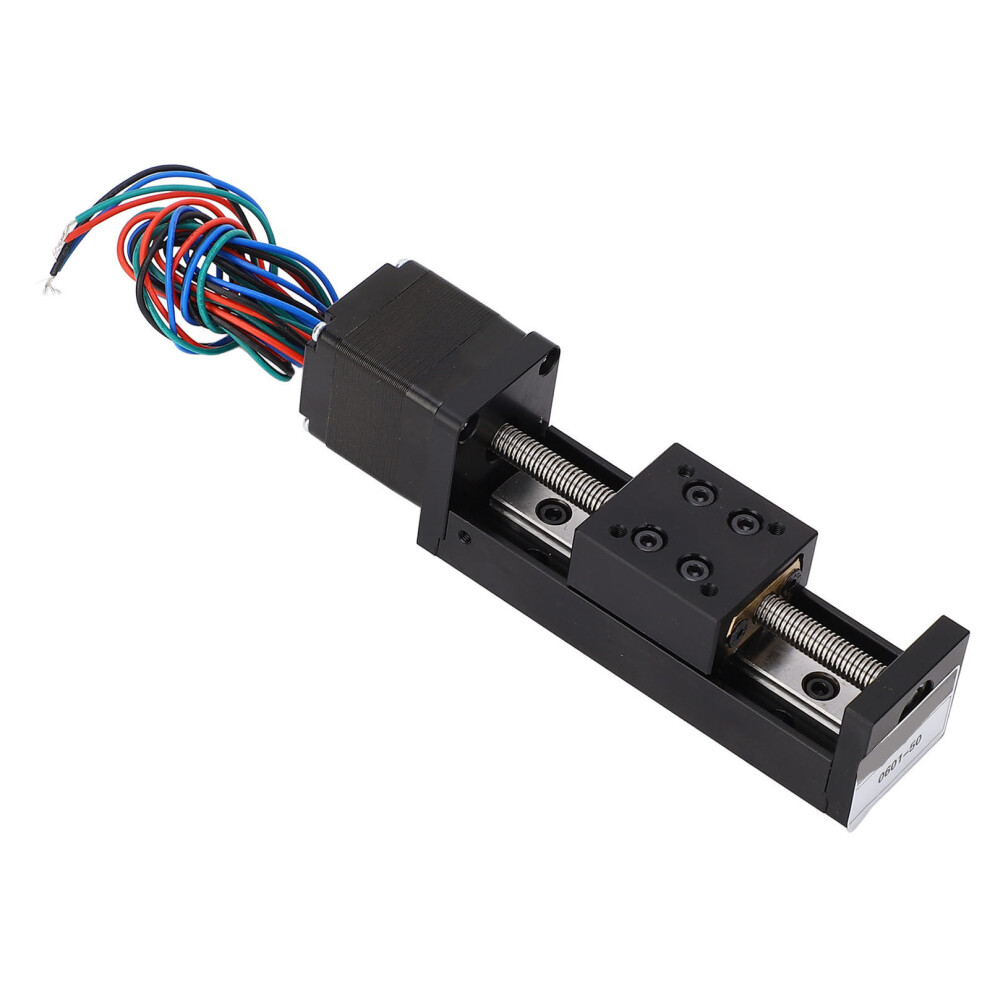

Linear Rail Guide Slide Actuator 50mm Stroke, Aluminum, 28 Steps
New
In stock
Smart shoppers OnBuy it!
- Earn Cashback on every purchase – spend it instantly on your next order
- Free delivery – on millions of items across the site
- Customers love us – 128,000 Trustpilot reviews and an 'Excellent' rating
£37.69
£53.08
29% off!
FREE Delivery
1%
What is instant Cashback?
Learn More
Interest-free payment options available
See full product description & details
Delivery: Standard (Free) | Fri 17th - Mon 20th Jul
Returns: 30 days
180-day payment protection
Most Popular in Industrial Rulers
Description & Details
Summary
- Multifunctional: This CNC linear stage motion actuator is multifunctional and can be composed of multiple axes for use, such as horizontal cross, gantry, 3 axes, 4 axes and so on.

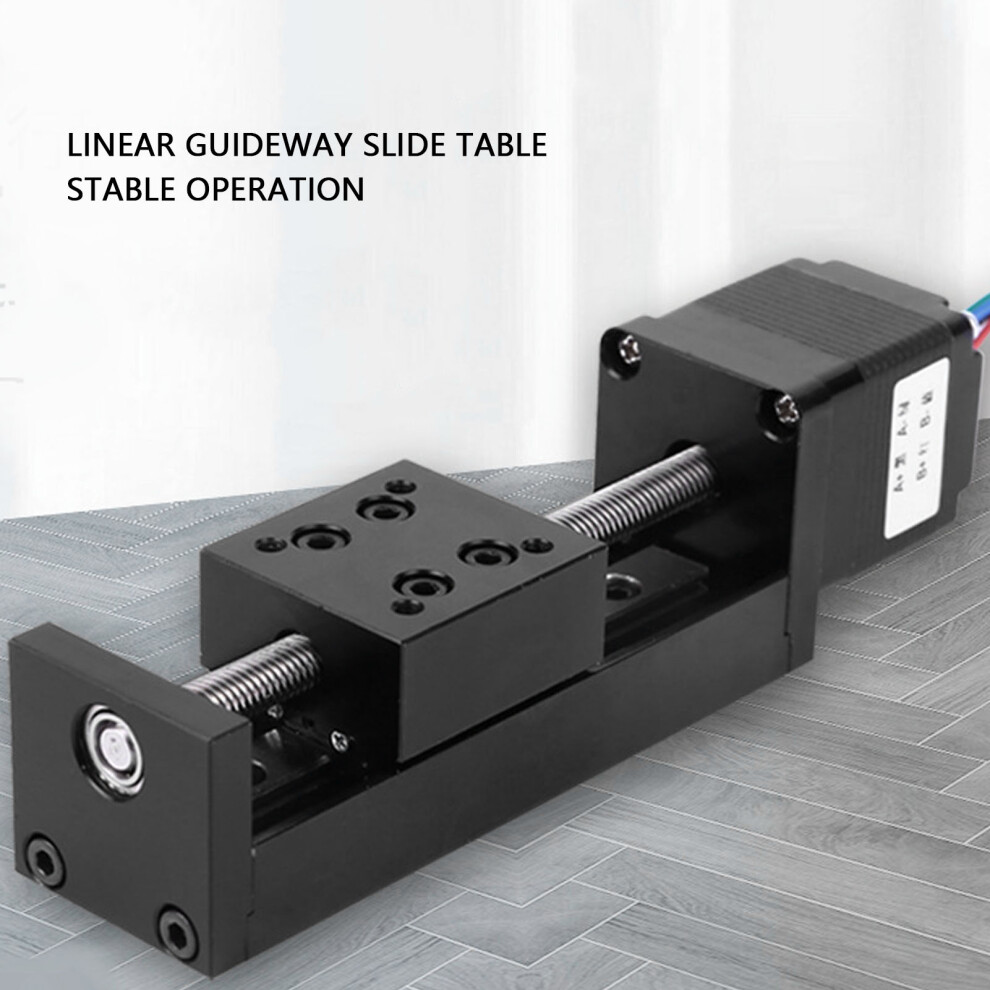

- Single Guide Rail Design: This metal linear guide rail motion slide actuator adopts single guide rail design which is stable in operation and low noise, applicable to X, Y and Z axes.
- Excellent Aluminium Alloy Material: This linear rail guide slide actuator is made of excellent aluminium alloy material, which is sturdy and abrasion resistant, not easy to be damaged, and has a long service life.
- Good Performance: This linear stage motion actuator has an effective stroke of 50mm, a stepping angle of 1.8 degrees, a diameter of 6mm, and a leading of 1mm, which has the advantages of large horizontal and vertical loads, high positioning accuracy, high efficiency, and good stability.
- Wide Application: This linear stage actuator has a wide range of applications and can be used for DIY CNC milling and planing accessories, testing equipment, optical laboratory accurate measurements, fine tuning displacements, production machinery, mechanical equipment positioning and motion.
Linear Rail Guide Slide Actuator 50mm Stroke, Aluminum, 28 Steps Description

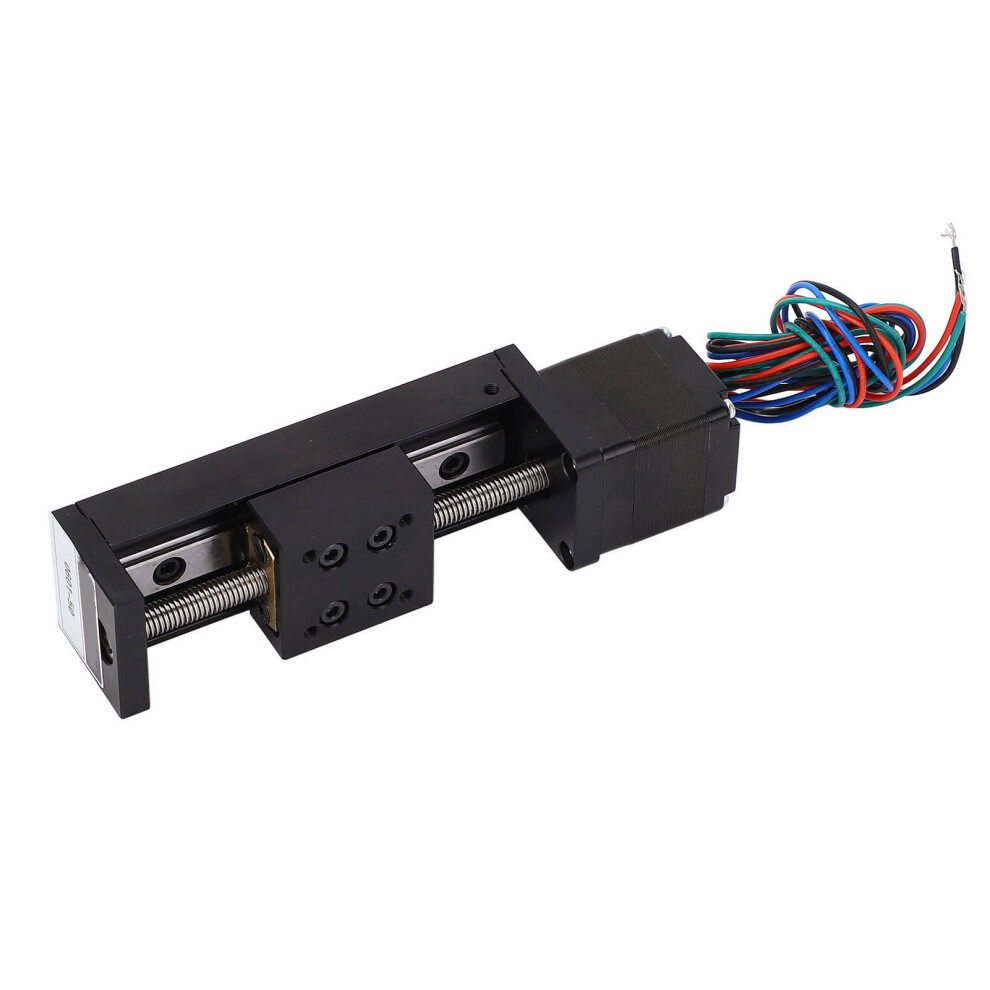

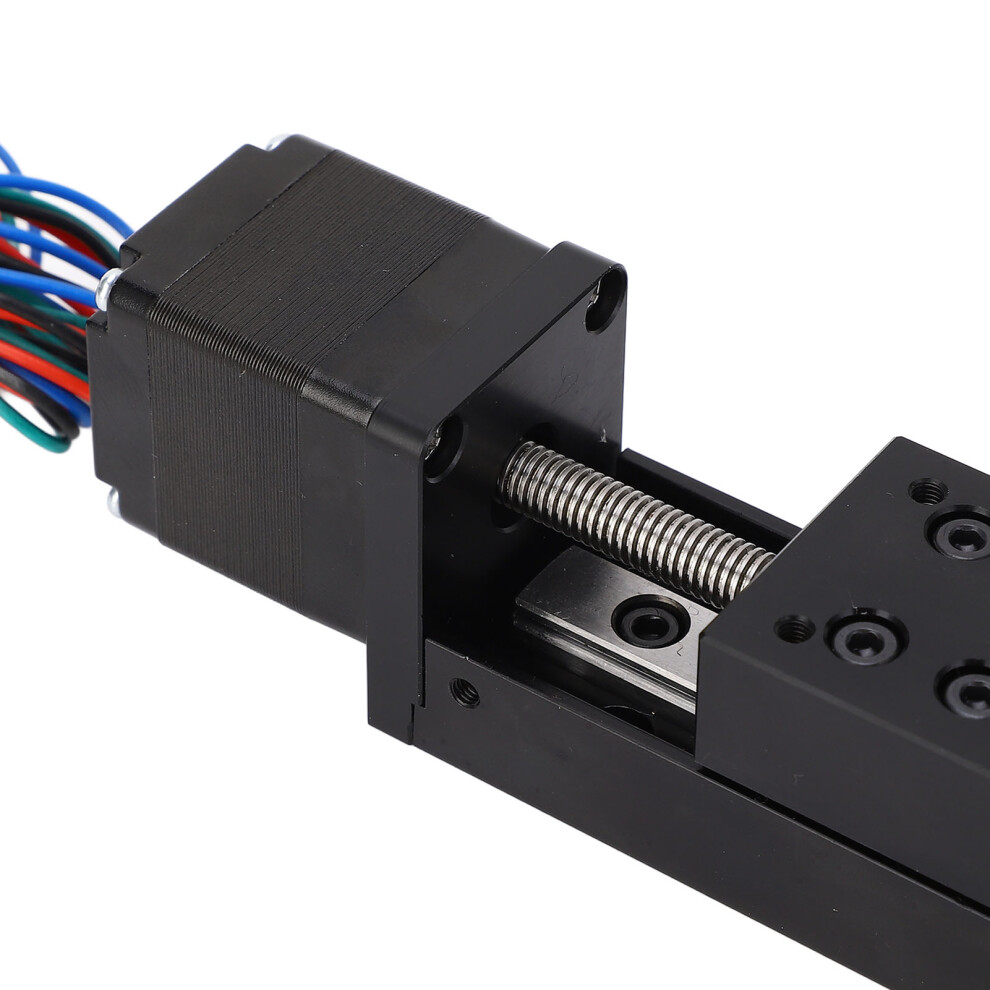

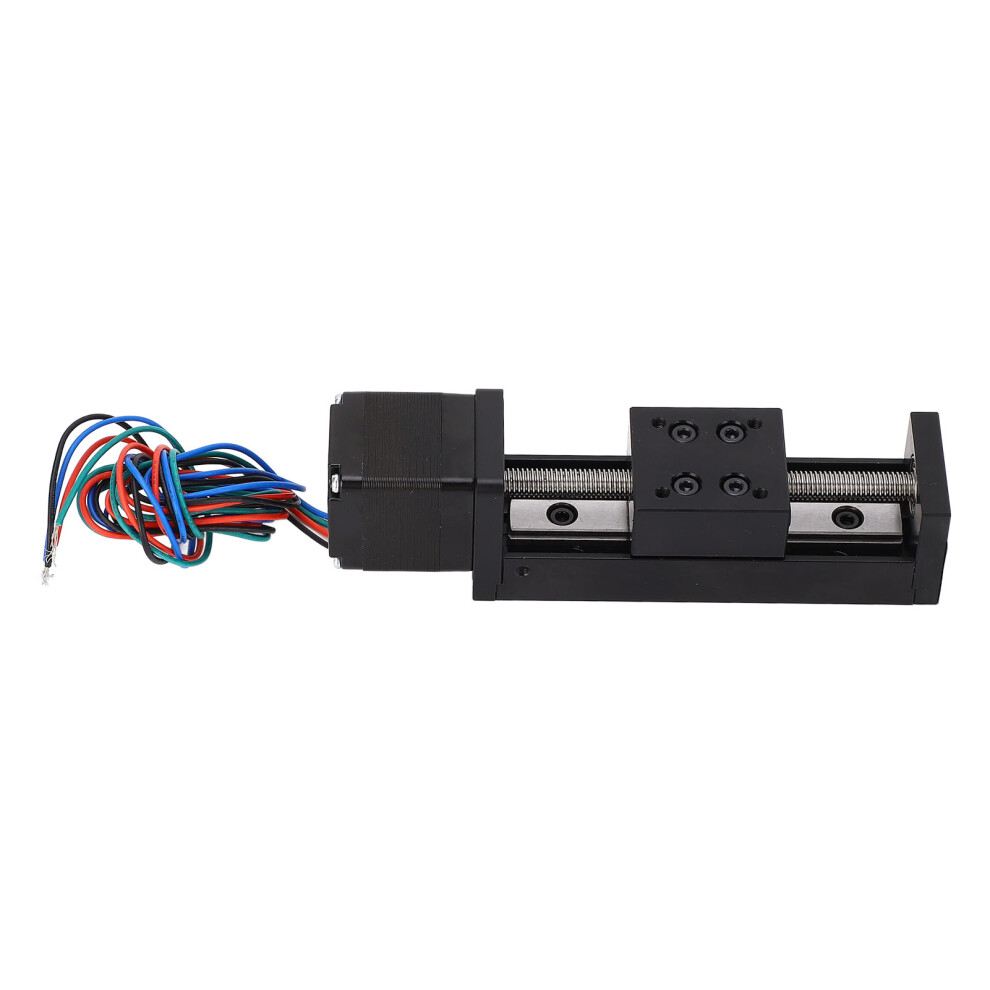

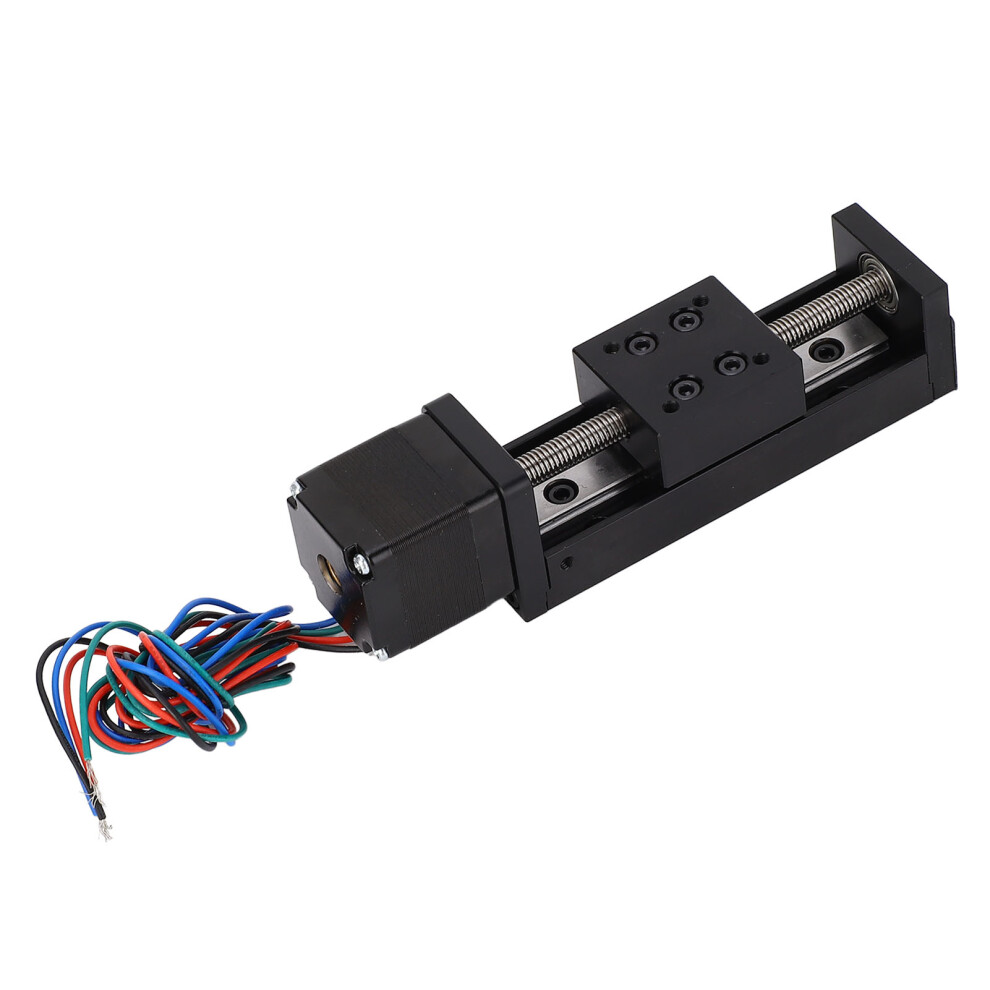

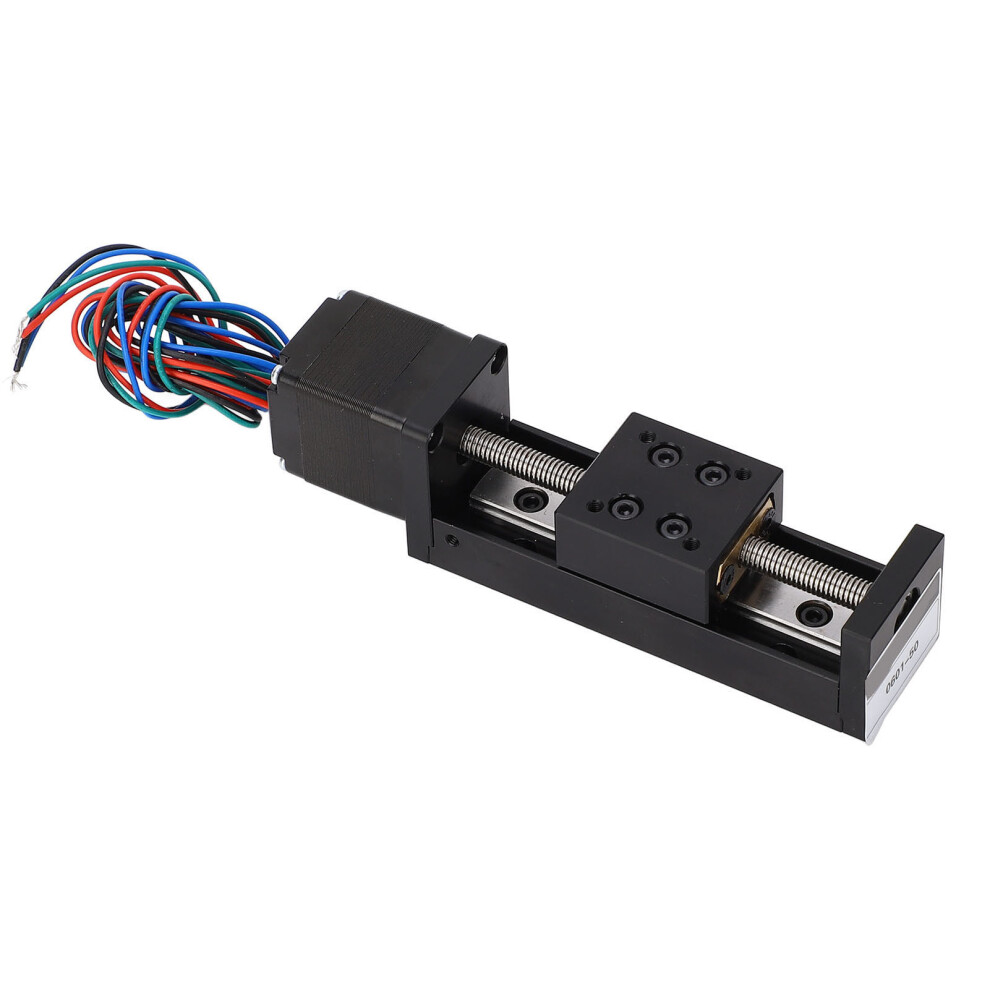

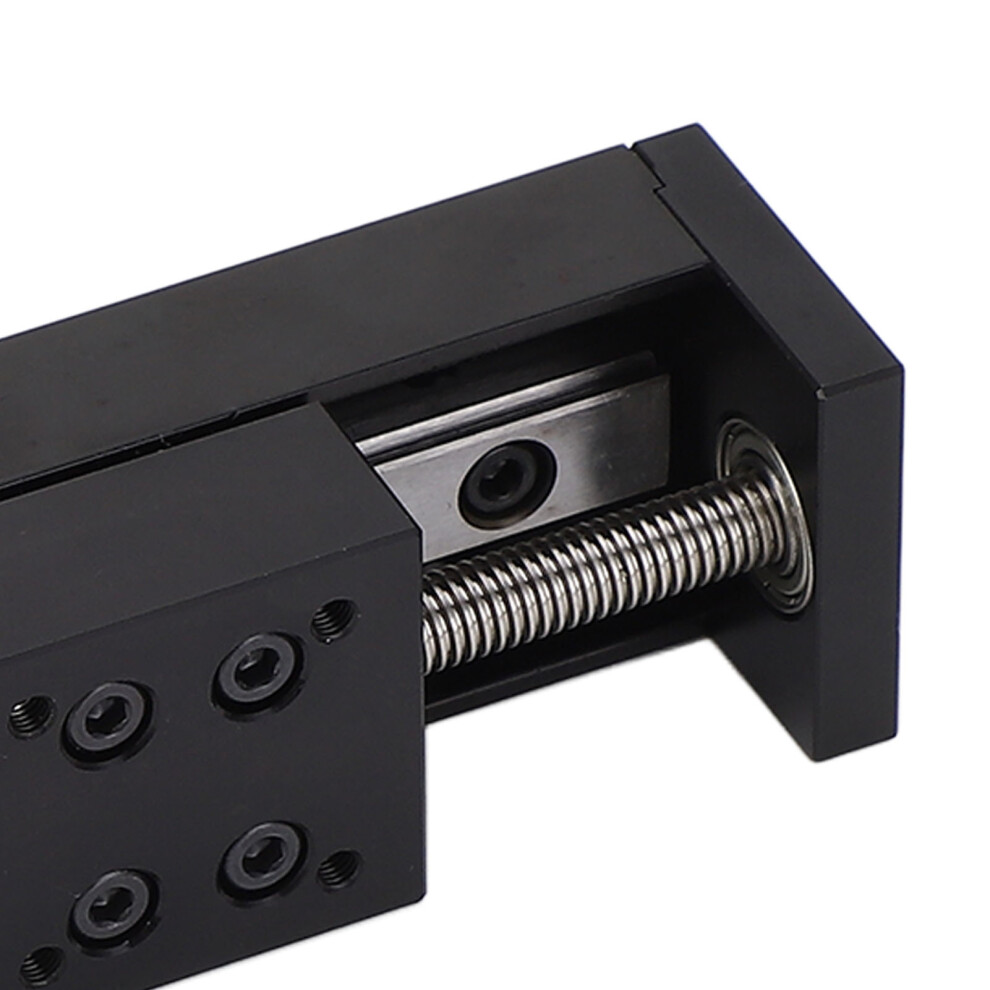

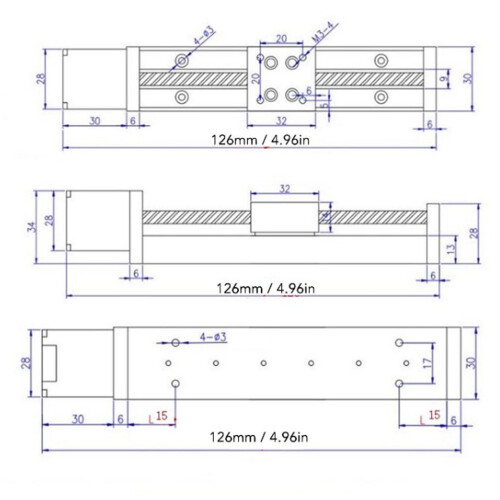

Linear Rail Guide Slide Actuator 50mm Stroke T Shape High Accuracy 28 Stepper Motor X Y Z Linear Stage Motion Actuator
Item Type: Linear Rail Guide Slide Actuator
Material: Aluminum Alloy
Effective Travel: Size: Approx. 50mm / 1.97in
Leading Screw Specification: T6 x 1
Screw Diameter: Approx. 6mm / 0.24in
Leading: 1 (The distance the slider can move on the leading screw with one rotation of the motor is 1mm)
Screw Accuracy: 0.01mm
Load: Horizontal 5kg Vertical 1kg
Positioning Accuracy: 0.1mm
Holding Torsion: 6N.cm
Current: 0.6A
Resistance: 5.5Ω
Inductance: 3.2MH
Speed: 0-120mm/s
Step Angle: 1.8 Degrees
Details
| OPC | PRX7SZC |
|---|---|
| Codes | 6941385644561 (EAN) |
