Linear Scale KA35 Accuracy 0.005mm Optical Encoder 5V TTL DRO, 8501000mm Optical Grating Ruler Display Instrument

Linear Scale KA35 Accuracy 0.005mm Optical Encoder 5V TTL DRO, 8501000mm Optical Grating Ruler Display Instrument Description

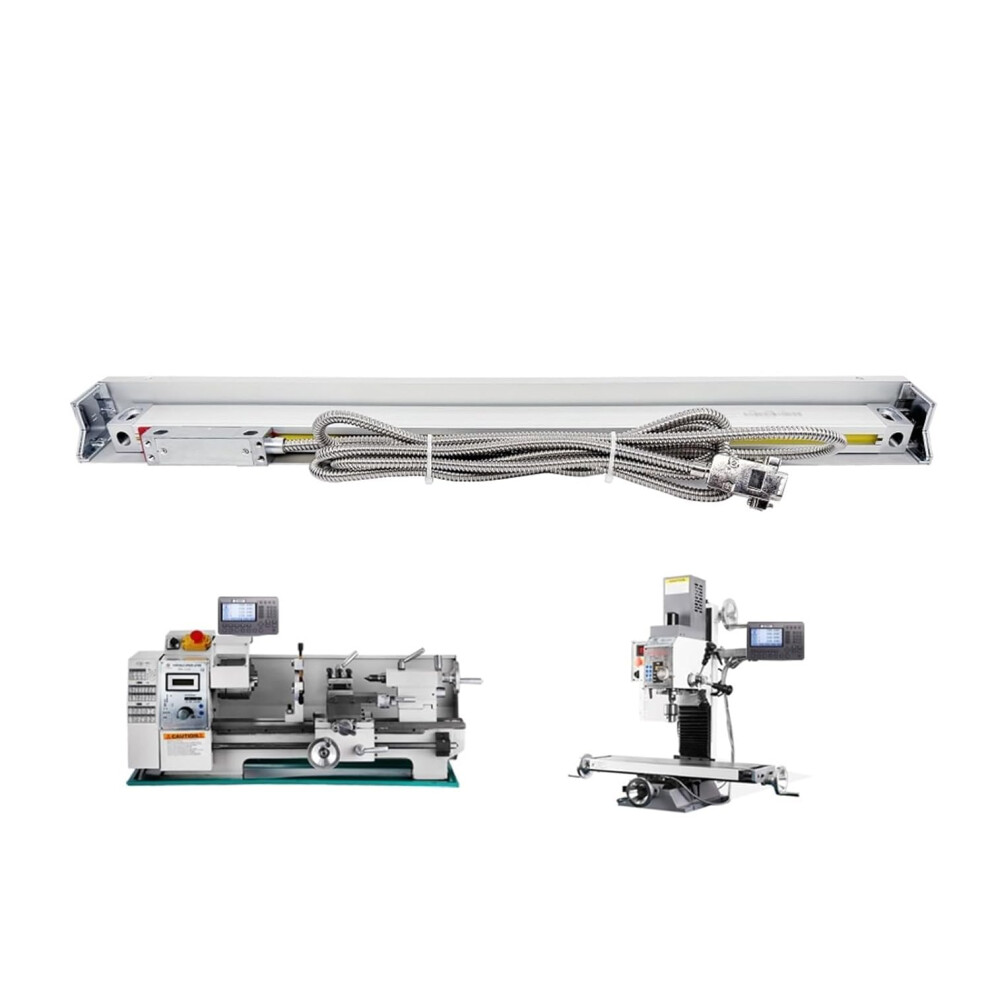

Function and purpose A DRO linear scale encoder with a measuring range of 500-1000 mm and a resolution of 0.005 mm, designed to provide smooth, precise readouts for milling machines and other machining tools. Key specifications Measuring range: 500-1000 mm Resolution: 0.005 mm Grating pitch: 20 um Precisionmachined construction for reliability Accuracy: plus/minus 15 um per meter Why it helps you Improves tool position accuracy and repeatability in milling and related operations Upgrades digital readout performance on compact setups such as mini lathes and grinders Delivers stable, dependable performance for CNC workflows or as a performance lathe linear scale What makes it stand out Precisionconstructed encoder with a fine grating pitch and tight tolerance Clear, reliable readouts suitable for demanding machine tool applications A solid upgrade option when precision is required in DRO displays Applications and use scenarios Upgrading the DRO on a milling machine to enhance measurement accuracy during cutting and contouring Replacing or upgrading the DRO scale on a mini lathe or bench grinder for improved tolerances Integrating with CNC setups that require a performance lathe linear scale or as an alternative to existing readouts Using as the digital display component in electric wire drawing machines or other DRO machine tools requiring precise measurement feedback Compatibility and performance notes Compatible with standard DRO readouts in milling, turning, and grinding environments Suitable as a digital readout upgrade where precision and reliability are critical Built for dependable resolution and longterm stability in precision machining tasks
