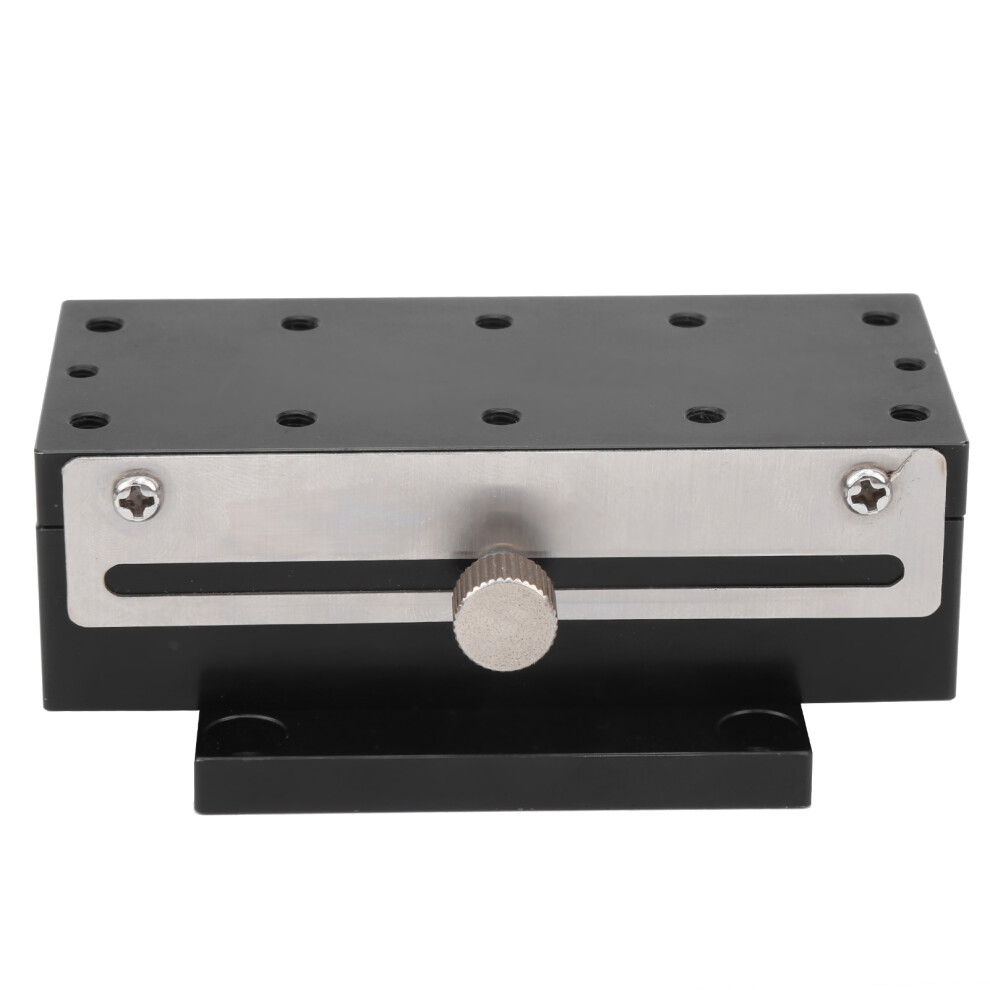

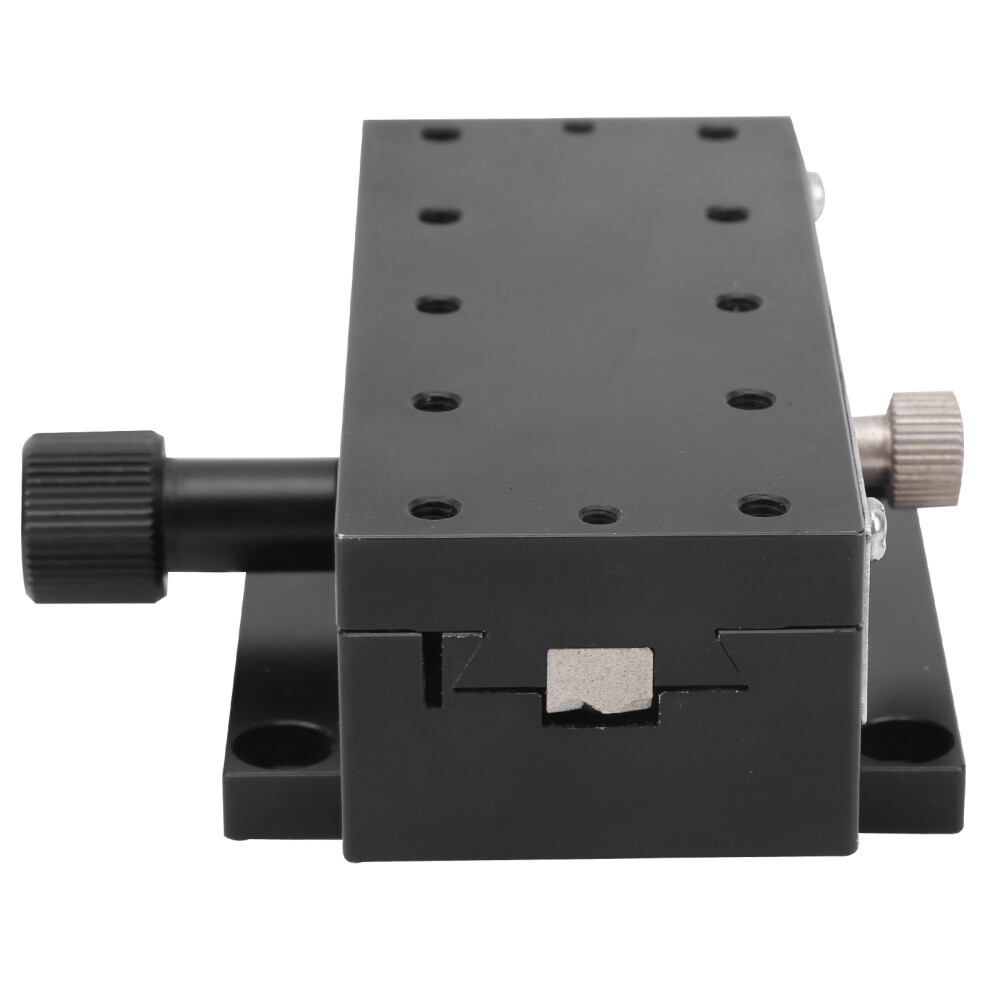

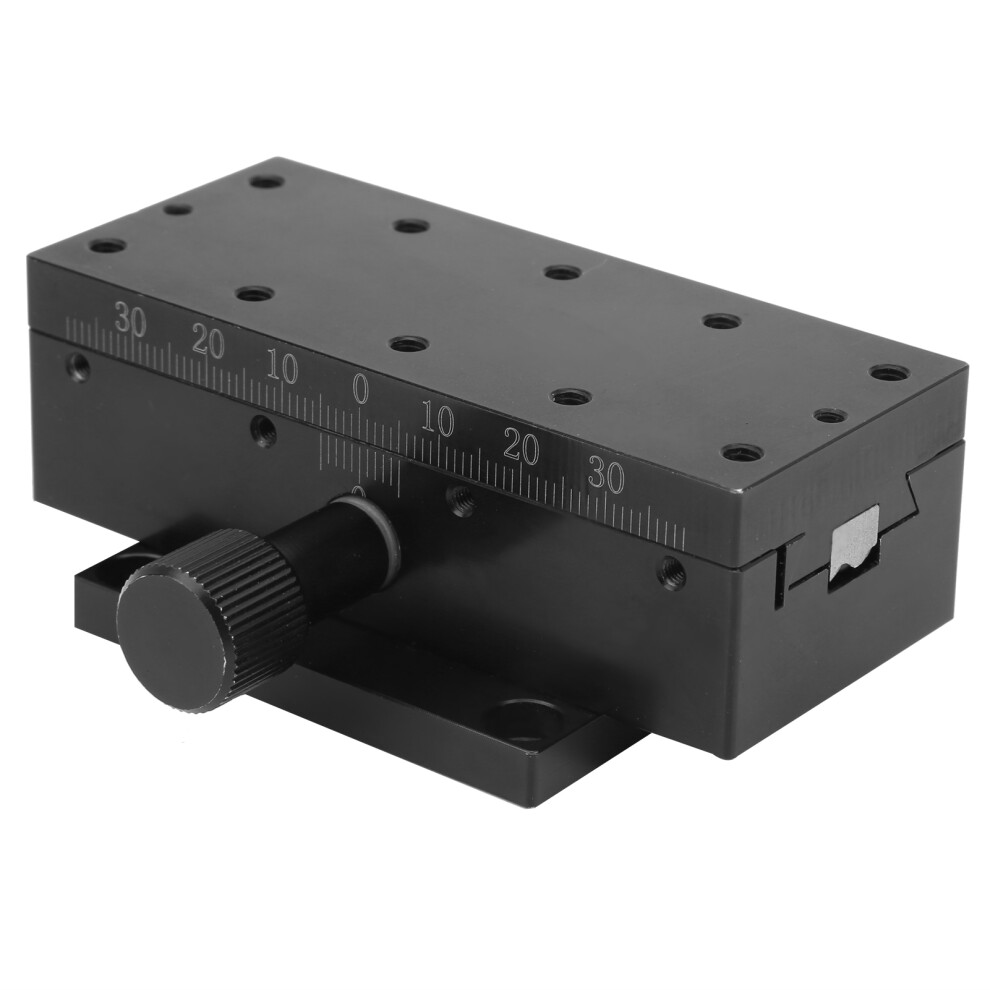

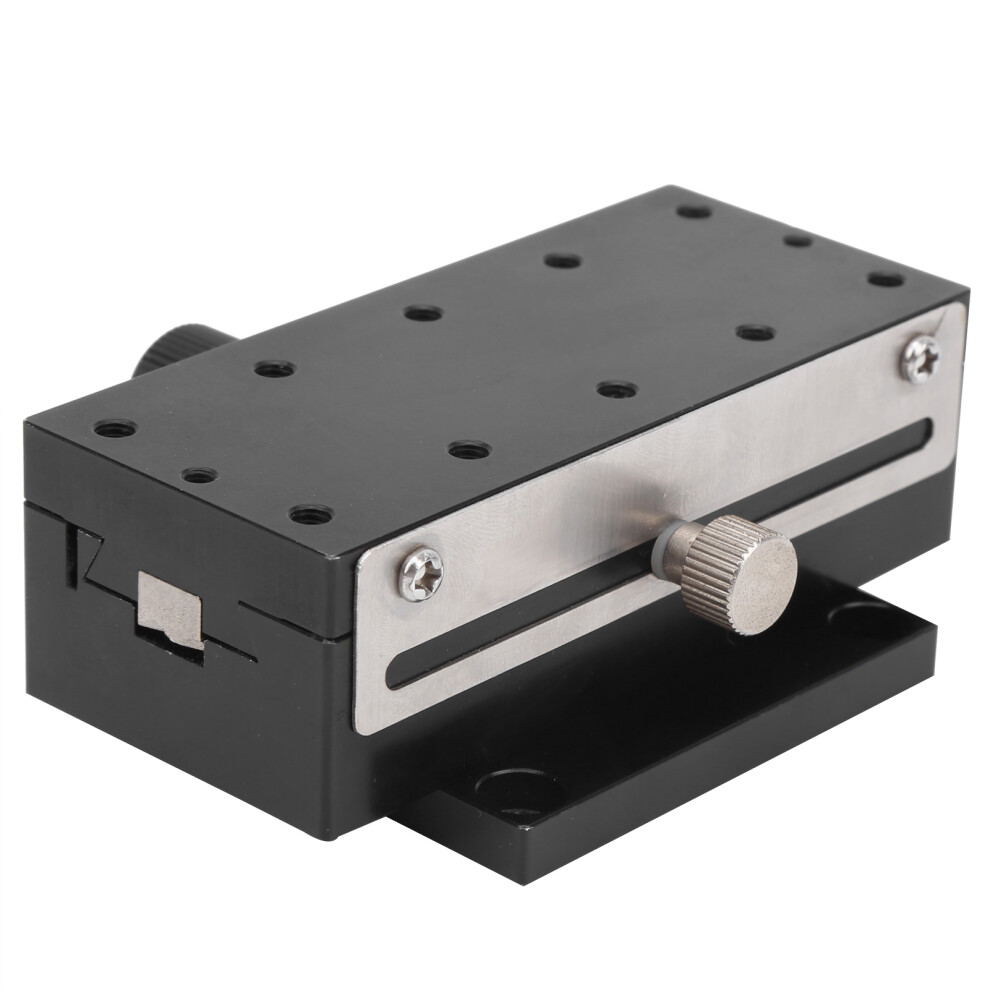

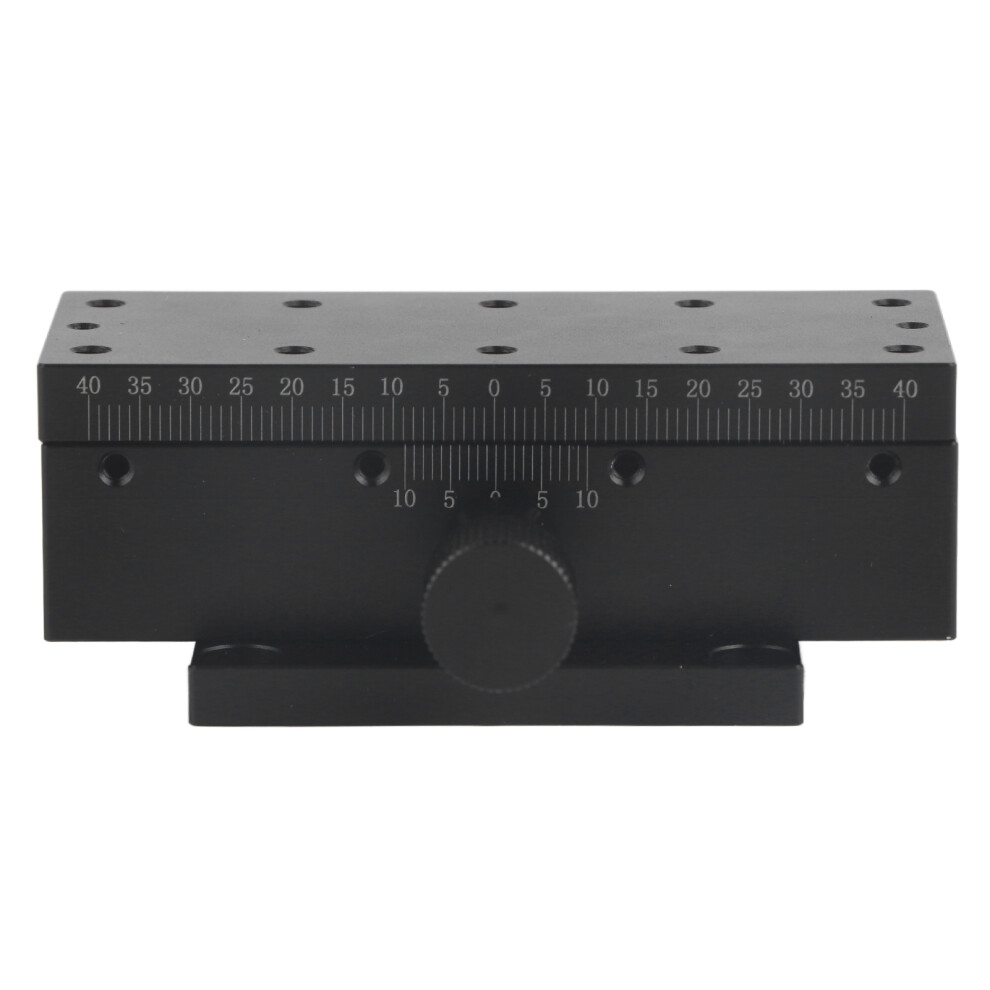

Linear Slide Manual X Axis Dovetail Rack Pinion Stage Fine-Tune

Linear Slide Manual X Axis Dovetail Rack Pinion Stage Fine-Tune Description

1、The linear slide is made of aluminum alloy black oxidation, with the characteristics of wear‑resistant, corrosion‑resistant, waterproof and anti‑oxidation 2、Accuracy mechanical structure design makes it stable in work and high load‑bearing capacity. A mechanical device that can provide linear motion for equipment 3、This product has a large stroke, high displacement accuracy and easy use, can achieve high accuracy 4、The use of rack and pinion guide rails can achieve high accuracy and glossy motion. Using aluminum alloy as the main material, light in weight, suitable for other equipment 5、The linear slide is for accuracy movement, accurate positioning, owning stable performance, easy installation and removal.
Item Type: Linear Slide
Model: SEMCID-90T
Material: Aluminum alloyUses: A mechanical device that can provide linear motion for equipment
Sliding Table Surface : Approx. 90 x 40mm / 3.5 x 1.6in
Moving Amount: Approx. 35mm / 1.4in
The Amount of Movement of the Knob One Turn: Approx.18.8mm / 0.7in
Withstand Load Level (N): 29.4
Withstand Load Vertical (N): 14.7
Maximum Holding Force (N)*¹ 40
Movement Accuracy (μm): 30
Rail Type: Rack and PinionSize：Approx. 60mm / 2.4in
Approx. 50mm / 2in
Approx. 20mm / 0.8in
Approx. 33mm / 1.3in
Approx. 12.5mm / 0.5in
Approx.4.4mm / 0.2in
Approx. 4mm / 0.16in
Approx. 5mm / 0.2in
Approx. 40mm / 1.6in
Approx. 42.8mm / 1.7in
Approx. 6mm / 0.2in
Approx.26mm/ 1in
Approx. 12.3mm / 0.5in
Approx. 10mm / 0.4in
Approx.15mm / 0.6in
Approx.17.5mm / 0.7in
Approx.90mm / 3.5in
Approx.10.9mm / 0.4in
Approx. 25mm / 1in
1 x Linear Slide
