Lisn Metgezel Lijn Impedantie Stabiliteit Netwerk Differentieel Common Mode Scheiding Module Common Mode Output Description

This link is only for the differential common-mode separation module; it does not include SMA wiring, SMA N, etc.
Application of differential common-mode separation:Differential and common-mode separation is used to extract traveling mode and common-mode components for filter design and rectification, which frequency bands require common-mode filters, how many dB of attenuation is required, which frequency points require differential-mode filtering, etc.

Main parameters:
1. Length: 38mm x 29mm x 18mm.
2. Frequency range: 9 kHz - 500 MHz
3. Input impedance: 50 ohms; Output impedance: 50 ohms.
Notes for use:

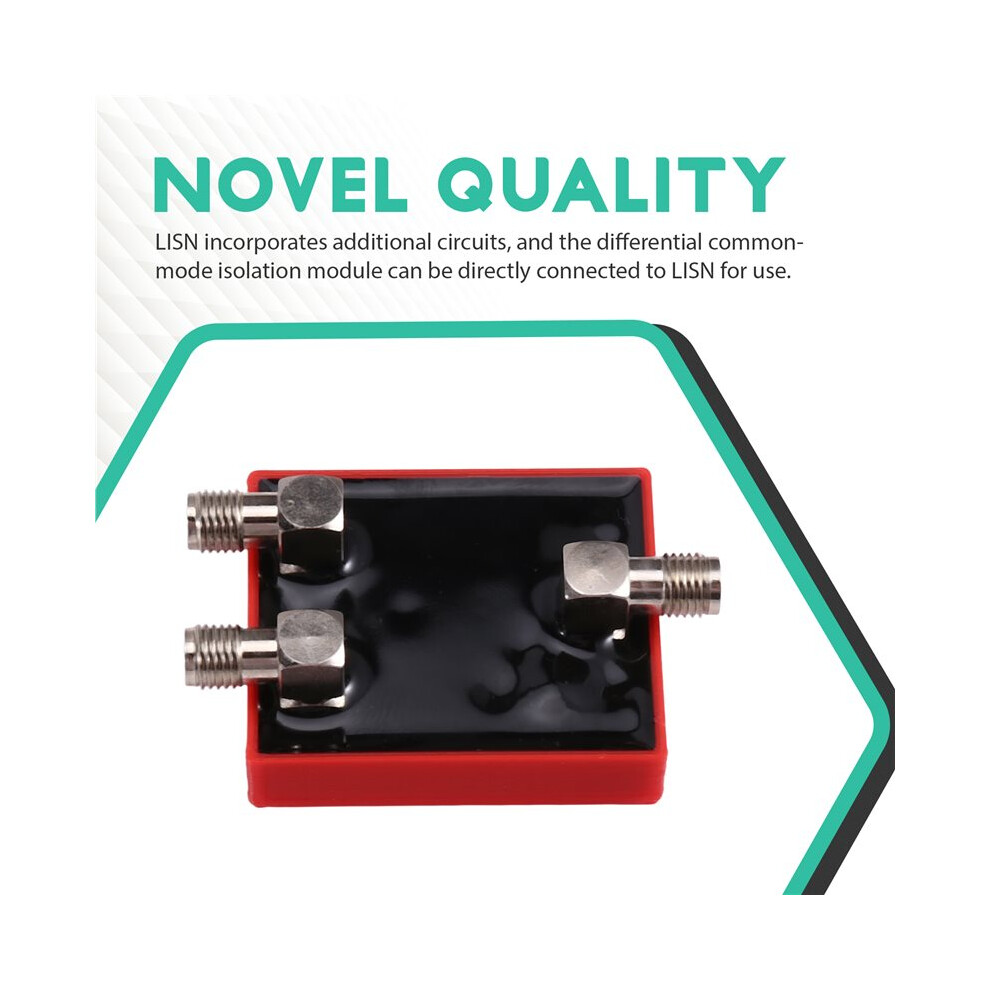

Because LISN has additional circuitry, the differential common-mode separation module can be directly connected to LISN for use. General LISN, output rf L, N is through dial the code selection, there is no output at the same , need to make small change in the LISN, in addition LISN output must pass through attenuation limiting device to the EMI receiver, spectrometer (or poor common-mode separation module), Otherwise the impulse voltage is very easy to damage the EMI receiver or spectrometer, etc.
Color: As Shown
Material: ASA

Package Contents:

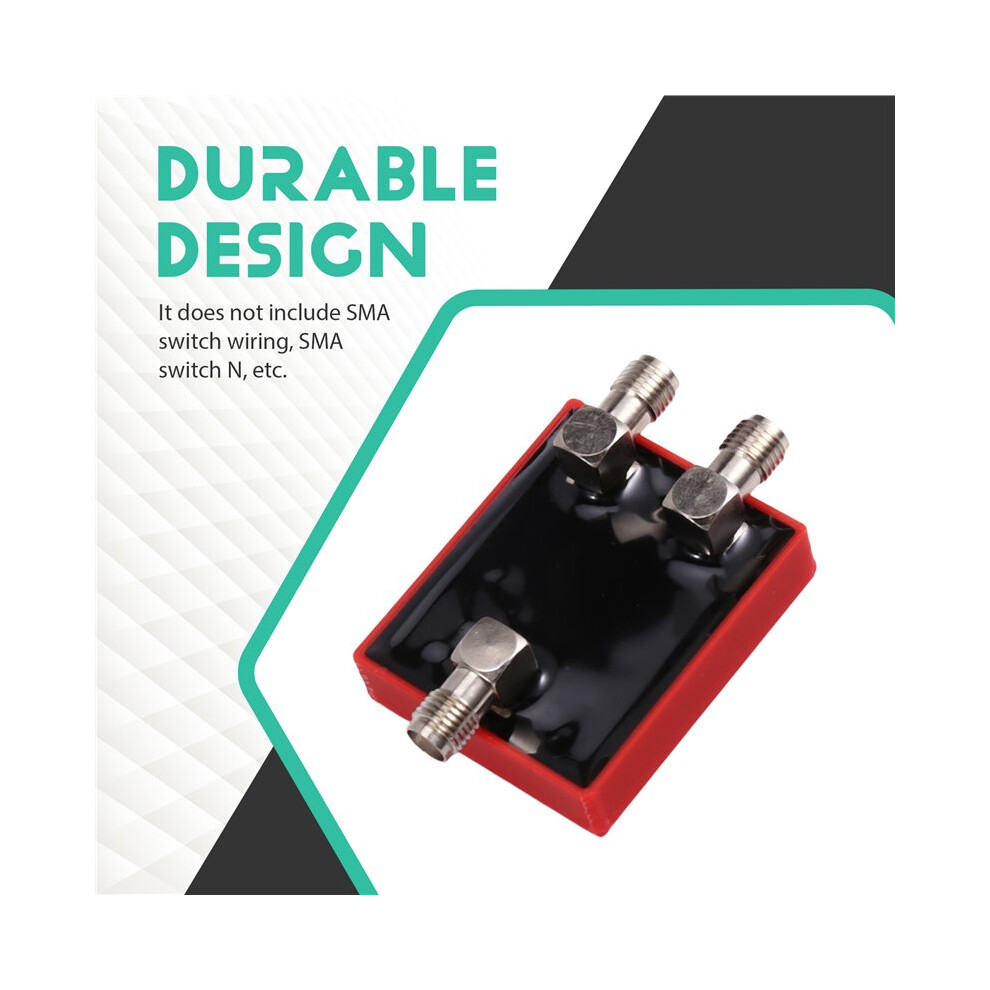

1*Module

Only the above package content, other products are not included.
