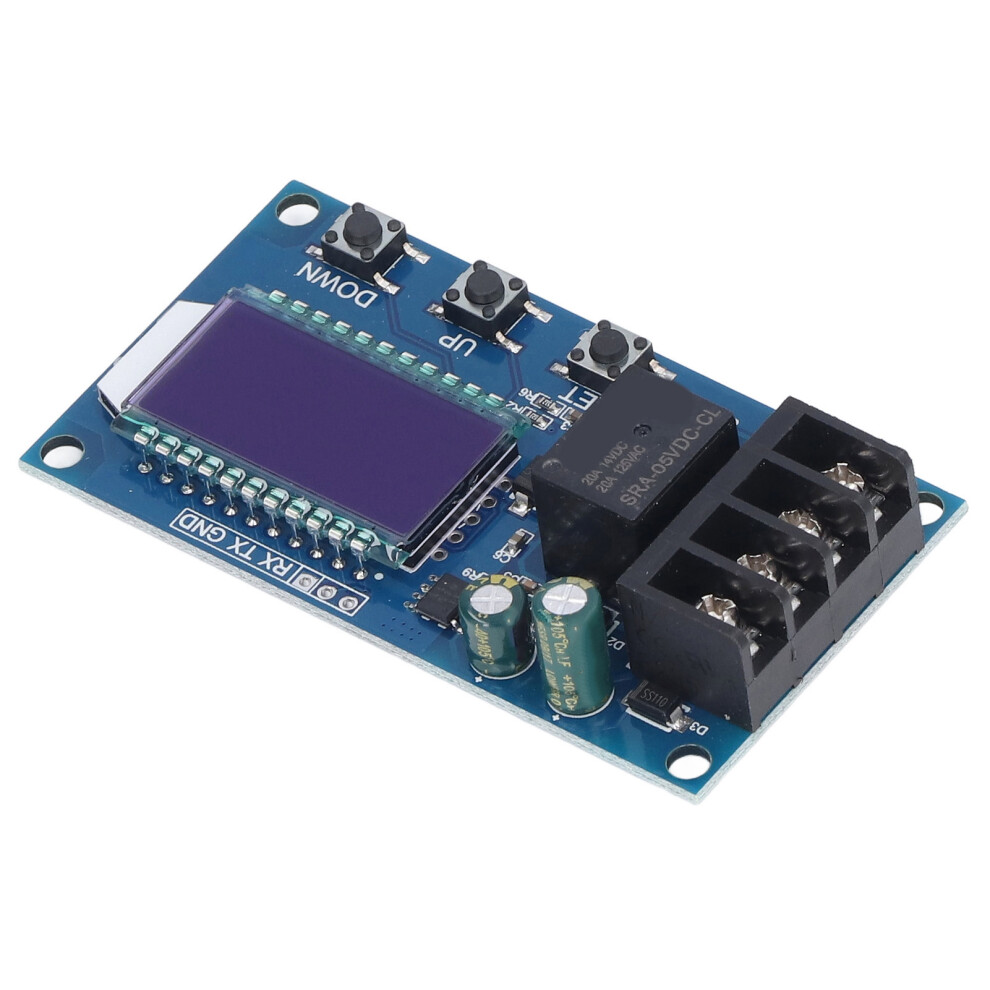

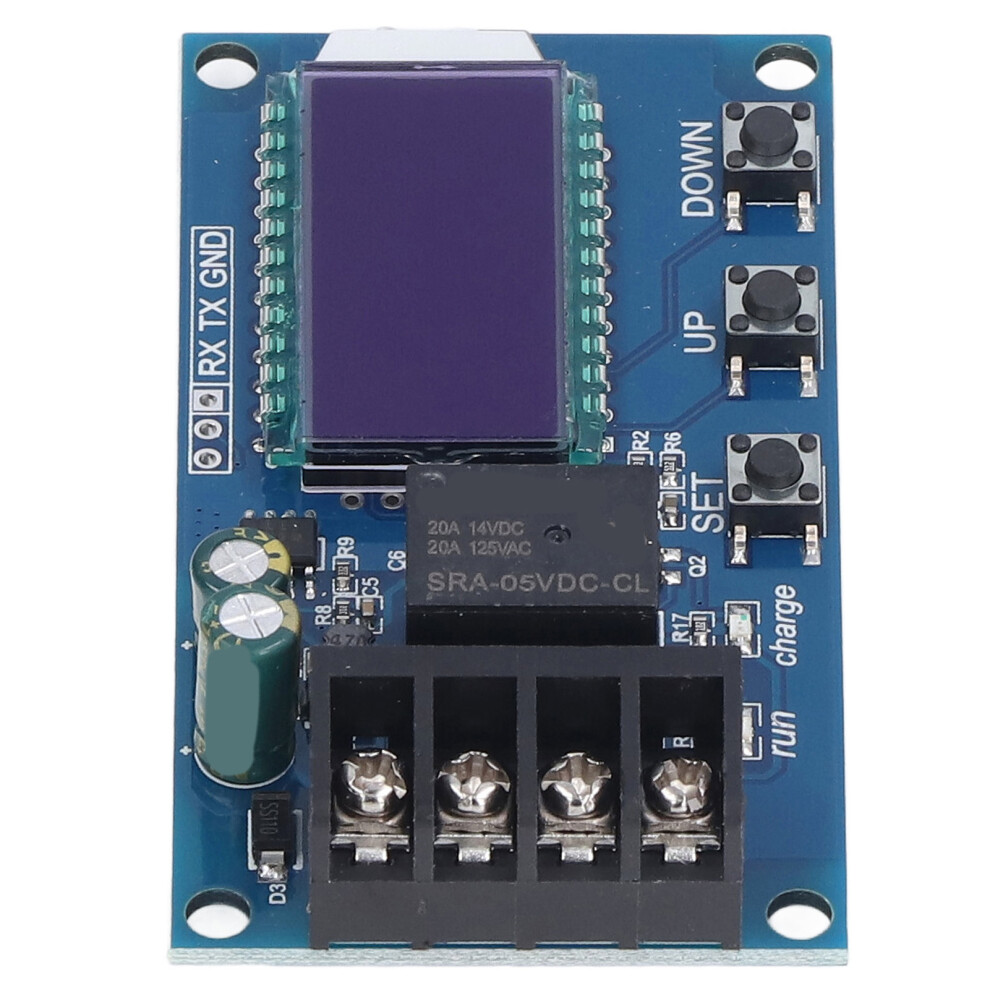

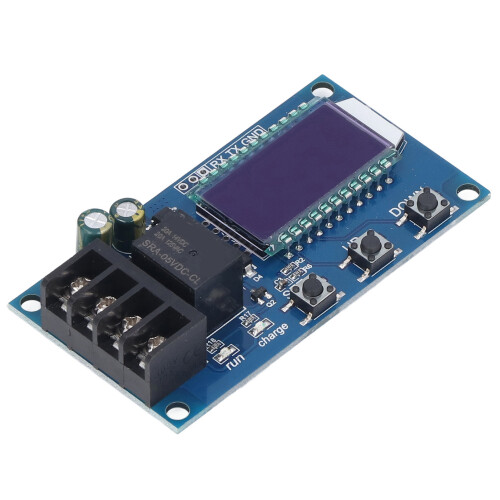

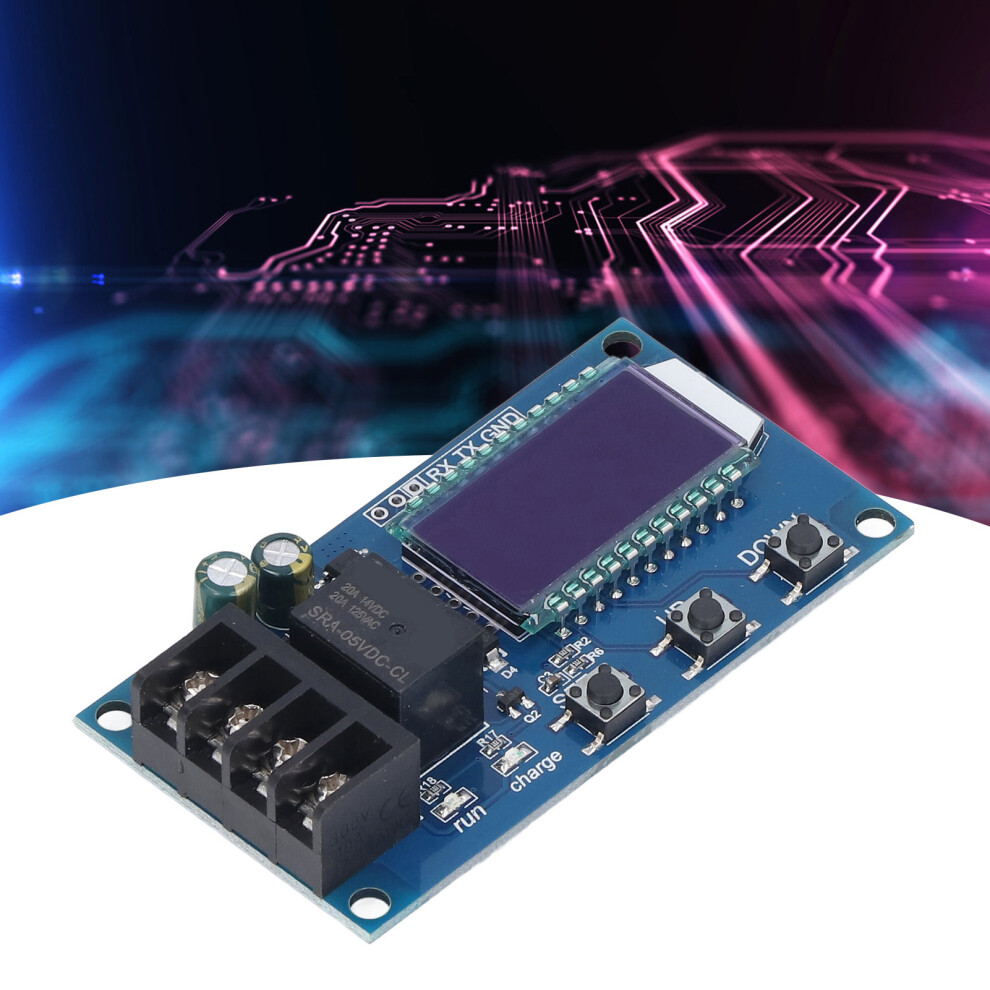

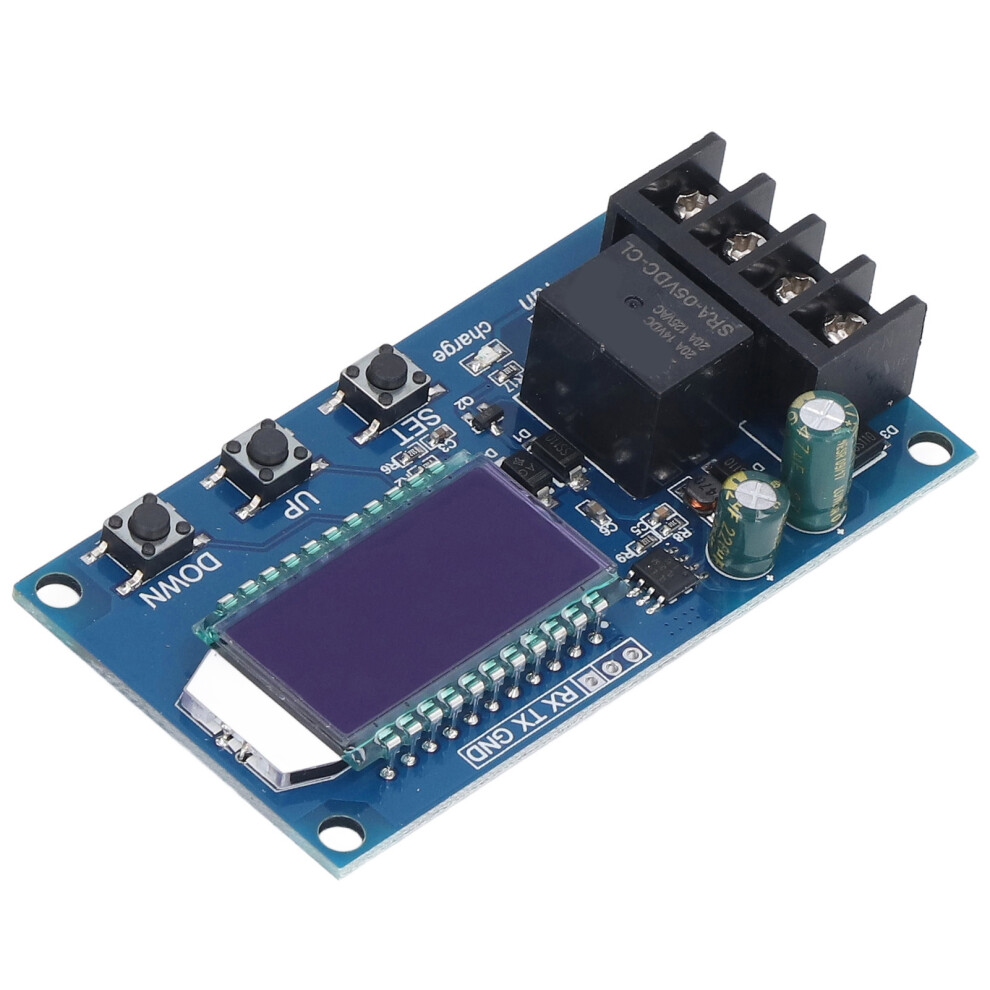

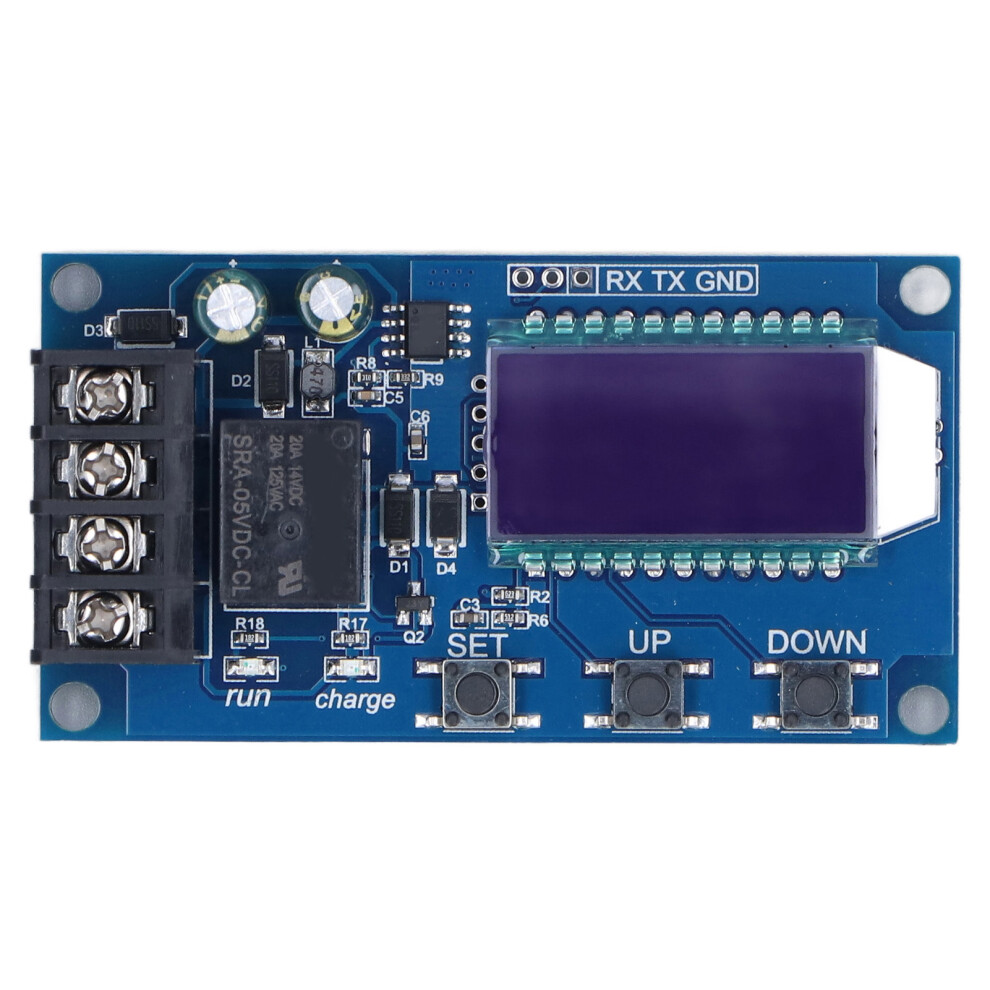

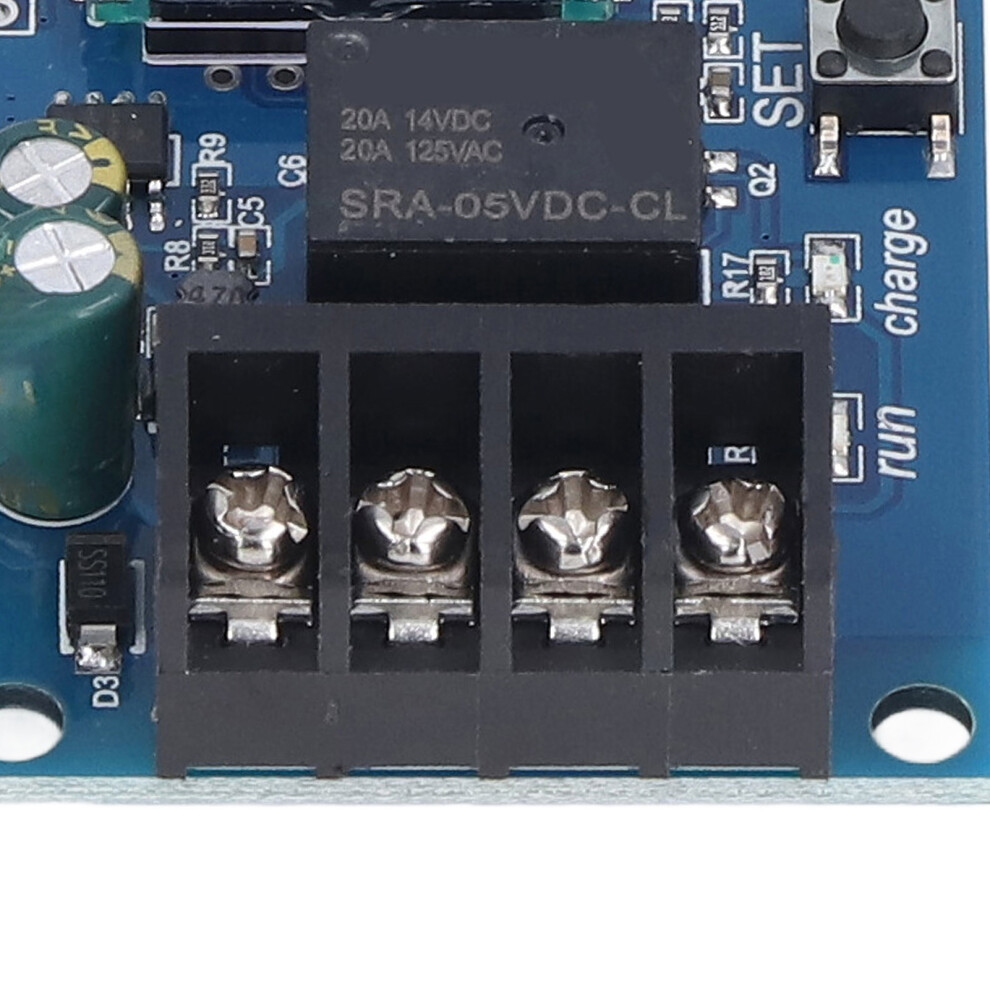

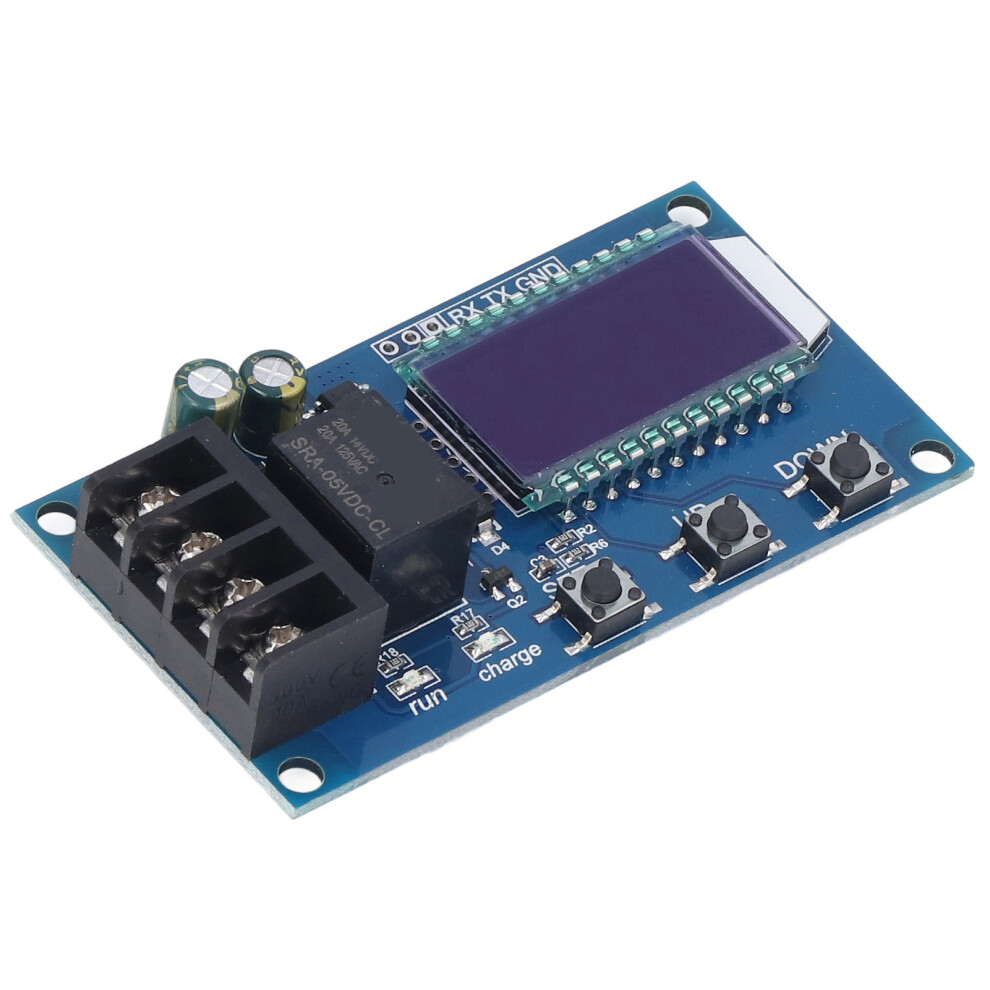

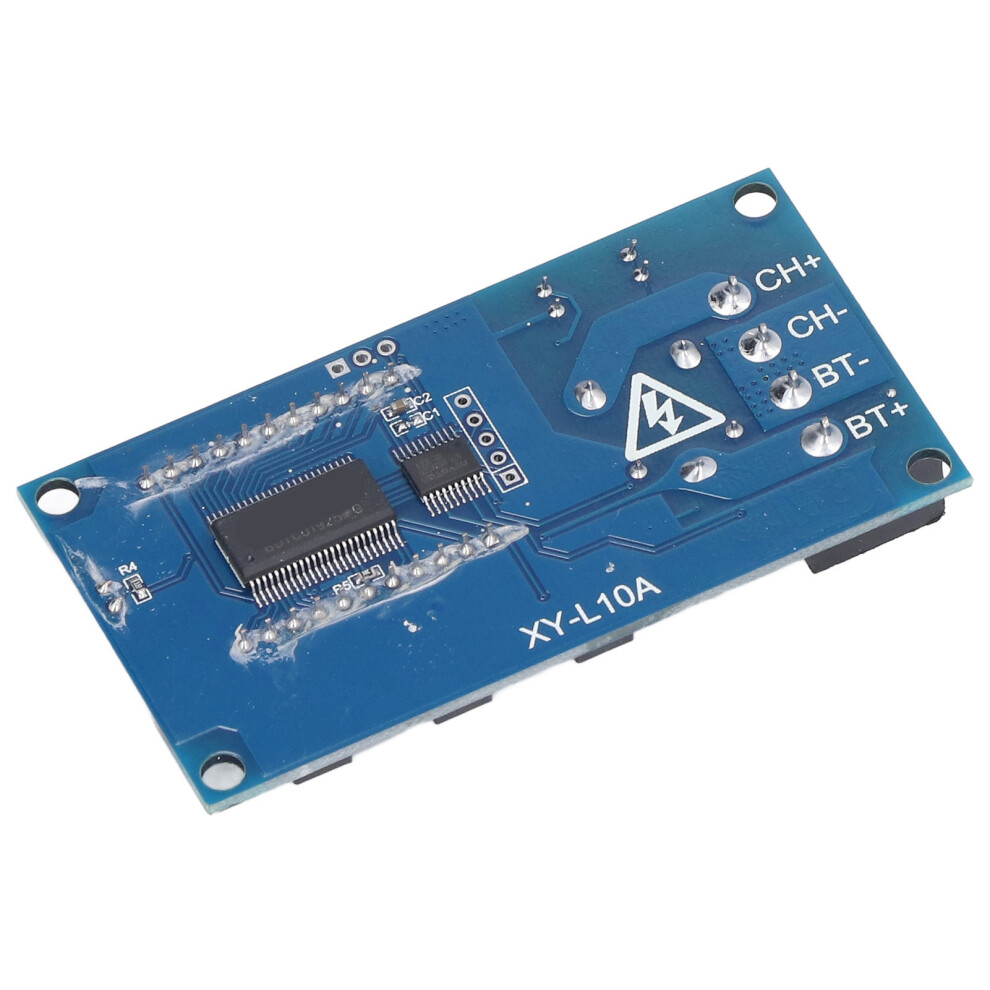

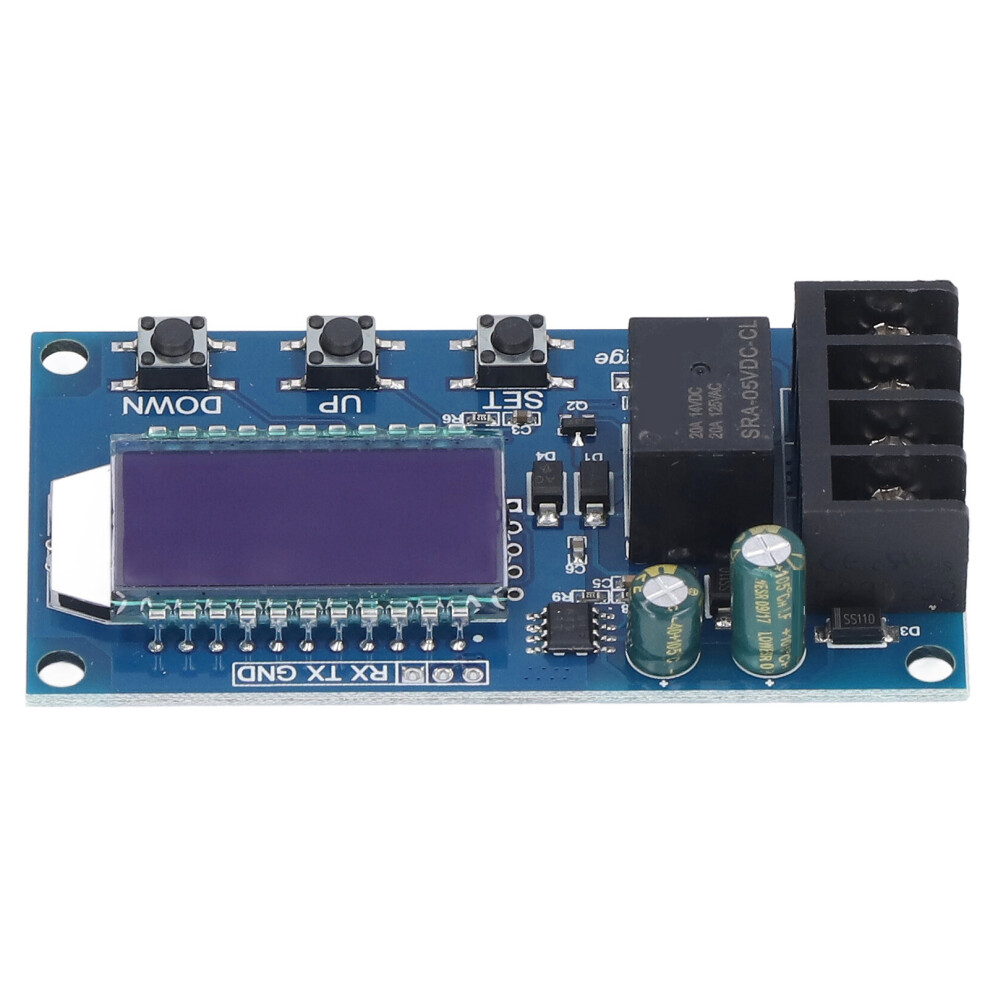

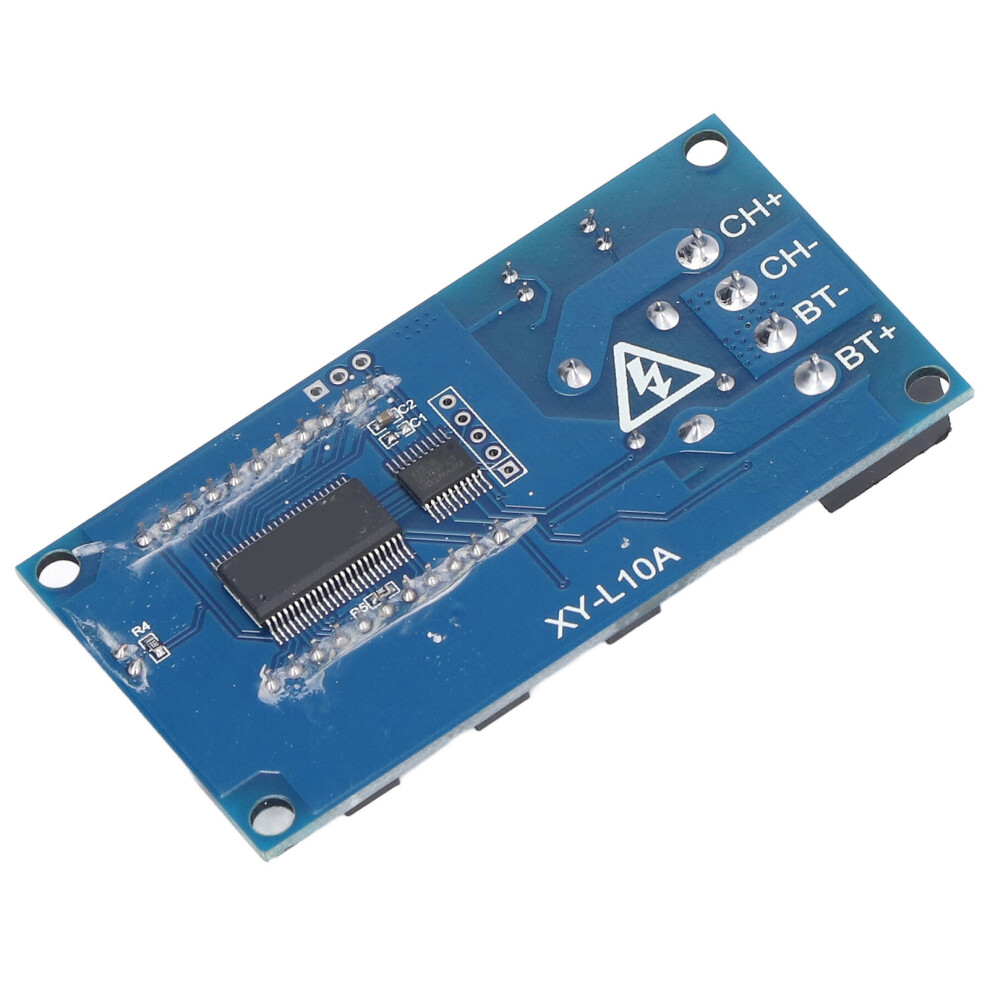

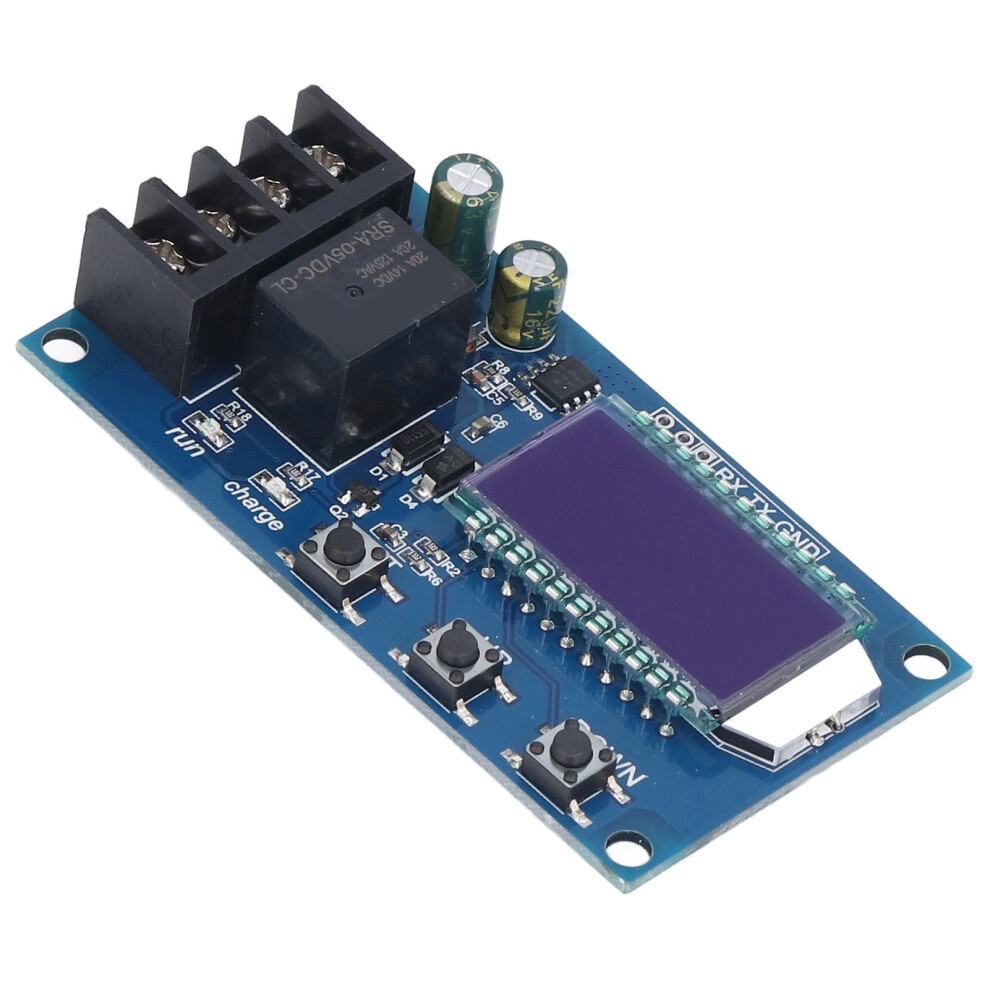

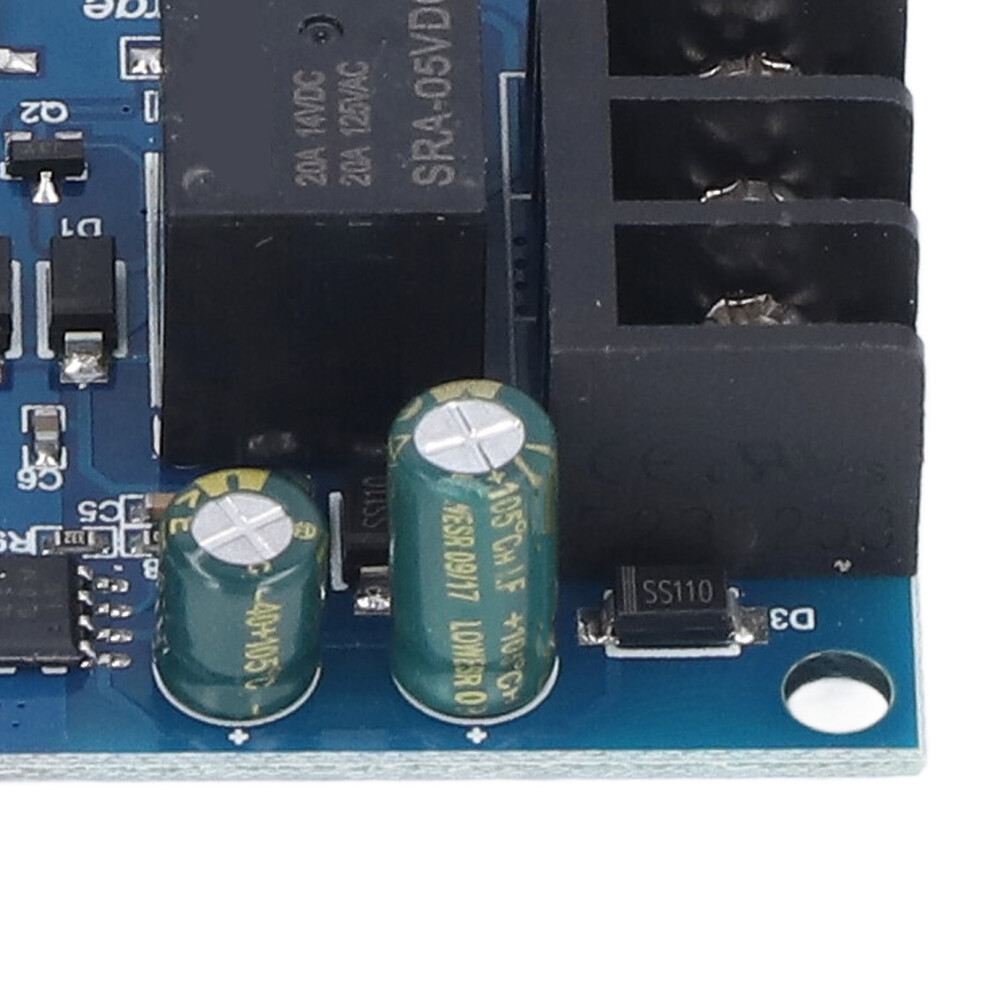

Lithium Battery Charge Control Module XY-L10A 6-60V 10A Digital Overcharge Protector

Lithium Battery Charge Control Module XY-L10A 6-60V 10A Digital Overcharge Protector Description

Lithium Battery Charge Control Module PCB Digital Overcharge Protection Switch DC6‑60V
Item Type: Lithium Battery Charge Control Module
Material: PCB
Model: XY-L10A
Control current 10A
Control Accuracy: 0.1V
Output Type: Direct Output
Scope Of Application: Various Lithium Batteries
1. Function Description
1. Automatic Charging Control Function:
2. Charging Time Control Function:
How to turn on the time control function?
After Entering The Parameter Setting, If The Parameter Op Is Not set to 0, the time control function is enabled. The default parameters of OP are: --: --h, and the time control function is not enabled by default
Note: Time Format: 00: 59 (00 Represents Hours, 59 Represents Minutes) The Longest Time is 99: 59, which is 100 hours.
3. Serial Port Data Upload And Parameter Setting Function:
The system supports UART data upload and parameter setting function (TTL level)
UART: 115200,8,1
On: The relay enable is turned on
Off: The relay is enabled to close
Start: Start the data reporting function
Stop: Stop the data reporting function
Read: Get system parameters
XX: XX: Set The Charging Time, 00: 00 Turns off the charging time control function
How e:
Parameter Settings:
a. Press and hold the SET button to enter the parameter setting interface, and the LCD will display SET
b. After entering the parameter setting interface, switch the set parameters by short pressing the SET key
c. After selecting the parameter, you can set through the UP DOWN key, support short press, long press (rapid increase or decrease)
d. To set other parameters, repeat steps b and c
e. After all parameter settings are completed, long press the SET button to exit and save

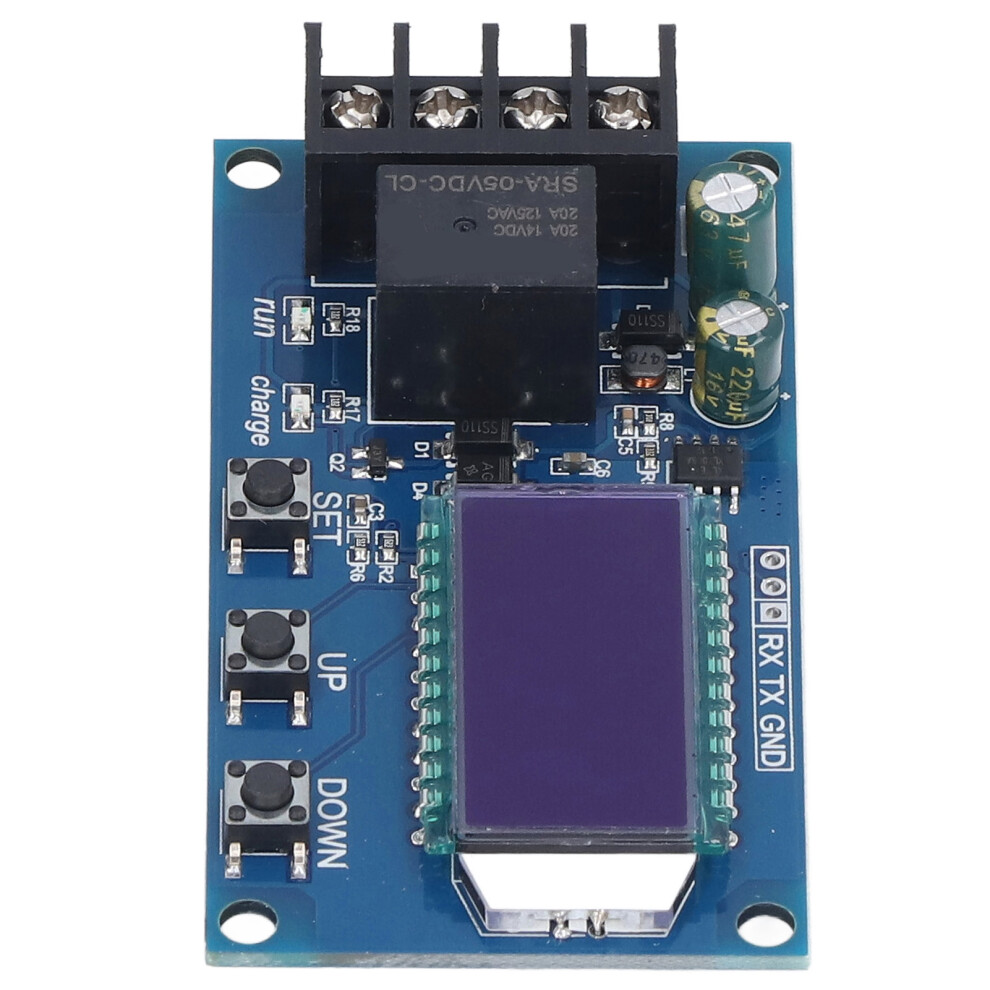

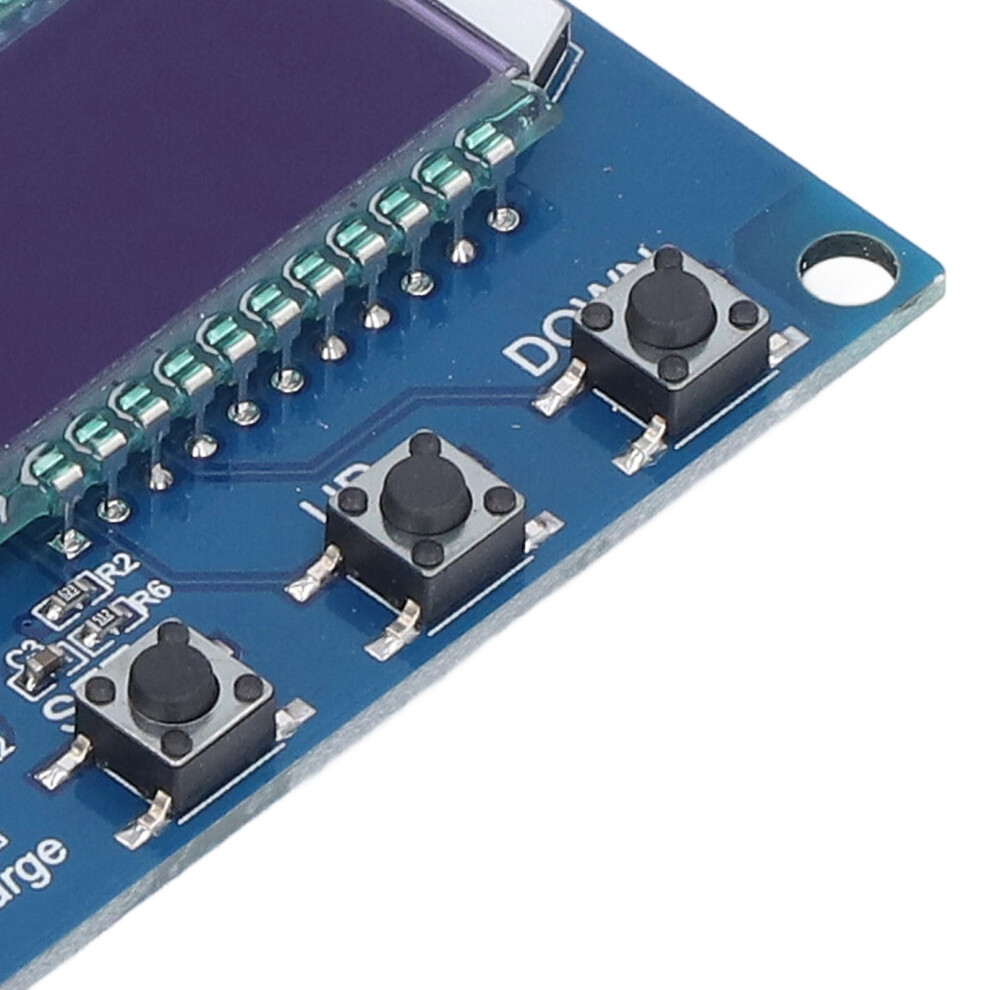

Button Function Description:
In the running interface (main interface)
Short press the SET button to display the currently set parameters
Short press the UP button to switch to display the charging percentage and charging time
Short press the DOWN button to select on off the relay enable, if the relay enable is off, will display OFF as a reminder, the relay is disconnected
Long Press The Up Button To Set The Status Of The lcd backlight (l p), off: The Backlight Is Always On, On: The backlight will automatically turn off after 5-10 minutes;
Long press the SET button to enter the parameter setting.
Calculation Of Voltage Percentage: Battery voltage / (upper limit voltage - lower limit voltage).
Additional Features:
A. Charging Time Recording Function: When the charging time control is not turned on, will record the complete time once. When entering the time display interface, the charging time will flash and display, then exit the time display interface or clear when the follow charging is turned on (the relay is turned on).
C. Battery Connection Detection: Attached to the battery, if is not connected to the battery, the system will display nbE in the lower line as a reminder
