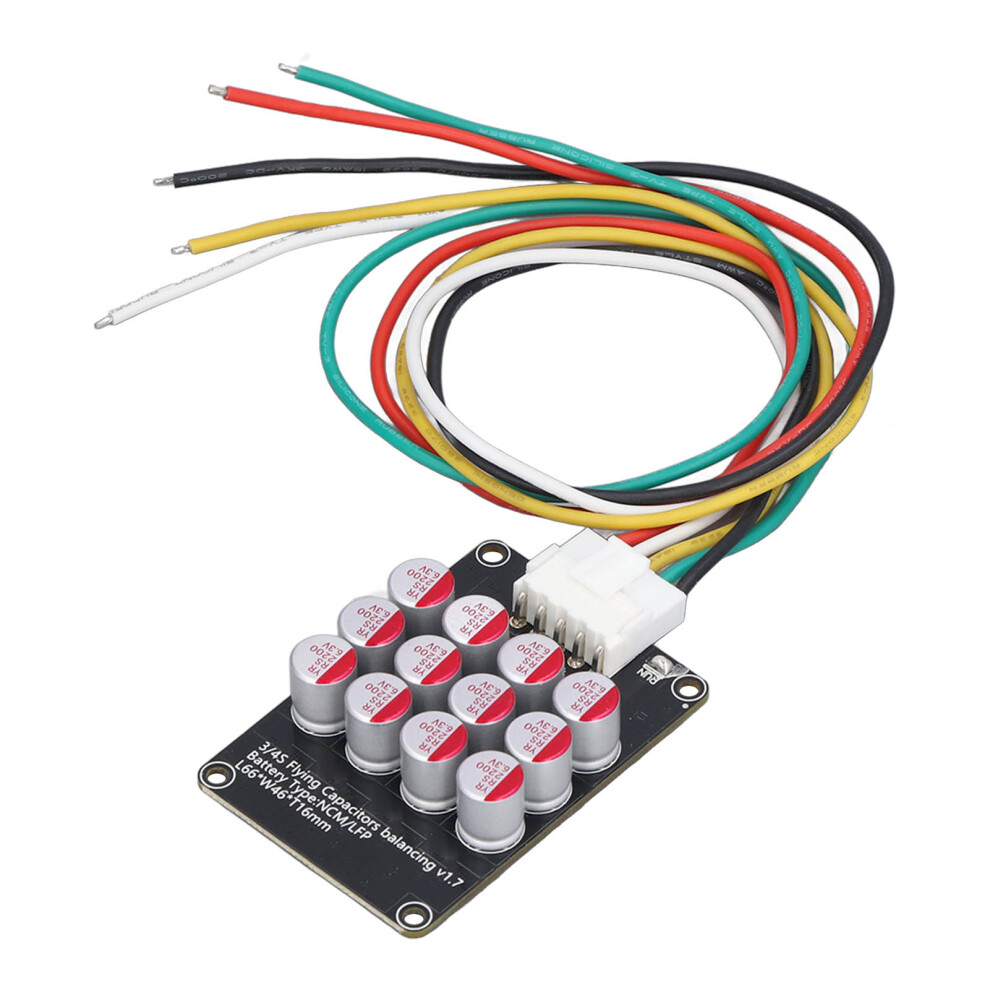

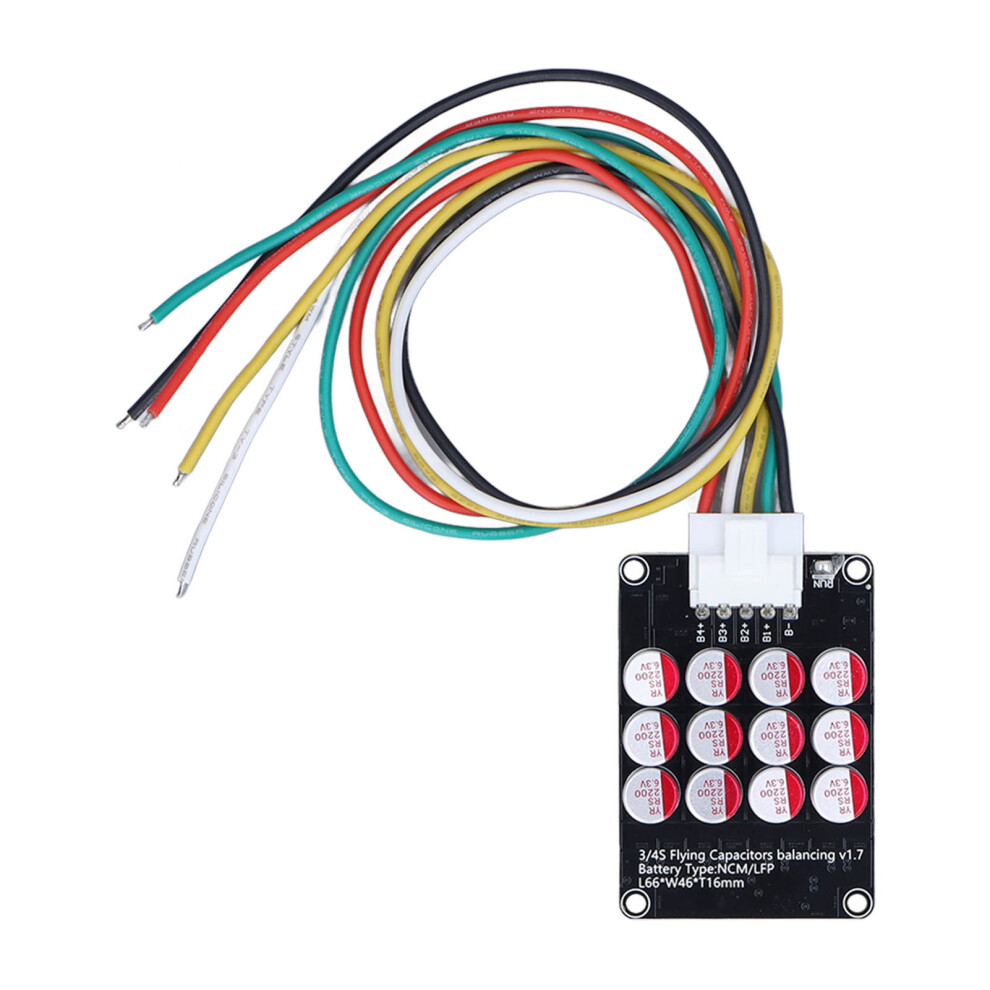

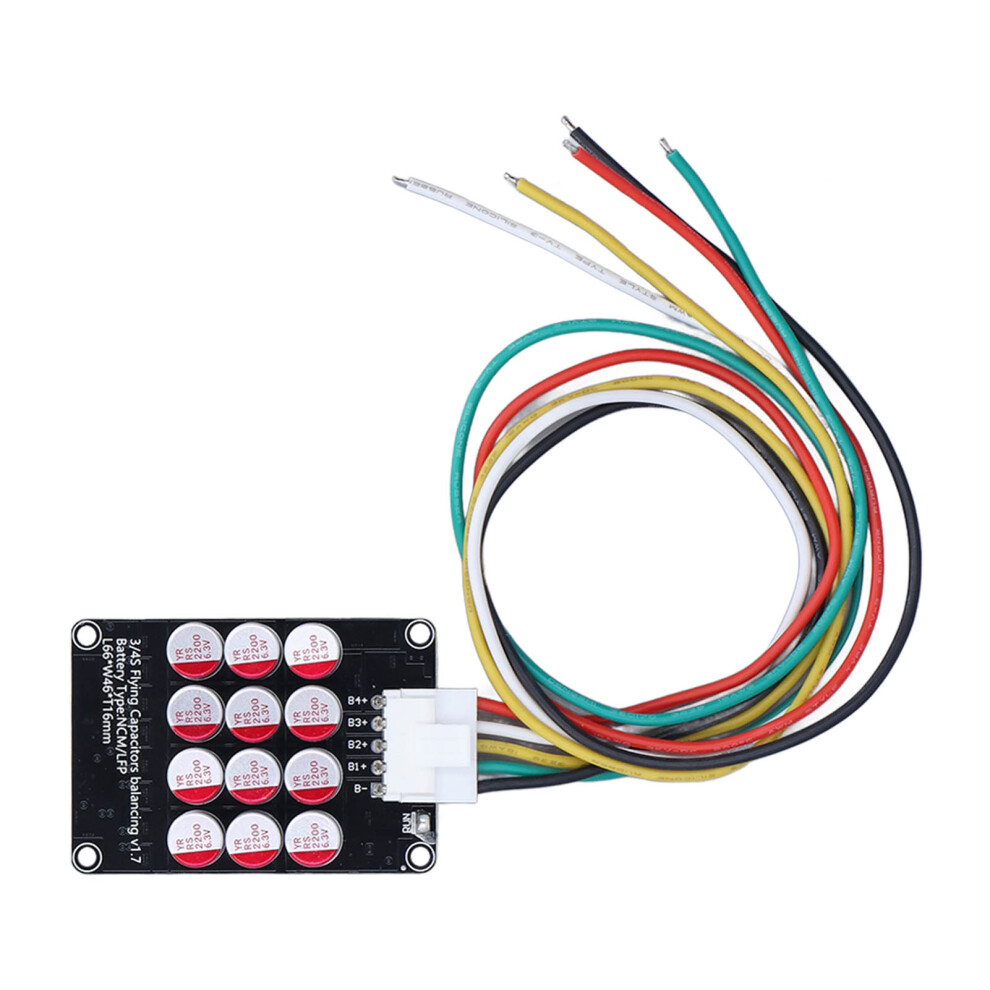

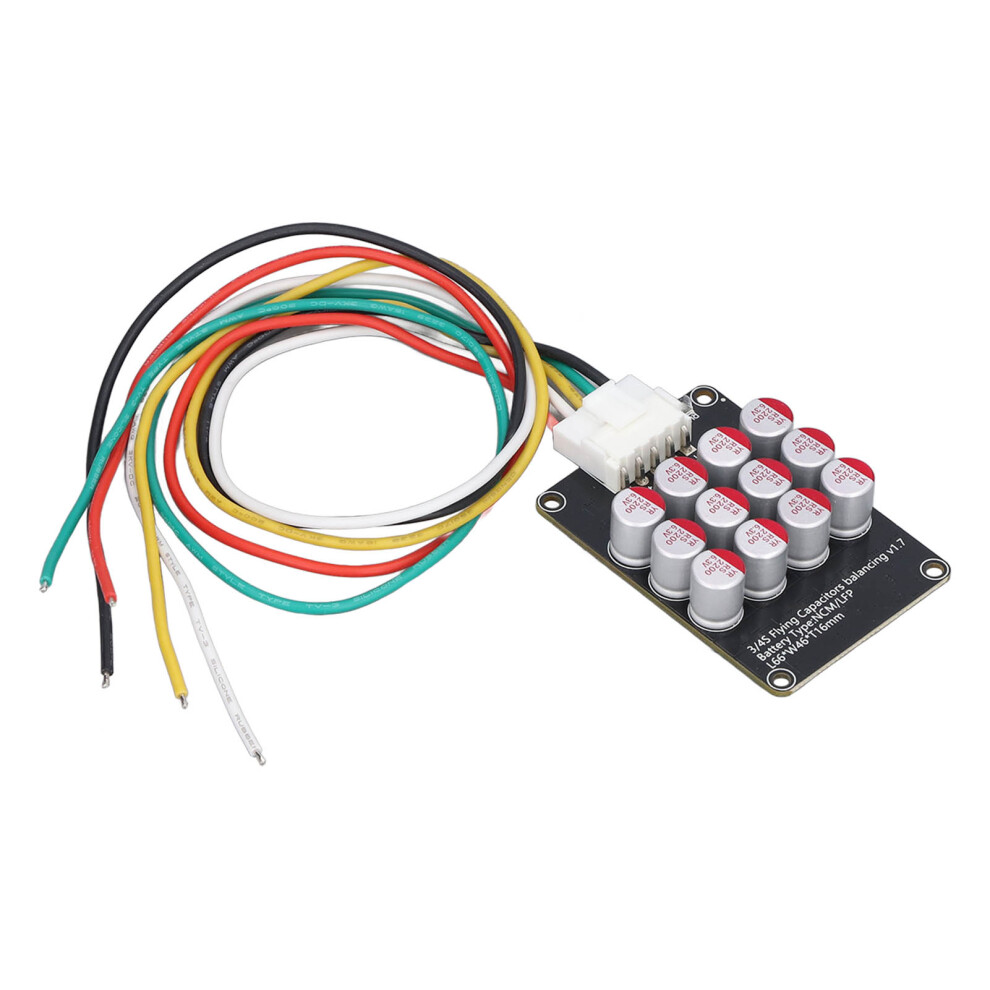

Lithium Battery Equalizer 4 Strings for NCM LFP with 2 Cases

Lithium Battery Equalizer 4 Strings for NCM LFP with 2 Cases Description

1、Strong Practicability: The internal energy transfer battery is used to transfer and balance the entire battery pack, without external power supply. 2、Equalization Method: It is detected that the voltage difference between adjacent batteries is greater than 0.1V to trigger the equalization start, and the voltage difference between adjacent batteries is less than 0.03V to stop working. 3、Voltage Balance Accuracy: 30mV between adjacent voltages (typical value); balance current: 0.1V voltage difference 0.5A balance current, when the voltage difference is above 0.2V, the maximum balance current is 1.2A. 4、Static Working Current: 0.01mA; under voltage protection sleep voltage: the adjacent voltage difference is less than 0.03V, enter the sleep state. 5、Scope of Application: Lithium battery active equalizer is suitable for NCM,LFP battery type, recommended battery capacity 60‑300AH, voltage 3.0V‑4.2V.
Item Type: Lithium Battery Active Equalizer
Material: PCB,Metal Aluminum
Applicable Battery Type: NCM,LFP

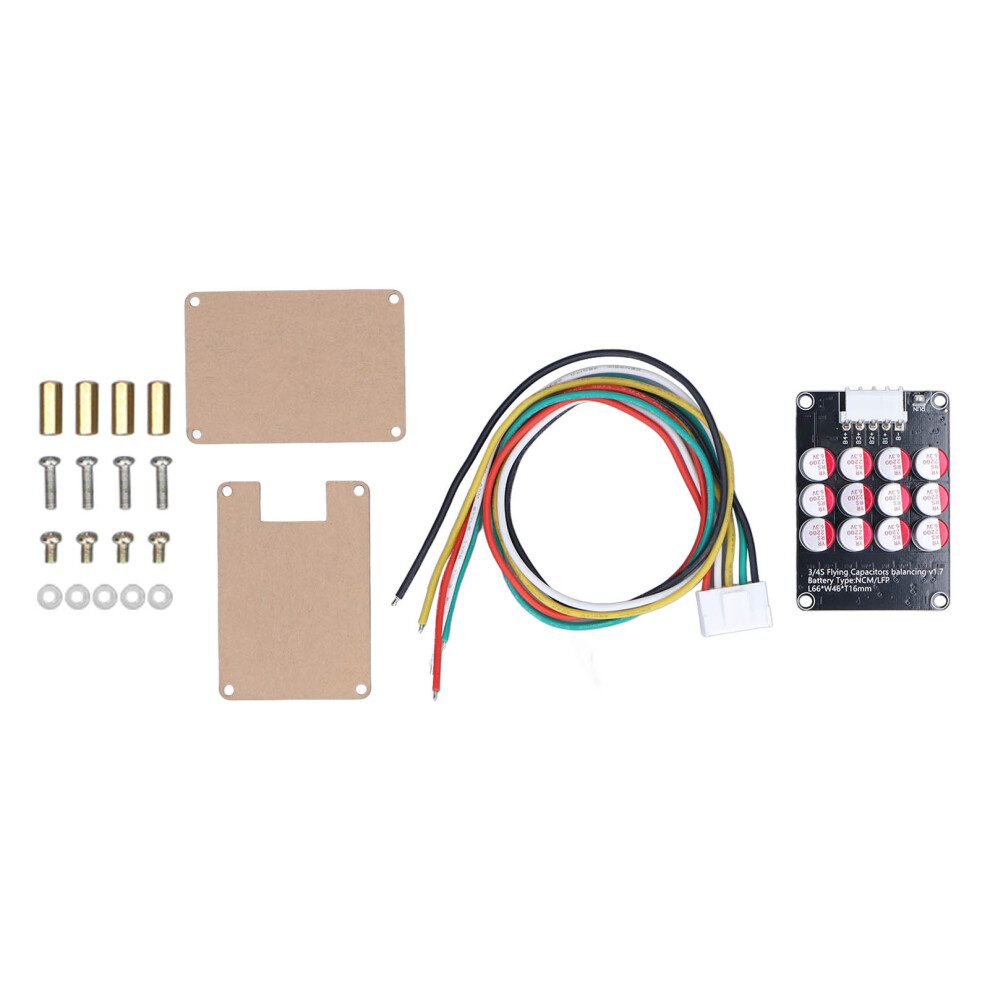

1 x Lithium Battery Energy Balance Board
1 x Cable
2 x Protective Case
4 x Connecting Screw
4 x Long Screw
4 x Short Screw
5 x Screw Washer
