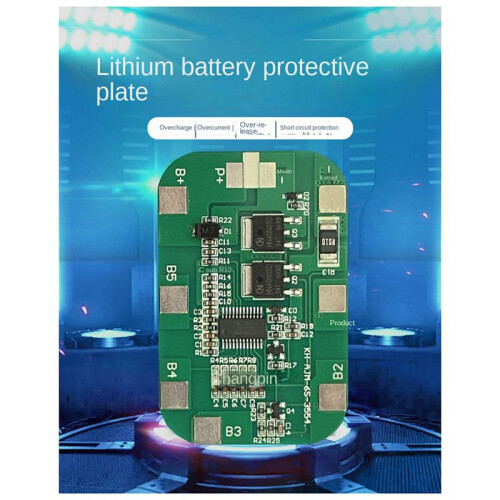

Lithium Battery Protection Board Electric Vehicle Integrated Circuit Pcb

Lithium Battery Protection Board Electric Vehicle Integrated Circuit Pcb Description

1. The protection board is widely used for most electric tools, electric scooters, and electric bicycles on the market. 2. Electric tricycles, electric motorcycles, electric cars, electric tools, etc.
2. More stable performance, stable charging and discharging performance, high and low temperature protection, overcurrent protection
3. When the product is short-circuited, it automatically protect the three-proof silicone static protection and anti-silicone sealing performance is better

Charger charging voltage: 25.2V
Battery nominal voltage: 22.2V
Model: KRHD-6S-3554
Continuous discharge current: 7A
Overcharge voltage (single cell): 4.3V
Discharge overcurrent protection: 10A
Overcharge release voltage (single cell): 4.2v
Charging limit voltage: 4.2
Over-discharge voltage (single cell): 2.7V
Over-discharge release voltage (single cell): 2.8V
Temperature protection: -40+85
Colour:green
Material:plastic
Size:53.9 x 35mm

Package Contents:

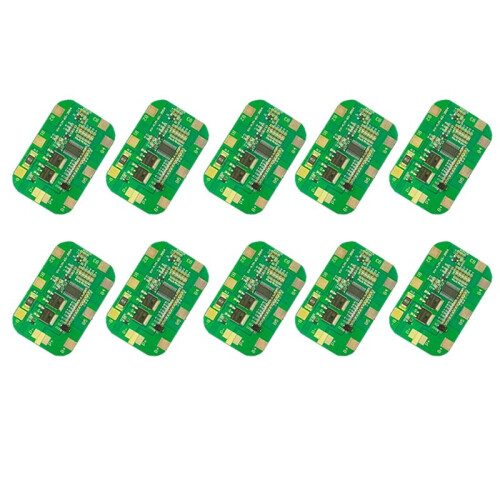

10 x battery protection board

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
