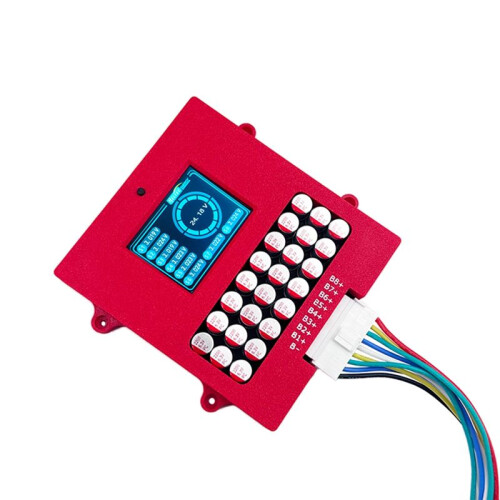

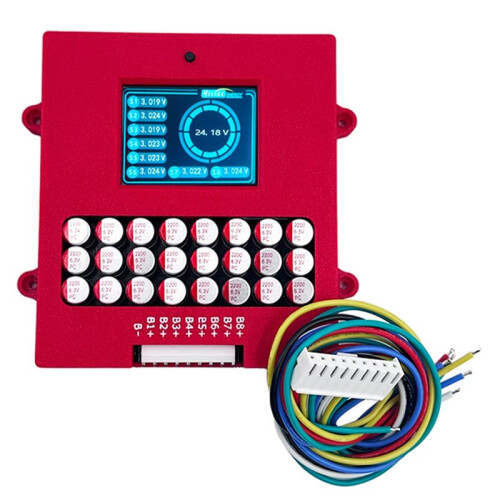

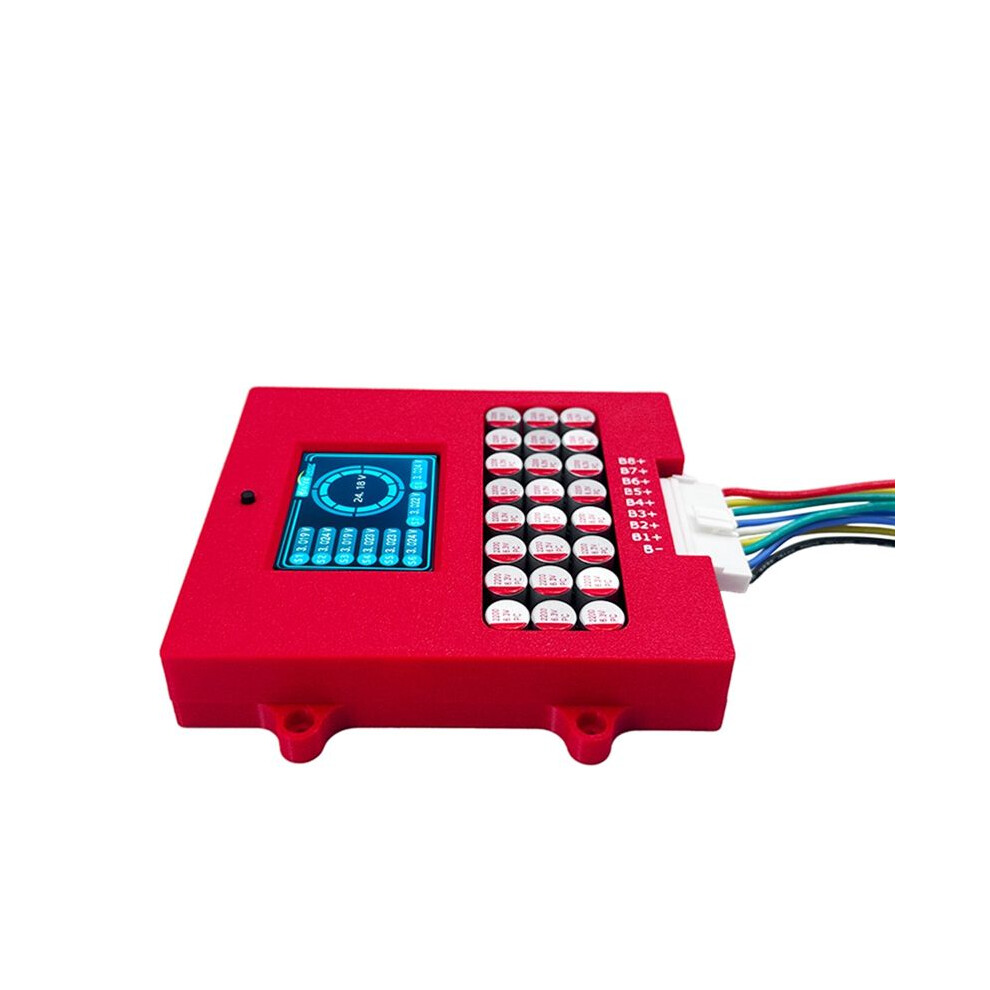

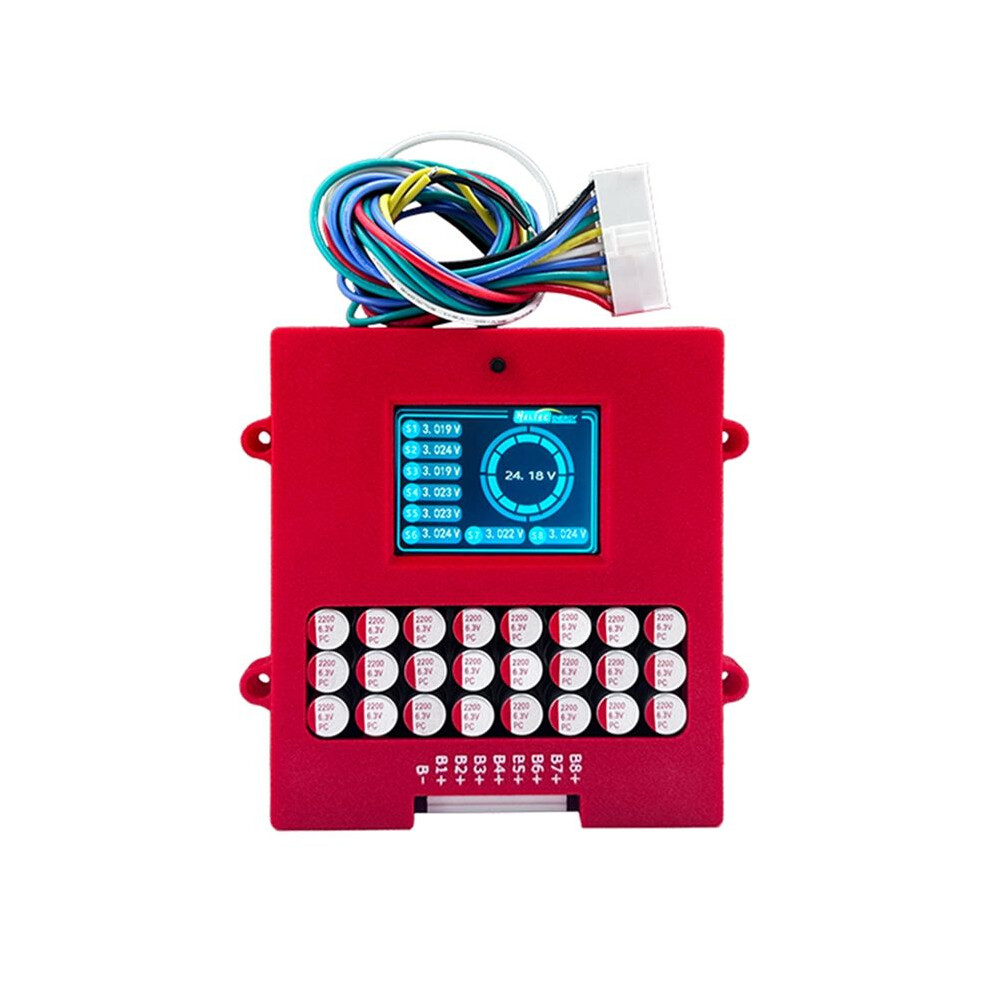

Lithium Lifepo4 8S Active Balancer with Voltage Display TFT Battery Voltage Tester 4S 6s 5a Transfer Equalizer

Lithium Lifepo4 8S Active Balancer with Voltage Display TFT Battery Voltage Tester 4S 6s 5a Transfer Equalizer Description

need balancer
As the battery battery cycle times increase, the battery capacity decay speed is inconsistent, causing the battery voltage to be seriously out of balance. The battery effect will cause the battery to charge. The BMS system detects that the battery has entered the overcharge protection in advance.
In fact, only one of the batteries is full, or let The BMS system detects that the battery enters the over-discharge protection state, which is actually caused by over-discharge of one of the lower-voltage batteries. After the device acts, each battery voltage reduces the capacity attenuation caused by the battery effect and prolongs the problem. The battery pack has a service life.
Working voltage: 2.7V-4.5V
Suitable for ternary lithium, lithium iron phosphate

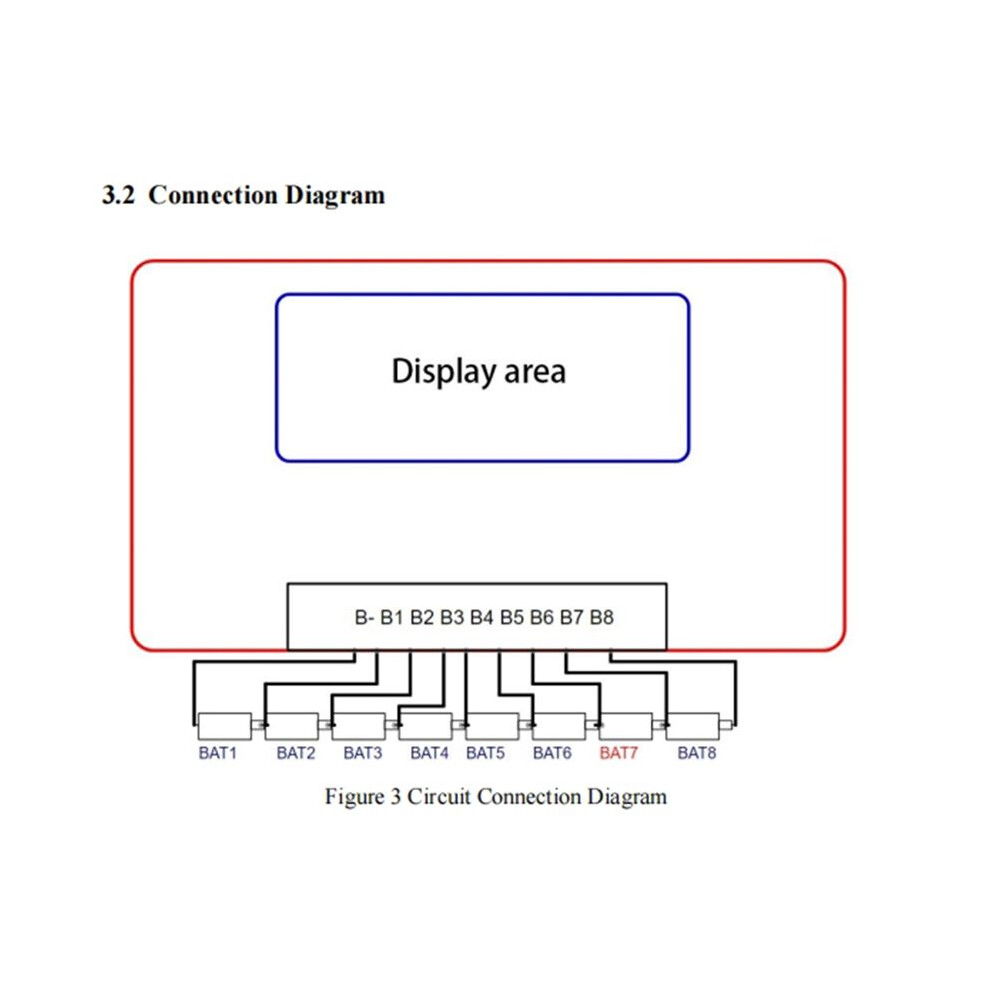

Working principle, the capacitor fit transfers the charge mover, the equalization board is connected to the battery, and the equalization is started. The original new ultra-low internal resistance MOS, 2OZ copper thickness PCB
Equilibrium current 0-5.5A, the more balanced the battery, the smaller the current, with manual sleep , sleep current mode is less than 0.1mA, the balance voltage accuracy is within 5mv!
The quiescent current is about 12 mA. It is recommended that the battery capacity is 60-300AH.
With under-voltage sleep protection, the voltage will stop automatically when the voltage is lower than 3.0V, and the standby power consumption is less than 0.1mA.

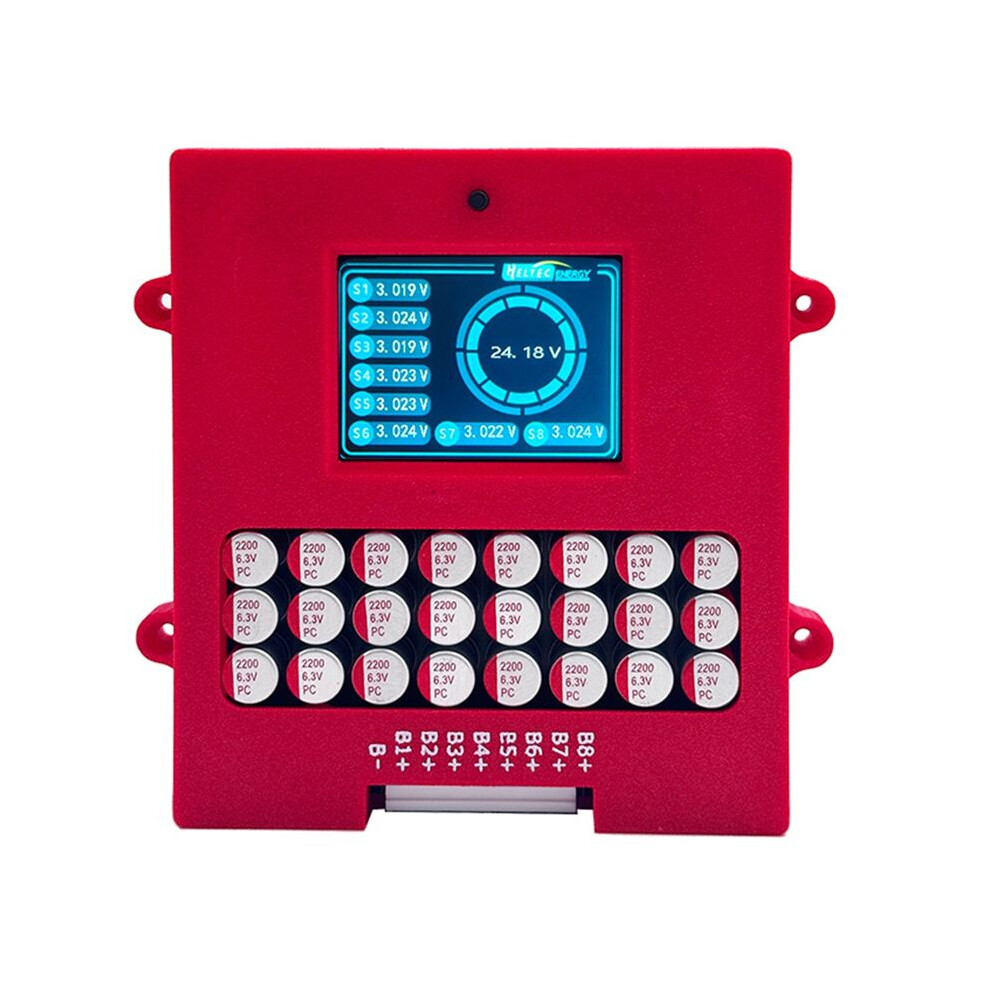

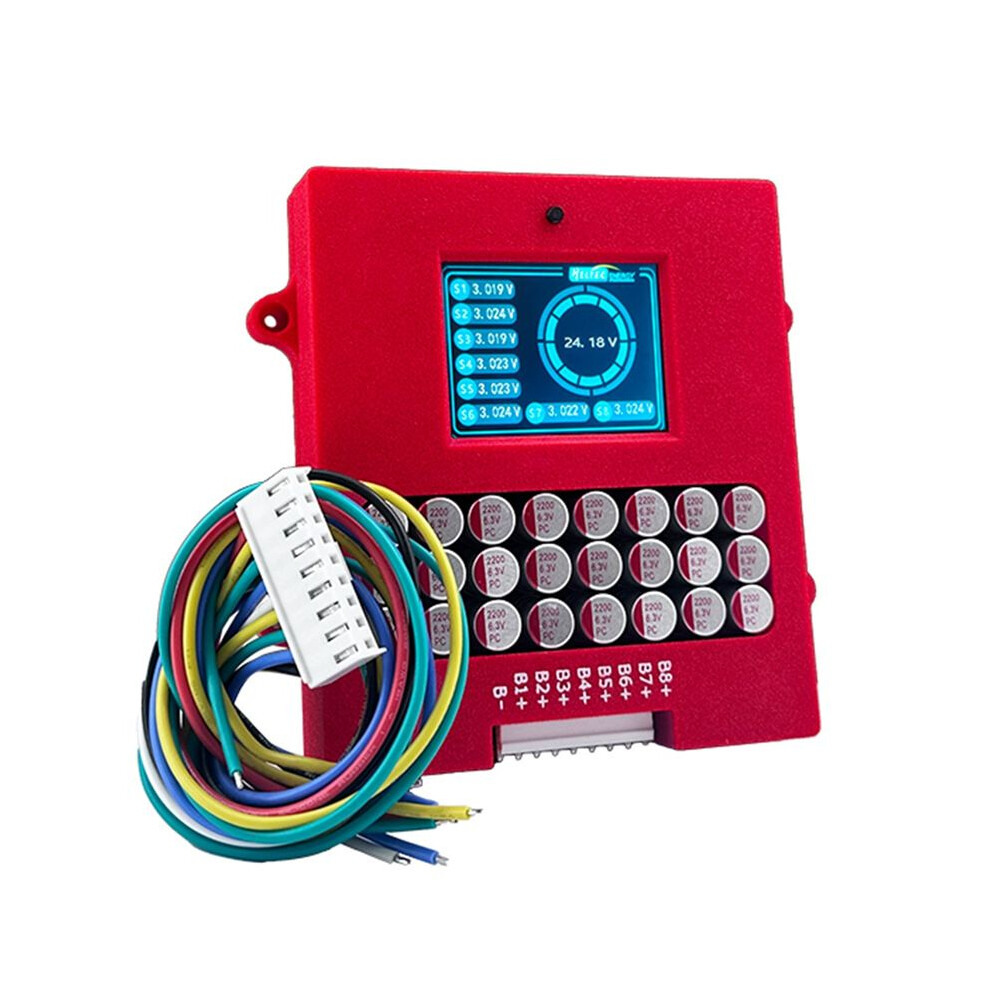

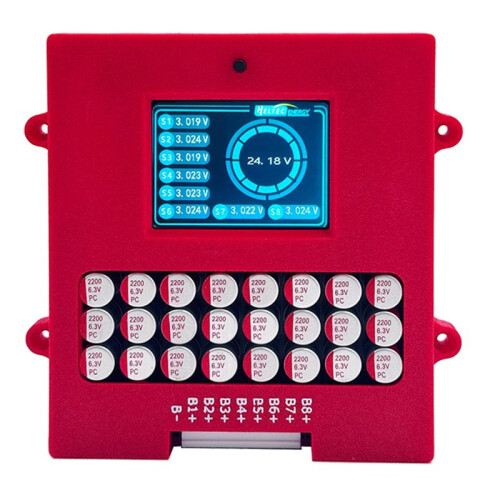

Voltage Display 8S
The accuracy of a single string is 0.001V, and the total voltage is 0.01V
Material: Plastic
Color: As shown
Due to different product batches, the appearance may vary, which does not affect the use

Package Contents:
1 x 8S Active balancer
