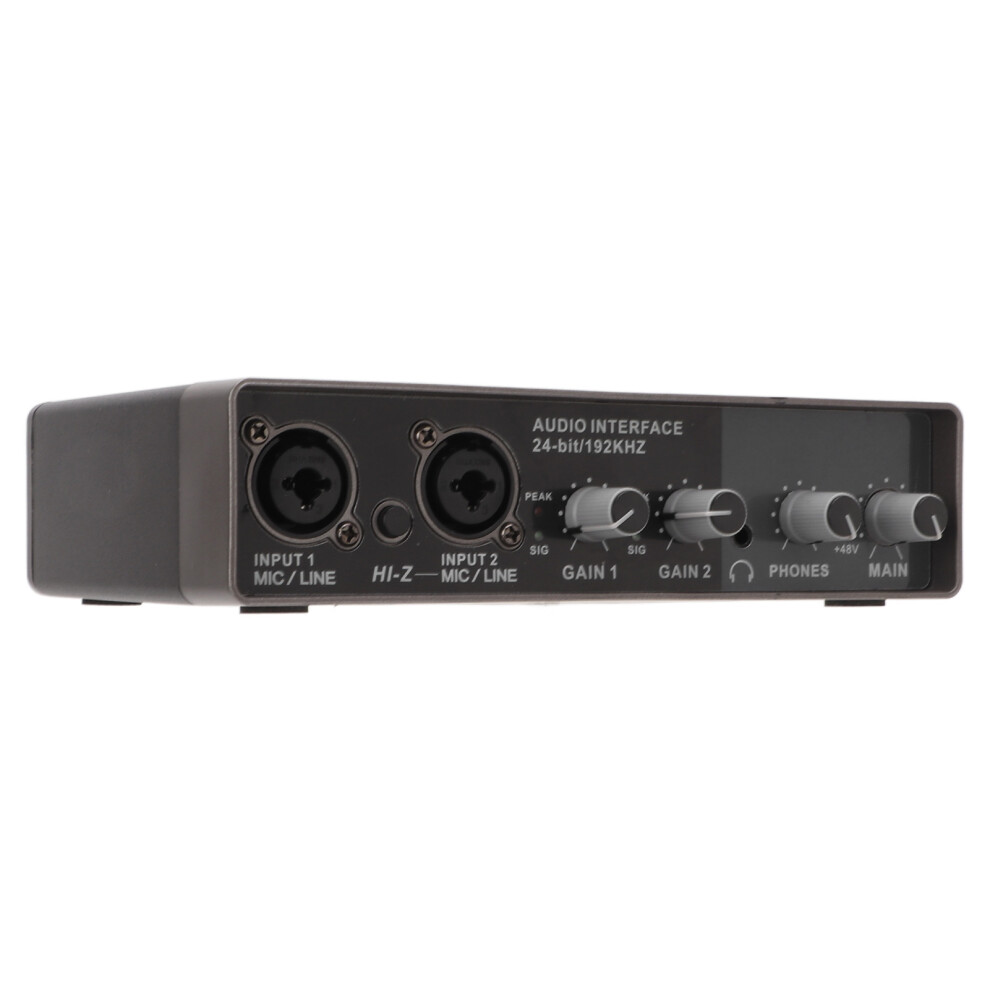

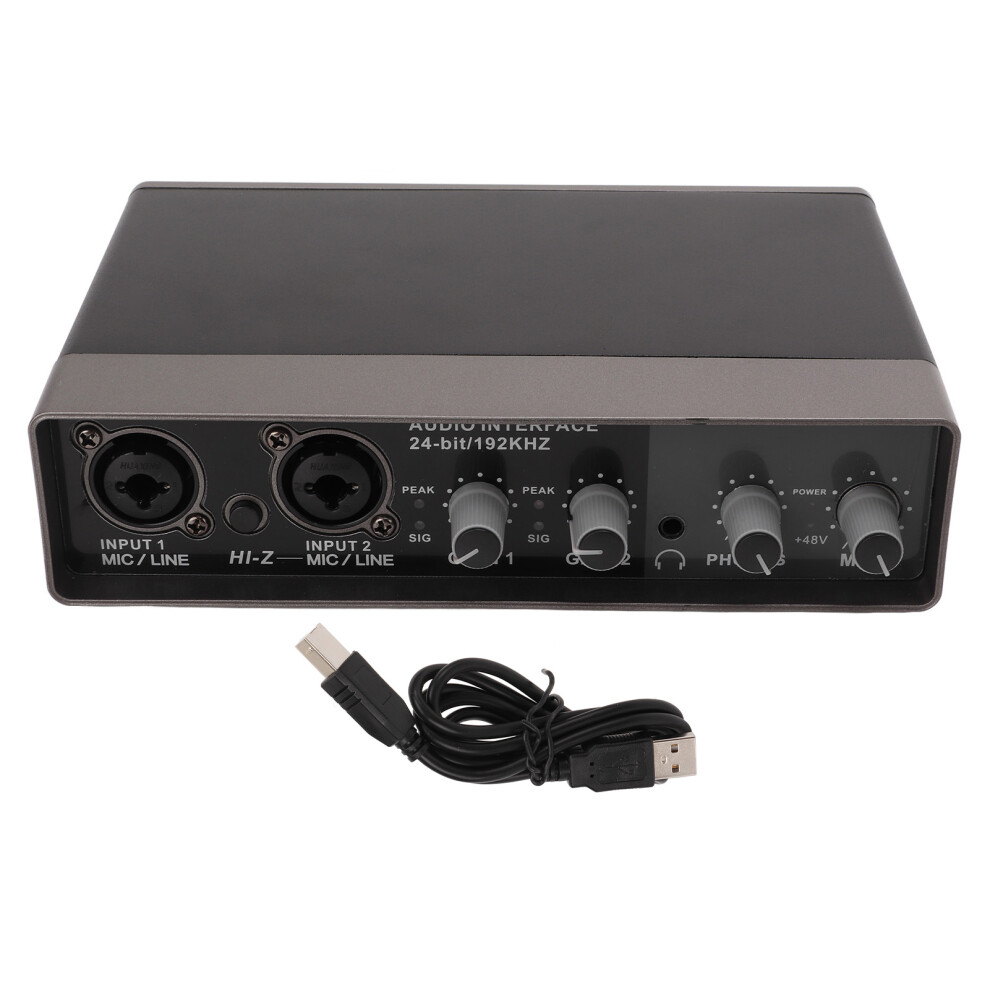

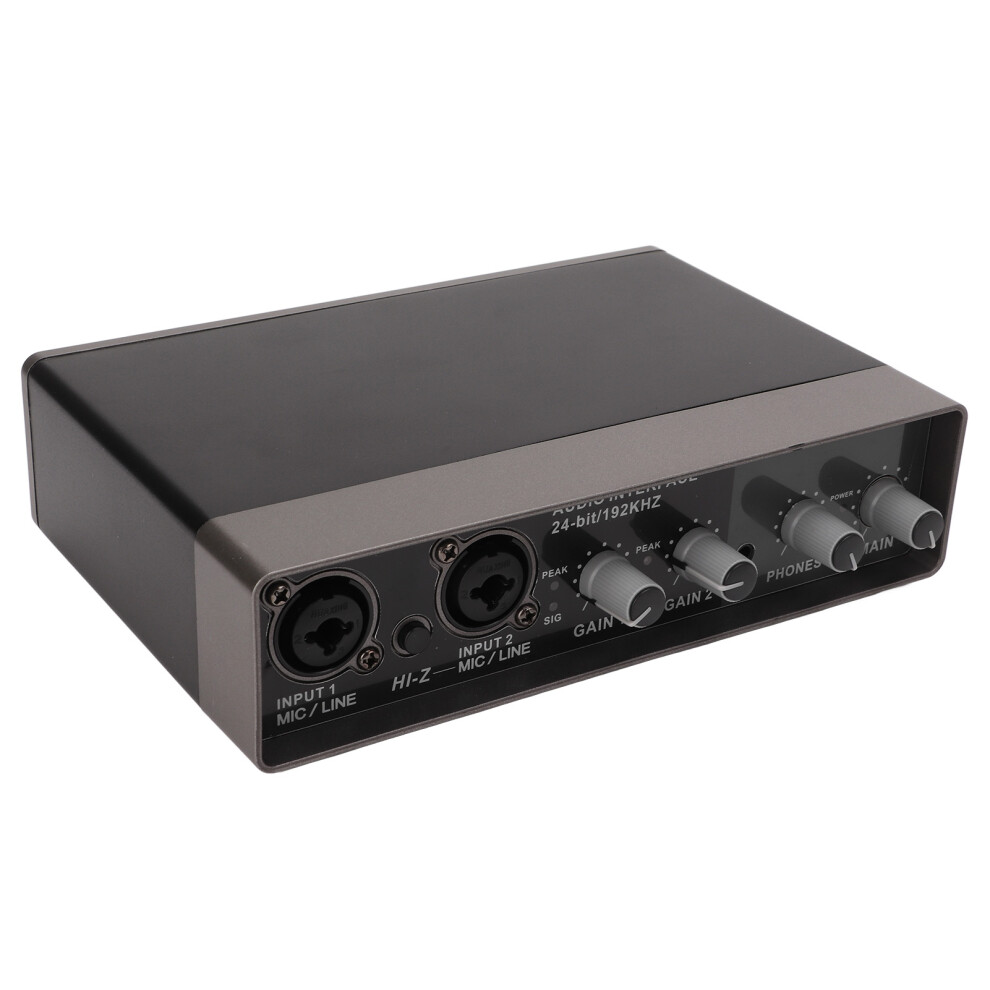

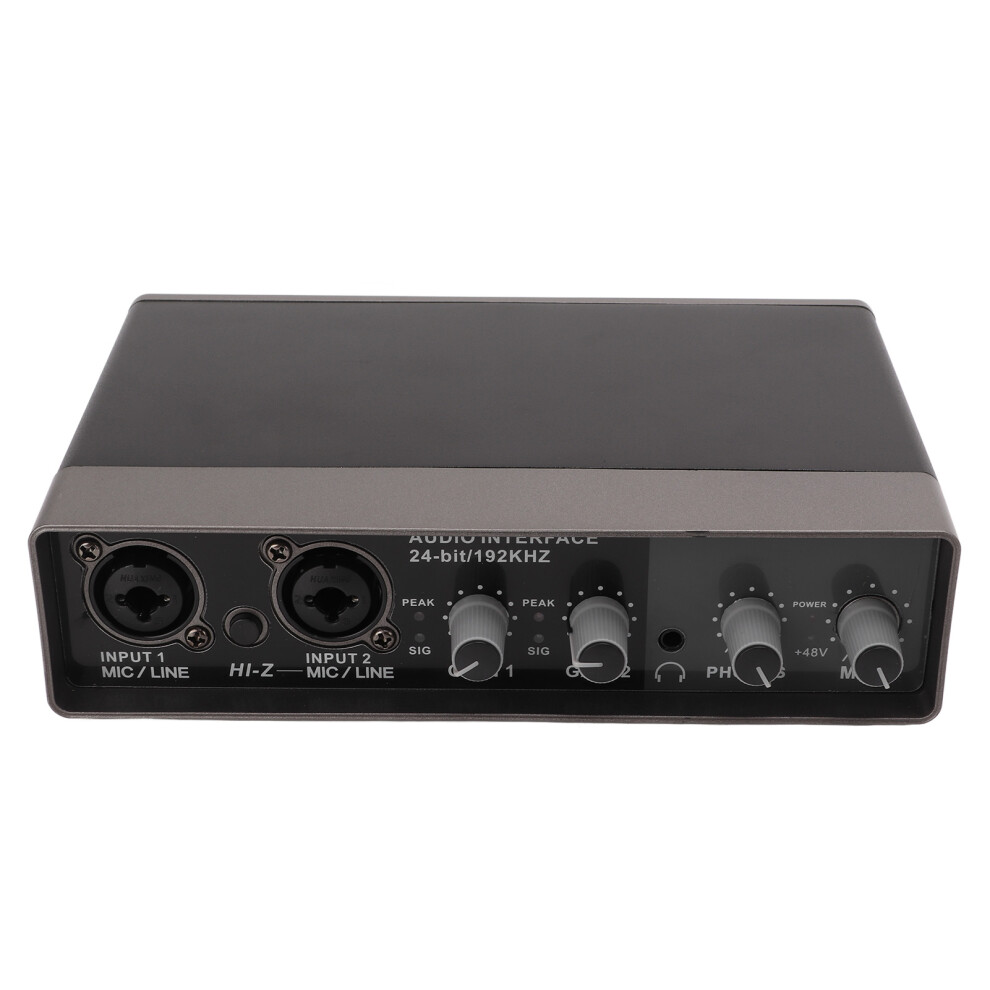

Live Sound Card Q22 Digital Mixing USB External Recording

Live Sound Card Q22 Digital Mixing USB External Recording Description

1、Built in High Speed Digital Processor: The Q22 features extremely low distortion and high accuracy digital signal processing. 2、HiFi: The Q22 features AD and DA converters with resolutions up to 24 bit 192KHZ, providing excellent recording quality, dynamic response and rich low frequencies. 3、Audio Resolution: 24BIT‑192KHZ audio resolution, high quality conversion is the key to high quality audio, and excellent conversion can be achieved by using the Q22 interface. 4、With High Speed Interface: The power supply can be connected to PC DC5V IN to provide connection with for OS and PC computers and their for IOS devices. 5、Applicability: Q22 audio equipment is suitable for a variety of scenarios, music recording, network karaoke, vocal recording, ASMR production.
Item Type: Live Sound Card
Material: Metal
MIC INPUT 1-2(Balanced)
Frequency Response: -1/-1dB,20Hz-20kHz
Dynamic Range: 82dB, A Weighted THD+N0.03%,1kHz
Maximum Input Level: +6dBu
Input Impedance 4kΩ
Gain Range: +3dB-+60dB HI-Z INPUT2 (Unbalanced)
Maximum Input Level: +3.0dBV
Input Impedance: 1MΩ
Gain Range: 0dB - +40dB
LINE INPUT 1/2 (Balanced)
Maximum Input Level: +10dBu
Input Impedance: 18.5kΩ
Gain Range: -10dB-+40dB
MAIN OUTPUT (Impedance Balance)
Frequency Response: -1/-1dB,20Hz-20kHz
Dynamic Range: 82dB, A Weighted THD+N 0.03%,1kHz
Maximum Output Level: +6dBu
Output Impedance: 100Ω
PHONES
Maximum Output Level: 15mW+15mW,40Ω
USB
Technical Specifications Full Speed: USB2.0, 24 Bit, 44.1kHz/48kHz/88.2kHz/96kHz/176.4kHz/192kHz
XLR INPUT
Polarity: 1 Ground, 2: Hot (+) 3: Cold (-)
Power Requirements: >5W
1 x Sound Card
1 x User Manual
1 x Power Cord
