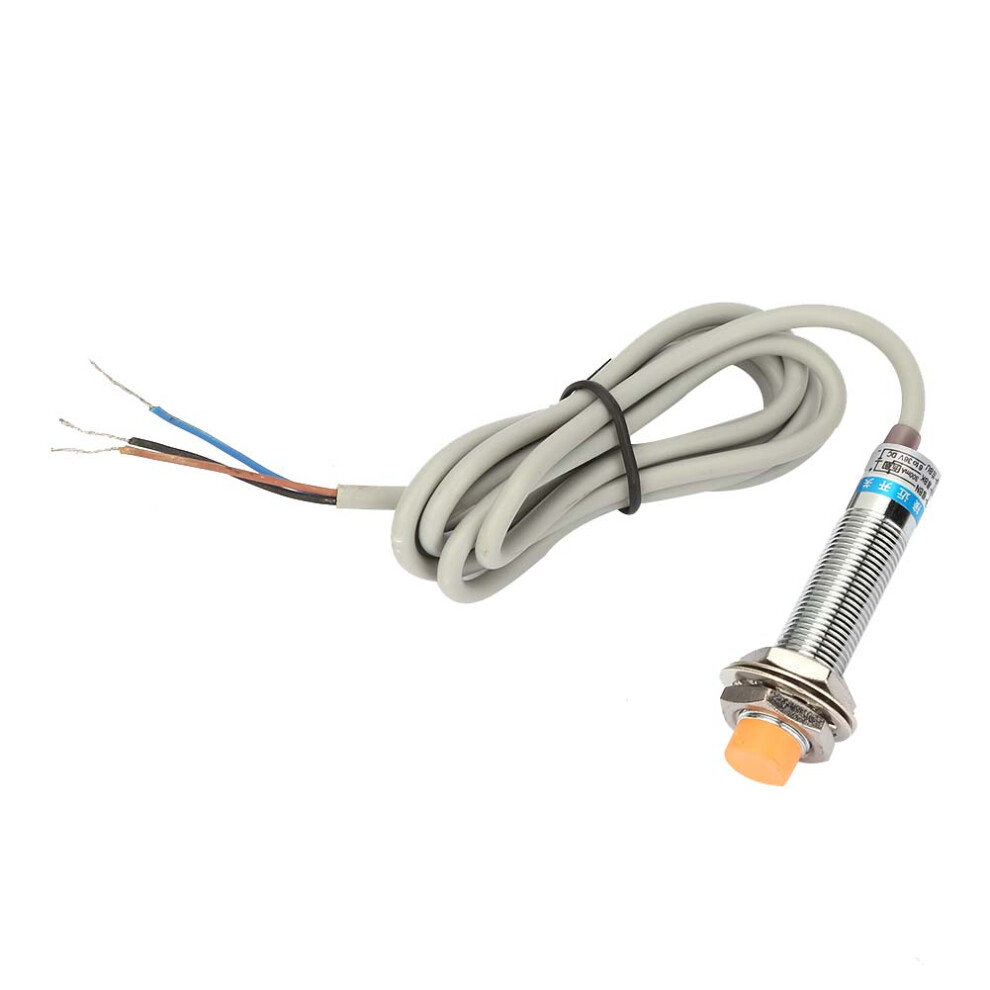

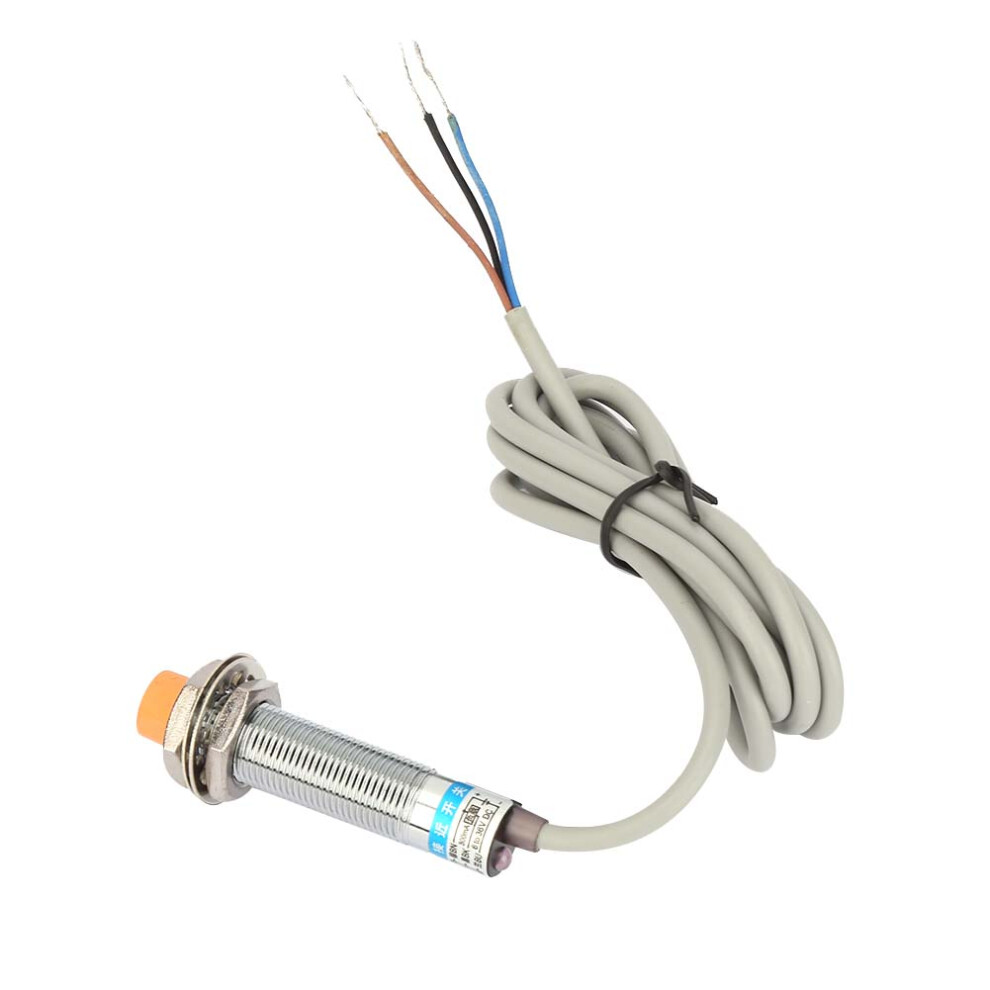

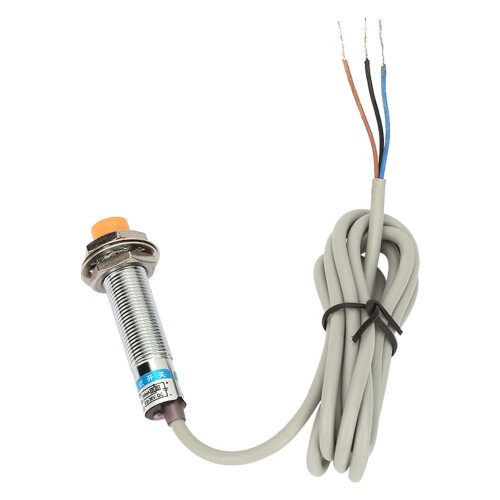

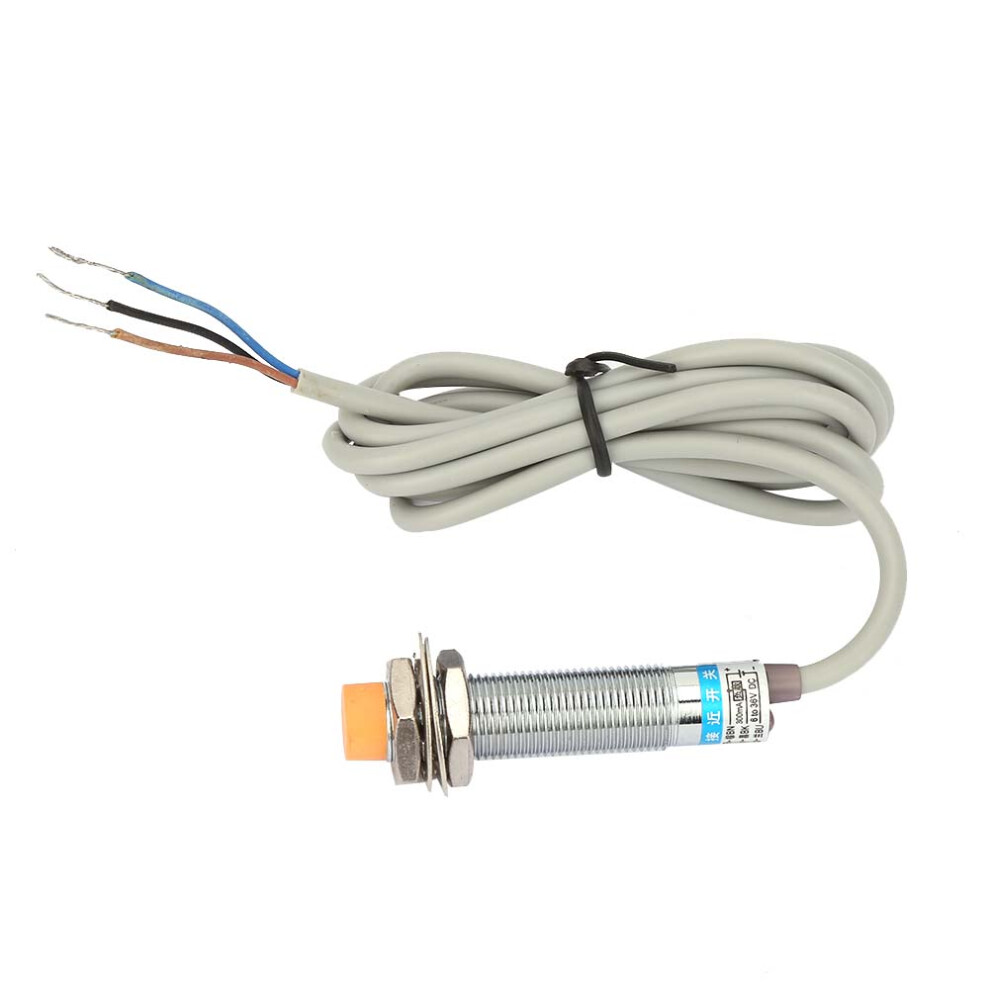

LJ12A3-4-Z/BX Proximity Induction Sensor NPN Normally Open Switch

LJ12A3-4-Z/BX Proximity Induction Sensor NPN Normally Open Switch Description

1、Proximity switch is a position sensor with switch output that can be connected with microcomputer 2、It also can drive directly from, electromagnetic relays, counters and contactor to achieve automatic control purposes 3、It is a component widely used in automatic control industry for detecting, controlling, and non-contact switching. 4、When proximity switch is close to some target object, it will send out control signal. 5、It's widely used in machine, paper making, light industry for limiting station, orientation taking count, speeding trial etc.
Features:
Proximity switch is a position sensor with switch output that can be connected with microcomputer
It also can drive directly from, electromagnetic relays, counters and contactor to achieve automatic control purposes
It is a component widely used in automatic control industry for detecting, controlling, and non-contact switching.
When proximity switch is close to some target object, it will send out control signal.
It's widely used in machine, paper making, light industry for limiting station, orientation taking count, speeding trial etc.
Specification:
Detection distance
4mm 10%
set distance
0-3.6mm
Delay distance
< 10% detection distance
Detection of objects
Magnetic metal (decreased detection distance for non-magnetic metal)
Standard test object
iron 15*15*1mm
Response frequency
DC:0.5kHz AC:25Hz
power supply voltage
DC:DC12-24V(6-36V)pulse（P-P）10%Below
(no ice, no frost), action time, save time: each 35-95% RH
Temperature effect
Temperature range-30~65, at 23 , 15% detection distance within
Temperature range - 25 ~ 60 , at 23 , 10% detection distance within
Insulation impedance
More than 50 m Ω (DC500 megger) charge between parts and the shell
material
Case: brass plated nickel detection surface: ABS
Weight
46 g / 1.6 oz(approx.)
Package list:
1 x Proximity sensor
