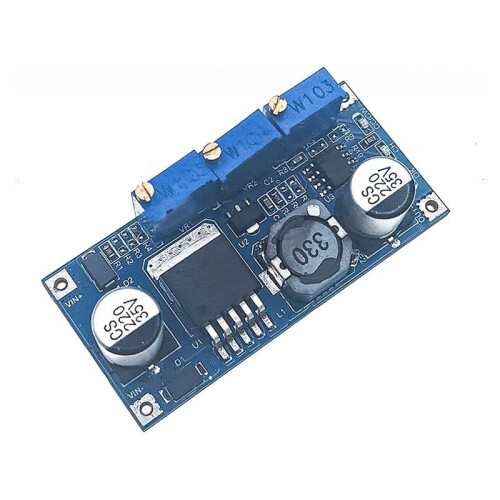

LM2596 - 3A Adjustable Step-Down Module LM2596S Constant Current Voltage Regulator High Efficiency Low Heat

LM2596 - 3A Adjustable Step-Down Module LM2596S Constant Current Voltage Regulator High Efficiency Low Heat Description

1. This module utilizes a high-quality LM2596 chip, offering high efficiency ( 92%) and low heat generation. It easily handles currents exceeding 3A, while a high-quality operational amplifier regulates the output current to ensure exceptional stability.
2. The module employs high-quality, low-ESR filter capacitors, keeping ripple voltage as low as 500mV.
3. The module is manufactured using automated SMT (Surface Mount Technology) and reflow soldering processes.

Module Type: Non-isolated step-down module
Rectification Method: Asynchronous rectification
Input Voltage: 7V-35V
Output Voltage: 1.25V-30V
Output Current: Adjustable ( 3A)
Conversion Efficiency: 92% ()
Switching Frequency: 150kHz
Output Ripple: 50mV () 20MHz
Load Regulation: 0.5%
Voltage Regulation: +2.5%
Operating Temperature: -40C to +85C

Note:
This is an adjustable step-down (buck) module; the output voltage can be adjusted by turning the potentiometer located the module. It requires a minimum input-output voltage difference of 2V and supports a minimum output voltage of 1.23V.
Ensure that the connections for IN- (input negative), IN+ (input positive), OUT- (output negative), and OUT+ (output positive)-as marked the module-are correct; incorrect wiring may damage the module.
Color:
Material: PCB+Components

Package Contents:
1 * - Adjustable Step-down Module
