LNA Module for RF & Software Defined Radio (SDR)

LNA Module for RF & Software Defined Radio (SDR) Description

Feature:

Professional:High linearity,ultra low noise gain block amplifier. High linearity: +35dBm output IP3; high input power ruggedness, +22dBm continuous wave.

:Stable Performance:RF amplifier ultra bandwidth, high reliability, not easy to corrosion and fall off. Amplifier module with wide frequency range, high gain, low noise figure, unconditionally stable.

Parameters:Low noise amplifier module 1.95GHz at 20dB high gain, input and output impedance: 50??, bandwidth: 0.1MHz-6GHz.

Appliable:RF amplifier has excellent performance, excellent uniformity and high reliability. It is suitable for shortwave, FM radio, remote control receiver, cable TV signal amplifier, etc.

Specification:

Item Type: Low Noise Amplifier

Product Model??HT004

Material: Metal

Built-in TQP3M9037-LNA

Frequency Range: 0.1MHz-6GHz

Connector: SMA Female

Gain: 20dB

Input, Output Impedance: 50??

Input Voltage: 5V 70mA

Battery Type: without battery

Product Size:48*40*15mm

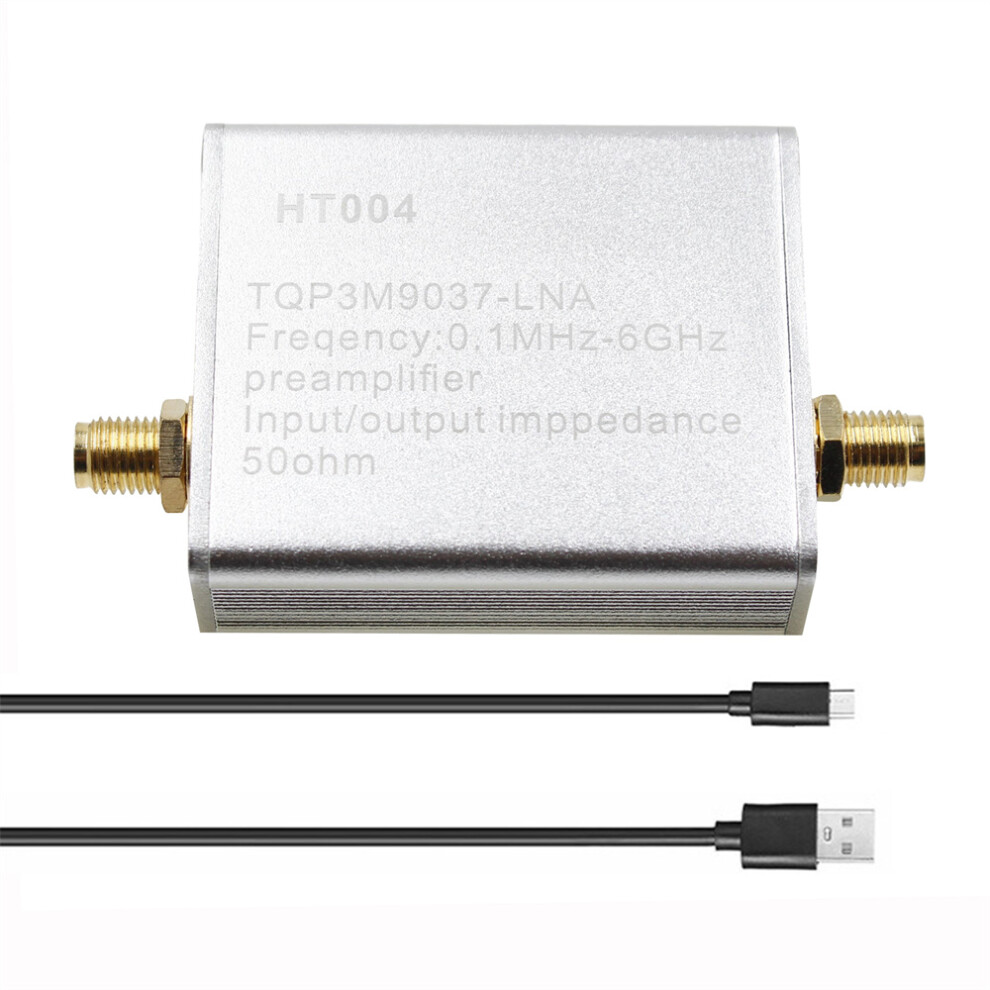

Package Includes:

1*Low Noise Amplifier

1*USB Cable

Notes:

Other products in the picture display are not included, thank you!
