Load Cell Micro Miniature Weighing Sensor 0-100kg Pull Rod Tension Pressure

Load Cell Micro Miniature Weighing Sensor 0-100kg Pull Rod Tension Pressure Description

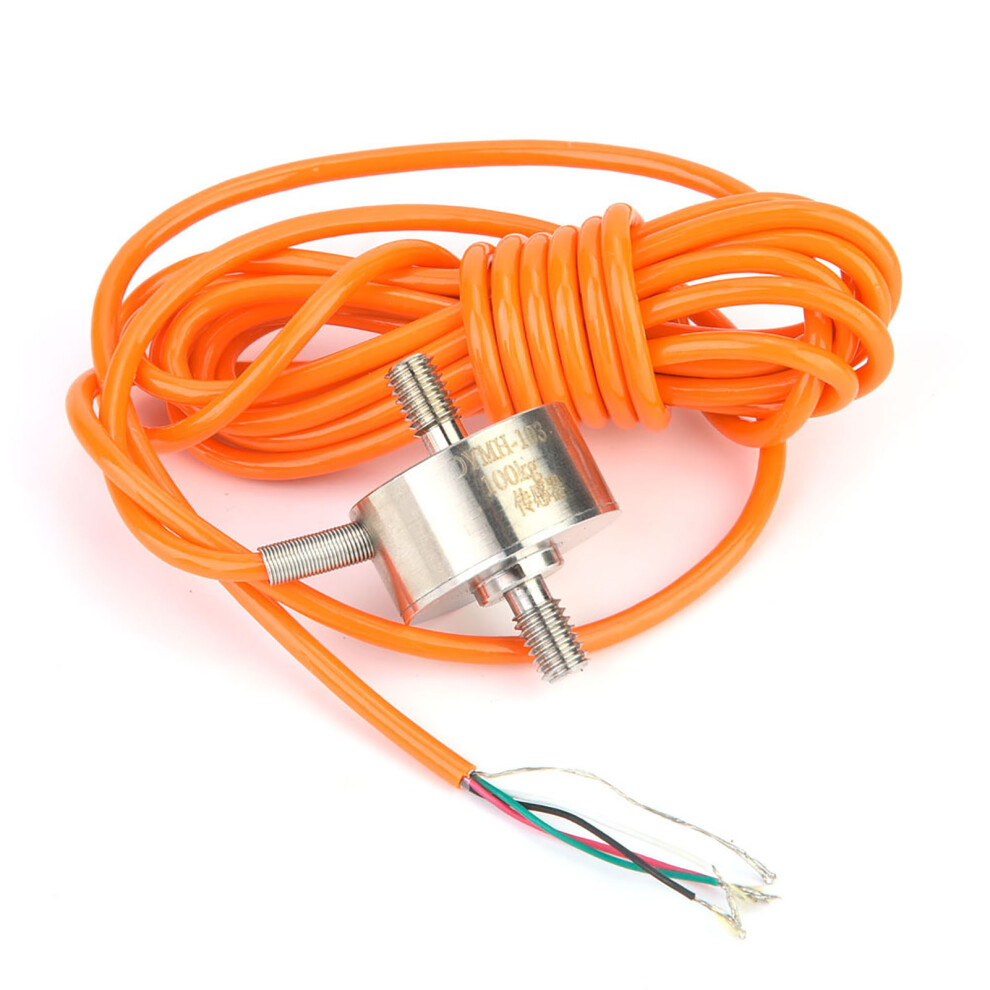

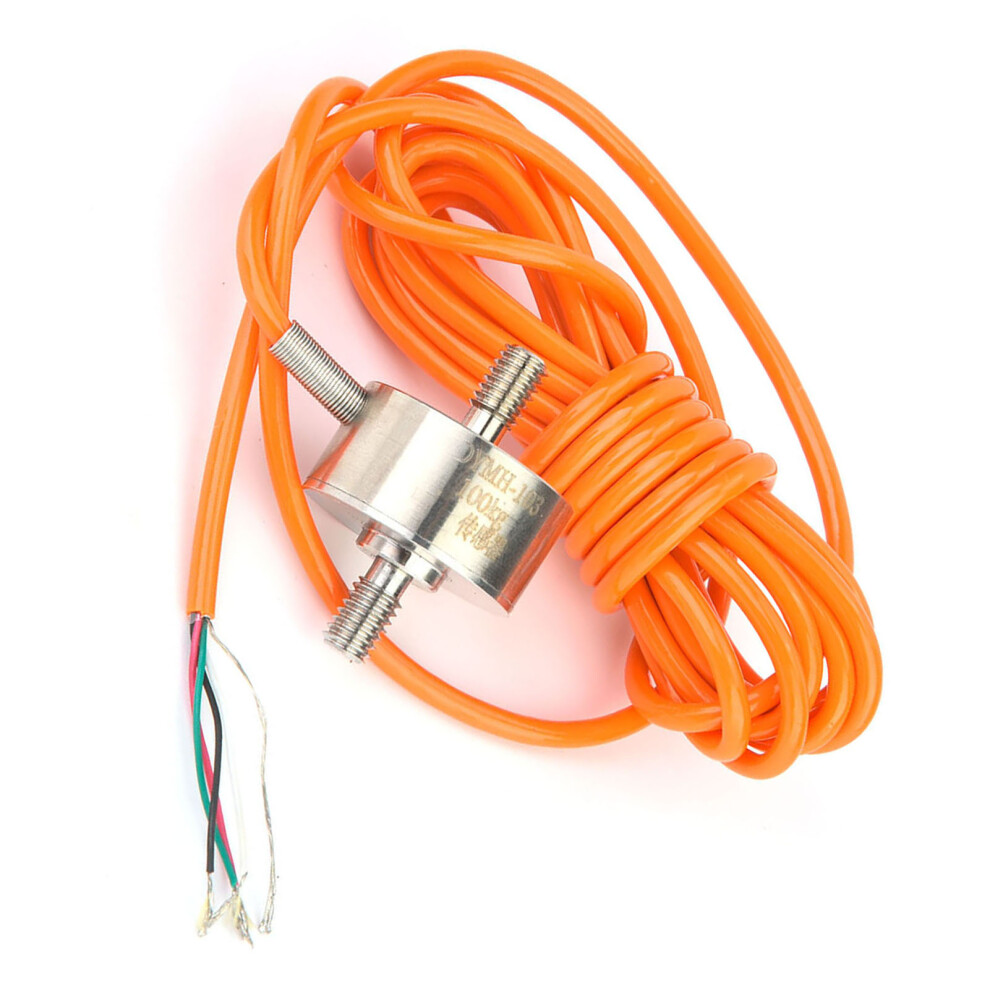

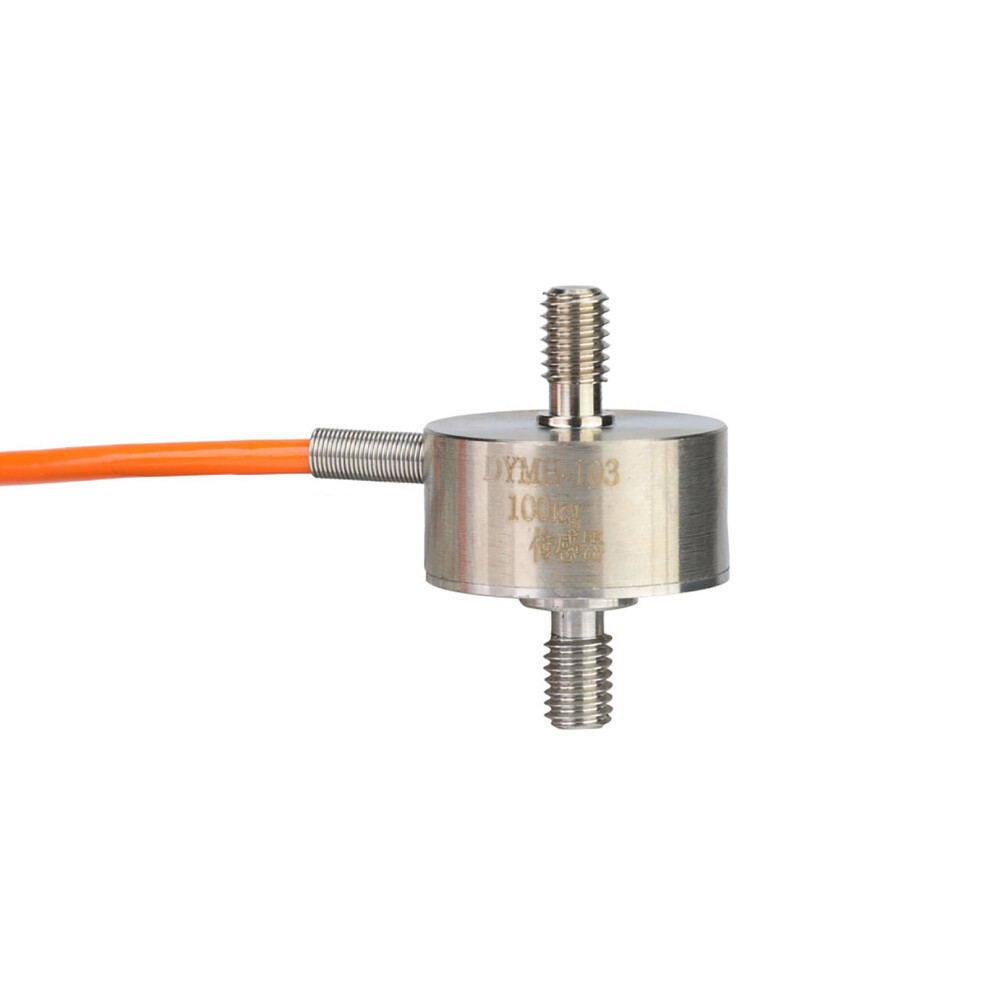

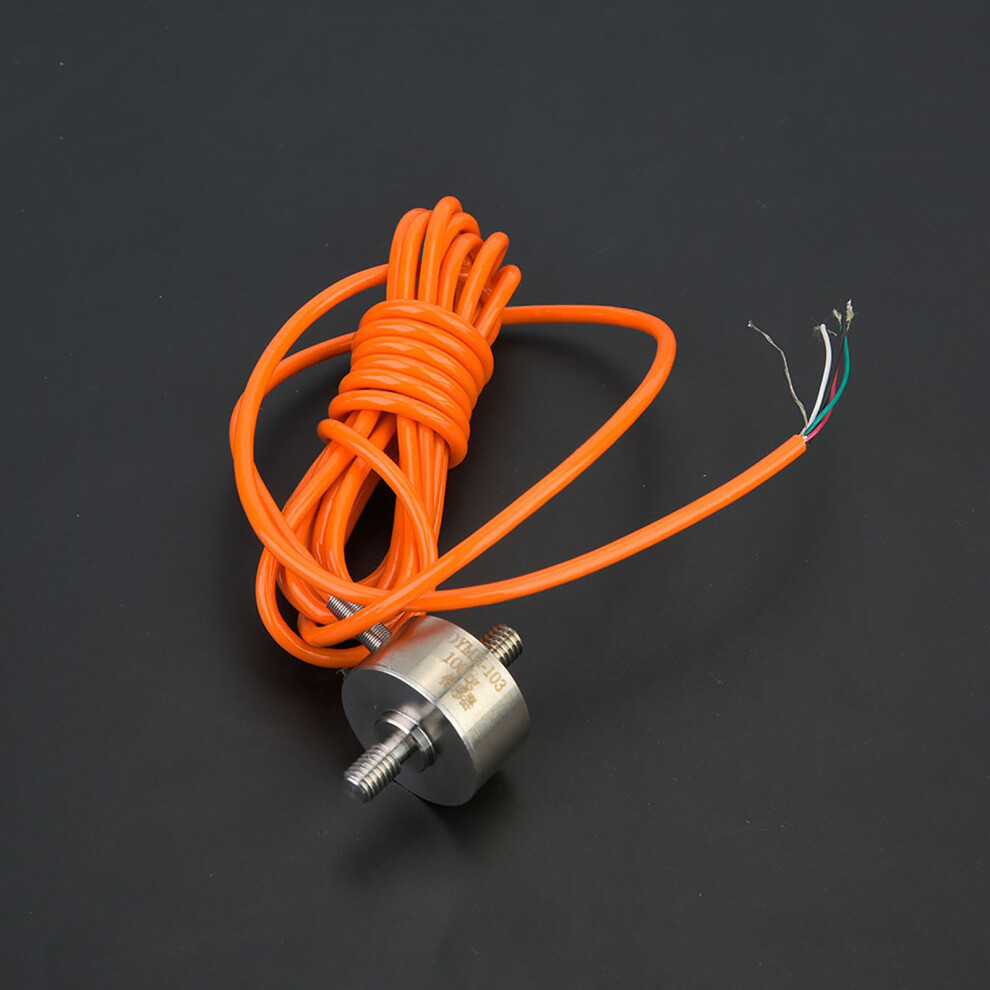

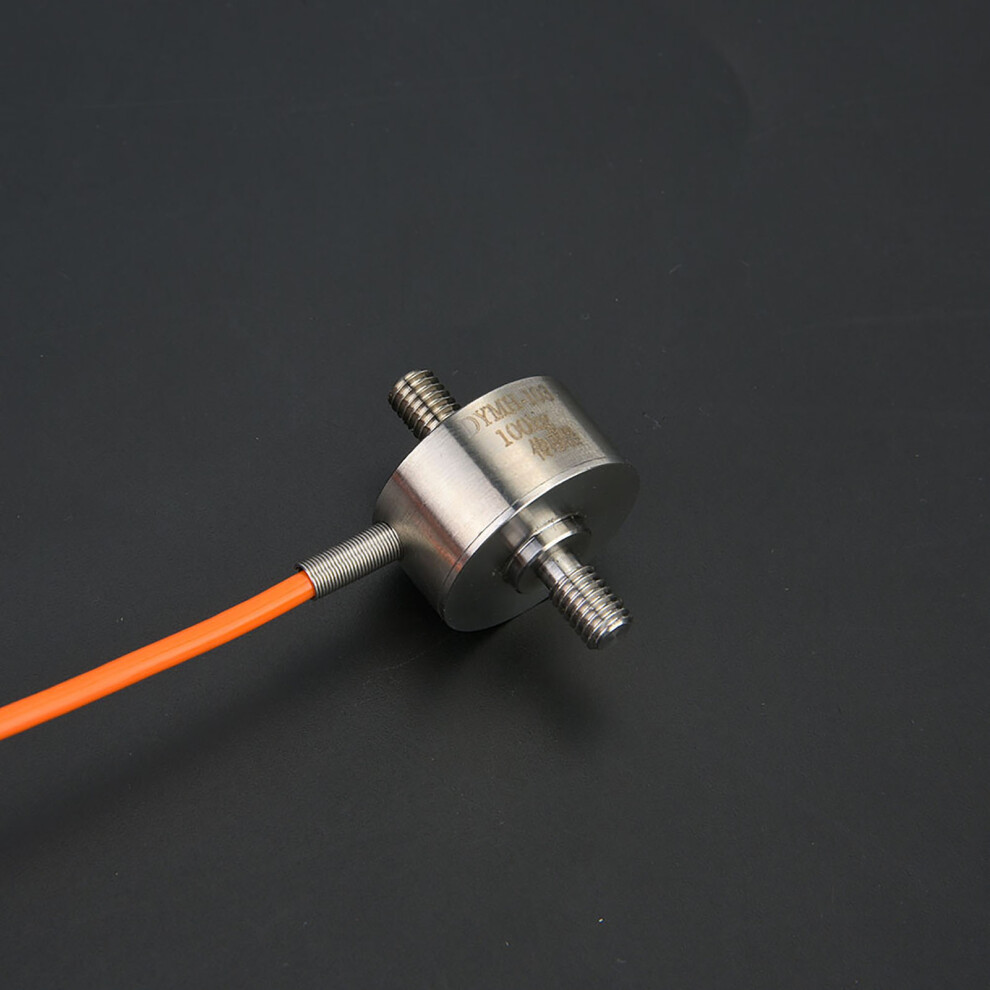

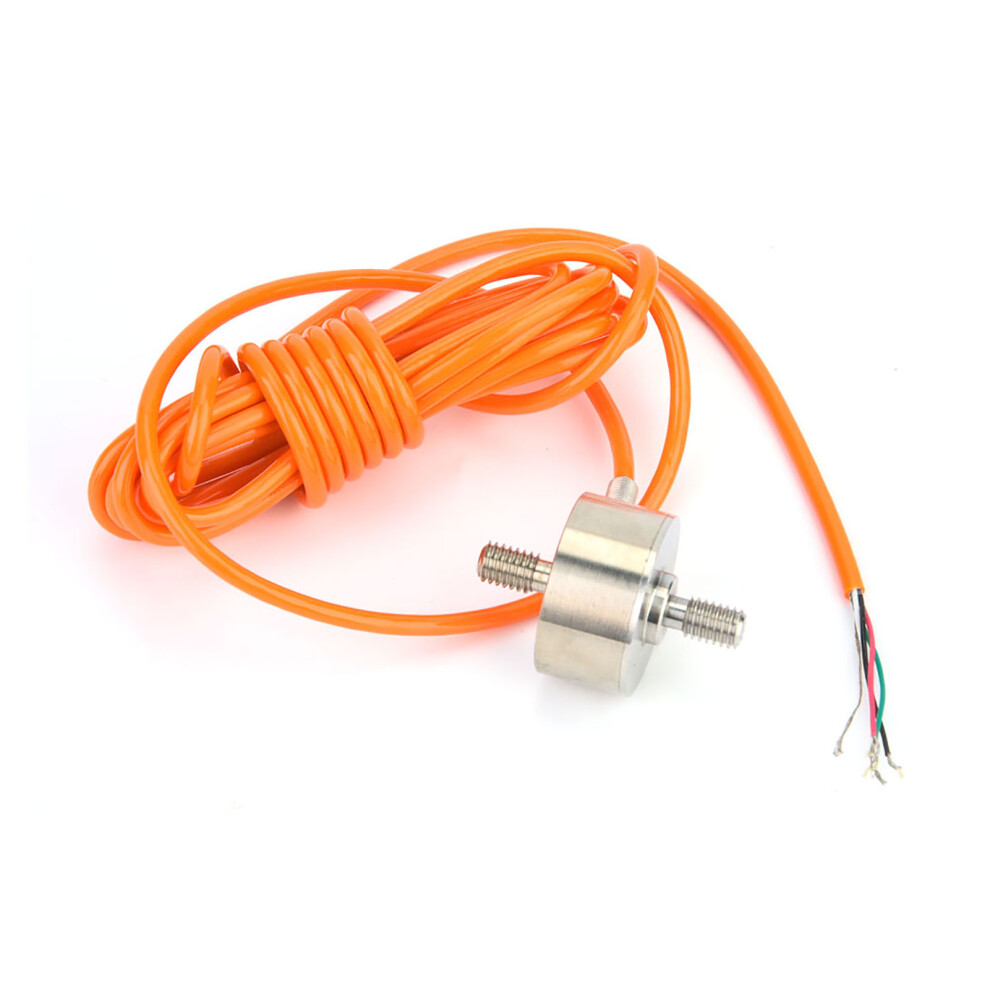

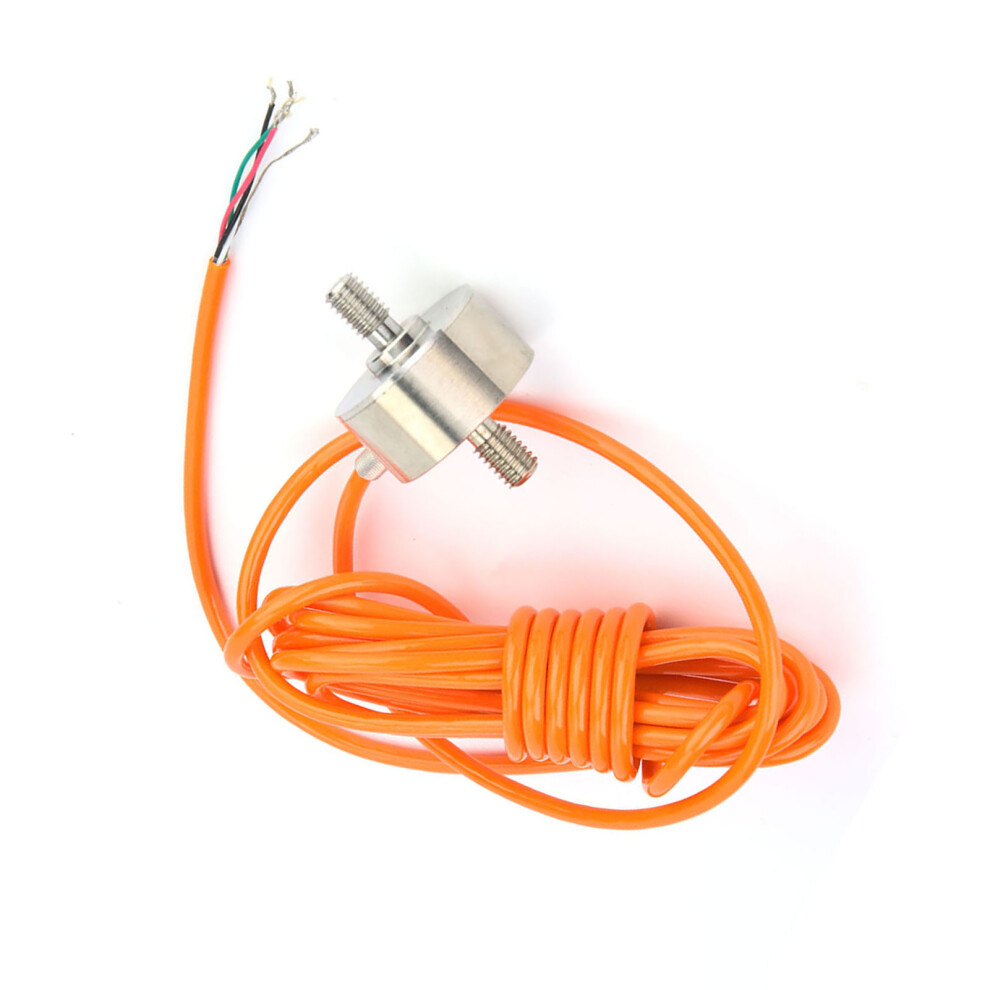

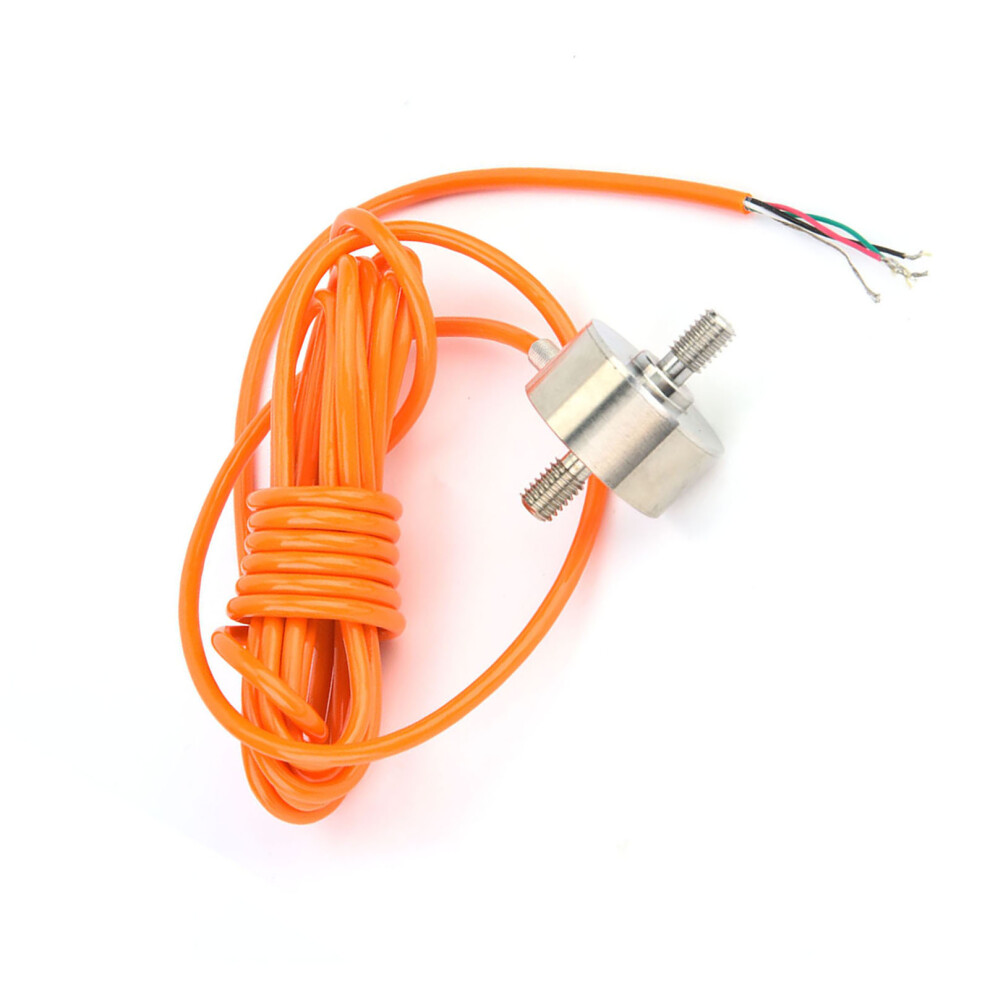

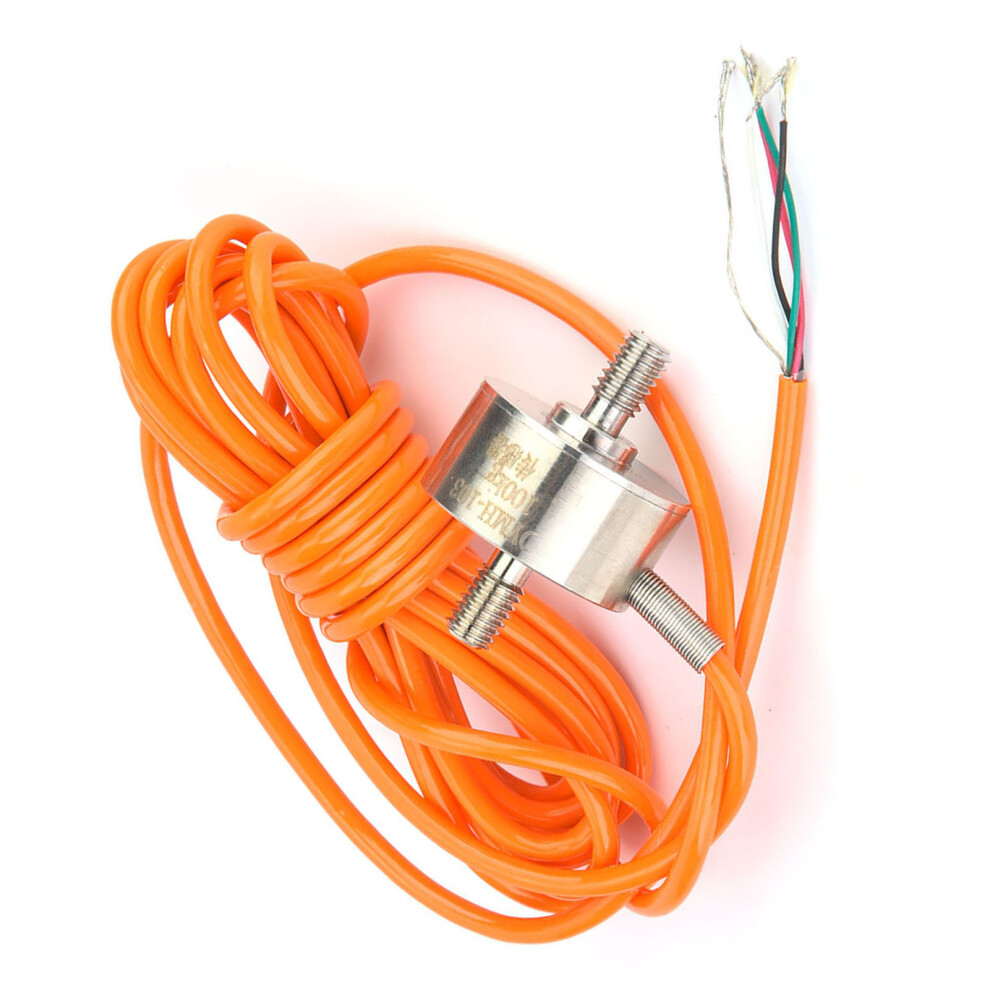

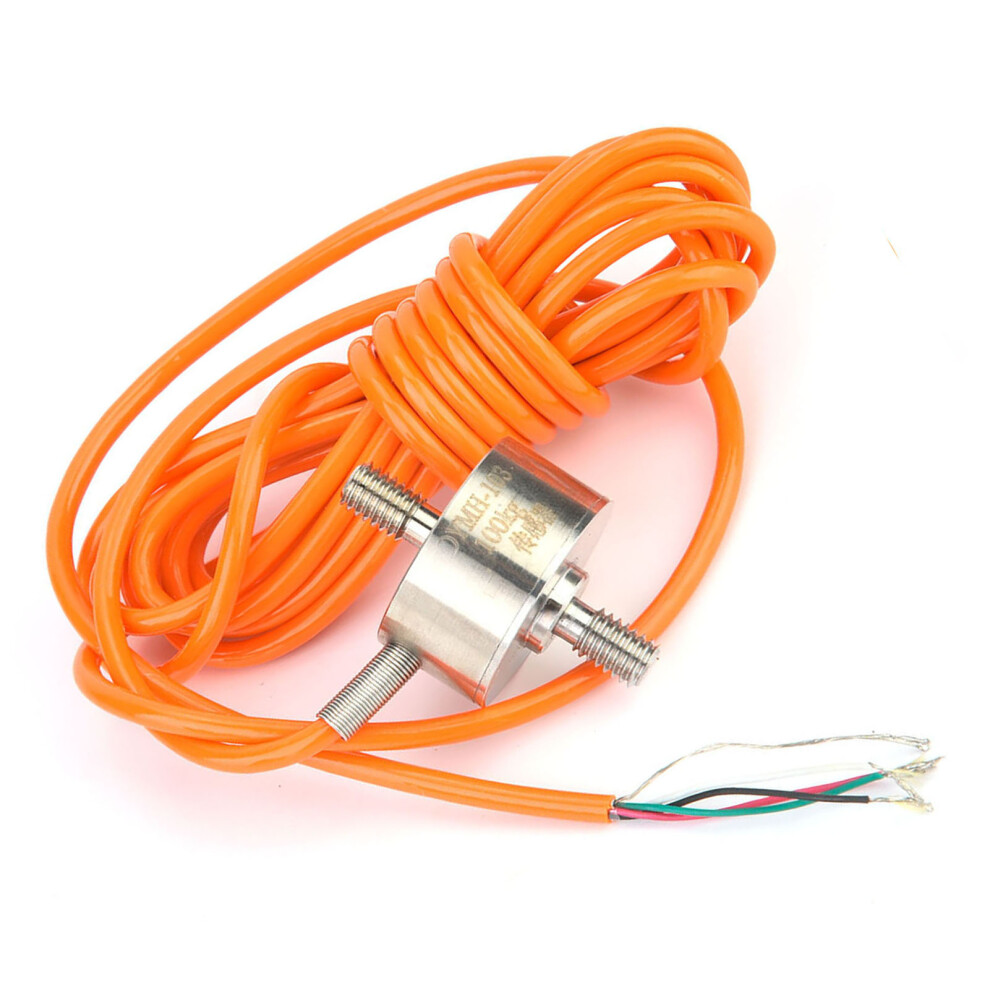

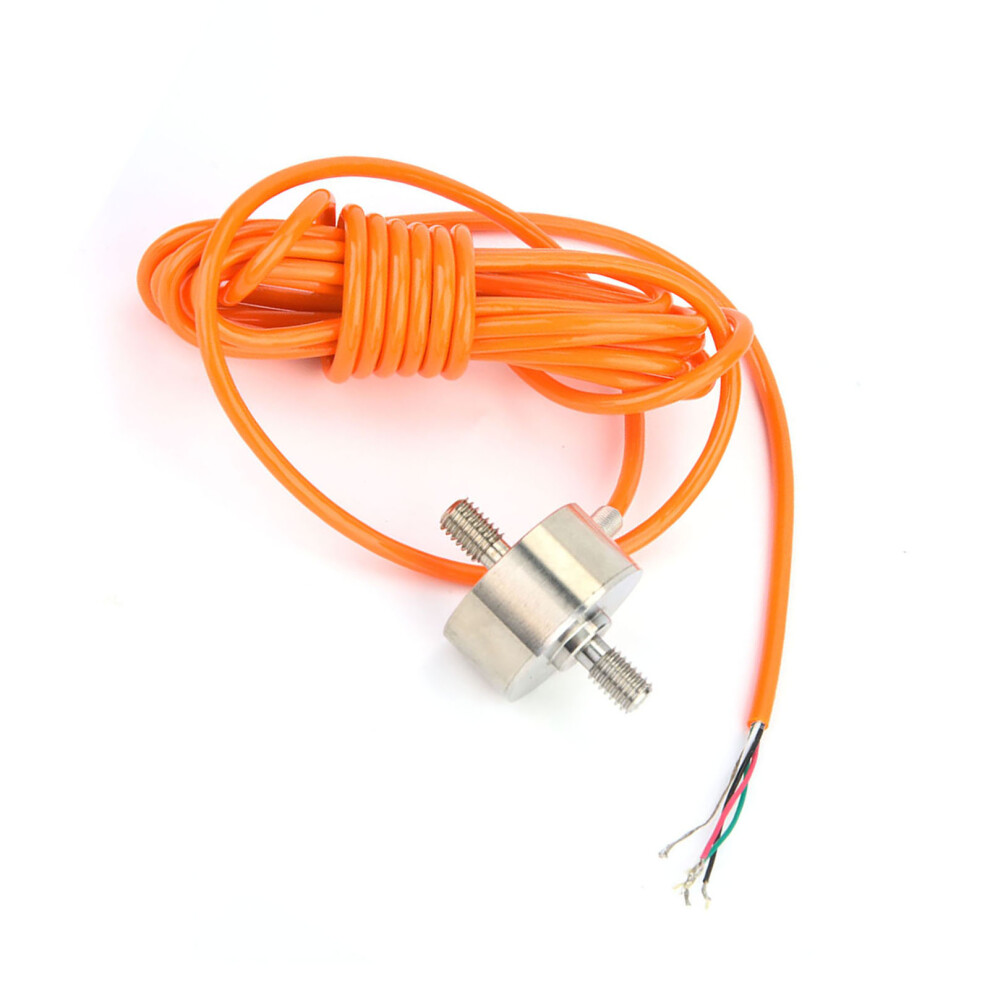

DYMH-103 Micro Miniature Load Cell Weighing Sensor Pull Rod Pressure Tension Sensor (0~100kg)
Features:
1. Made of stainless steel, strong resistance to mechanical fatigue, good hardenability.

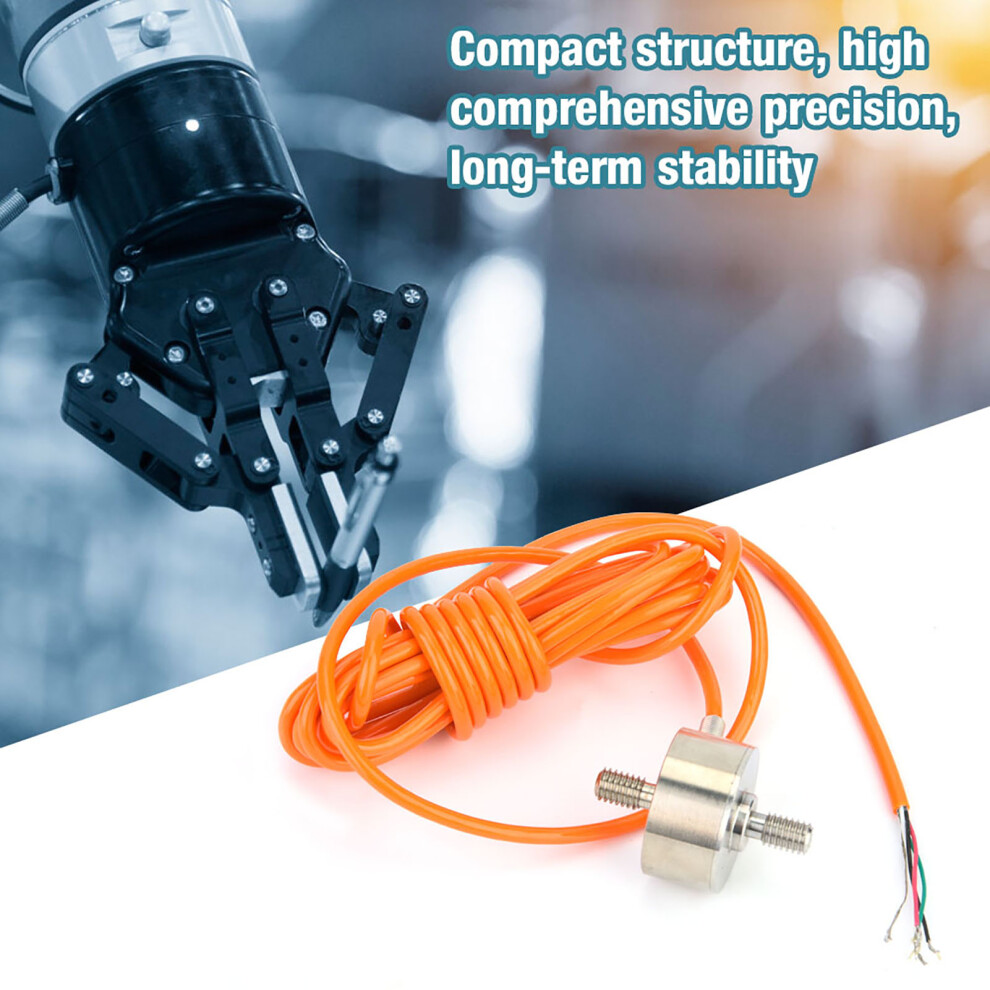

2. Compact structure, high comprehensive accuracy, long-term stability.
3. Features high accuracy, high sensitivity, high stability, and durable in use.
4. Used in manufacturing processes such as injection molding and extrusion.
5. Widely used in automotive press assembly, automated assembly, 3C product testing, new energy product assembly, robotics, mold assembly and other industrial automation testing.
Specification:
Condition:
Item Type: Load Cell
Output sensitivity: 1.0-1.510%mV/V (The sensitivity is subject to the factory debugging, each batch will be different, and the actual arrival shall prevail)
Zero output: 2% F.S
Nonlinear: 0.3% F.S
Lag : 0.03% F.S
Repeatability: 0.03% F.S
Creep (30 minutes): 0.2% F.S
Temperature sensitivity drift: 0.1% F.S/10C
Zero temperature drift: 0.1% F.S/10C
Material: Stainless steel
Resistance: 350Ω
Insulation resistance: 2000MΩ
Operating temperature range: -20~80C
Safe overload: 150%
Extreme overload: 200%

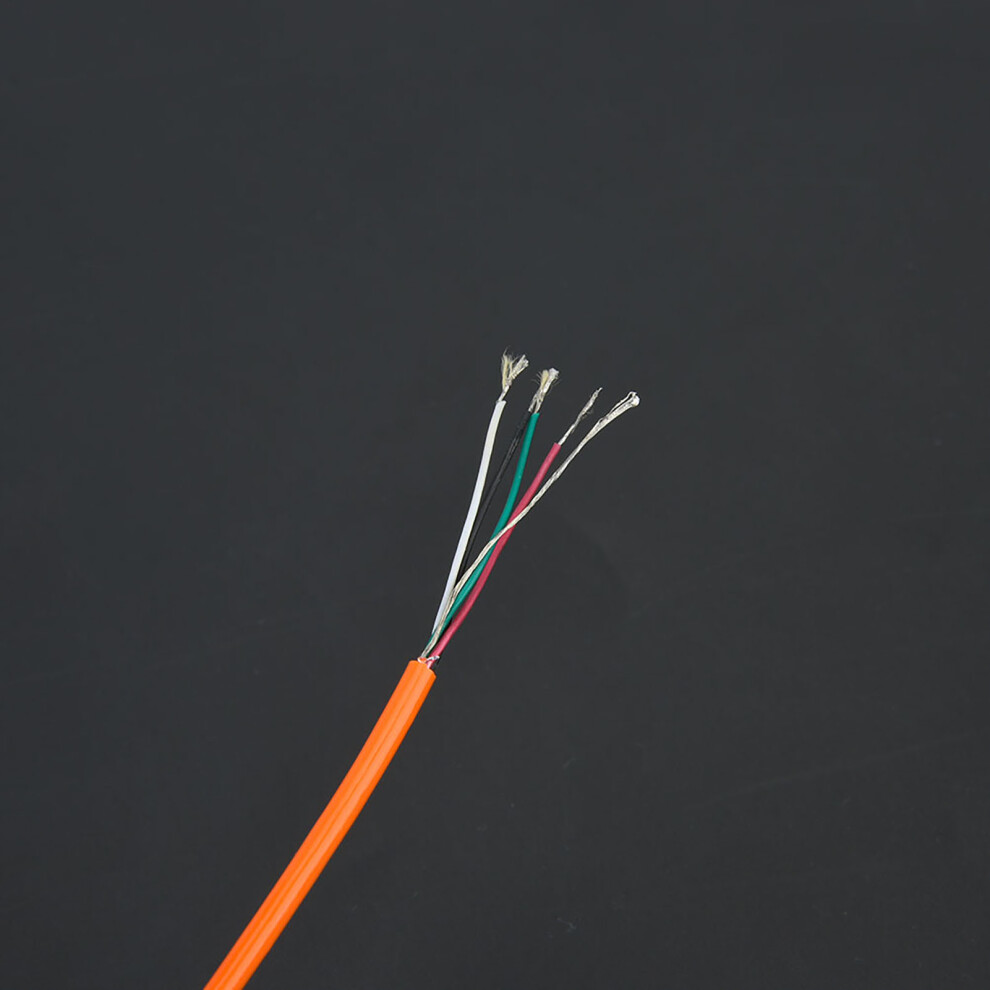

Cable connection: Ex+: red; Ex-: black; Sig+: green; Sig-: white
Package List:
1 x Load Cell
Note:

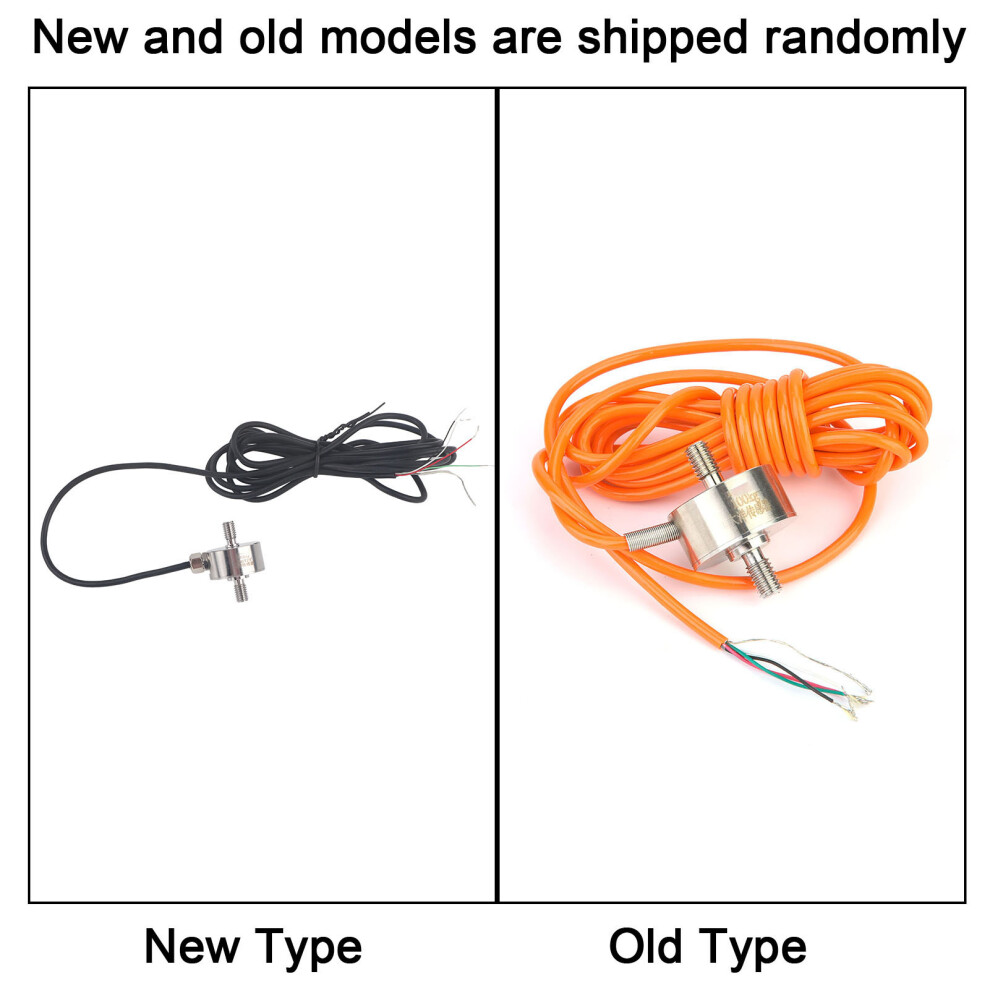

Please note that the new type and old type of this product will be sent randomly, and make sure you will not mind before ordering.
