Load Cell Sensor Column Industrial Garage Door

Load Cell Sensor Column Industrial Garage Door Description

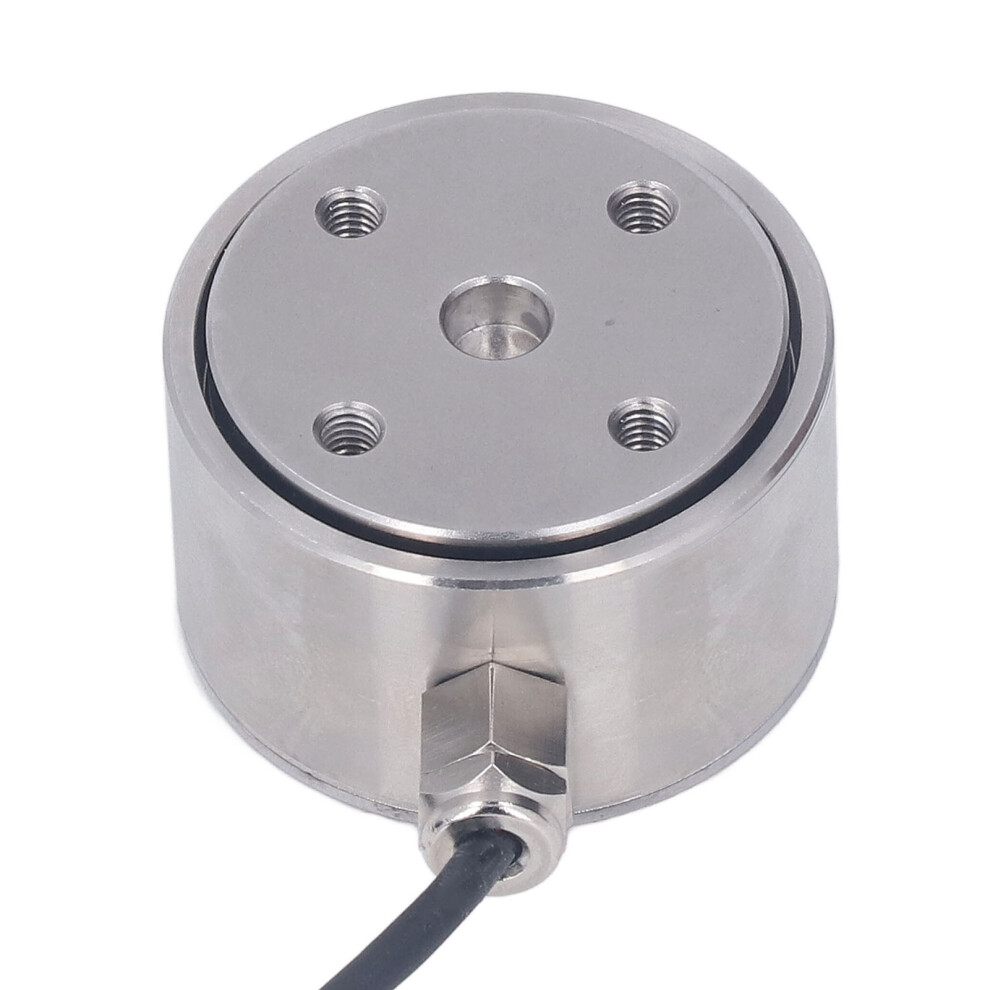

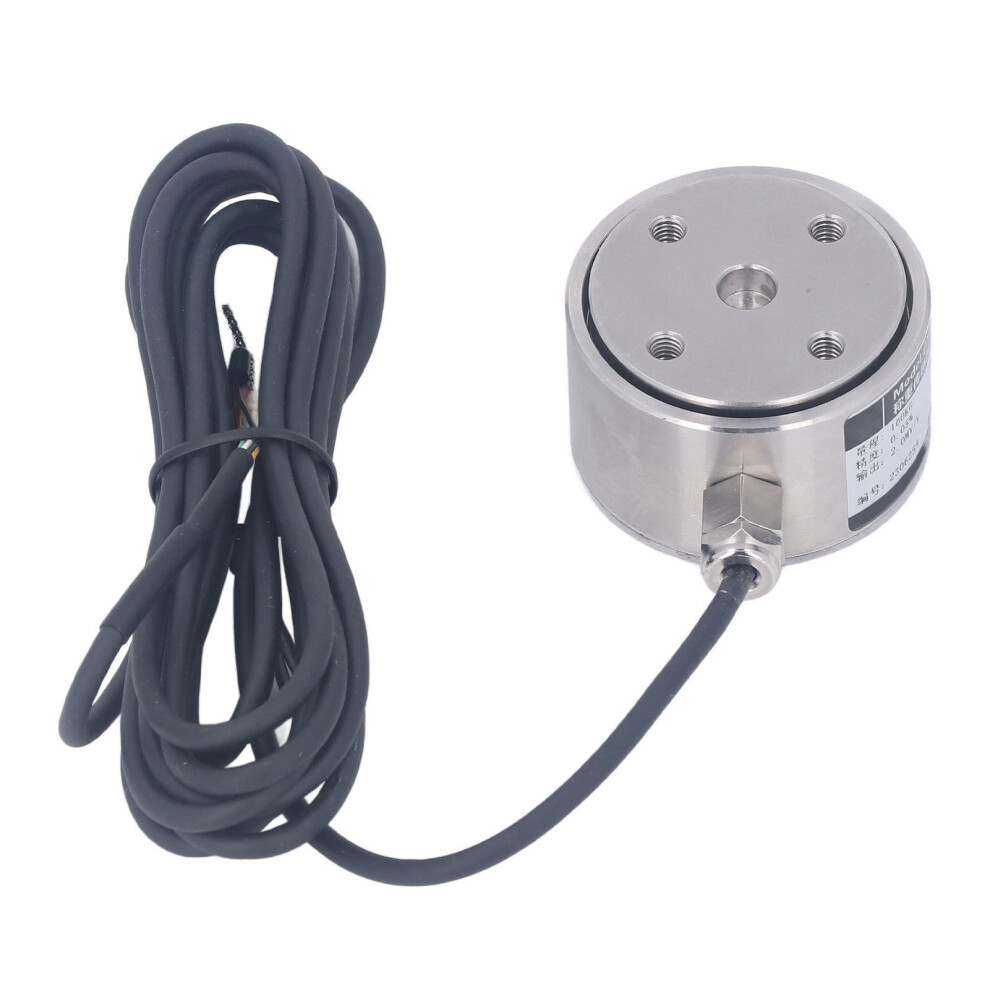

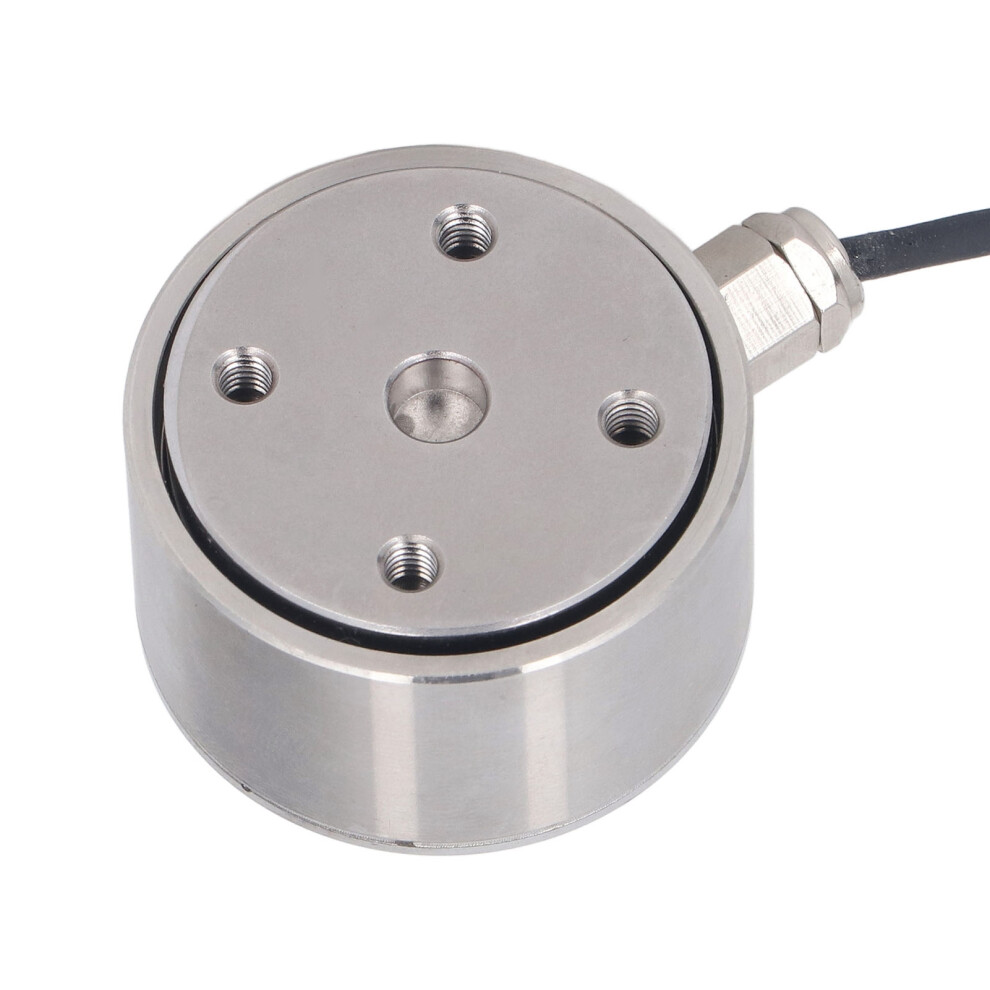

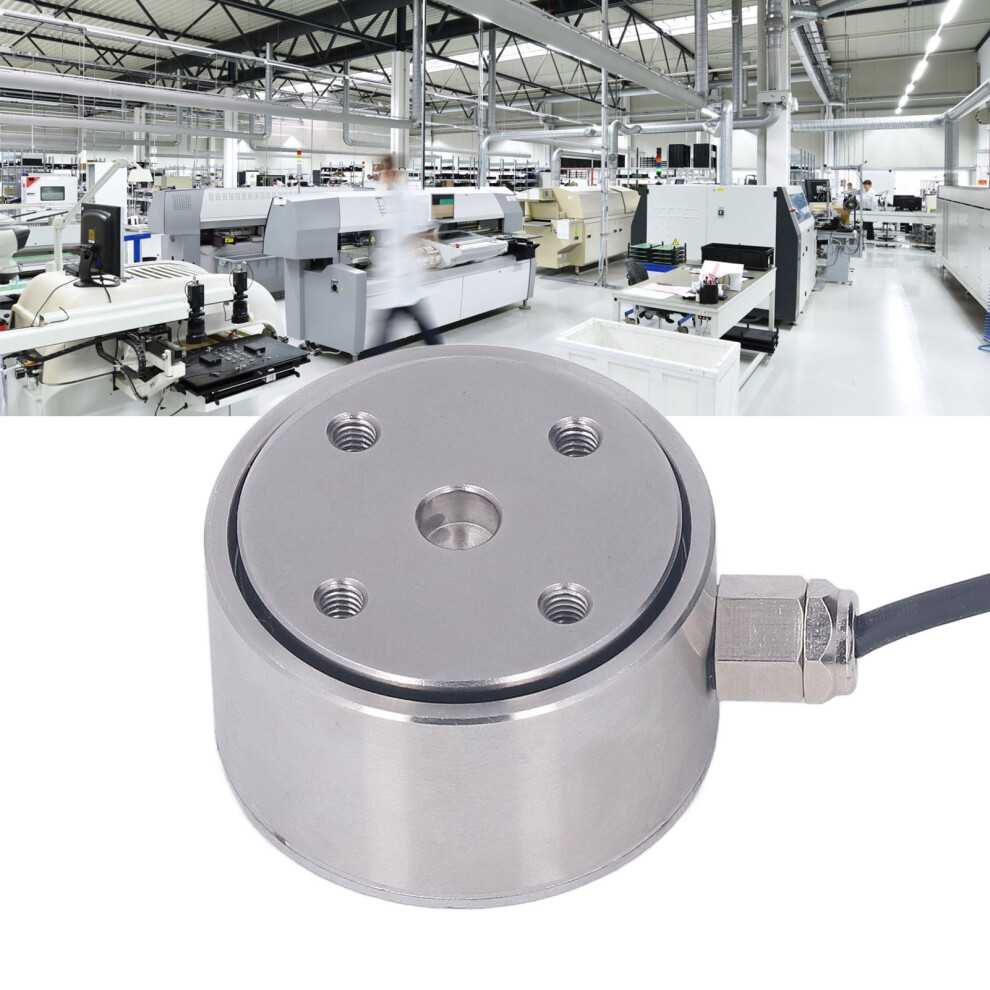

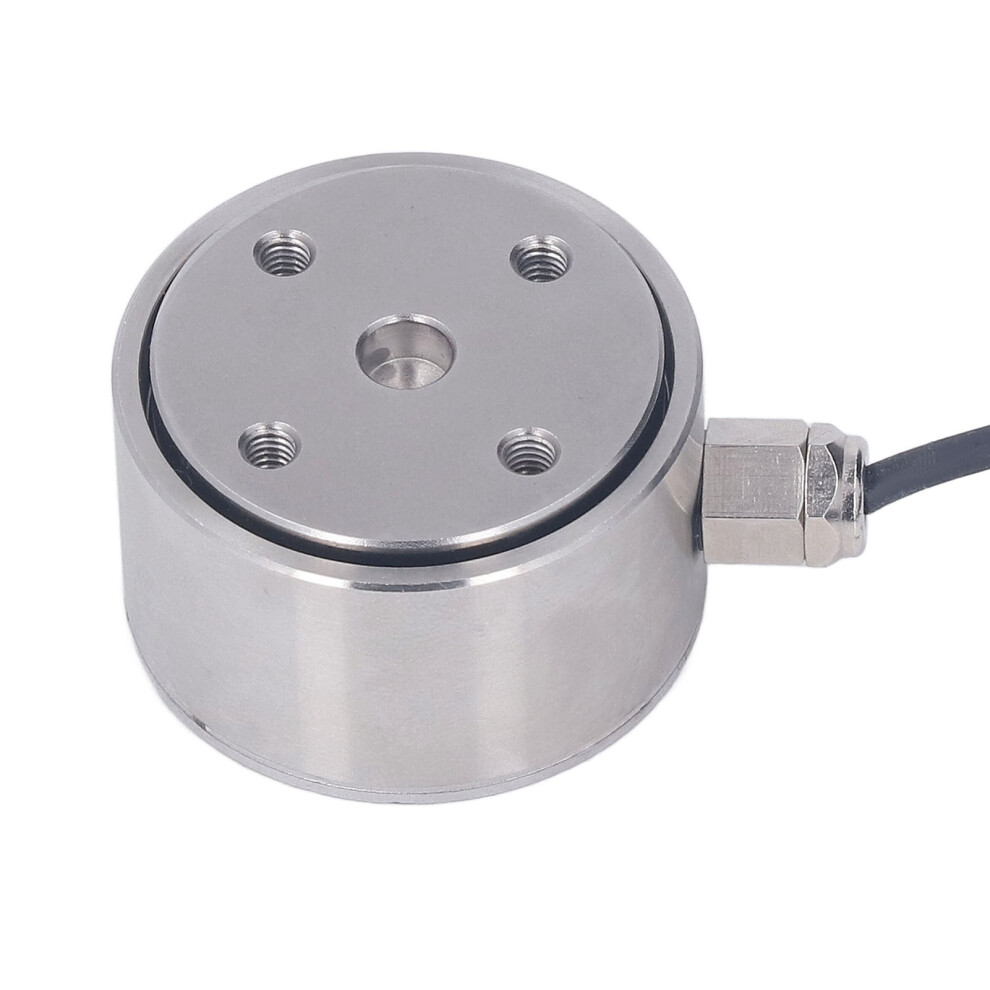

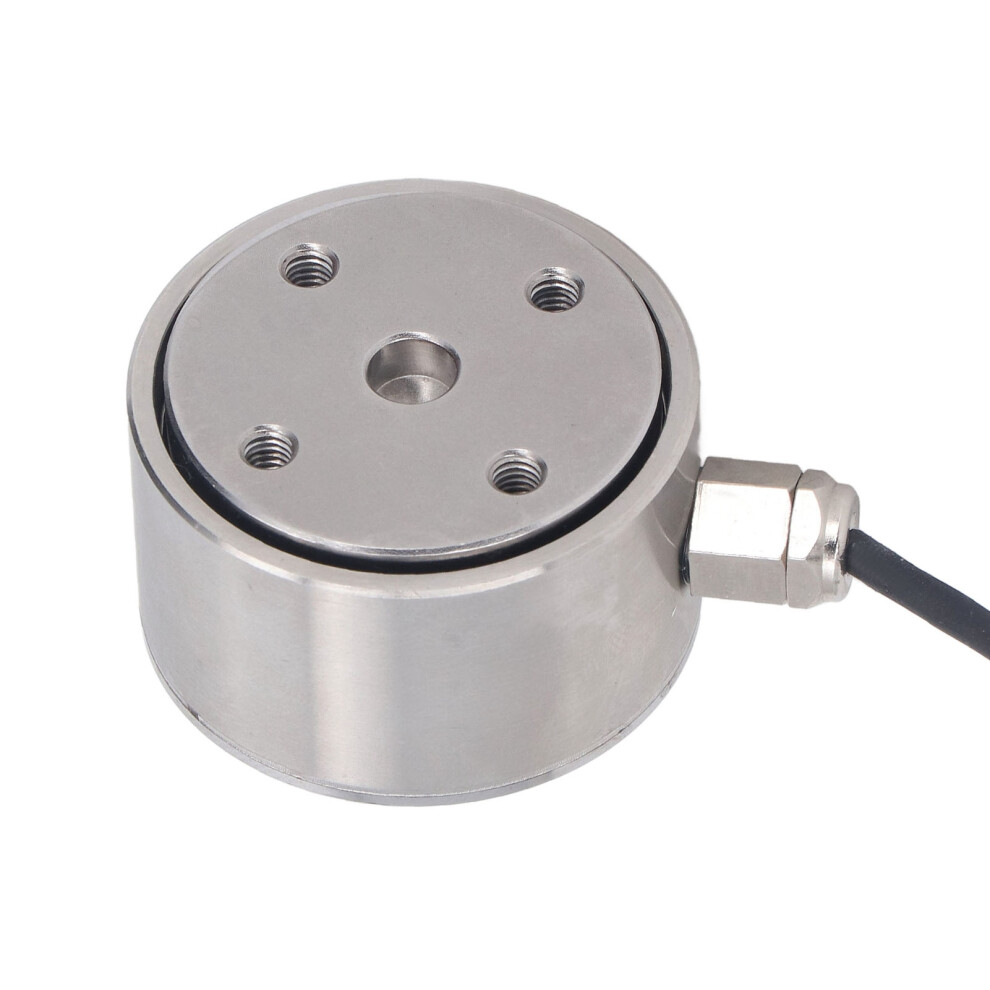

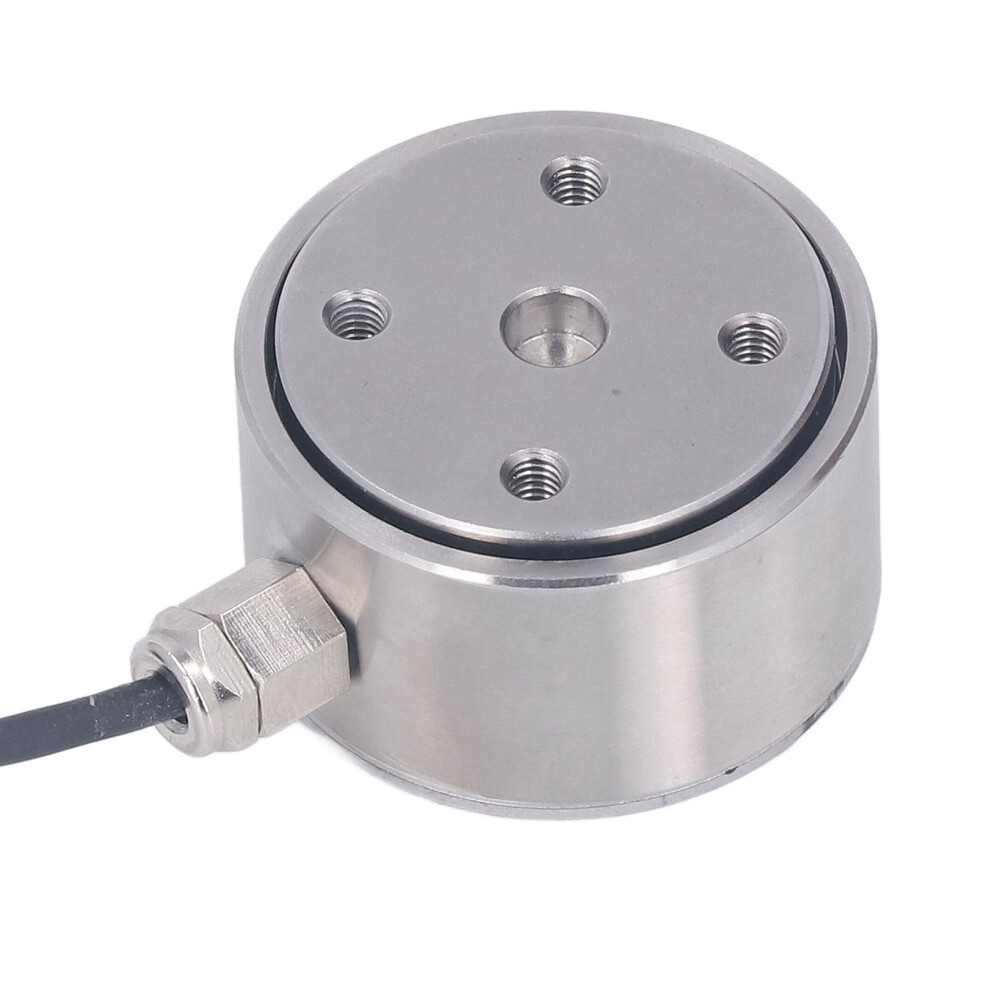

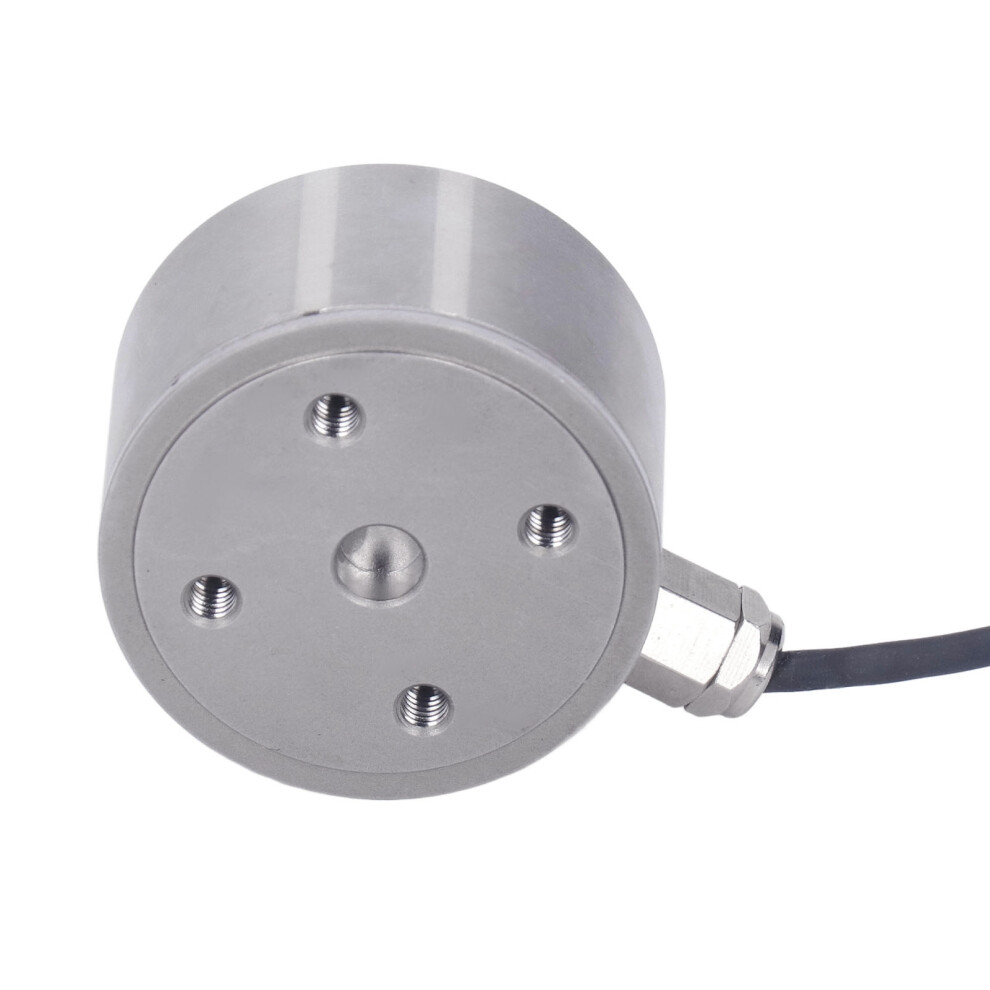

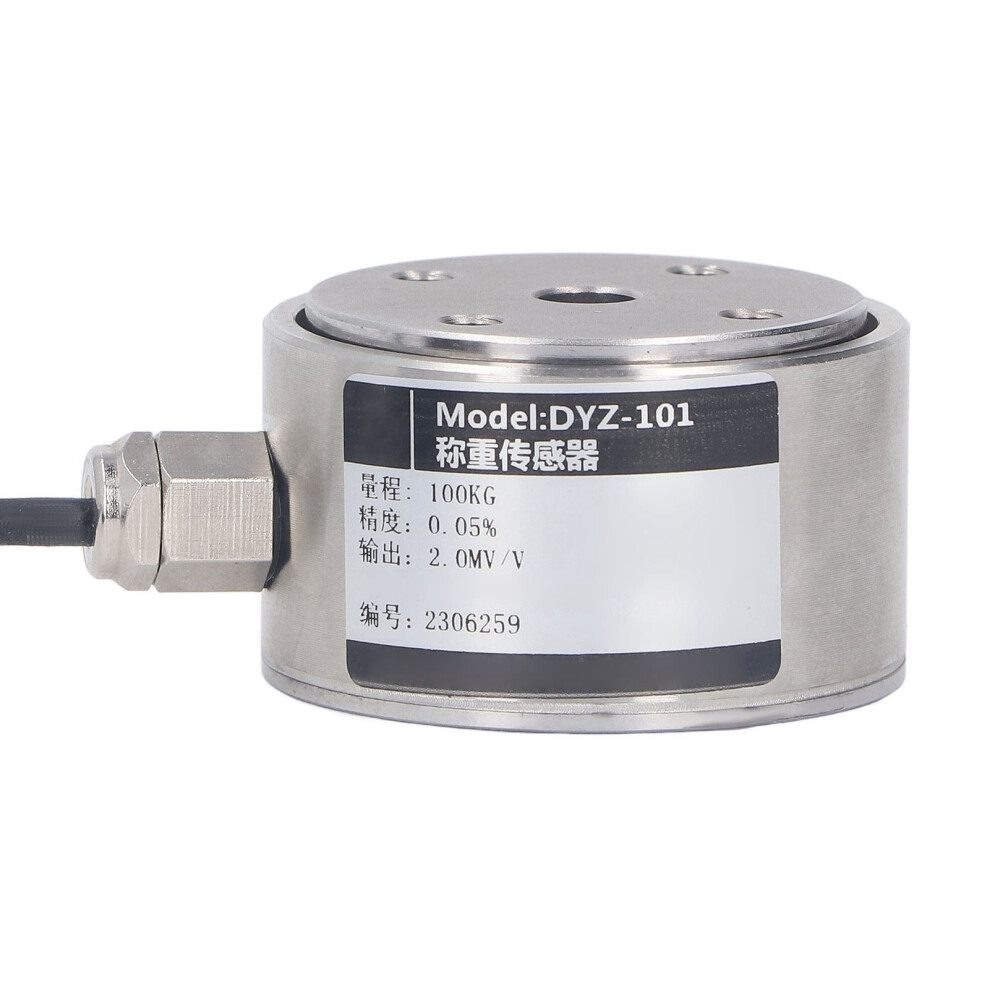

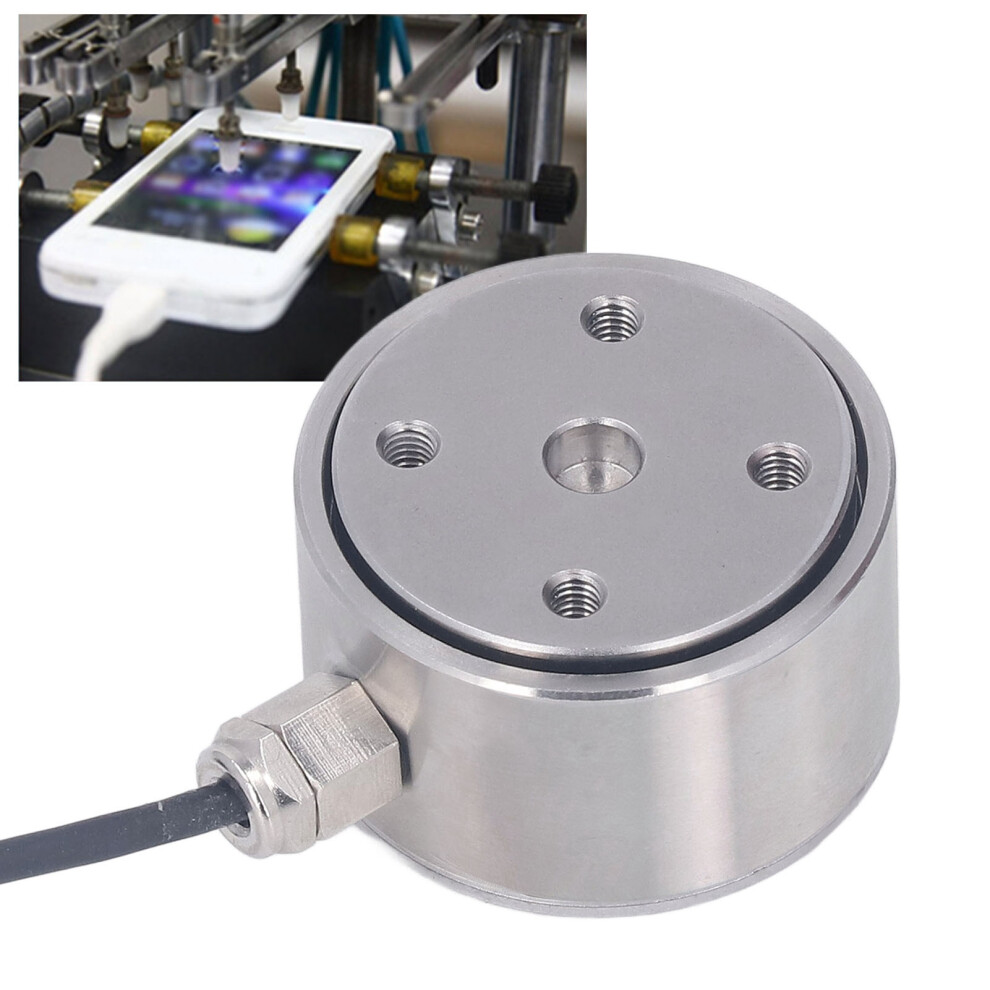

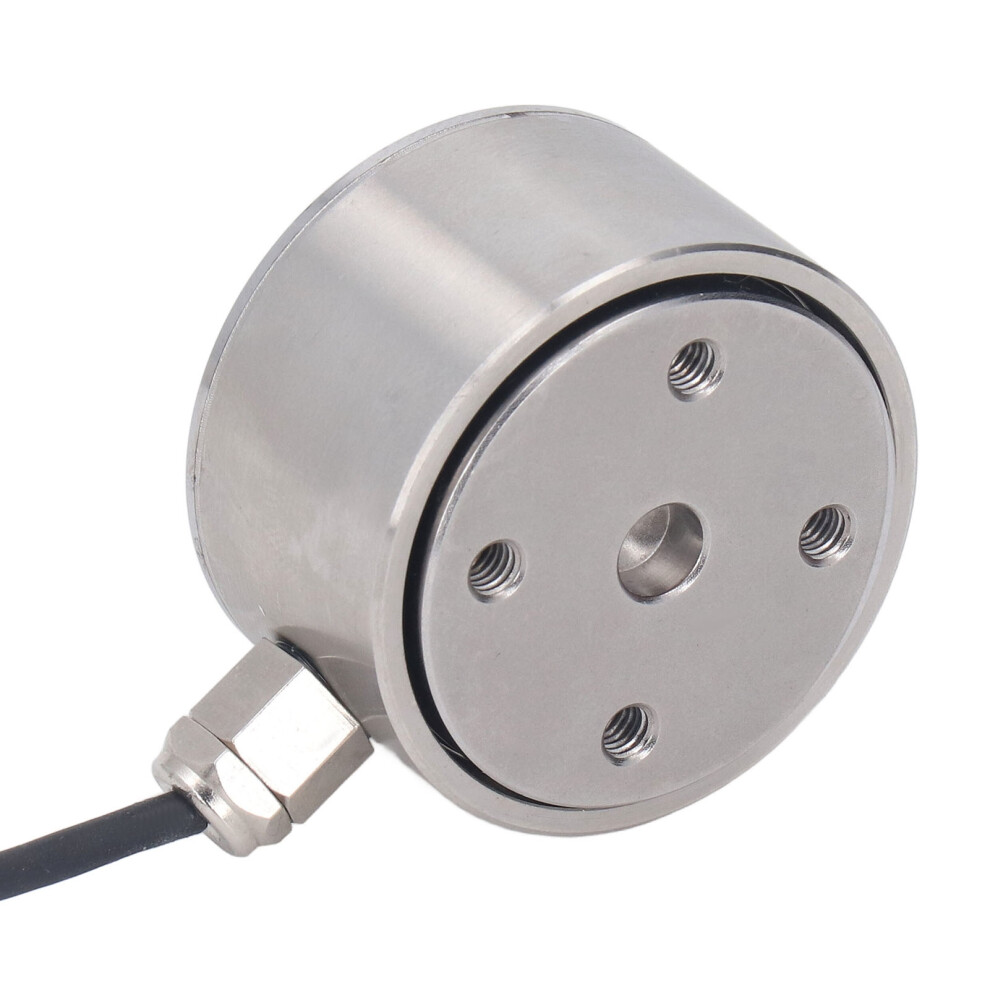

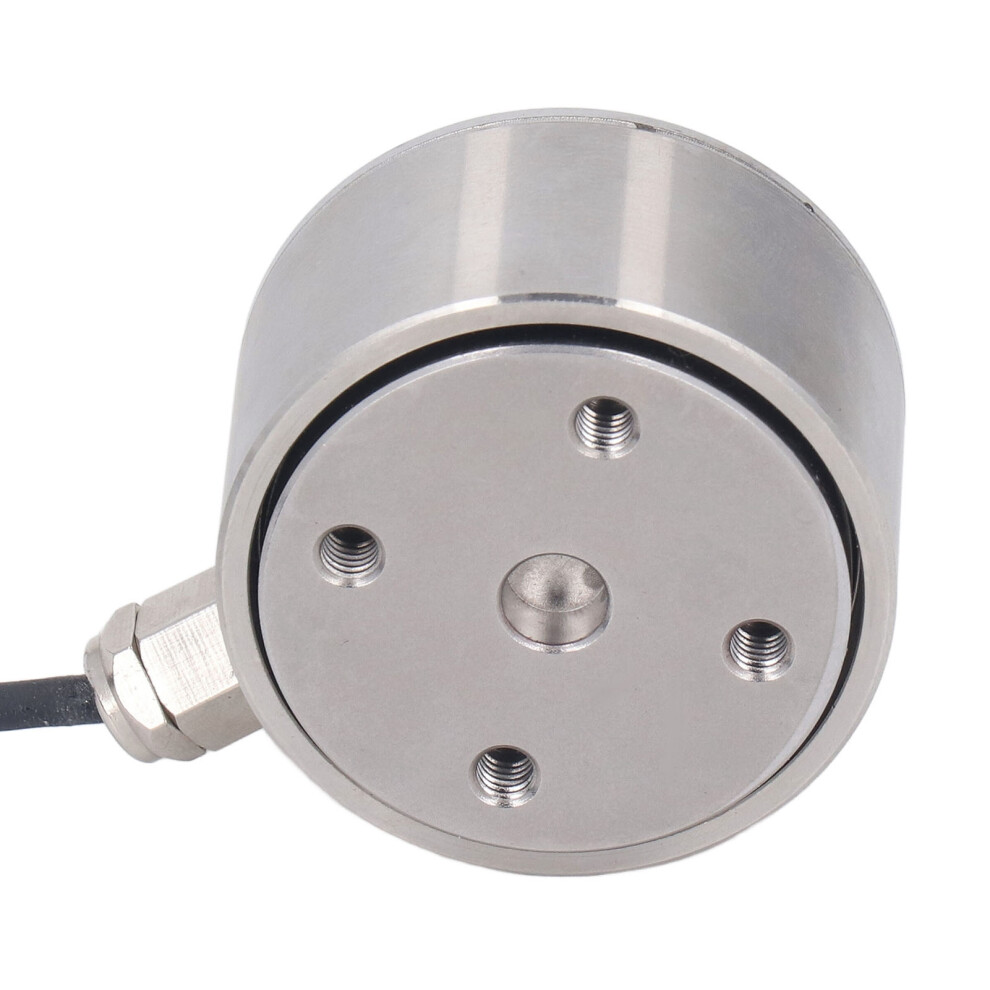

Load Cell Sensor Column Industrial Garage Door Weighing Pull Pressure Compression Tension Force Test 100KG



1、MAIN FEATURES: Load cell sensor has low height, large contact area, high comprehensive accuracy, easy installation 2、APPLICABLE SCENARIO: Weighing cell sensor is mainly applied to various electronic weighing equipment and tension testing equipment with large force area, such as pressing equipment, mobile phone assembly, small pressure platform, testing machine, pressing machine, oil press machine, hot and cold press machine, electronic hook scale, scale and so on 3、DURABLE MATERIAL: The load cell weighing sensor is made of excellent stainless steel, which is rust proof and corrosion resistant for more durability 4、WIDE APPLICATION: Column load sensor with high dynamic response, can be used for key feel tester, hot and cold press pressure detection, mechanical hand grip and other fields 5、SAFE AND STABLE: The safe overload of column weighing sensor is 150%F·S, the insulation resistance is 5000MΩ(50VDC), and the long term stability is good



Item Type: Load Cell Sensor Sensitivity: 1.0-2.0mV/V Nonlinearity: 0.5%F·S Lag: 0.1%F·S Repeatability: 0.05%F·S Creep: 0.1%F·S/30min Zero Output: 1%F·S Zero Temperature Coefficient: 0.1%F·S /10 Temperature Coefficient of Sensitivity: 0.1%F·S/10 Operating Temperature Range: -20+80 Input Resistance: 40020Ω Output Resistance: 3505Ω Safe Overload: 150%F·S Insulation Resistance: 5000MΩ(50VDC) Recommended Excitation Voltage: 10V-15V



1 x Load Cell Sensor
