Load Cell Spoke Type Weight Weighing Sensor High

Load Cell Spoke Type Weight Weighing Sensor High Description

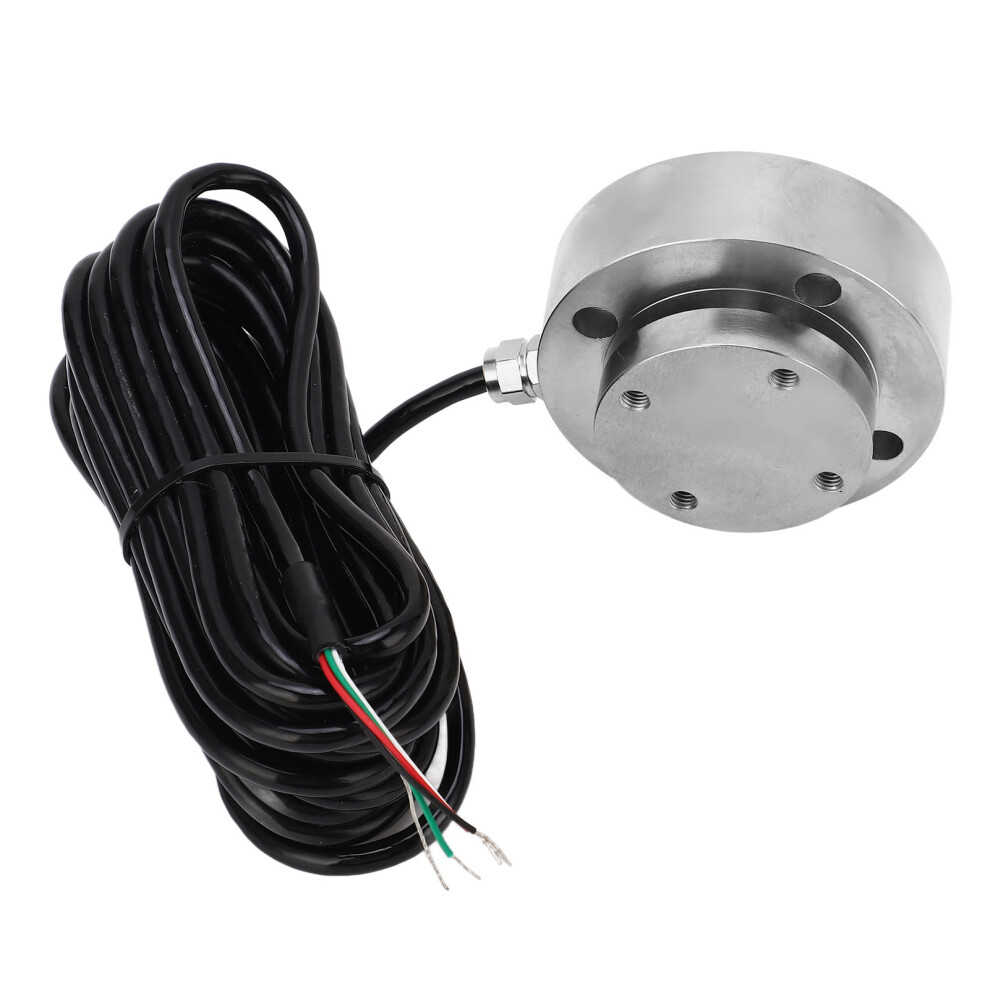

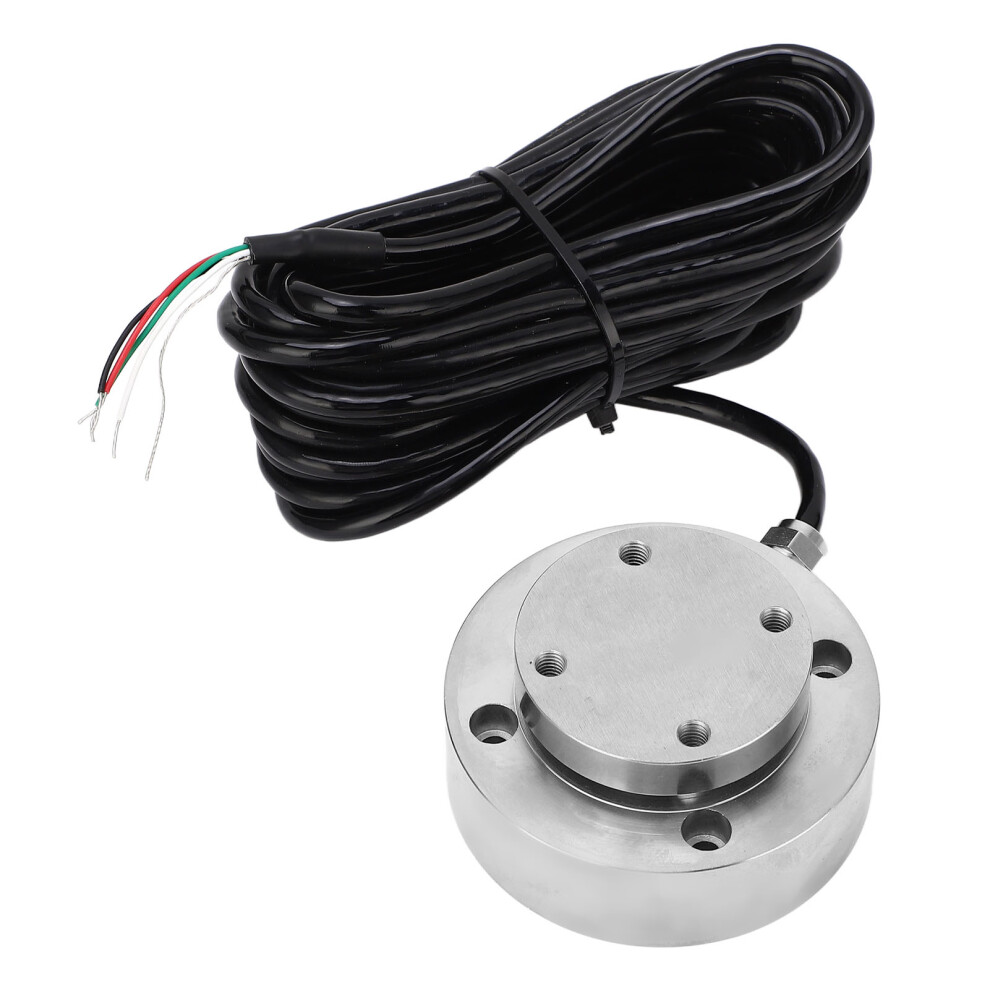

Load Cell Spoke Type Weight Weighing Sensor High Accuracy for Automation Control



1、High in Accuracy: With a wide weighing range of 500KG to 1T, this spoke type load cell has small creep, small thermal hysteresis and good stability. 2、Wide Application: Widely used for force measurement in industrial systems and industrial automatic measurement and control systems and so on. 3、Premium Features: Designed to have anti eccentric load capacity, high accuracy, good strength, convenient installation, etc., very reliable. 4、42CrMoA Material: The selected elastomer 42CrMoA alloy steel has strong mechanical fatigue resistance and good hardenability, durable for work. 5、Stable Operation: The IP66 waterproof hex connector also has buffer spring to prevent the wire from pulling and breaking, and not easy to be damaged.

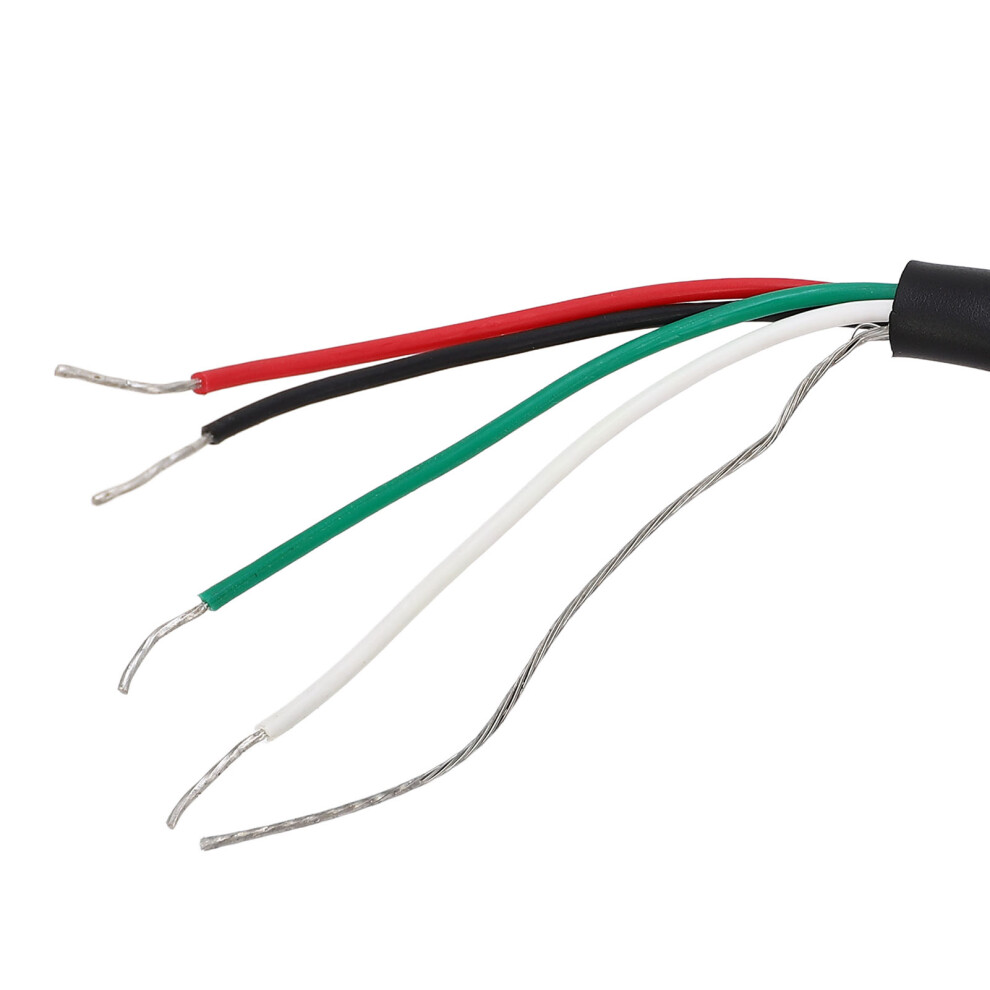

Item Type: Load Cell Model: DYLF-106 Material: Nickel Plated Alloy Steel Product Use: It is widely used for force measurement in industrial systems and industrial automatic measurement and control systems for various weighing and force measurement, such as crane scale, rail scale, scale, servo press, tank weighing, etc. Rated Range: Approx. 500 ~ 1000 kg / 1102.31 ~ 2204.62 lb Output Sensitivity: 2mv/V 0 Point Output: 1% F.S Nonlinearity: 0.2% F.S Lag: 0.2% F.S Repeatability: 0.2% F.S Creep in 30 Minutes: 0.2% F.S Temperature Sensitivity Drift: 0.3% F.S./10 0 Temperature Drift: 0.1% F.S./10 Response Frequency: 1kHz Material: 42CrMoA Impedance: 700 5 Ω Insulation Resistance: 2000M Ω Power Supply Voltage: 5~15V Operating Temperature Range: -20~ 80 Safety Overload: 150% R.C Limit Overload: 200% R.C Cable Specification: Approx. 5mm / 0.2in diameter, 5m / 16.4ft length. Cable Ultimate Tension: 98N



1 x Load Cell
